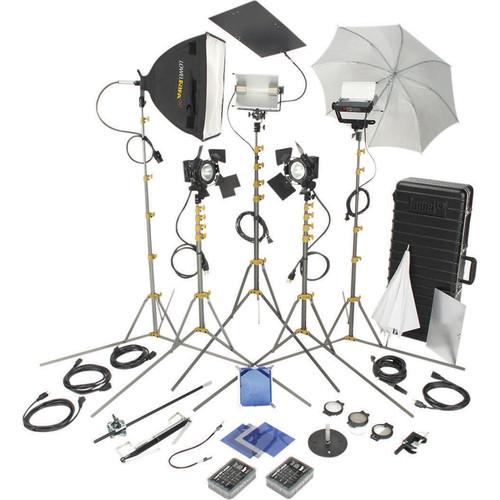

User Manual for Lowel DV Pro 55 Kit with TO84Z Case Click to enlarge the picture
Contents of the user manual for the Lowel DV Pro 55 Kit with
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel DV Pro 55 Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

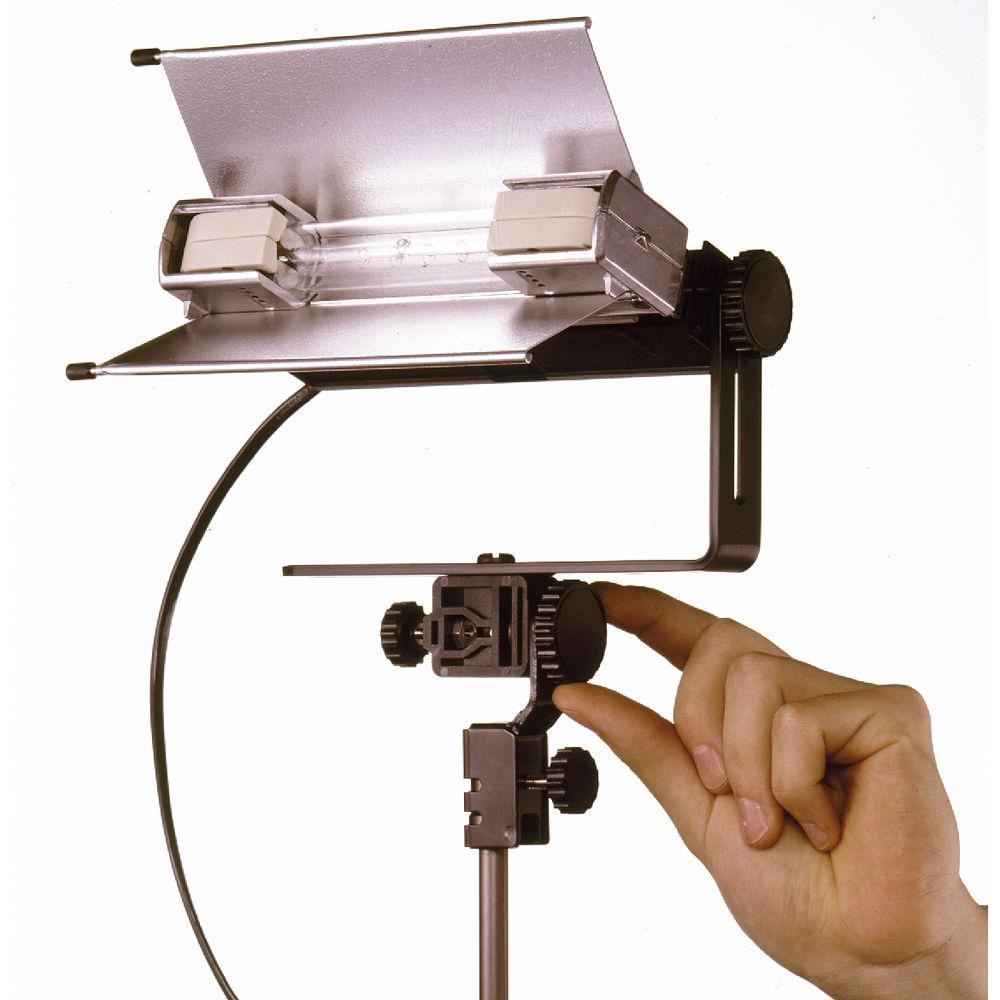

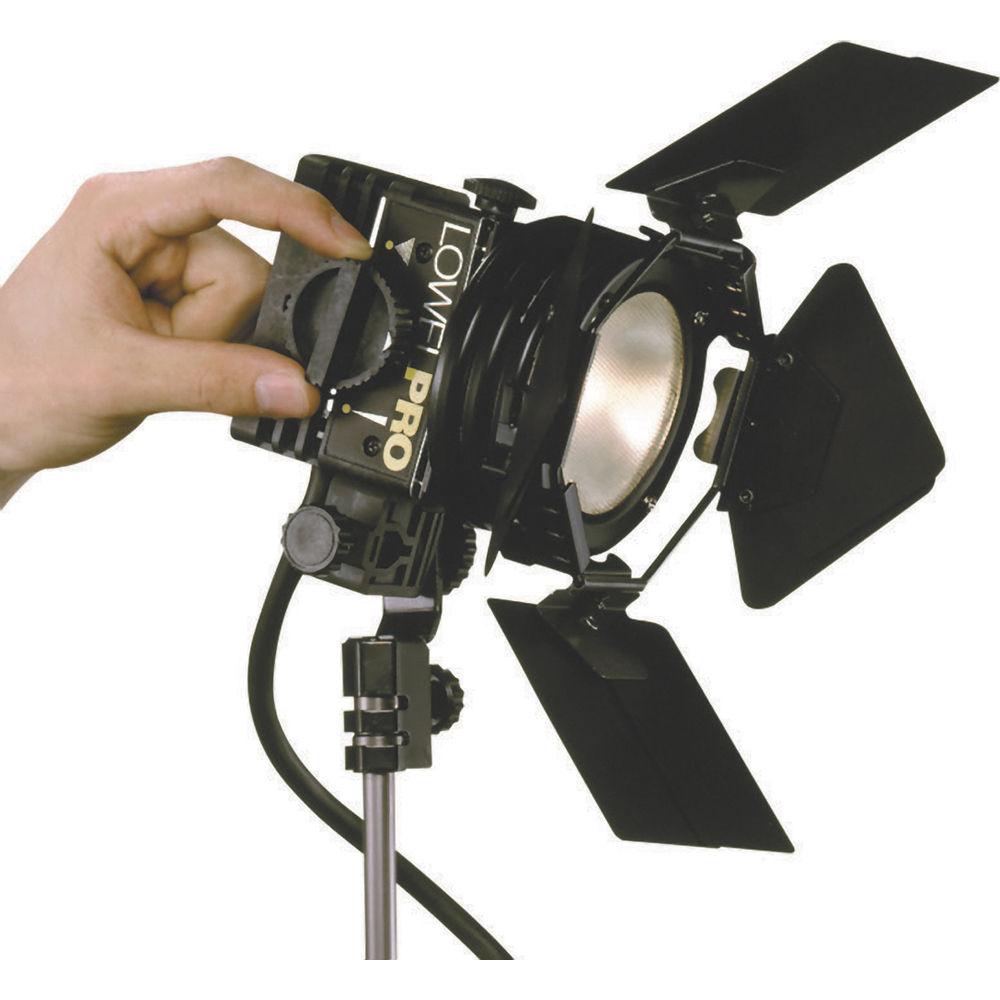

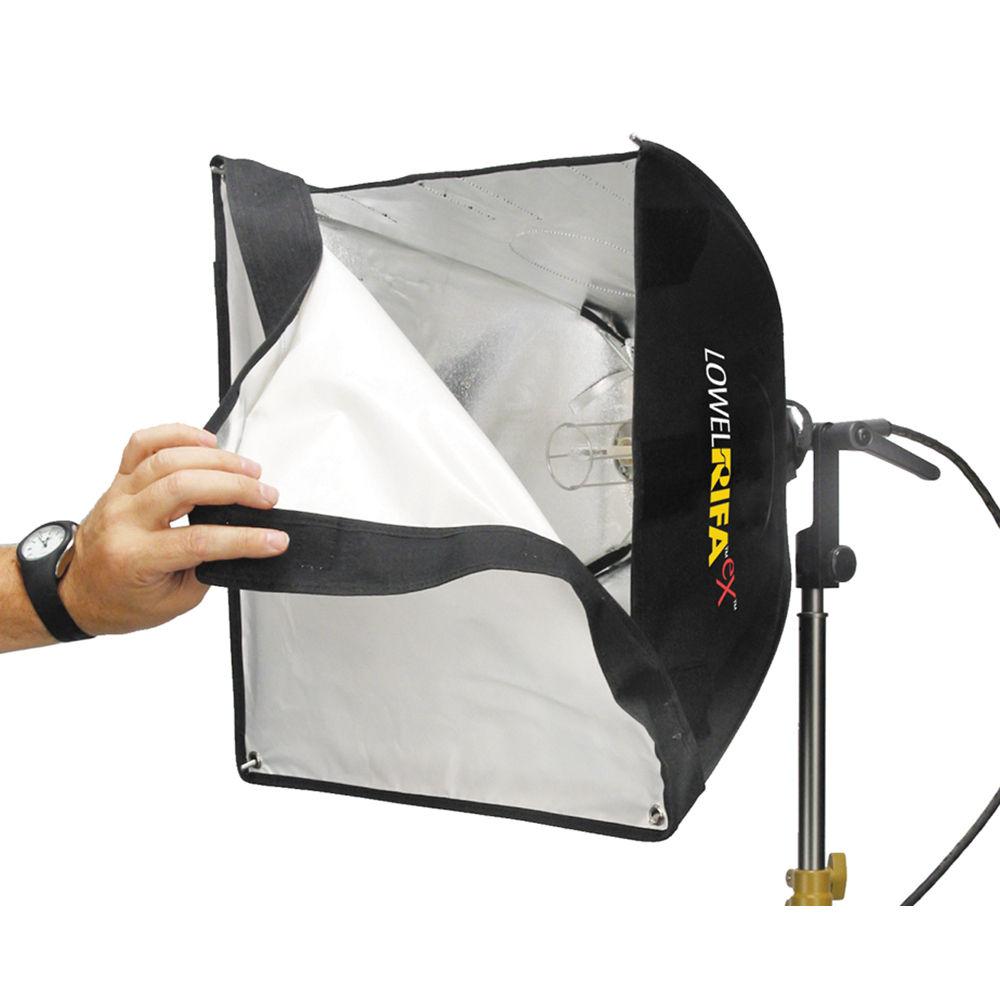

Product description This Lowel DV Pro 55 Kit with TO84Z Case five-light kit features plenty of accessories to alter the shape, color, and intensity of the lights. It has light stands and a large kit case to hold it all. The Rifa-Lite EX 55 is a compact, self-contained, 21 x 21", 500W, collapsible softlight that uses an umbrella design allowing set-up in 60 seconds or less. Choose between low- or high-wattage halogen and screw-in fluorescent or incandescent lamps using different modules (available separately). Bathe almost anything in soft light, from talking heads to table-top stills. It's the perfect complement to today's compact, light-sensitive digital cameras and film stocks.With its high intensity #2 reflector and prismatic glass, the tiny, focusable Pro-Light is more efficient than a Fresnel of equal wattage, yet it gives an even light with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight. Powerful enough to light a small room, yet small enough to fit in a large pocket, the V-Light can be used as a broad key light, a fill light (with an umbrella or diffusion gel), a backlight, or a background light. It's also excellent for copy work. - The Pro-Light and Rifa-Lite quick-change power cords easily convert for use with professional battery belts, allowing them to work at 12, 14, and 30 VDC in addition to 120 and 230 VAC
- Use the included light modification devices to alter the color, intensity, quality, and shape of the light

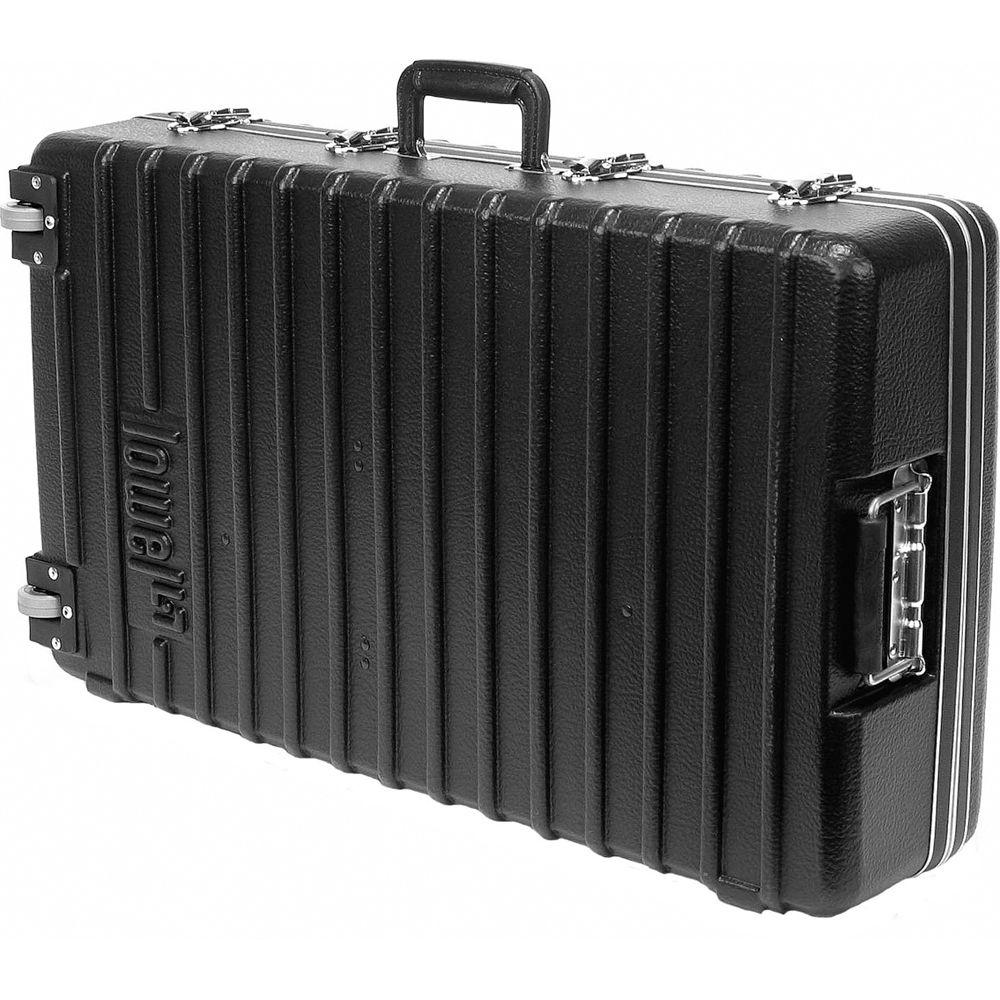

- The large TO-84z Tota-Omni kit case holds everything safely, including the light stands, for storage and transport

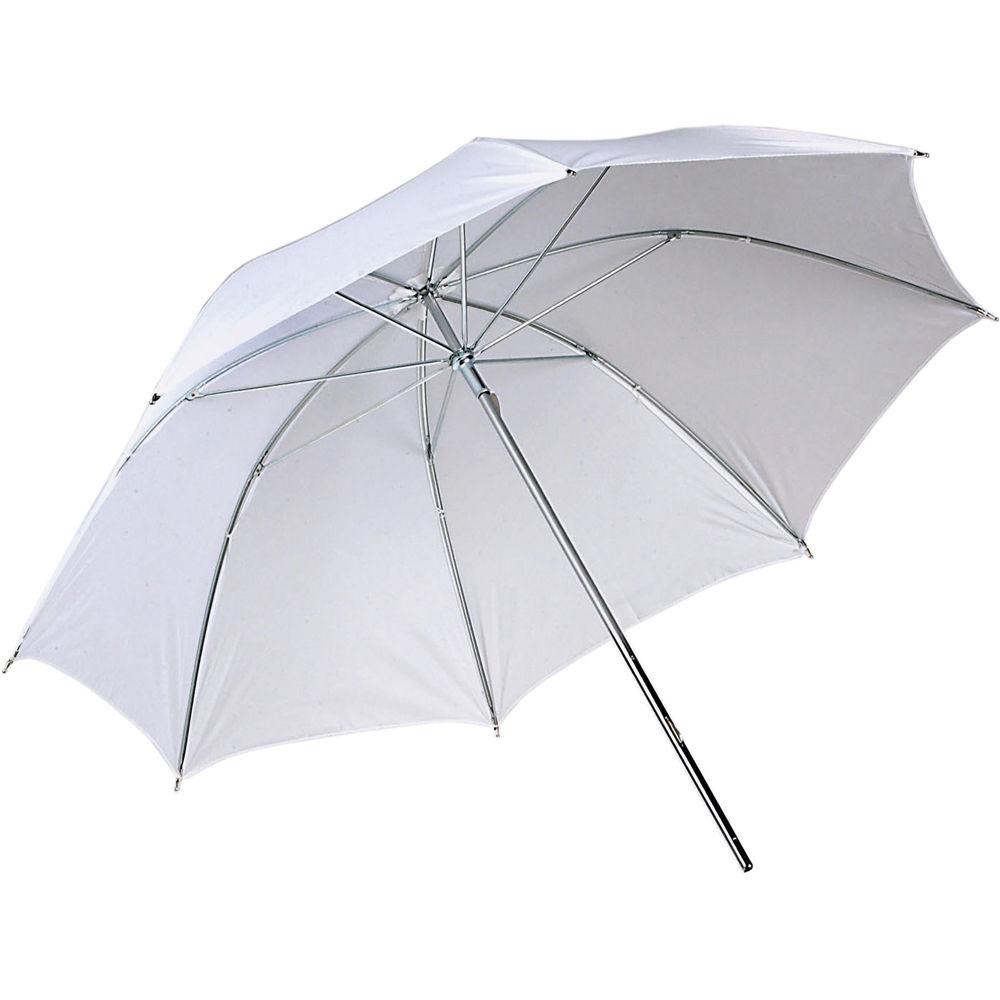

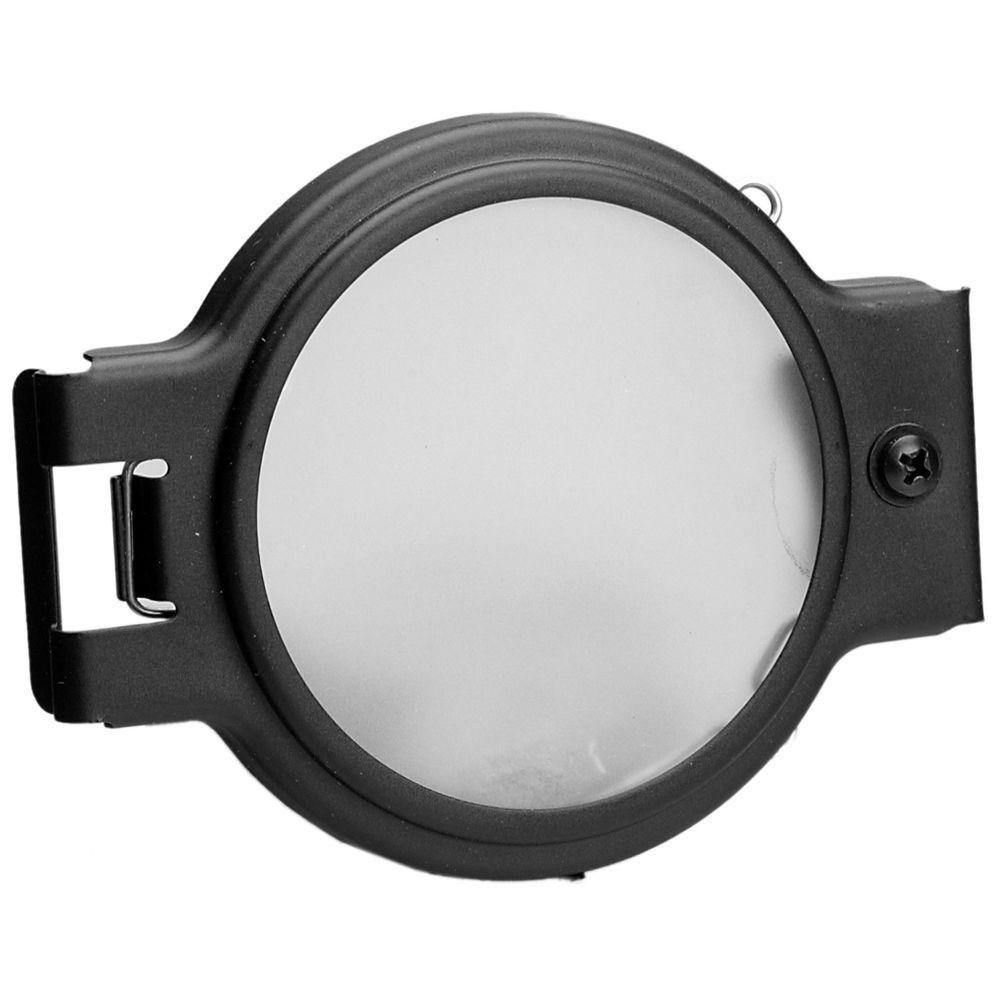

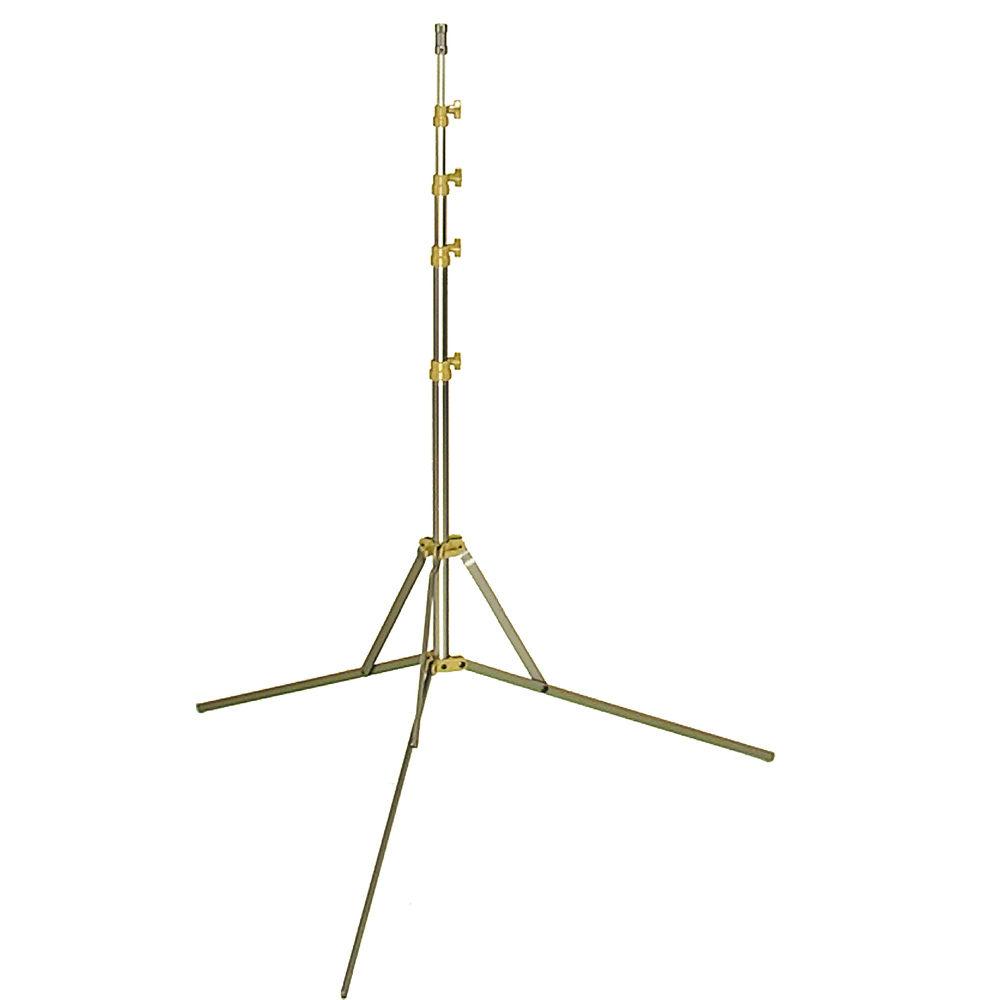

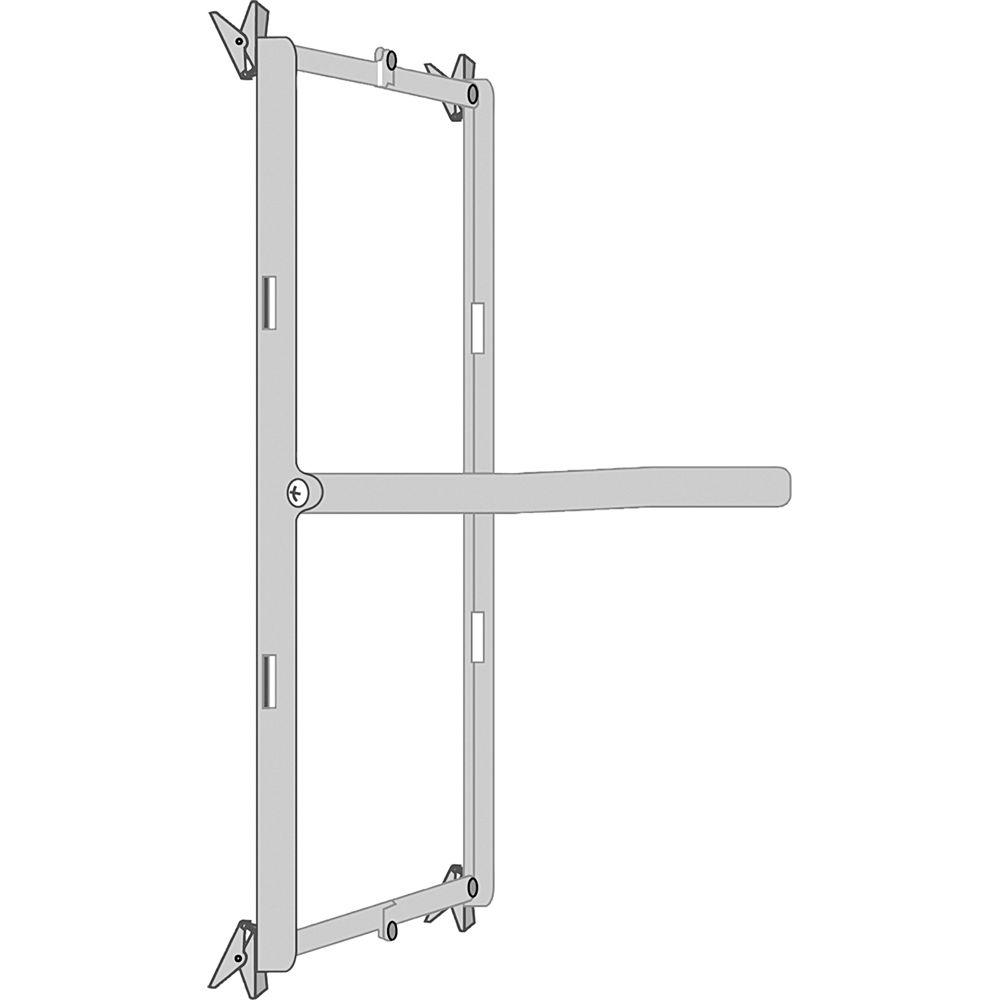

UPC: 841274002655 In the Box Lowel DV Pro 55 Kit with TO84Z Case 2 x ViP Pro-Light (120 VAC / 12 VDC) bqeszsfbteytwyrx 2 x FVL Lamp - 200 Watts/120 Volts 2 x Complete Four Leaf Barndoor Set for Pro, i-Light 2 x V-Light 500 Watt Tungsten Flood Light (120-240VAC) 2 x GDA Lamp - 500 Watts/120 Volts LC55EX Rifa-Lite eX 500 Watt Softbox Light (120-240 VAC) EHC Lamp - 500W/120V 4 x Uni-Stand (7.9') Uni TO Dual Light Stand (7') Tota/Omni Gel Frame for 10x12" Gels White 27" Tota-Brella Pro/i-light Gel Frame 2 x IP-L Assorted Gels (5-Pack) Pro & i Clear Safety Glass bqeszsfbteytwyrx Diffused Glass with Holder for Pro & i-Light Flexi-Shaft - Pack of 2 Tota-Flag (8 x 12") Tota-flector 8x12" Tota-Tatch Lobo Arm and Lobo 2 x Lampak for VP Light Lampak for DP Light Molded Tota/Omni 84 Case - 29.5x17x7" (75x43.2x17.8cm) Limited 2-Year Warranty on Fixtures Limited 5-Year Warranty on Stands Limited 1-Year Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel DV Pro 55 Kit with TO84Z Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel DVP-95 Specs | Rating | Rifa-Lite 55: 500 W
V-Light: 500 W
Pro-Light: 250 W | | Socket (Lampholder) | Rifa-Lite 55: 2-pin
V-Light: Double-ended
Pro-Light: Pro socket | | Lens (Condenser) | Rifa-Lite 55, V-Light: Not applicable
Pro-Light: Prismatic glass | | Reflector (Mirror) | Rifa-Lite 55: Silver interior softbox
V-Light: Not applicable
Pro-Light: High intensity #2 reflector | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not applicable | | Cable | Rifa-Lite 55, Pro-Light: 4' / 1.2 m captive cable
V-Light: 16' / 4.8 m, #18/2 | | Focusing | Rifa-Lite 55, V-Light: Not applicable
Pro-Light: Continuously variable | | Weight | Rifa-Lite 55: 2.5 lb / 1.1 kg
V-Light: 1.5 lb / 0.68 kg
Pro-Light: 2 lb / 0.9 kg | | Dimensions | Rifa-Lite 55: 24" / 61 cm (collapsed length)
V-Light: 7.3 x 7.3 x 1.3" / 18.5 x 18.5 x 3.3 cm (size closed)
Pro-Light: 4.6 x 5 x 3.7" / 11.7 x 12.7 x 9.4 cm
Kit in Case: 29.5 x 17 x 7" / 74.9 x 43.2 x 17.8 cm | | Kit Weight | 49 lb / 22.3 kg | | | | Package Weight | 53.0 lb | | Box Dimensions (LxWxH) | 32.0 x 20.5 x 10.5" |
