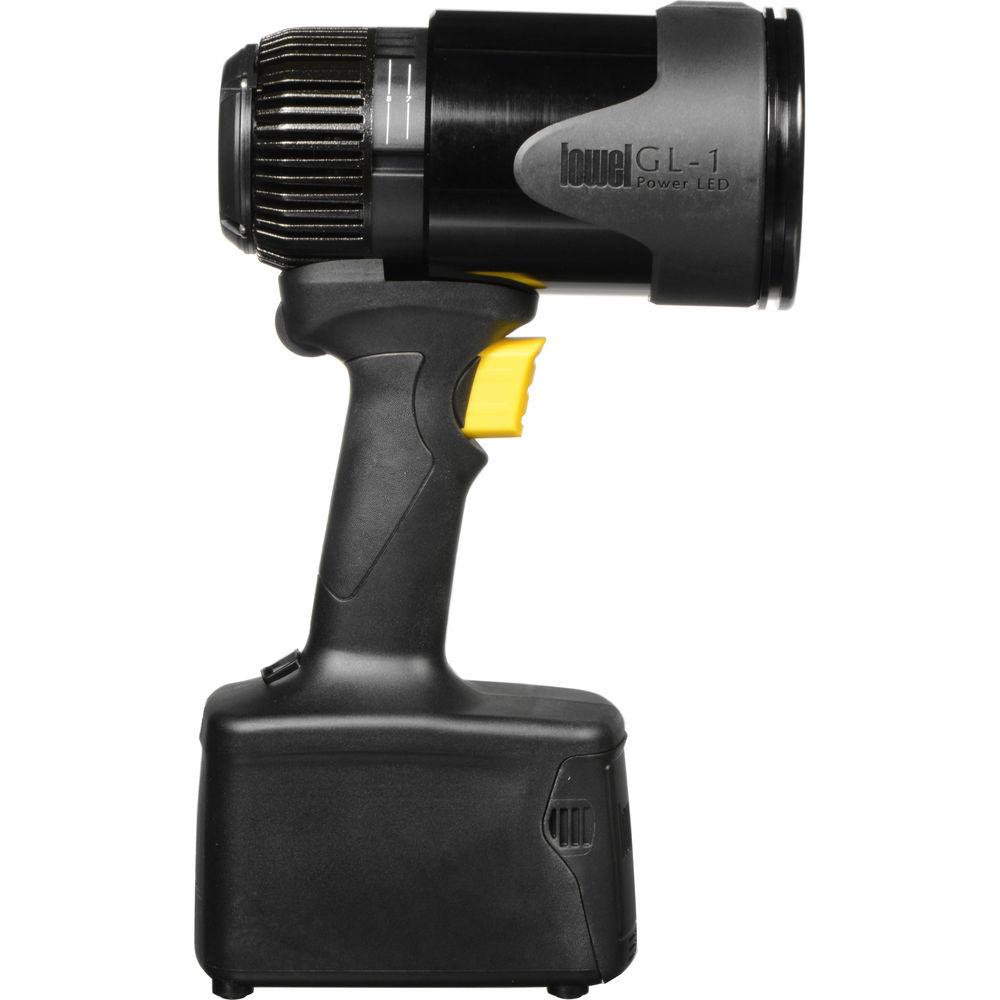

User Manual for Lowel GL-1 Power LED Click to enlarge the picture
Contents of the user manual for the Lowel GL-1 Power LED
- Product category: LED Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel LED Lights
 |
User manual for the Lowel GL-1 Power LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

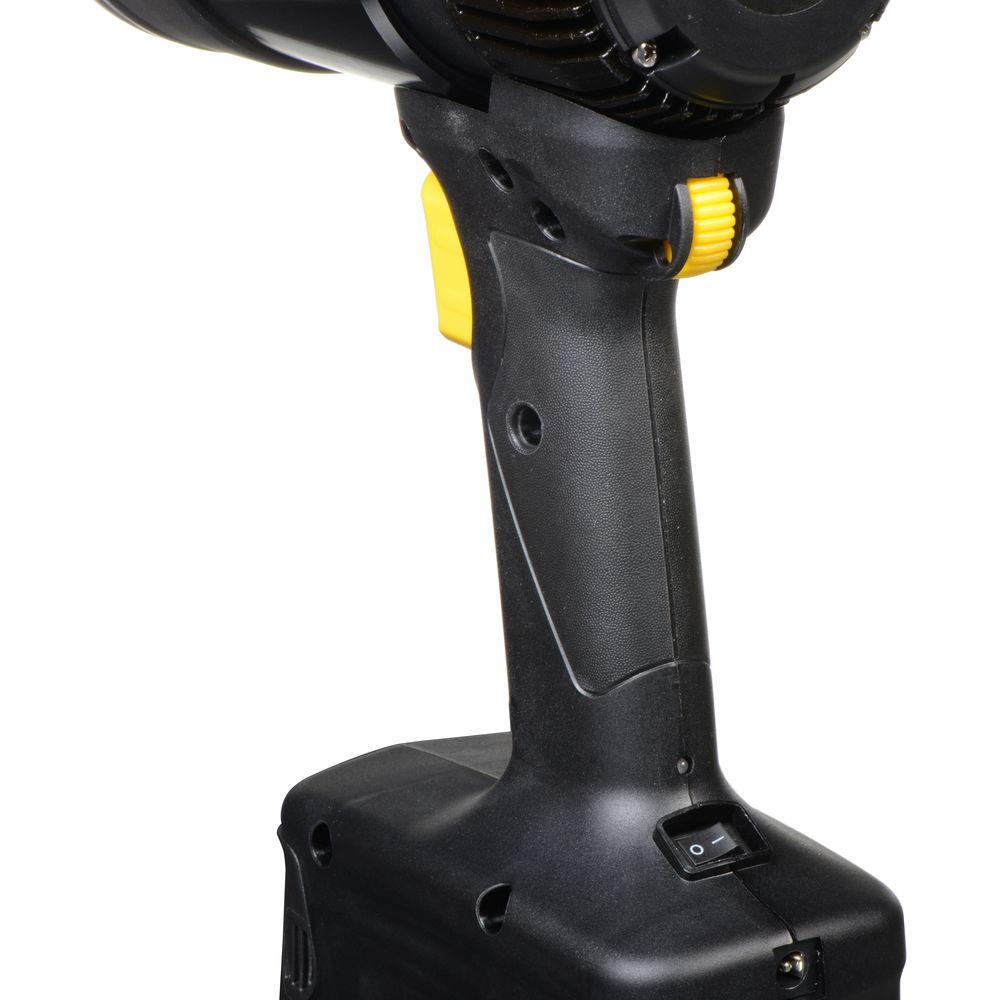

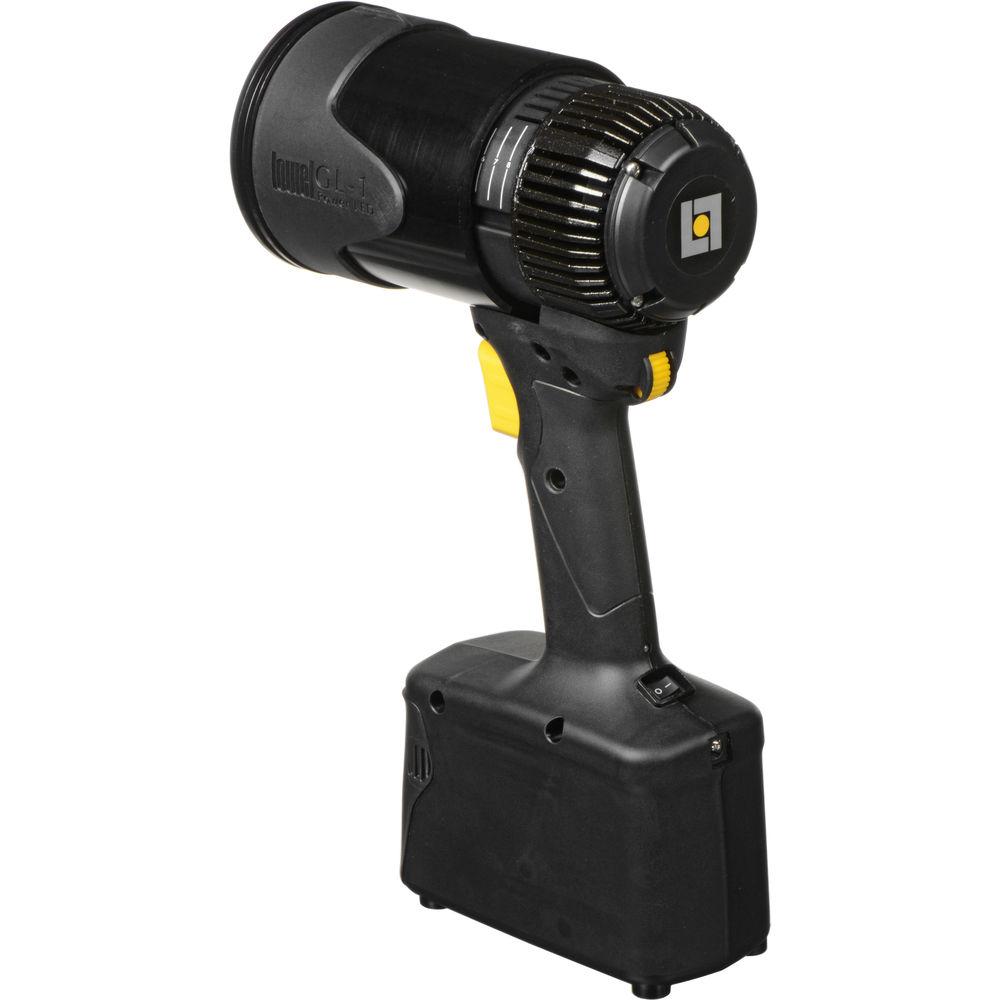

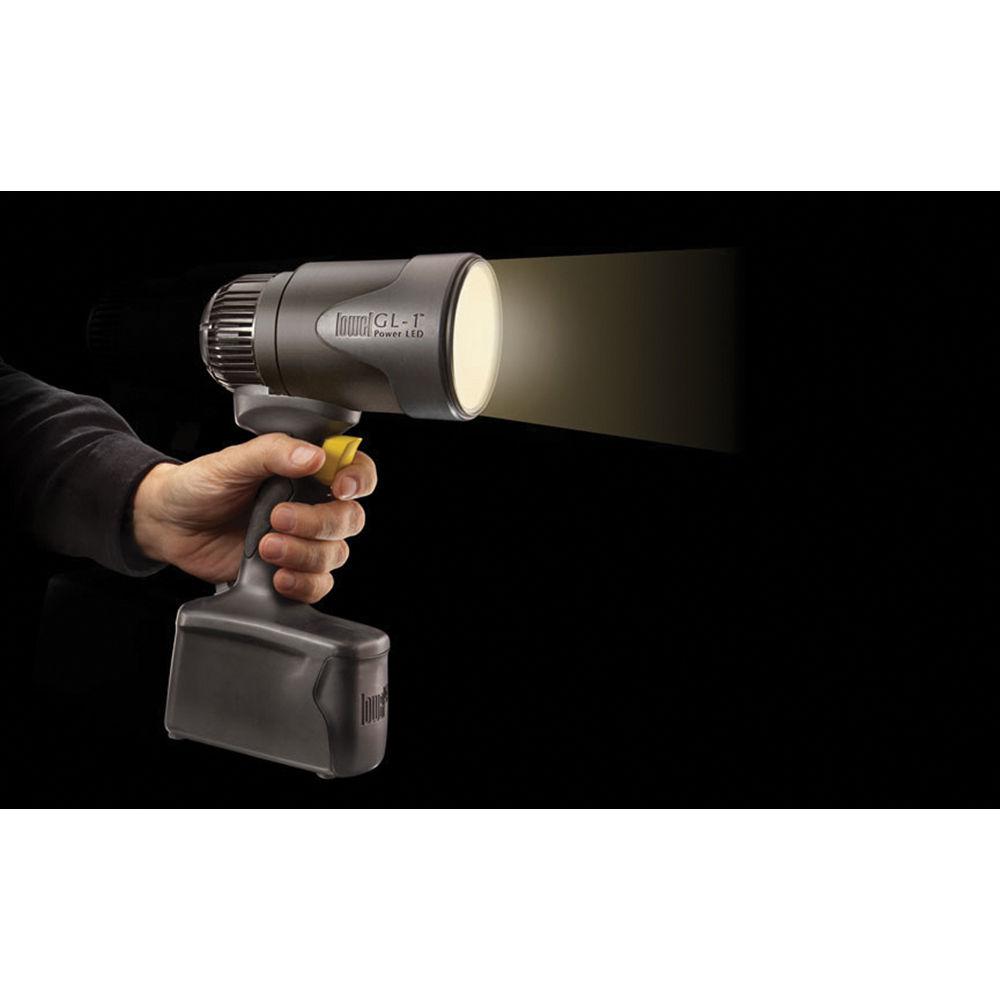

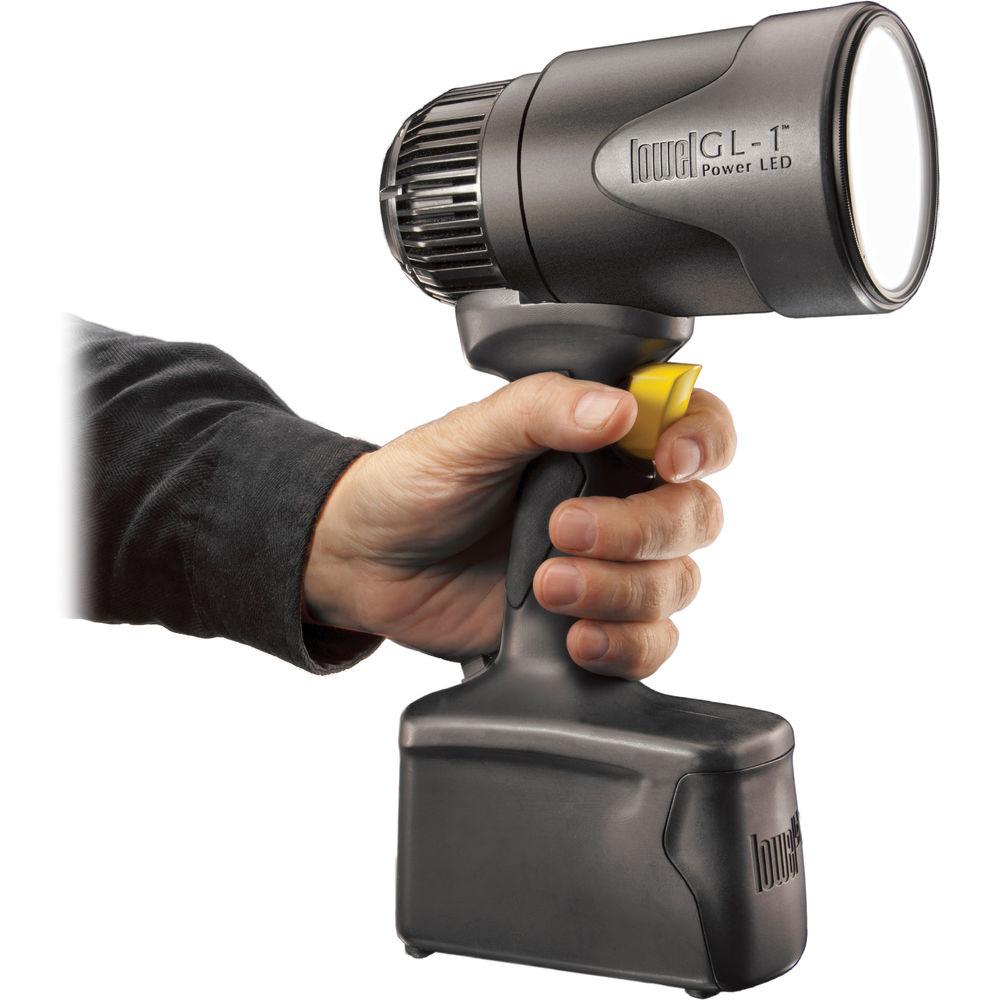

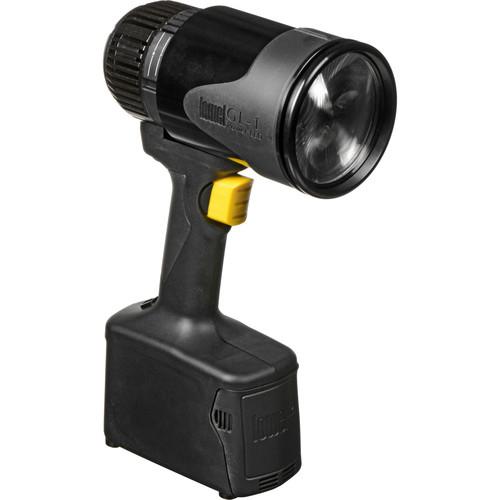

Product description Gear Podcast: LED Lighting for Photography Read More The Lowel GL-1 Power LED is a compact handheld light source that is ideal for any type of event or location photography that demands portability, flexibility and ease of use. The GL-1's ergonomic appeal is readily apparent, from the rubberized exterior to the lockable trigger that enables dimming from 5.0-100%. The removable, rechargeable battery is located at the base for precise balance and its flat underside and low-profile feet allow placement on a table or other flat surface. There's also a 1/4"-20 threaded socket for tripod mounting. The GL-1's flexible qualities begin with the focusing head with a 5:1 spot-to-flood ratio that allows you to back light or hair light your subject or pull back to add some fill light when needed to open up the shadows. The trigger-controlled dimming and a thumb-operated light intensity dial allows 1 hand operation for multi-tasking scenarios. The GL-1 comes with the light head, battery, multi-voltage charger and AC adapter. Its 3,000K output can be cooled to 5,300K for use in daylight with the purchase of an optional filter that mounts to the GL-1's 82 mm front screw thread. - Focusing Head
- The GL-1's 8:1 focusing range lets you zero in to highlight your subject with a tight spot or pull back to wide flood and add fill light to a larger area
- 2 Ways to Dim
- Use the adjustable Dimming Trigger to quickly get the perfect light level for short term handheld use or lock the light in the ON position and dial in an intensity for longer term constant output at any level
- Photometrics
- Flood
63 fc @ 5.0' (1.5 m) with 39° beam angle
17 fc @ 10' (3.0 m) with 39° beam angle
8.0 fc @ 15' (4.5 m) with 39° beam angle
5.0 fc @ 20' (6.0 m) with 39° beam angle
4.0 fc @ 25' (8.0 m) with 39° beam angle
Spot
553 fc @ 5.0' (1.5 m) with 10° beam angle
265 fc @ 10' (3.0 m) with 10° beam angle
56 fc @ 15' (4.5 m) with 10° beam angle
32 fc @ 20' (6.0 m) with 10° beam angle
21 fc @ 25' (8.0 m) with 10° beam angle UPC: 884613016463 In the Box Lowel GL-1 Power LED Rechargeable Battery Multi-voltage Charger AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel GL-1 Power LED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel GL-1 Power Specs | | | Color Temperature | 3000K | | Color Accuracy Standard | CRI 90 | | Cooling System | None | | Dimming | Yes, 5 to 100% | | Display | None | | Housing Material | Aluminum, Nylon, Steel | | Fixture Dimensions | 12.0 x 6.0 x 3.5" / 30.5 x 15.2 x 8.9 cm | | Fixture Weight | 3.75 lb / 1.7 kg | | | | Battery Plate | 1 x Proprietary | | | | Fixture Mount | 1/4"-20 Female Thread | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | | | Run Time | 1.0 Hour at Full Power | | | | Package Weight | 8.25 lb | | Box Dimensions (LxWxH) | 18.5 x 12.1 x 5.9" |
