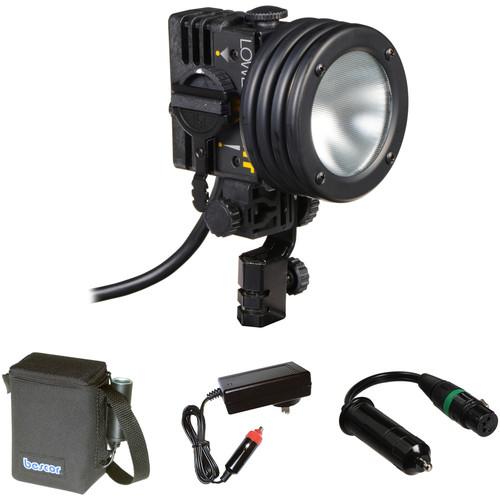

Product description This is a B&H Exclusive Lowel ID Light XLR Lead Acid Kit. It is ideal for the wedding or portrait photographer who wants to add a warm controlled highlight, shoots a short video now and then, or who needs a focusing light that won't blind the subjects. This kit consists of the very popular and highly-rated Lowel ID dimmable Focus Flood Light with a 55 and a 100 watt bulb, stand and camera mounts, and cigarette lighter connector. Powering it is the compact, memory-free rechargeable Bescor MM-9NC Lead Acid Battery. The MM-9NC offers 35 minutes constant run-time @ 100 watts, and 75 minutes run-time @ 50 watts. It weighs 5.5 lbs (2.5kg). The charger is the universal automatic 110-240VAC operated charger, which takes up to 16 hours to fully charge the battery, and stops charging when the battery is full. If you would like this kit, but need a cigarette lighter connector, Click Here If weight and charge time of the battery is your main concern, and a slightly shorter run-time is acceptable,
order this kit with the Sidekick NiMH Battery.baffbsvsfbcsuxu - Lowel ID-Light 100W Focus Flood Light, 4-Pin XLR (12-30VDC) The Lowel id-Light is the world's first focusable and dimmable camera-top light. It provides increased versatility, especially in news and documentary use where lighting conditions may change quickly. Its 20KHz dimmer provides graceful dimming with no electronic interference in the camera.
- Affordable lamps
- Uses 55 and 100 watt inexpensive, 12/14V automobile halogen lamps
- Multi use halogen source
- Can be used as a camera top light, stand mounted or as a hand held light
- Intense focusing
- Fitted with a high intensity #2 Reflector and Prismatic Glass for higher quality flood and spot
- Dimming circuit
- Dimming circuit is infinitely variable from 100% to 5%
UPC: 084127400424 - Bescor MM-9NC Starved Electrolyte Battery The Bescor MM-9NC is a small and lightweight high performance Starved Electrolyte (Lead Acid) battery. The MM-9 is memory free and when properly maintained will offer a consistent run time over the life of the battery. A convenient shoulder strap is standard in addition to a sewn-in belt loop.
- Cell Chemistry
- The MM-9 utilizes Starved Electrolyte, also known as Gel-Cell or Lead Acid.
- Advantages:
Low cost, high per cell voltage, no memory effect and good capacity life. UPC: 741147260178 - Bescor ATM-PRU Automatic Universal Charger (12V, 1.5A) The Bescor ATM-PRU Automatic Universal Charger (12V, 1.5A) is an automatic "smart" battery charger that's universally compatible (with optional adapter). The ATM-PRU will charge the Bescor PRB series battery belts and shoulder packs. The charger's universal plug-in feature allows it to be used "worldwide" in 110-240VAC. It is also designed to automatically stop the charge cycle once the battery is fully charged.
- Automatic Shut-Off
- For worry-free battery maintenance, the ATM-PRU charger will sense when the battery has reached maximum charge status and shut off automatically
- Universal Worldwide Plug-In
- Compatibility worldwide with 110-240VAC outlets
UPC: 741147230140 - Smith-Victor 4-Pin XLR Female to Cigarette Lighter Plug This is a Smith-Victor 4-Pin XLR Female to Cigarette Lighter Plug enables use of a Smith-Victor, or any other video light that uses a 4-Pin XLR plug and can work with 12V DC current. It plugs into any automobile's 12V cigarette lighter socket. UPC: 037733003121
In the Box - ID-Light 100W Focus Flood Light, 4-Pin XLR (12-30VDC) baffbsvsfbcsuxu
- 55 watt lamp
- Spare 100 watt lamp
- 4' 4-Pin XLR connector
- #2 High Intensity Reflector and Prismatic Glass
- Cam-link
- Low-link
- IP Focus-knob Extension
- ViP Stand-link
- 2 Year Manufacturer's Warranty on fixture
- Bescor - MM-9NC Starved Electrolyte (Lead Acid) Battery - 12 VDC/108 Wh, Cigarette Jack Connector, Does Not Include Charger
- Bescor - ATM-PRU Automatic Universal Charger (12V, 1.5A)
- Smith-Victor - 4-Pin XLR Female to Cigarette Lighter Plug
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel ID Light Lead Acid Kit, Four-Pin XLR Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lowel ID-Light 100W Focus Flood Light, 4-Pin XLR (12-30VDC)
| Rating | 100 watts maximum | | Socket (Lampholder) | "i" socket | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | #2 High intensity reflector | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 4' with 4 pin XLR connector | | Focusing | Continuously variable | | Weight | 1.2 lbs (0.54kg) | | Dimensions | 4.5 x 3.6 x 5" (11.7 x 9.4 x 17cm) | | | | Box Dimensions (LxWxH) | 8.7 x 5.4 x 5.4" | - Bescor MM-9NC Starved Electrolyte Battery
| Chemistry | Starved Electrolyte | | Output Voltage | 12 VDC | | Connection | Cigarette Lighter Plug | | Capacity | 108 Wh
9 Ah | | Weight | 5.8 lbs
2.61 kg | | Dimensions | 6 x 4 x 2.5" (WxHxD)
15.24 x 10.16 x 6.35cm (WxHxD) | | | | Box Dimensions (LxWxH) | 7.0 x 6.4 x 4.4" | - Bescor ATM-PRU Automatic Universal Charger (12V, 1.5A)
| Power Supply | No | | Battery Bays | 1 | | Type of Charging | Single Only | | Diagnostics | Automatic Shut-Off | | Connections/Interface | Cigarette (for belt and shoulder pack batteries) | | Power Requirements | 110-240VAC | | Dimensions (WxHxD) | 2 x 3 x 1.5" (50 x 76 x 38mm) | | Weight | 0.6 lbs (272g) | | | | Box Dimensions (LxWxH) | 5.1 x 2.7 x 2.25" | - Smith-Victor 4-Pin XLR Female to Cigarette Lighter Plug
| | | Box Dimensions (LxWxH) | 4.4 x 2.5 x 0.95" |
