User Manual for Lowel Interview Three-Light Kit with Soft Case Click to enlarge the picture
Contents of the user manual for the Lowel Interview Three-Light Kit with Soft
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
|
User manual for the Lowel Interview Three-Light Kit with Soft contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

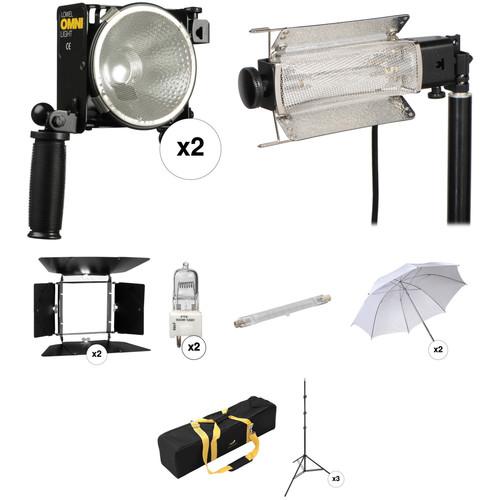

Product description This is a Lowel Interview Three-Light Kit with Soft Case. Compact, rugged, and versatile, the broad-throw Tota-Light can be used with its umbrella or gel frame and diffusion as a soft key light, fill light, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it at the ceiling to raise the ambient (base) light level of a room. Tota-Lights are also widely used for photographic copy work. The wide focusing range of the Omni-Light makes it a flexible key light or backlight. Add diffusion or an umbrella, and it's a soft fill source. Available with a host of accessories and built for heavy-duty long life, the popular Omni is the perfect companion to the Tota. When fitted with an EMD 750W bulb, the Tota-Light will emit a beam of 41 footcandles with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10' (3 m). When fitted with an FTK 500W bulb each Omni-Light will emit a beam of 75 footcandles at full flood and 475 footcandles at full spot, from a distance of 10' (3 m). - 2 x Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) The wide focusing range of the Lowel Omni-Light makes it a flexible key or backlight. Add diffusion or an umbrella, and it's a soft fill source. Swap the power cord and lamp and it becomes a battery powered, handheld light. Available with a host of accessories and built for heavy duty long life, the popular Omni is the perfect companion to the Tota. When fitted with an FTK 500 watt bulb (available separately), this fixture will emit a beam of 75 footcandles at full flood and 475 footcandles at full spot from a distance of 10' (3m). Other bulbs and plug adapters are available.
- Reflector
- Double parabolic peened reflector provides non-crossover beam for maximum efficiency and gel life.
- Stay-Cool Handle
- Allows the Omni-light to be adjusted easily, can be hand-held, and folds for storage.
- Focus Lever
- Has a focus range of 6:1 with #1 reflector and FTK Lamp.
- Multi-Wattage, Multi-Voltage
- Uses 500, 420, and 300W at 120V.
Other bulbs are available for 230, 240 VAC, and 12-30 VDC. - Light Shapers Available
- Barndoors, Scrims, Dirchroic Filter, Snoots, Gel Frame, and Flag are all available separately.
UPC: 841274006653 - Lowel Tota-Light Tungsten Flood Light (120-240 VAC) Compact, rugged, and versatile, the broad throw Lowel Tota-light can be used with an umbrella or gel frame, or with diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it toward the ceiling to raise the ambient (base) light level of a room. Tota is also widely used for photographic copy work. When fitted with an EMD 750W / 120V bulb (available separately), the Tota-Light will emit a beam of 41 footcandles with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10' (3m). The Tota-Light is multi-voltage capable, and a choice of bulbs and plug adapters are available.
- Compact Wide Floodlight
- Its aperture measures only 4.5 x 11" (11.4 x 29.9 cm).
- Full Rotation
- Can be rotated a full 360° with the large, stay-cool, plastic adjustment knob.
- Multi-Wattage, Multi-Voltage
- It uses bulbs from 750 to 300W / 120V. It uses 800W bulbs for 220V use.
- Adjustable Doors
- Adjustable reflecting doors can illuminate four walls evenly from a corner or compensate for light fall-off from above or below.
UPC: 841274007742 - 2 x Lowel Complete 4-Leaf Barndoor for Omni Light The Lowel Complete 4-Leaf Barndoor Set for the Omni Light includes a frame with two rectangular and two triangular leaves which are all expandable. It rotates 360° and holds up to two Lowel Omni accessories. Barndoors narrow the beam spread of a light fixture. They help create a 3-dimensional look to a lighting scheme by placing light in a specific area or by keeping it away.
- Each barndoor leaf has a sub-leaf that extends, which adds to its light-shaping ability.
UPC: 841274006776 - 2 x Sylvania / Osram FTK (500W/120V) Lamp The Sylvania FTK (500W/120V) Lamp is a T6 shape display optic halogen bulb. The FTK has a GY9.5 base and a 200 hour lamp life. This lamp is commonly used for studio, theater, TV & video. UPC: 046135548758
- Ushio EMD Lamp (750W/120V) The Ushio EMD Lamp (750W/120V) is a double-ended 750W quartz halogen lamp for use on a 120VAC circuit. UPC: 048777121351
- 2 x Lowel White 27" Tota-Brella Fits directly onto Tota or Omni and ViP lights without tools, to convert them to soft shadow sources.
Heat-resistant, woven, white fabric.This size is perfect for a 1 person head shot, or a 3x4 ft product setup. UPC: 841274007858 - Impact Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories The Impact Light Kit Bag #3 (Black) is a soft padded case designed to transport and protect a 2 monolight lighting kit. It has space to hold 2 monolights with reflectors, cables, umbrellas and light stands. It is carried by 2 overlapping carrying handles or the included shoulder strap.
- Bag Basics
-
- Fits 2 monolight lighting system
- Soft padded lighting bag
- Holds up to 35 lbs
- Carrying Options
-
- Two overlapping handles
- Removable, adjustable shoulder strap
UPC: 847628011885 - 3 x Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
- Air-Cushioned
- Protects equipment and fingers from damage
- Compact Design
- Will fit easily into most location cases
- Accepts Casters
- For easy positioning of lights
UPC: 847628030626 In the Box - 2 x Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) xturfyetxrtcsazqwwccvxzzadexc
- Protective Screen for Omni-light (Replacement)
- T1-80 16' Power Cable
- Large Cool Handle
- Two Year Manufacturer's Warranty
- Tota-Light Tungsten Flood Light (120-240 VAC)
- 2 x Complete 4-Leaf Barndoor for Omni Light
- 2 x Sylvania / Osram - FTK (500W/120V) Lamp
- Ushio - EMD Lamp (750W/120V)
- 2 x Umbrella - Tota-Brella (Special/White) - 27"
- Impact - Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories
- 3 x Impact - Air-Cushioned Light Stand (Black, 10')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Interview Three-Light Kit with Soft Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC)
| Rating | 500 W maximum, 120-240 VAC, 12-30 VDC | | Socket (Lampholder) | GY9.5 Pre-focus 2-pin ceramic | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Double parabolic peened reflector, other reflectors available | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16' #18/3 wire, in-line switch, 120 VAC grounded Edison plug | | Focusing | 6:1 lever on side of unit | | Weight | 2.6 lb / 1.9 kg | | Dimensions | 8 x 5.5 x 3" / 20 x 14 x 7.6 cm | | | | Box Dimensions (LxWxH) | 8.0 x 6.5 x 6.5" | - Lowel Tota-Light Tungsten Flood Light (120-240 VAC)
| Rating | 750 W maximum, 120-240 VAC | | Socket (Lampholder) | R7s, double ended | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Dual Gull Wing reflector doors | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16', with in-line switch, 120 VAC grounded Edison plug | | Focusing | Not Applicable | | Weight | 2.25 lb / 1.02 kg | | Dimensions | Size closed: 2 x 3 x 11" / 5 x 7.6 x 27.9 cm | | | | Box Dimensions (LxWxH) | 12.3 x 8.45 x 4.35" | - 2 x Lowel Complete 4-Leaf Barndoor for Omni Light
| | | Box Dimensions (LxWxH) | 6.9 x 6.85 x 4.55" | - 2 x Sylvania / Osram FTK (500W/120V) Lamp
| Bulb Type | T6 | | Base Type | GY9.5 | | Wattage | 500 W | | Voltage | 120 V | | Lumens | 12,000 | | Color Temperature | 3200K | | Average Life | 200 Hours | | | | Box Dimensions (LxWxH) | 3.6 x 1.35 x 1.3" | - Ushio EMD Lamp (750W/120V)
| Base Type | R7s/RX7s | | Filament Type | C-8 | | ANSI Code | EMD | | Wattage | 750 W | | Voltage | 120 V | | Lumens | 19500 | | Color Temperature | 3200K | | Average Life | 400 Hours | | Maximum Overall Length (MOL) | 4.7" / 119.6 mm | | Maximum Overall Diameter (MOD) | 0.47" / 11.9 mm | | | | Box Dimensions (LxWxH) | 5.4 x 0.95 x 0.9" | - 2 x Lowel White 27" Tota-Brella
| Size | 27.0" / 68.6 cm | | Interior | White (Translucent) | | | | Box Dimensions (LxWxH) | 20.75 x 1.85 x 1.65" | - Impact Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories
| Material | Nylon | | Type of Closure | Zipper | | Exterior Dimensions | 36 x 9 x 9" (91.4 x 22.6 x 22.6 cm) (LxWxH) | | Interior Dimensions | 35 x 8 x 8" (88.9 x 20.3 x 20.3 cm) (LxWxH) | | Accommodates | 2 monolights with reflectors, cables, umbrellas and light stands | | Carrying/Transport Options | Carrying handles
Shoulder strap | | Load Capacity | 35 lbs (15.88 kg) | | Weight | 4.05 lbs (1.837 kg) | | | | Box Dimensions (LxWxH) | 52.0 x 8.0 x 8.0" | - 3 x Impact Air-Cushioned Light Stand (Black, 10')
| Maximum Load | 8.5 lb (3.8 kg) | | Maximum Height | 121.5" (308.6 cm) | | Minimum Height | 40.5" (102.9 cm) | | Closed Length | 33.5" (85 cm) | | Footprint Diameter | 38" (96.5 cm) | | Leg Tip | 0.8" (20 mm) | | Attachment Size | 5/8" (16 mm) stud with 1/4"-20 male threads | | Accepts Wheels | Yes, casters | | Air Cushioned | Yes | | Weight | 2.4 lb (1.1 kg) | | | | Box Dimensions (LxWxH) | 34.0 x 3.0 x 3.0" |
