User Manual for Lowel LC-66EX1 Rifa-Lite eX Softbox Light with Lamp Click to enlarge the picture
Contents of the user manual for the Lowel LC-66EX1 Rifa-Lite eX Softbox Light
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel LC-66EX1 Rifa-Lite eX Softbox Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

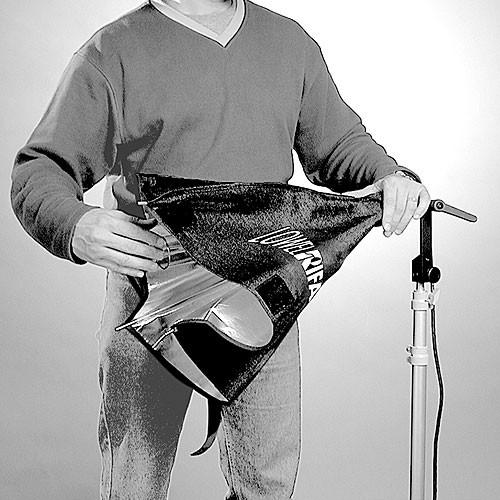

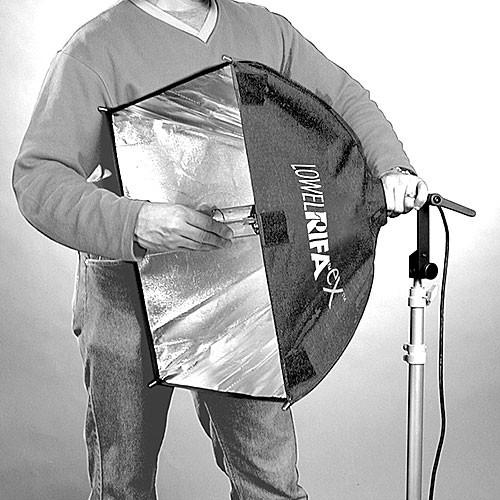

Product description Creating beautiful soft key or fill doesn't have to be strenuous or time consuming. Compact, lightweight, and self-contained, the Lowel LC-66EX1 Rifa-Lite eX Softbox Light with Lamp uses a simple design approach as old as the umbrella to achieve its quick and easy setup and strike capabilities.Accessory eXchange lampheads allow use of daylight fluorescent, screw-threaded, and lower wattage tungsten-halogen lamps. - Lowel LC66EX Rifa-Lite eX66 Softbox Light (120-240VAC) This is a Lowel Rifa EX66 750 watt softbox light. The Rifa EX66 is multi-wattage, and multi-voltage, with the appropriate adapters and bulbs (available separately). Creating beautiful soft key or fill doesn't have to be strenuous or time consuming. Compact, lightweight, and self-contained, the Rifa-lite EX66 uses a simple design approach as old as the umbrella to achieve its quick and easy setup and strike capabilities.Accessory eXchange lampheadsallow use of daylight fluorescent and lower wattage tungsten-halogen lamps.

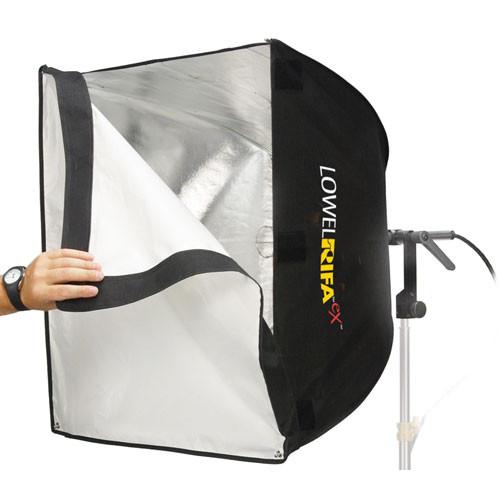

- Front Diffusion
- The diffusion front is made of woven glass fabric, heat-resistant 25 x 25" (63.5 x 63.5cm) front diffuser provides sufficient illumination with soft shadows.
- Multi-Use Lamp Fixture
- Optional adapters allow use with fluorescent, or tungsten photoflood bulbs.
- Easy Access
- Easy access pockets on fabric shell allow clip-on gel attachment for correcting to daylight.
UPC: 049383077483 - Ushio EHF Lamp (750W/120V) This 750W/120V tungsten-halogen EHF Lamp from Ushio has a G9.5 medium 2-pin prefocus base, a color temperature of 3200K, output of 20,400 lumens and an average life of 300 hours. It is commonly used in display and photo fixtures. UPC: 048777118696
In the Box - LC66EX Rifa-Lite eX66 Softbox Light (120-240VAC) yaeevbxzfueswttbeecwfxzdwa
- 120V 16' Switched #18/3 extending power cord
- Front Light Diffuser
- Carrying sleeve
- Two Year Manufacturer's Warranty
- Ushio - EHF Lamp (750W/120V)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel LC-66EX1 Rifa-Lite eX Softbox Light with Lamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lowel LC66EX Rifa-Lite eX66 Softbox Light (120-240VAC)
| Rating | 750 watts, 120-240VAC | | Socket (Lampholder) | G9.5 - Medium 2-pin | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Silver interior softbox | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 4' Captive cable, 15' 120VAC cable, line swtich, Edison plug | | Focusing | Not Applicable | | Weight | 3.5 lbs (1.6 kg) | | Dimensions | Collapsed length: 30" (76 cm) | | | | Box Dimensions (LxWxH) | 32.0 x 9.0 x 7.0" | - Ushio EHF Lamp (750W/120V)
| Base Type | G9.5 | | Filament Type | CC-8 | | ANSI Code | EHF | | Wattage | 750 W | | Voltage | 120 V | | Lumens | 20,400 | | Color Temperature | 3200K | | Average Life | 300 Hours | | Maximum Overall Length (MOL) | 4.0" / 104 mm | | Maximum Overall Diameter (MOD) | 0.59" / 15 mm | | | | Box Dimensions (LxWxH) | 5.3 x 1.65 x 1.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
