User Manual for Lowel Omni 3 Kit, LB-35 Soft Case Click to enlarge the picture
Contents of the user manual for the Lowel Omni 3 Kit, LB-35 Soft
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel Omni 3 Kit, LB-35 Soft contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

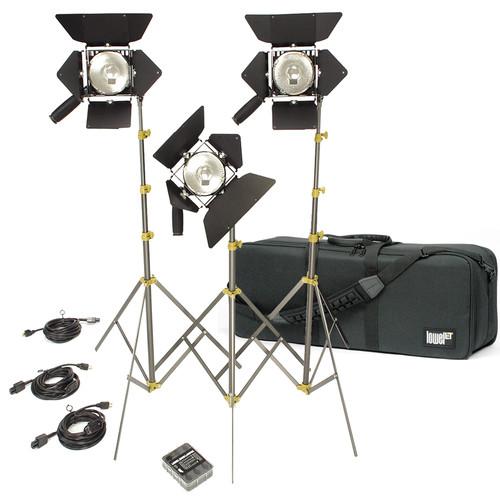

Product description This is a Lowel Omni 3 Kit, LB-35 Soft Case--a three Omni-light kit. It offers a bit more than the Action Kit. In addition to barndoors, 120V bulbs, stands and an LB-35 soft kit case, it includes an umbrella, scrims, and gel frames with gels to aid in the shaping of the light.The wide focusing range of the Omni-light makes it a flexible key light or backlight. Add diffusion or an umbrella, and it's a soft fill source. Available with a host of accessories and built for heavy-duty long life, the popular Omni-light is the perfect companion to the Tota-light.When fitted with an FTK 500W bulb, each Omni-light will emit a beam of 75 footcandles at full flood, and 475 footcandles at full spot, from a distance of 10 ft (3 m). Although this kit is supplied for use with 120 AC voltage, it can function with 220-240 AC and 12-30 DC voltage, with the appropriate bulbs, adapter plugs or cables, and power supplies (available separately). Omni-light - Focus Flood
- Has a focus range of 6:1 with #1 reflector and FTK Lamp
- Reflector
- Double parabolic peened reflector provides a non-crossover beam for maximum efficiency and longer gel life
- Stay-Cool Handle
- A large, stay-cool folding handle allows the Omni-light to be adjusted or hand-held, and folds for storage
- Light Modifiers

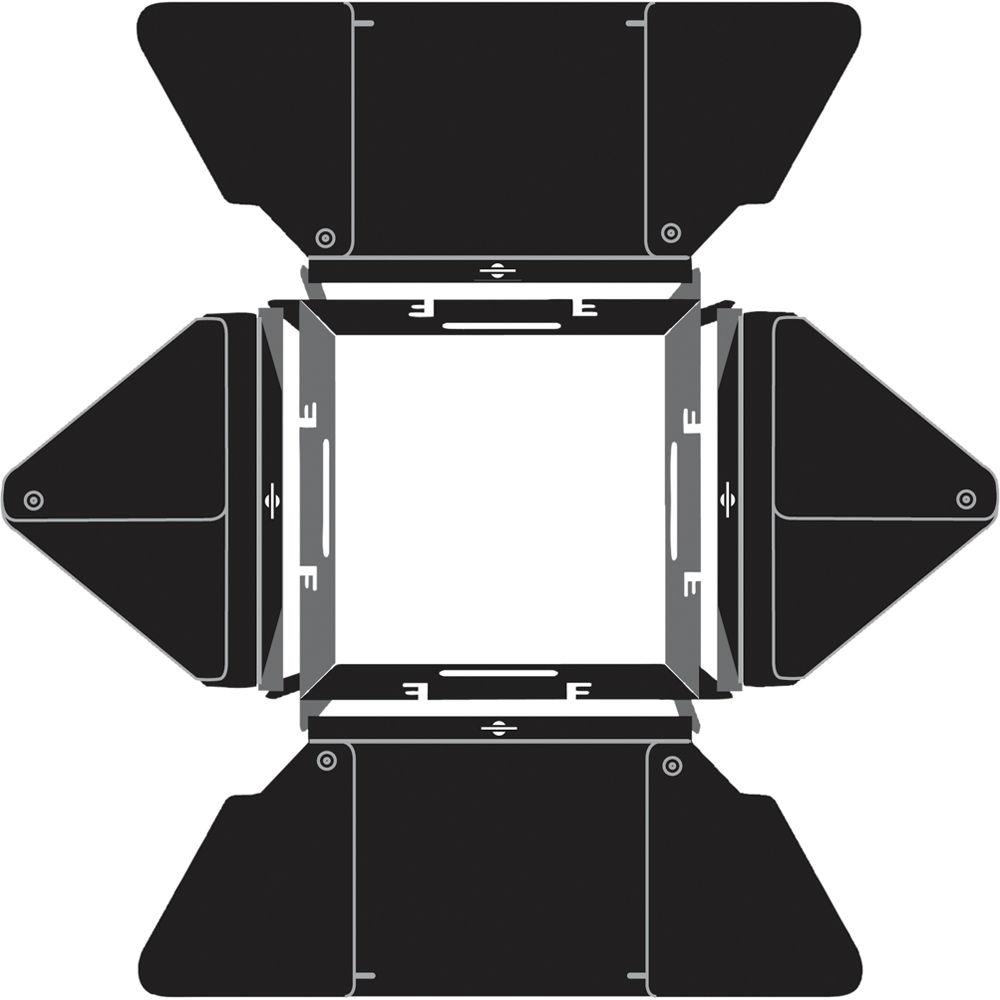

- Kit includes barndoors, umbrella, scrim, gel frame, and gels
- Kit Case

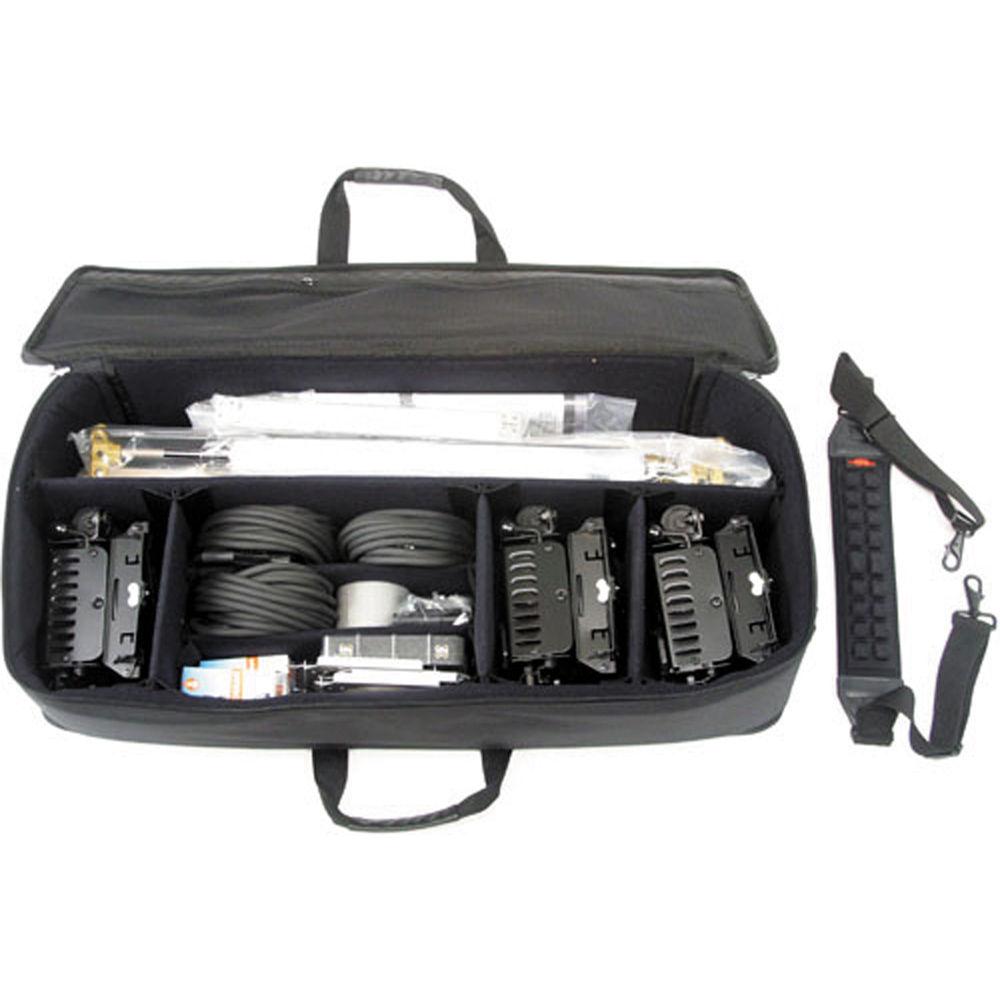

- Hard kit case has internal moveable dividers

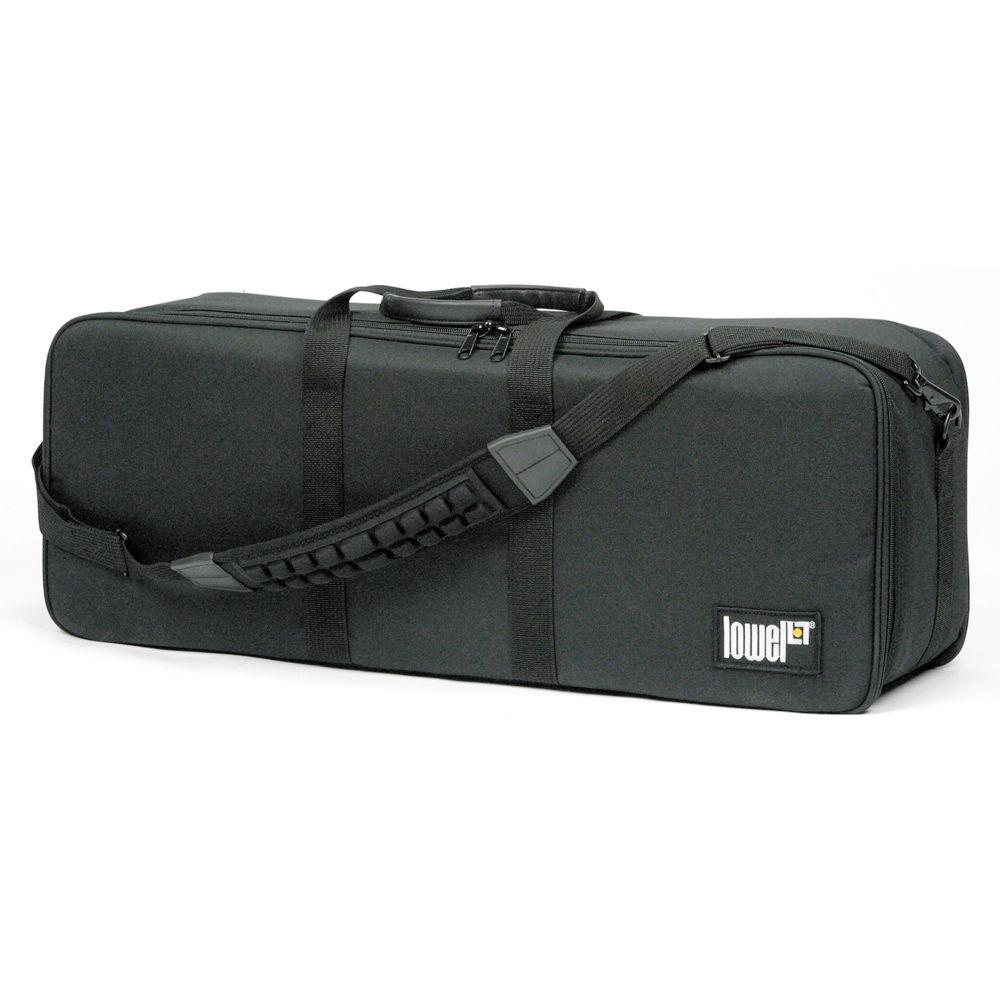

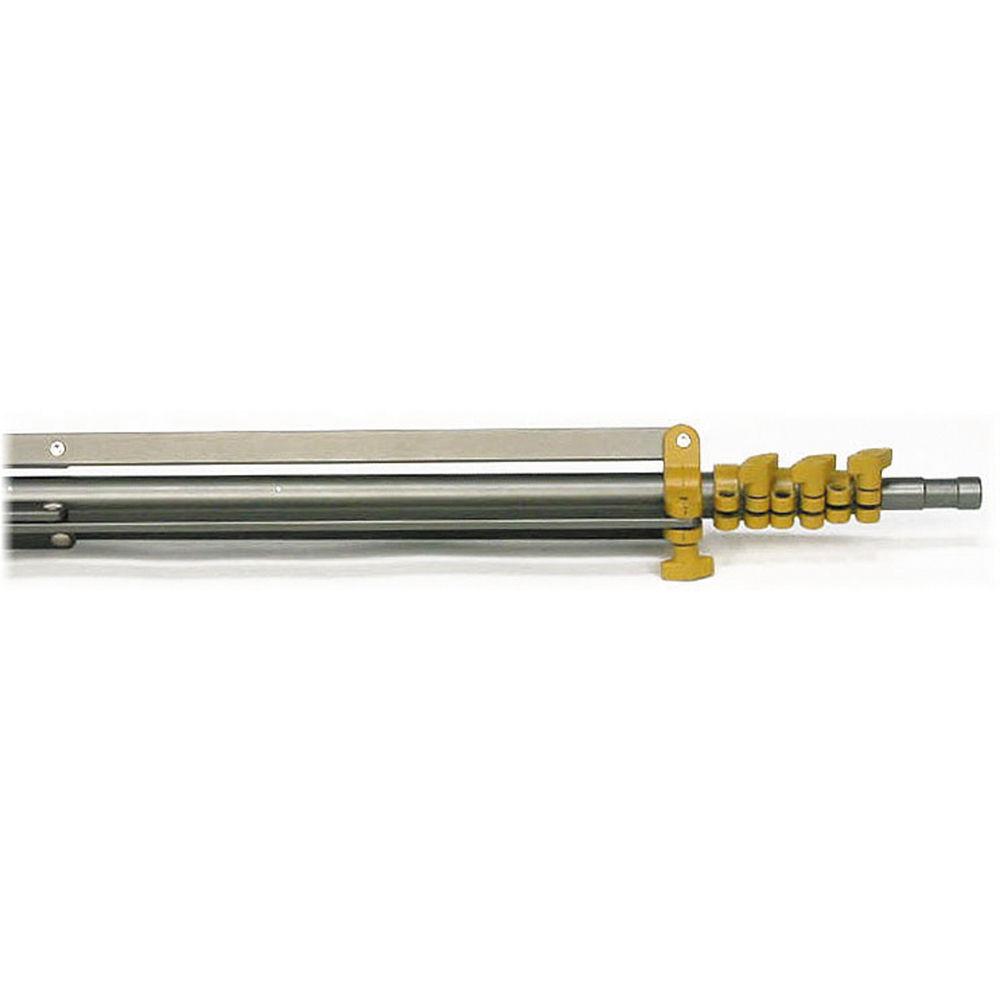

UPC: 841274007100 In the Box Lowel Omni 3 Kit, LB-35 Soft Case 3 x Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) 3 x FTK Lamp - 500 Watts/120 Volts 3 x Omni Light Stand (9') 3 x Complete 4-Leaf Barndoor for Omni Light O1-61 Lampak for Omni Light Lamps 2 x Full Single Scrim for Omni-Light (5 1/8") 5-1/8" Half Scrim for Omni-Light Tota-Brella - Silver - 27" 3 x Tota/Omni Gel Frame for 10x12" Gels 2 x Tota/Omni Assorted Gels - Set of 5 (10 x 12") Tota-Mount Tota-Clamp Pro Gaffer Tape (2" x 12 yd, Black) LB-35 Large Litebag Soft Case Two-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Omni 3 Kit, LB-35 Soft Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel Omni-Light Specs | Rating | Each Omni-light: 500 watts, 120V-240VAC/12-30VDC | | Socket (Lampholder) | Each Omni-light: Porcelain 2-pin | | Lens (Condenser) | Not applicable | | Reflector (Mirror) | Double parabolic peened reflector | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not applicable | | Cable | 16' #18/3 wire, 120V grounded Edison plug | | Focusing | Continuously variable | | Weight | Each Omni-light: 2.6 lbs (1.9 kg) | | Dimensions | Each Omni-light: 8 x 5.5 x 3" (20 x 14 x 7.6 cm)
Kit in Case: 29.5 x 13 x 7" (74.9 x 33 x 17.8 cm) | | Kit Weight | 31 lbs (14.2 kg) | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 32.0 x 18.0 x 10.0" |
