User Manual for Lowel Omni 4 Kit, TO-83 Case Click to enlarge the picture
Contents of the user manual for the Lowel Omni 4 Kit, TO-83 Case
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel Omni 4 Kit, TO-83 Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

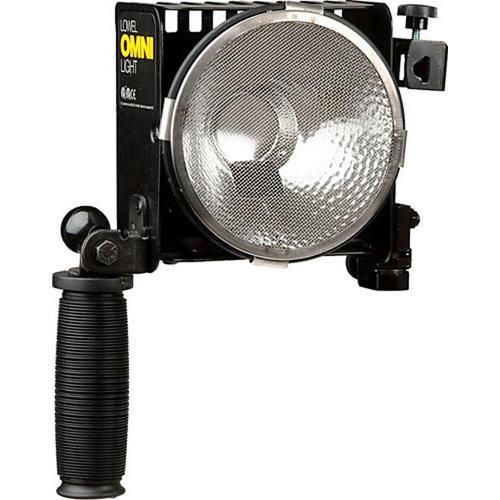

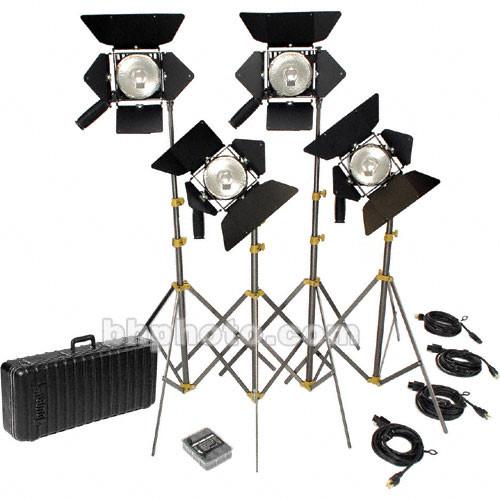

Product description This is a basic Lowel Omni 4 Kit, TO-83 Case--a four-light kit that includes barndoors, 120V bulbs, light stands and a TO-83 hard kit case.The wide focusing range of the Omni-light makes it a flexible key light or backlight. Add diffusion or an umbrella, and it's a soft fill source. Available with a host of accessories and built for heavy-duty long life, the popular Omni is the perfect companion to the Tota.When fitted with an FTK 500 watt bulb each Omni-light will emit a beam of 75 footcandles at full flood, and 475 footcandles at full spot, from a distance of 10' (3 m). Although this kit is supplied for use with 120 AC voltage, it can function with 220-240 AC and 12-30 DC voltage, with the appropriate bulbs, adapter plugs or cables, and power supplies (available separately). Omni-lights - Reflector
- Double parabolic peened reflector provides a non-crossover beam for maximum efficiency and longer gel life
- Stay-Cool Handle
- A large, stay-cool folding handle allows the Omni-light to be adjusted or hand-held, and folds for storage
- Focus Range
- Each Omni-light has a focus range of 6:1 with #1 reflector and FTK Lamp
- Multi-Wattage, Multi-Voltage
-
- Uses 500W, 420W, and 300W at 120V
- Other bulbs are available for 230V and 240V AC, and 30V DC

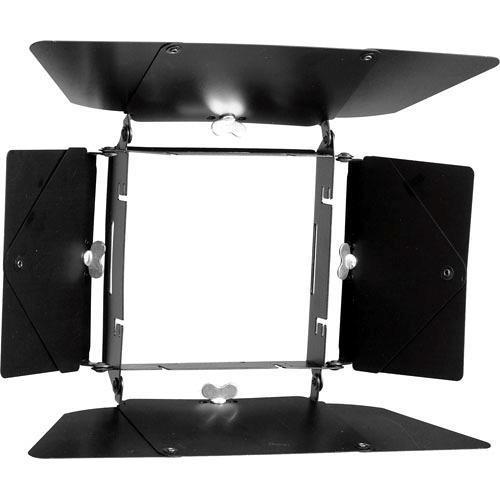

- Barndoors
- Four-leaf barndoors help control the spread of light from each Omni-light

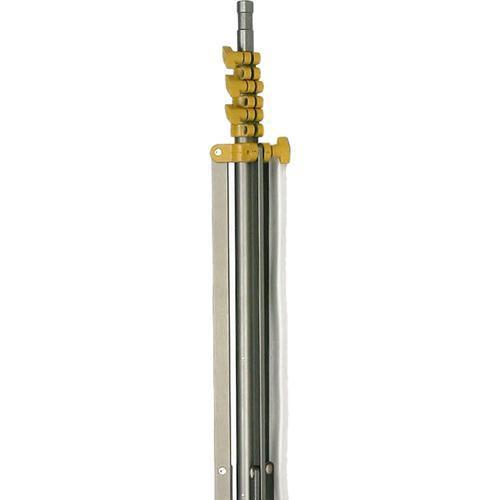

Light Stands - Omni Stands
-
- Maximum height of 9' (2.7 m)
- Standard Baby (5/8") top stud
- Anodized aluminum alloy tubing

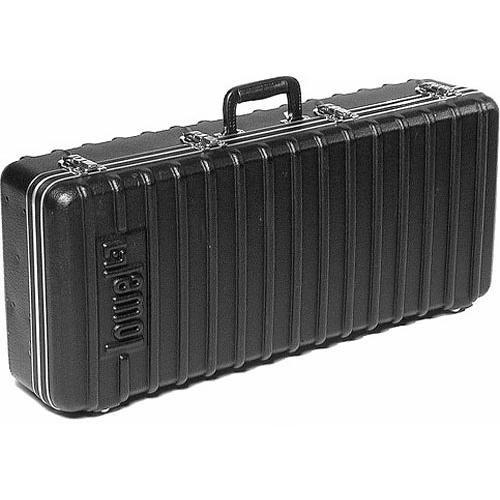

UPC: 841274007186 In the Box Lowel Omni 4 Kit, TO-83 Case 4 x Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) 4 x FTK Lamp - 500 Watts/120 Volts 4 x Omni Light Stand (9') 4 x Complete 4-Leaf Barndoor for Omni Light O1-61 Lampak for Omni Light Lamps TO-83 Case Multi-system Hard Case Two-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Omni 4 Kit, TO-83 Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel Omni-Light Specs | Rating | Each Omni-light: 500 watts, 120V-240VAC/12-30VDC | | Socket (Lampholder) | Each Omni-light: Porcelain 2-pin | | Lens (Condenser) | Not applicable | | Reflector (Mirror) | Double parabolic peened reflector | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not applicable | | Cable | 16' #18/3 wire, 120V grounded Edison plug | | Focusing | Continuously variable | | Weight | Each Omni-light: 2.6 lbs (1.9 kg) | | Dimensions | Each Omni-light: 8 x 5.5 x 3" (20 x 14 x 7.6 cm)
Kit in Case: 29.5 x 17 x 9.75" (74.9 x 43.4 x 24.8 cm) | | Kit Weight | 37 lbs (16.8 kg) | | | | Package Weight | 41.5 lb | | Box Dimensions (LxWxH) | 31.3 x 19.0 x 8.0" |
