User Manual for Lowel Omni-Light 500 Watt Focus Flood Light Click to enlarge the picture
Contents of the user manual for the Lowel Omni-Light 500 Watt Focus Flood
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel Omni-Light 500 Watt Focus Flood contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

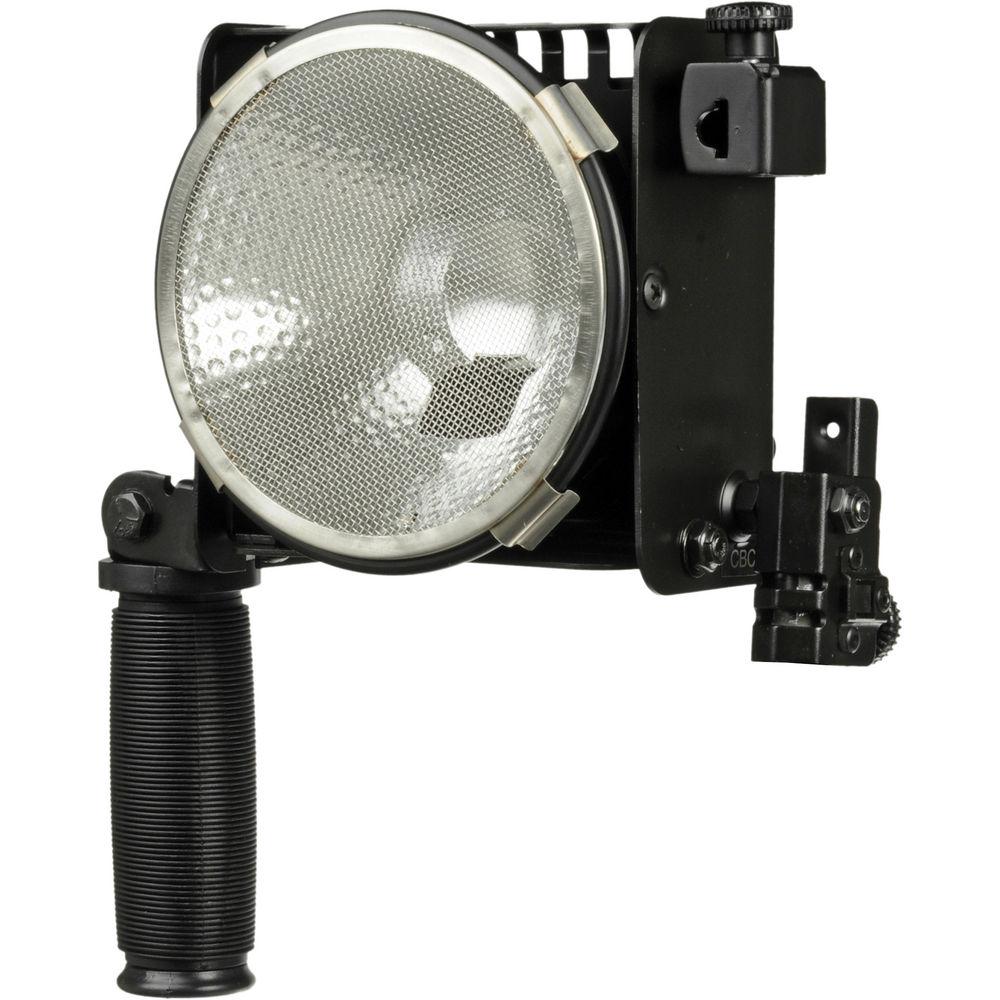

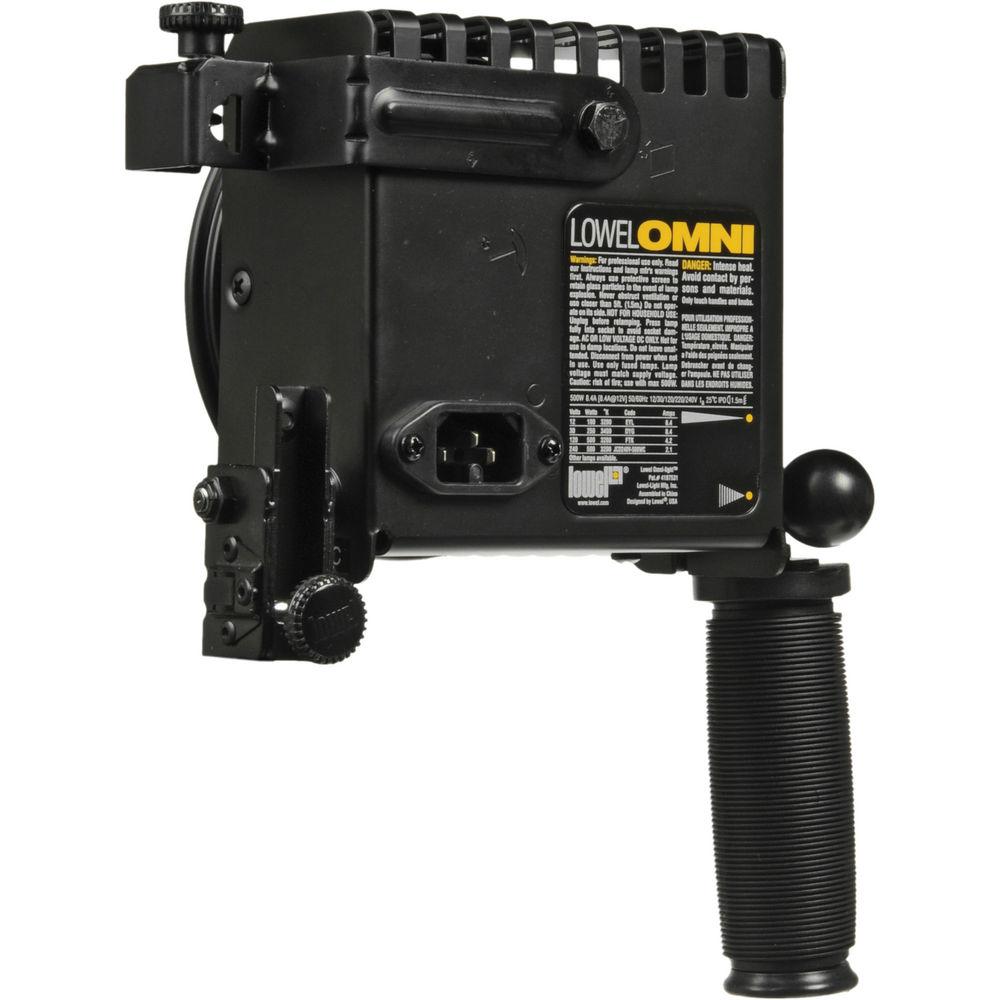

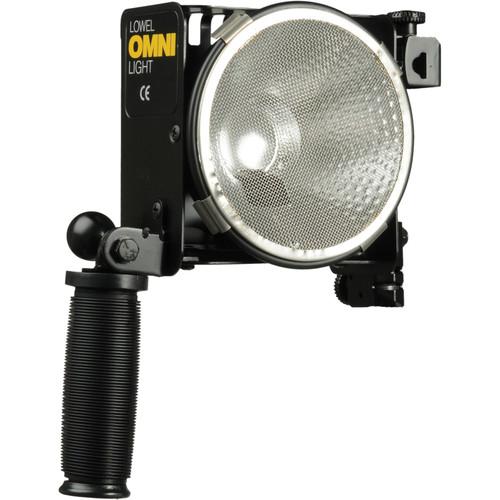

Product description The wide focusing range of the Lowel Omni-Light makes it a flexible key or backlight. Add diffusion or an umbrella, and it's a soft fill source. Swap the power cord and lamp and it becomes a battery powered, handheld light. Available with a host of accessories and built for heavy duty long life, the popular Omni is the perfect companion to the Tota. When fitted with an FTK 500 watt bulb (available separately), this fixture will emit a beam of 75 footcandles at full flood and 475 footcandles at full spot from a distance of 10' (3m). Other bulbs and plug adapters are available. - Reflector
- Double parabolic peened reflector provides non-crossover beam for maximum efficiency and gel life.
- Stay-Cool Handle
- Allows the Omni-light to be adjusted easily, can be hand-held, and folds for storage.
- Focus Lever
- Has a focus range of 6:1 with #1 reflector and FTK Lamp.
- Multi-Wattage, Multi-Voltage
- Uses 500, 420, and 300W at 120V.
Other bulbs are available for 230, 240 VAC, and 12-30 VDC. - Light Shapers Available
- Barndoors, Scrims, Dirchroic Filter, Snoots, Gel Frame, and Flag are all available separately.
UPC: 841274006653 In the Box Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) Protective Screen for Omni-light (Replacement) T1-80 16' Power Cable Large Cool Handle Two Year Manufacturer's Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Omni-Light 500 Watt Focus Flood Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel Omni-Light Specs | Rating | 500 W maximum, 120-240 VAC, 12-30 VDC | | Socket (Lampholder) | GY9.5 Pre-focus 2-pin ceramic | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Double parabolic peened reflector, other reflectors available | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16' #18/3 wire, in-line switch, 120 VAC grounded Edison plug | | Focusing | 6:1 lever on side of unit | | Weight | 2.6 lb / 1.9 kg | | Dimensions | 8 x 5.5 x 3" / 20 x 14 x 7.6 cm | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 8.0 x 6.5 x 6.5" |
