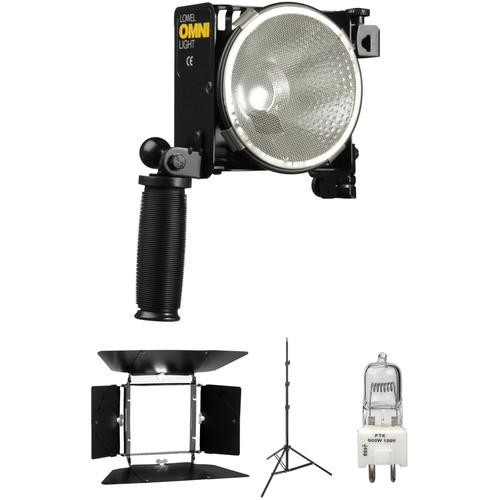

Product description This Lowel Omni-Light One-Light Kit (exclusively from B&H) includes an Omni-Light focusing floodlight, barndoors, and light stand. The wide focusing range of the Omni-Light makes it a flexible key light or backlight. Add diffusion or an umbrella and it's a soft fill source. Swap the power cord and lamp and it becomes a battery-powered, hand-held light. When fitted with its FTK 500W bulb, this fixture will emit a beam of 75 footcandles at full flood and 475 footcandles at full spot from a distance of 10' (3m). The fixture can also function at 220-240 VAC and 12-30 VDC with the appropriate bulb, plug, and power supply (available separately). - Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) The wide focusing range of the Lowel Omni-Light makes it a flexible key or backlight. Add diffusion or an umbrella, and it's a soft fill source. Swap the power cord and lamp and it becomes a battery powered, handheld light. Available with a host of accessories and built for heavy duty long life, the popular Omni is the perfect companion to the Tota. When fitted with an FTK 500 watt bulb (available separately), this fixture will emit a beam of 75 footcandles at full flood and 475 footcandles at full spot from a distance of 10' (3m). Other bulbs and plug adapters are available.
- Reflector
- Double parabolic peened reflector provides non-crossover beam for maximum efficiency and gel life.
- Stay-Cool Handle
- Allows the Omni-light to be adjusted easily, can be hand-held, and folds for storage.
- Focus Lever
- Has a focus range of 6:1 with #1 reflector and FTK Lamp.
- Multi-Wattage, Multi-Voltage
- Uses 500, 420, and 300W at 120V.
Other bulbs are available for 230, 240 VAC, and 12-30 VDC. - Light Shapers Available
- Barndoors, Scrims, Dirchroic Filter, Snoots, Gel Frame, and Flag are all available separately.
UPC: 841274006653 - Lowel Complete 4-Leaf Barndoor for Omni Light The Lowel Complete 4-Leaf Barndoor Set for the Omni Light includes a frame with two rectangular and two triangular leaves which are all expandable. It rotates 360° and holds up to two Lowel Omni accessories. Barndoors narrow the beam spread of a light fixture. They help create a 3-dimensional look to a lighting scheme by placing light in a specific area or by keeping it away.
- Each barndoor leaf has a sub-leaf that extends, which adds to its light-shaping ability.
UPC: 841274006776 - Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 - Impact FTK Lamp (500W, 120V) The Impact FTK Lamp (500W, 120V) is a 2-pin ceramic base bulb for Lowel, and many other brands of photographic fixtures, as well as projectors. It has a life of approximately 200 hours. UPC: 847628011465
In the Box - Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) wcudtyyfbuwzazszavcbxvq
- Protective Screen for Omni-light (Replacement)
- T1-80 16' Power Cable
- Large Cool Handle
- Two Year Manufacturer's Warranty
- Complete 4-Leaf Barndoor for Omni Light wcudtyyfbuwzazszavcbxvq
- Impact - Air-Cushioned Light Stand (Black, 8')
- Impact - FTK Lamp (500W, 120V)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Omni-Light One-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC)
| Rating | 500 W maximum, 120-240 VAC, 12-30 VDC | | Socket (Lampholder) | GY9.5 Pre-focus 2-pin ceramic | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Double parabolic peened reflector, other reflectors available | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16' #18/3 wire, in-line switch, 120 VAC grounded Edison plug | | Focusing | 6:1 lever on side of unit | | Weight | 2.6 lb / 1.9 kg | | Dimensions | 8 x 5.5 x 3" / 20 x 14 x 7.6 cm | | | | Box Dimensions (LxWxH) | 8.0 x 6.5 x 6.5" | - Lowel Complete 4-Leaf Barndoor for Omni Light
| | | Box Dimensions (LxWxH) | 6.9 x 6.85 x 4.55" | - Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" | - Impact FTK Lamp (500W, 120V)
| Base Type | GY9.5 | | Filament Type | C-13D | | ANSI Code | FTK | | Wattage | 500 W | | Voltage | 120 V | | Color Temperature | 3200K | | Average Life | 200 Hours | | Maximum Overall Length (MOL) | 3.25" / 8.2 cm | | | | Box Dimensions (LxWxH) | 3.55 x 1.25 x 1.25" |
