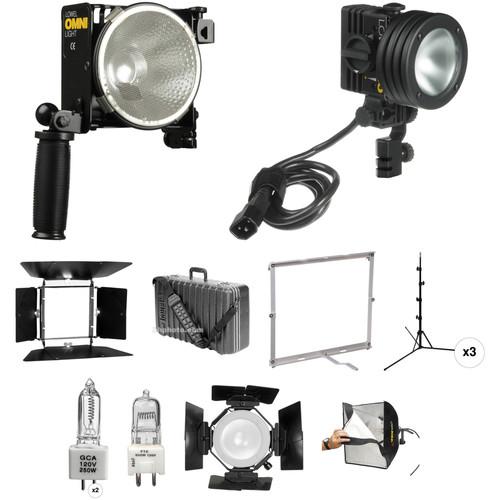

User Manual for Lowel Omni-light, Pro-light, Rifa eX Three-Light Kit Click to enlarge the picture
Contents of the user manual for the Lowel Omni-light, Pro-light, Rifa eX Three-Light
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
|
User manual for the Lowel Omni-light, Pro-light, Rifa eX Three-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|
Product description This Omni-Light, Pro-Light, Rifa eX Three-Light Kit (exclusively from B&H) is built around three of Lowel's most popular fixtures: the Rifa-Lite softbox light, the Omni-Light focusing flood, and the Pro-Light mini focusing flood. It's a complete kit, including barndoors, filter frames, gels, light stands, bulbs, a 32" multi-disc reflector, and kit case.The Lowel Rifa-Lite eX 44 is an compact, self-contained, 250W, collapsible, tungsten/halogen softlight that uses the unique umbrella-like Rifa design allowing setup in 60 seconds or less. Bathe almost anything in luxurious soft light, from talking heads to table-top stills. The wide focusing range of the Omni-light makes it a flexible key light or backlight. Add diffusion or an umbrella and it's a soft fill source. Swap the power cord and lamp and it becomes a battery-powered, hand-held light. With its high intensity #2 reflector and prismatic glass, the tiny, focusable Pro-Light is more efficient than a Fresnel of equal wattage, yet it gives an even light with Fresnel-like shadow quality. It can be used as a low-level key light or accent light, fill light (with diffusion), or backlight.This kit is equipped for use with 120 AC voltage. It can also function with 220-240 AC or 12-30 DC voltage with the appropriate bulbs and adapter plugs or cables (available separately). - Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) The wide focusing range of the Lowel Omni-Light makes it a flexible key or backlight. Add diffusion or an umbrella, and it's a soft fill source. Swap the power cord and lamp and it becomes a battery powered, handheld light. Available with a host of accessories and built for heavy duty long life, the popular Omni is the perfect companion to the Tota. When fitted with an FTK 500 watt bulb (available separately), this fixture will emit a beam of 75 footcandles at full flood and 475 footcandles at full spot from a distance of 10' (3m). Other bulbs and plug adapters are available.
- Reflector
- Double parabolic peened reflector provides non-crossover beam for maximum efficiency and gel life.
- Stay-Cool Handle
- Allows the Omni-light to be adjusted easily, can be hand-held, and folds for storage.
- Focus Lever
- Has a focus range of 6:1 with #1 reflector and FTK Lamp.
- Multi-Wattage, Multi-Voltage
- Uses 500, 420, and 300W at 120V.
Other bulbs are available for 230, 240 VAC, and 12-30 VDC. - Light Shapers Available
- Barndoors, Scrims, Dirchroic Filter, Snoots, Gel Frame, and Flag are all available separately.
UPC: 841274006653 - Lowel Complete 4-Leaf Barndoor for Omni Light The Lowel Complete 4-Leaf Barndoor Set for the Omni Light includes a frame with two rectangular and two triangular leaves which are all expandable. It rotates 360° and holds up to two Lowel Omni accessories. Barndoors narrow the beam spread of a light fixture. They help create a 3-dimensional look to a lighting scheme by placing light in a specific area or by keeping it away.
- Each barndoor leaf has a sub-leaf that extends, which adds to its light-shaping ability.
UPC: 841274006776 - Lowel GO-85 Case Multi-system Hard Case The Lowell GO-85 Case Multi-system Hard Case (Black) is a high-impact, molded polyethylene case with a hinged lid. It can hold four Omni-lights or four Tota-lights, or combinations which can also include Rifa 44, Pro & V-lights, plus four Uni or Uni TO stands. It includes seven internal partitions or dividers. It can be carried by a handle or a removable, adjustable air cushioned shoulder strap with pad.
- High-impact, molded polyethylene case with a hinged lid
- Includes internal partitions
-
- Two movable padded dividers 4.0 x 7.75 (HxL)
- Three movable padded dividers 4.5 x 4.0" (HxL)
- One movable padded dividers 3.0 x 4.0" (HxL)
- One padded dividers 22.75 x 4.0" (HxL)
- Carrying options
-
- Carry handle
- Removable, adjustable air cushioned shoulder strap with pad
UPC: 841274003843 - Lowel ViP Pro-Light (120 VAC / 12 VDC) With its high intensity #2 reflector and prismatic glass, the tiny, focusable Lowel ViP Pro-Light is more efficient than a mini-Fresnel of equal wattage, yet it gives an exquisite, even light, with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight.In addition to a wide variety of customizing accessories, its versatility can be increased by switching its 12' AC cable for an optional DC adapter cable and swapping its bulb for use as a camera-top fixture. Other bulbs, and plug adapters are available. When fitted with an FVL 200 watt bulb (available separately), the Pro-Light will emit a beam of 23 footcandles at full flood and 143 footcandles at full spot from a distance of 10' (3 m). With a GCC 100W lamp at 12 VDC: 12 footcandles in flood and 58 footcandles in spot.
- Focus Flood
-
- Change the setting from "spot" to "flood" position or anywhere in between by turning knob on side of unit.
- Has a focus range of 6:1 with optional lamp.
- Easy Access
- The front end comes off for easy access for no-tool lamp change.
- Multi-Use Source
- Substituting the prismatic glass for the optional clear glass turns light into a non-focusing, high intensity spotlight, for long throw situations.
- AC/DC
- Choose your bulb for 120 VAC or 12 or 30 VDC.
UPC: 084127400967 - Lowel Tota/Omni Gel Frame for 10x12" Gels The Lowel Tota/Omni Gel Frame for 10x12" Gels slips directly into the Tota-lite or Omni-lite fixture's designated slot, allowing it to tilt and pan with the light unit. The frame folds down easily to fit in almost any location case.
- Holds cut gels with integral gel jaws
UPC: 841274007803 - 3 x Impact LS-RL7 7.2' Reverse Legs Light Stand This Impact LS-RL7 7.2' Reverse Legs Light Stand is a lightweight support that's ideal for location work or in the studio for use with a small lights or to hold reflectors. This is one of the few stands to be able to sit completely flush to the floor where they can be taped down or sandbagged to stabilize its load. The LS-RL7's unique design allows the legs to fold up around the central risers somewhat like an inverted umbrella. The result is a 7.2' light stand that breaks down to only 19.5" - short enough to fit in even the smallest light kit bags. The stand is topped with a 5/8" mounting stud with 3/8" threads, a 3/8" 1/4"-20 adapter, and weighs just 2.6 lb. UPC: 847628566576
- 2 x Sylvania / Osram GCA (250W/120V) Lamp The Sylvania GCA (250W/120V) Lamp is a T3 shape display optic halogen bulb. The GCA has a G5.3 base and a 200 hour lamp life. This lamp is commonly used for studio, theater, TV & video. UPC: 046135544286
- Impact FTK Lamp (500W, 120V) The Impact FTK Lamp (500W, 120V) is a 2-pin ceramic base bulb for Lowel, and many other brands of photographic fixtures, as well as projectors. It has a life of approximately 200 hours. UPC: 847628011465
- Lowel Complete Four Leaf Barndoor Set for Pro, i-Light The Lowel Four Leaf Barndoor Set for the Pro and i-Lights consists of a Barndoor Frame with four expandable clip-on Leaves. The frame accepts swing-in accessories, and rotates 360°.Barndoors narrow the beam spread of a light fixture. They help create a three-dimensional look to a lighting scheme by placing light in a specific area, or by keeping it away. The more leaves a barndoor set has, or the longer the leaves the more precisely the beam can be controlled. UPC: 841274004697
- Lowel LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC) The Lowel Rifa-Lite EX44 is a compact self-contained 16 x 16", 250 watt, collapsible, tungsten/halogen softlight. It uses the unique umbrella-like Rifa design which allows set-up in 60 seconds or less. Bathe almost anything from talking heads to table-top stills in luxurious, soft light. Its quick change power cord easily converts for use with professional battery belts, allowing it to work at 12/14 and 30 VDC, in addition to 120 and 230 VAC. It's the perfect complement to today's compact, light sensitive digital cameras and filmstocks. Accessory eXchange lampheads allow use of daylight fluorescent lamps. Bulbs are available separately.
- Adaptable Lamp Fixture
- The Rifa EX accepts many different wattages and types of bulbs when you purchase the appropriate socket adapter, available separately.
- Front Diffusion
- A woven glass fabric, heat-resistant 16 x 16" (41 x 41 cm) front diffuser provides sufficient illumination with soft shadows.
- Easy Access
- Easy access pockets on fabric shell allow clip-on gel attachment for correcting to daylight.
UPC: 049383160338 - Impact 5-in-1 Collapsible Circular Reflector with Handles (32") This two-handle 32" 5-1 Circular Collapsible Reflector with Handles from Impact adds a polished-looking quality of light to your photos or videos. The reflector is built around a translucent disc which doesn't reflect as much as the solid white surface, but does exhibit soft neutral reflection. Its primary purpose, however, is as a diffuser that will tame contrast by being held over a subject's head in the harsh noon-day sun. The disc can also be used in situations where you'd use a softbox. Using a disc holder or one of the 3/8" sockets, place your flash or constant light behind the suspended disc for soft, flattering light with open shadows.The 5-in-1 reflector has handy convenience features that make it easy to use and deliver impressive results, while saving space by folding down to approximately one third of its open size. Impact's smart design provides ergonomic handgrips that allow you to hold the disc in a flat or U-shaped position, or in any way that gets the job done. Each of the grips has additional 3/8"-16 threaded sockets for attachment to accessories or grip equipment. The 5-in-1 Reflector comes with a carry/storage case.The surfaces are available on two removable, reversible sleeves that slip over the disc. Silver offers very high reflective qualities that render a snappy high-contrast look with a cool color bias. Just the opposite, the Gold surface reflects a very warm quality; similar to late afternoon or sunset light. The Black fabric subtracts light from the subject, and can be used to block out unwanted light or to greatly reduce reflections on shiny or reflective surfaces. Finally, the flat White surface provides neutral reflectance with a soft quality of light. UPC: 847628598904
- Pro Gel 12-Piece Cool/Warm Colors Filter Pack (12 x 12") This 12 x 12" (30 x 30cm) Colour Lite Cool/Warm Gel Filter Pack includes 12 consistently accurate, premium quality filters, made specifically for theatrical, motion picture, television, and still photographic applications.
This pack includes 12 filters for warming and cooling the Kelvin temperature of your lighting fixture. - Color dyes are selected for their resistance to high temperatures and dissolved in special fire-retardant lacquers.
- The dyed lacquer is then applied to extraordinary clear, dimensionally stable, polymeric film.
- Color control and consistency are maintained by a computerized spectrometer capable of correcting color application to within 0.0004 grams per square meter (~10.75 sq ft).
UPC: 702811533745 In the Box - Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) dybxzexwcvrxrfszbxfrcddxwwyffawrvxfeuq
- Protective Screen for Omni-light (Replacement)
- T1-80 16' Power Cable
- Large Cool Handle
- Two Year Manufacturer's Warranty
- Complete 4-Leaf Barndoor for Omni Light
- GO-85 Case - 23.75 x 13.5 x 7"
- ViP Pro-Light (120 VAC / 12 VDC)
- Tota/Omni Gel Frame for 10x12" Gels
- 3 x Impact - LS-RL7 7.2' Reverse Legs Light Stand
- 2 x Sylvania / Osram - GCA (250W/120V) Lamp dybxzexwcvrxrfszbxfrcddxwwyffawrvxfeuq
- Impact - FTK Lamp (500W, 120V)
- Complete Four Leaf Barndoor Set for Pro, i-Light
- LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC)
- Impact - 5-in-1 Collapsible Circular Reflector with Handles (32")
- Pro Gel - 12-Piece Cool/Warm Colors Filter Pack (12 x 12") dybxzexwcvrxrfszbxfrcddxwwyffawrvxfeuq
Note: Kit Accessories may vary according to availability Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Omni-light, Pro-light, Rifa eX Three-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC)
| Rating | 500 W maximum, 120-240 VAC, 12-30 VDC | | Socket (Lampholder) | GY9.5 Pre-focus 2-pin ceramic | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Double parabolic peened reflector, other reflectors available | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16' #18/3 wire, in-line switch, 120 VAC grounded Edison plug | | Focusing | 6:1 lever on side of unit | | Weight | 2.6 lb / 1.9 kg | | Dimensions | 8 x 5.5 x 3" / 20 x 14 x 7.6 cm | | | | Box Dimensions (LxWxH) | 8.0 x 6.5 x 6.5" | - Lowel Complete 4-Leaf Barndoor for Omni Light
| | | Box Dimensions (LxWxH) | 6.9 x 6.85 x 4.55" | - Lowel GO-85 Case Multi-system Hard Case
| | | Closure Type | Latch | | Carry and Transport Options | Handle
Shoulder Strap | | Material of Construction | Polyethylene | | Exterior Dimensions (W x H x D) | 23.8 x 7 x 13.5" / 60.3 x 17.8 x 34.3 cm | | Weight | 10.3 lb / 4.7 kg | | | | Box Dimensions (LxWxH) | 24.25 x 15.5 x 8.0" | - Lowel ViP Pro-Light (120 VAC / 12 VDC)
| Rating | 250 W maximum | | Socket (Lampholder) | G5.3 bi-pin | | Lens (Condenser) | Prismatic glass | | Reflector (Mirror) | High intensity #2 reflector | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 4' captive, and 12' extension cable, 120 VAC grounded Edison plug | | Focusing | Side knob, 6:1 with FVL lamp | | Weight | 2 lb / 907 g | | Dimensions | 4.6 x 5 x 3.7" / 11.7 x 12.7 x 9.4 cm | | | | Box Dimensions (LxWxH) | 8.7 x 5.45 x 5.35" | - Lowel Tota/Omni Gel Frame for 10x12" Gels
| Dimensions | Closed: 12 x 1 x 1" (30.5 x 2.5 x 2.5 cm)
Open: 10 x 12" (25.4 x 30.5 cm) | | Weight | 6 oz (170 g) | | | | Box Dimensions (LxWxH) | 12.75 x 3.4 x 2.2" | - 3 x Impact LS-RL7 7.2' Reverse Legs Light Stand
| Load Capacity | 3.3 lb / 1.5 kg | | Mounting Options | 1/4"-20 Male Thread
3/8"-16 Male Thread
5/8" Stud | | Number of Sections | 5 | | Column Diameter | 0.98" / 2.5 cm
0.87" / 2.2 cm
0.75" / 1.9 cm
0.63" / 1.6 cm
0.51" / 1.3 cm | | Maximum Working Height | 86" / 218 cm | | Minimum Working Height | 19.3" / 49 cm | | Collapsed Height | 19.5" / 49.5 cm | | Footprint Diameter | 39.4" / 100 cm | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | Yes | | Finish | Black | | Material | Aluminum | | Weight | 2.6 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 20.8 x 3.85 x 3.15" | - 2 x Sylvania / Osram GCA (250W/120V) Lamp
| Bulb Type | T3 | | Base Type | G5.3 | | Wattage | 250 W | | Voltage | 120 V | | Lumens | 5700 | | Color Temperature | 3200K | | Average Life | 200 Hours | | | | Box Dimensions (LxWxH) | 3.65 x 1.3 x 1.3" | - Impact FTK Lamp (500W, 120V)
| Base Type | GY9.5 | | Filament Type | C-13D | | ANSI Code | FTK | | Wattage | 500 W | | Voltage | 120 V | | Color Temperature | 3200K | | Average Life | 200 Hours | | Maximum Overall Length (MOL) | 3.25" / 8.2 cm | | | | Box Dimensions (LxWxH) | 3.55 x 1.25 x 1.25" | - Lowel Complete Four Leaf Barndoor Set for Pro, i-Light
| | | Box Dimensions (LxWxH) | 6.6 x 4.95 x 2.15" | - Lowel LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC)
| Rating | 250 W maximum, 120-230 VAC / 12 VDC | | Socket (Lampholder) | 2-pin | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Silver softbox interior | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 4' captive cable, 16' 120 VAC cable, grounded Edison plug | | Focusing | Not Applicable | | Weight | 2.1 lb / 1 kg | | Dimensions | Collapsed length: 21" / 53 cm
Diffused Front: 16 x 16" / 41 x 41 cm | | | | Box Dimensions (LxWxH) | 16.0 x 6.0 x 6.0" | - Impact 5-in-1 Collapsible Circular Reflector with Handles (32")
| Shape | Circular | | Open Diameter | 32" (81.3 cm) | | Folded Diameter | Approximately 1/3 its open size | | Surfaces | Translucent disc with Silver, Gold, White and Black surface sleeves | | | | Box Dimensions (LxWxH) | 11.75 x 11.7 x 3.0" | - Pro Gel 12-Piece Cool/Warm Colors Filter Pack (12 x 12")
| Pack | 12 Sheets | | Size | 12 x 12" / 30 x 30 cm | | Colors | 1 each of: Straw, Middle Rose, 1/2 C.T. Orange, Flesh Pink, Golden Amber, Bastard Amber, Fern Green, Peacock Blue, 1/2 Plus Green, 1/2 C.T. Blue, Steel Blue and Pale Lavender | | | | Box Dimensions (LxWxH) | 12.5 x 12.3 x 0.01" |
