Product description

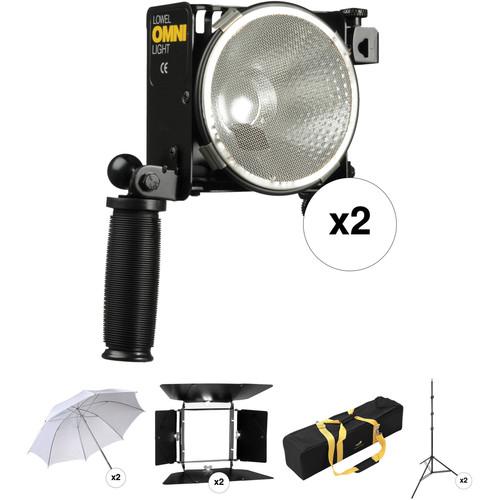

• 2 x Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) The wide focusing range of the Lowel Omni-Light makes it a flexible key or backlight. Add diffusion or an umbrella, and it's a soft fill source. Swap the power cord and lamp and it becomes a battery powered, handheld light. Available with a host of accessories and built for heavy duty long life, the popular Omni is the perfect companion to the Tota. When fitted with an FTK 500 watt bulb (available separately), this fixture will emit a beam of 75 footcandles at full flood and 475 footcandles at full spot from a distance of 10' (3m). Other bulbs and plug adapters are available.
  Reflector
  • Double parabolic peened reflector provides non-crossover beam for maximum efficiency and gel life.
  Stay-Cool Handle
  • Allows the Omni-light to be adjusted easily, can be hand-held, and folds for storage.
  Focus Lever
  • Has a focus range of 6:1 with #1 reflector and FTK Lamp.
  Multi-Wattage, Multi-Voltage
  • Uses 500, 420, and 300W at 120V.
    Other bulbs are available for 230, 240 VAC, and 12-30 VDC.
  Light Shapers Available
  • Barndoors, Scrims, Dirchroic Filter, Snoots, Gel Frame, and Flag are all available separately.
  UPC: 841274006653
• 2 x Lowel White 27" Tota-Brella Fits directly onto Tota or Omni and ViP lights without tools, to convert them to soft shadow sources.
  Heat-resistant, woven, white fabric.This size is perfect for a 1 person head shot, or a 3x4 ft product setup. UPC: 841274007858
• 2 x Lowel Complete 4-Leaf Barndoor for Omni Light The Lowel Complete 4-Leaf Barndoor Set for the Omni Light includes a frame with two rectangular and two triangular leaves which are all expandable. It rotates 360° and holds up to two Lowel Omni accessories. Barndoors narrow the beam spread of a light fixture. They help create a 3-dimensional look to a lighting scheme by placing light in a specific area or by keeping it away.
  • Each barndoor leaf has a sub-leaf that extends, which adds to its light-shaping ability.
  UPC: 841274006776
• Impact Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories The Impact Light Kit Bag #3 (Black) is a soft padded case designed to transport and protect a 2 monolight lighting kit. It has space to hold 2 monolights with reflectors, cables, umbrellas and light stands. It is carried by 2 overlapping carrying handles or the included shoulder strap.
  Bag Basics
  • • Fits 2 monolight lighting system
    • Soft padded lighting bag
    • Holds up to 35 lbs
  Carrying Options
  • • Two overlapping handles
    • Removable, adjustable shoulder strap
  UPC: 847628011885
• 2 x Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628030626

• 2 x Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) xvcctwvaatfcytfvtx
• Protective Screen for Omni-light (Replacement)
• T1-80 16' Power Cable
• Large Cool Handle
• Two Year Manufacturer's Warranty

• 2 x Umbrella - Tota-Brella (Special/White) - 27"

• 2 x Complete 4-Leaf Barndoor for Omni Light

• Impact - Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories

• 2 x Impact - Air-Cushioned Light Stand (Black, 10')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC)

  Rating	500 W maximum, 120-240 VAC, 12-30 VDC
  Socket (Lampholder)	GY9.5 Pre-focus 2-pin ceramic
  Lens (Condenser)	Not Applicable
  Reflector (Mirror)	Double parabolic peened reflector, other reflectors available
  Mounting	Fits on any standard 5/8" stand or stud
  Yoke	Not Applicable
  Cable	16' #18/3 wire, in-line switch, 120 VAC grounded Edison plug
  Focusing	6:1 lever on side of unit
  Weight	2.6 lb / 1.9 kg
  Dimensions	8 x 5.5 x 3" / 20 x 14 x 7.6 cm

  Box Dimensions (LxWxH)	8.0 x 6.5 x 6.5"

• 2 x Lowel White 27" Tota-Brella

  Size	27.0" / 68.6 cm
  Interior	White (Translucent)

  Box Dimensions (LxWxH)	20.75 x 1.85 x 1.65"

• 2 x Lowel Complete 4-Leaf Barndoor for Omni Light

  Box Dimensions (LxWxH)	6.9 x 6.85 x 4.55"

• Impact Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories

  Material	Nylon
  Type of Closure	Zipper
  Exterior Dimensions	36 x 9 x 9" (91.4 x 22.6 x 22.6 cm) (LxWxH)
  Interior Dimensions	35 x 8 x 8" (88.9 x 20.3 x 20.3 cm) (LxWxH)
  Accommodates	2 monolights with reflectors, cables, umbrellas and light stands
  Carrying/Transport Options	Carrying handles Shoulder strap
  Load Capacity	35 lbs (15.88 kg)
  Weight	4.05 lbs (1.837 kg)

  Box Dimensions (LxWxH)	52.0 x 8.0 x 8.0"

• 2 x Impact Air-Cushioned Light Stand (Black, 10')

  Maximum Load	8.5 lb (3.8 kg)
  Maximum Height	121.5" (308.6 cm)
  Minimum Height	40.5" (102.9 cm)
  Closed Length	33.5" (85 cm)
  Footprint Diameter	38" (96.5 cm)
  Leg Tip	0.8" (20 mm)
  Attachment Size	5/8" (16 mm) stud with 1/4"-20 male threads
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	34.0 x 3.0 x 3.0"
