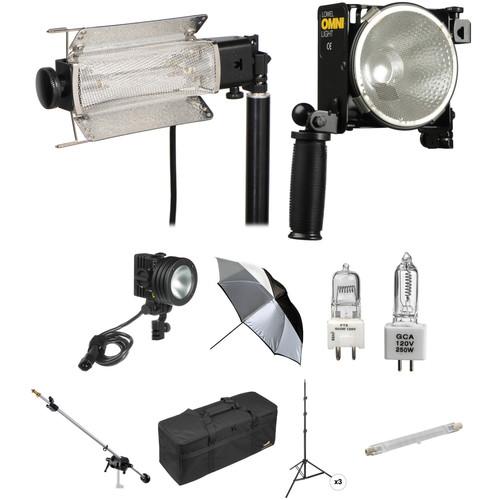

Product description This is a B&H exclusive Lowel Portrait Three-Light Kit based around the Lowel Tota-, Omni-, and Pro-Lights. This 1500-total-watt kit includes everything a photographer or videographer needs to get started: three lights with barndoors, light stands and boom arm, an umbrella, bulbs, and a case that holds it all.This kit is equipped for use with 120 AC voltage. Some or all of the fixtures in this kit can function with 220-240 AC and 12-30 DC voltage, with the appropriate bulbs, adapter plugs or cables, and power supplies (available separately). - Lowel Tota-Light Tungsten Flood Light (120-240 VAC) Compact, rugged, and versatile, the broad throw Lowel Tota-light can be used with an umbrella or gel frame, or with diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it toward the ceiling to raise the ambient (base) light level of a room. Tota is also widely used for photographic copy work. When fitted with an EMD 750W / 120V bulb (available separately), the Tota-Light will emit a beam of 41 footcandles with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10' (3m). The Tota-Light is multi-voltage capable, and a choice of bulbs and plug adapters are available.
- Compact Wide Floodlight
- Its aperture measures only 4.5 x 11" (11.4 x 29.9 cm).
- Full Rotation
- Can be rotated a full 360° with the large, stay-cool, plastic adjustment knob.
- Multi-Wattage, Multi-Voltage
- It uses bulbs from 750 to 300W / 120V. It uses 800W bulbs for 220V use.
- Adjustable Doors
- Adjustable reflecting doors can illuminate four walls evenly from a corner or compensate for light fall-off from above or below.
UPC: 841274007742 - Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) The wide focusing range of the Lowel Omni-Light makes it a flexible key or backlight. Add diffusion or an umbrella, and it's a soft fill source. Swap the power cord and lamp and it becomes a battery powered, handheld light. Available with a host of accessories and built for heavy duty long life, the popular Omni is the perfect companion to the Tota. When fitted with an FTK 500 watt bulb (available separately), this fixture will emit a beam of 75 footcandles at full flood and 475 footcandles at full spot from a distance of 10' (3m). Other bulbs and plug adapters are available.
- Reflector
- Double parabolic peened reflector provides non-crossover beam for maximum efficiency and gel life.
- Stay-Cool Handle
- Allows the Omni-light to be adjusted easily, can be hand-held, and folds for storage.
- Focus Lever
- Has a focus range of 6:1 with #1 reflector and FTK Lamp.
- Multi-Wattage, Multi-Voltage
- Uses 500, 420, and 300W at 120V.
Other bulbs are available for 230, 240 VAC, and 12-30 VDC. - Light Shapers Available
- Barndoors, Scrims, Dirchroic Filter, Snoots, Gel Frame, and Flag are all available separately.
UPC: 841274006653 - Lowel ViP Pro-Light (120 VAC / 12 VDC) With its high intensity #2 reflector and prismatic glass, the tiny, focusable Lowel ViP Pro-Light is more efficient than a mini-Fresnel of equal wattage, yet it gives an exquisite, even light, with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight.In addition to a wide variety of customizing accessories, its versatility can be increased by switching its 12' AC cable for an optional DC adapter cable and swapping its bulb for use as a camera-top fixture. Other bulbs, and plug adapters are available. When fitted with an FVL 200 watt bulb (available separately), the Pro-Light will emit a beam of 23 footcandles at full flood and 143 footcandles at full spot from a distance of 10' (3 m). With a GCC 100W lamp at 12 VDC: 12 footcandles in flood and 58 footcandles in spot.
- Focus Flood
-
- Change the setting from "spot" to "flood" position or anywhere in between by turning knob on side of unit.
- Has a focus range of 6:1 with optional lamp.
- Easy Access
- The front end comes off for easy access for no-tool lamp change.
- Multi-Use Source
- Substituting the prismatic glass for the optional clear glass turns light into a non-focusing, high intensity spotlight, for long throw situations.
- AC/DC
- Choose your bulb for 120 VAC or 12 or 30 VDC.
UPC: 084127400967 - Photogenic Umbrella, White - 45" with Removable Black Cover This is a Photogenic 45" Umbrella with Removable Black Cover. This size is suitable for a two - three person head and shoulders portrait. Umbrellas soften, broaden, and diminish the light output of any tungsten or flash light source. Umbrellas with a white interior soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush. UPC: 689670060196
- Sylvania / Osram FTK (500W/120V) Lamp The Sylvania FTK (500W/120V) Lamp is a T6 shape display optic halogen bulb. The FTK has a GY9.5 base and a 200 hour lamp life. This lamp is commonly used for studio, theater, TV & video. UPC: 046135548758
- Sylvania / Osram GCA (250W/120V) Lamp The Sylvania GCA (250W/120V) Lamp is a T3 shape display optic halogen bulb. The GCA has a G5.3 base and a 200 hour lamp life. This lamp is commonly used for studio, theater, TV & video. UPC: 046135544286
- Impact Mini Boom Arm - 5' 3" This Impact Mini Boom Arm is an aluminum lightweight boom arm with a 1 lb counterweight and swivel handle light stand mount. It can hold a small light fixture. UPC: 847628012059
- Impact Light Kit Bag #2 (34 x 13.5 x 12") The black Light Kit Bag #2 (34 x 13.5 x 12") from Impact makes transporting your lighting kit easy and secure. The bag is designed to hold three monolights along with their reflectors (such as Impact VC500LR), four stands, boom, umbrellas, cables and other support gear but can also be used to hold other lighting equipment instead. You'll have plenty of room to take along enough lighting gear for a portrait session - all packed in an organized and accessible way. A touch fastened divider tray separates the stands, boom and umbrellas from the lights preventing them from bumping together and causing scratches or damage. For additional smaller equipment such as cables and small accessories, there are three interior 10.5 x 8.0" zippered mesh pockets.The bag is made from soft, padded water-resistant nylon and contains six movable touch fastened interior dividers (6 large, 2 small) that will permit you to configure the bag to accommodate the gear you need that day. The Light Kit Bag is carried by its two 2" wide overlapping top carry handles that can easily be extended into dual shoulder straps. The contents are accessed via dual zippers that when placed together will accept a user-supplied lock. For even more protection, the bottom of the bag contains three rubber feet for when the bag is placed on the ground. And the bag folds down to a quarter of its height for convenient storage and easy setup. Whether for storage or transport, the Impact Light Kit Bag will serve both pro or amateur well.
- The soft padded carry case is designed to hold three monolights with reflectors, four light stands, umbrellas, cables and other accessories
- The interior has six movable, touch fastened dividers that permit you to configure the bag to suit your needs; dividers consist of six large and two smaller styles
- 2" (5.1 cm) wide overlapping dual carry handles that convert to a shoulder strap
- Interior has three zippered 10.5 x 8.0" mesh pockets (26.7 x 20.3 cm)
- Touch fastened protective nylon tray separates light stands and umbrellas from monolights
- Water-resistant padded nylon construction
- Folds down to less then 4" for convenient storage and easy setup
- Dual zippered opening; accepts user-supplied lock
UPC: 847628030619 - 3 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 - Ushio EMD Lamp (750W/120V) The Ushio EMD Lamp (750W/120V) is a double-ended 750W quartz halogen lamp for use on a 120VAC circuit. UPC: 048777121351
- Lowel Complete Four Leaf Barndoor Set for Pro, i-Light The Lowel Four Leaf Barndoor Set for the Pro and i-Lights consists of a Barndoor Frame with four expandable clip-on Leaves. The frame accepts swing-in accessories, and rotates 360°.Barndoors narrow the beam spread of a light fixture. They help create a three-dimensional look to a lighting scheme by placing light in a specific area, or by keeping it away. The more leaves a barndoor set has, or the longer the leaves the more precisely the beam can be controlled. UPC: 841274004697
In the Box - Tota-Light Tungsten Flood Light (120-240 VAC) zatyeevzcauyfa
- T1-80 16' Power Cable
- Protective Front Screen
- 2 x Integral Gull Wing Adjustable Reflecting Doors
- Limited 2-Year Warranty
- Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC)
- ViP Pro-Light (120 VAC / 12 VDC)
- Photogenic - Umbrella, White - 45" with Removable Black Cover
- Sylvania / Osram - FTK (500W/120V) Lamp
- Sylvania / Osram - GCA (250W/120V) Lamp
- Impact - Mini Boom Arm - 5' 3"
- Impact - Light Kit Bag #2 (34 x 13.5 x 12")
- 3 x Impact - Air-Cushioned Light Stand (Black, 8')
- Ushio - EMD Lamp (750W/120V)
- Complete Four Leaf Barndoor Set for Pro, i-Light
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Portrait Three-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lowel Tota-Light Tungsten Flood Light (120-240 VAC)
| Rating | 750 W maximum, 120-240 VAC | | Socket (Lampholder) | R7s, double ended | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Dual Gull Wing reflector doors | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16', with in-line switch, 120 VAC grounded Edison plug | | Focusing | Not Applicable | | Weight | 2.25 lb / 1.02 kg | | Dimensions | Size closed: 2 x 3 x 11" / 5 x 7.6 x 27.9 cm | | | | Box Dimensions (LxWxH) | 12.3 x 8.45 x 4.35" | - Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC)
| Rating | 500 W maximum, 120-240 VAC, 12-30 VDC | | Socket (Lampholder) | GY9.5 Pre-focus 2-pin ceramic | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Double parabolic peened reflector, other reflectors available | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16' #18/3 wire, in-line switch, 120 VAC grounded Edison plug | | Focusing | 6:1 lever on side of unit | | Weight | 2.6 lb / 1.9 kg | | Dimensions | 8 x 5.5 x 3" / 20 x 14 x 7.6 cm | | | | Box Dimensions (LxWxH) | 8.0 x 6.5 x 6.5" | - Lowel ViP Pro-Light (120 VAC / 12 VDC)
| Rating | 250 W maximum | | Socket (Lampholder) | G5.3 bi-pin | | Lens (Condenser) | Prismatic glass | | Reflector (Mirror) | High intensity #2 reflector | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 4' captive, and 12' extension cable, 120 VAC grounded Edison plug | | Focusing | Side knob, 6:1 with FVL lamp | | Weight | 2 lb / 907 g | | Dimensions | 4.6 x 5 x 3.7" / 11.7 x 12.7 x 9.4 cm | | | | Box Dimensions (LxWxH) | 8.7 x 5.45 x 5.35" | - Photogenic Umbrella, White - 45" with Removable Black Cover
| Size | 45.0" / 114.3 cm | | Interior | White | | Exterior | Black | | | | Box Dimensions (LxWxH) | 28.8 x 5.05 x 2.2" | - Sylvania / Osram FTK (500W/120V) Lamp
| Bulb Type | T6 | | Base Type | GY9.5 | | Wattage | 500 W | | Voltage | 120 V | | Lumens | 12,000 | | Color Temperature | 3200K | | Average Life | 200 Hours | | | | Box Dimensions (LxWxH) | 3.6 x 1.35 x 1.3" | - Sylvania / Osram GCA (250W/120V) Lamp
| Bulb Type | T3 | | Base Type | G5.3 | | Wattage | 250 W | | Voltage | 120 V | | Lumens | 5700 | | Color Temperature | 3200K | | Average Life | 200 Hours | | | | Box Dimensions (LxWxH) | 3.65 x 1.3 x 1.3" | - Impact Mini Boom Arm - 5' 3"
| Extended Length | 5.3 ft (1.6 m) | | Closed Length | 35" (89 cm) | | Weight | 2.25 lb (1.1 kg) | | Maximum Load | 1.75 lb (.8 kg) | | Attachment Size | 5/8 in male stud with 1/4-20 in screw thread | | | | Box Dimensions (LxWxH) | 36.0 x 8.0 x 3.5" | - Impact Light Kit Bag #2 (34 x 13.5 x 12")
| | | Interior Dimensions | 34 x 13.5 x 12" / 86.4 x 34.3 x 30.5 cm | | | | Closure Type | Zipper | | Carry and Transport Options | 2 x Connecting Handstrap | | Material of Construction | Nylon | | Exterior Dimensions (W x H x D) | 34.5 x 14 x 13" / 87.6 x 35.6 x 33 cm | | Weight | 5.8 lb / 2.6 kg | | | | Box Dimensions (LxWxH) | 35.0 x 14.0 x 12.5" | - 3 x Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" | - Ushio EMD Lamp (750W/120V)
| Base Type | R7s/RX7s | | Filament Type | C-8 | | ANSI Code | EMD | | Wattage | 750 W | | Voltage | 120 V | | Lumens | 19500 | | Color Temperature | 3200K | | Average Life | 400 Hours | | Maximum Overall Length (MOL) | 4.7" / 119.6 mm | | Maximum Overall Diameter (MOD) | 0.47" / 11.9 mm | | | | Box Dimensions (LxWxH) | 5.4 x 0.95 x 0.9" | - Lowel Complete Four Leaf Barndoor Set for Pro, i-Light
| | | Box Dimensions (LxWxH) | 6.6 x 4.95 x 2.15" |
