Lowel Prime Location Plus 2 Pro

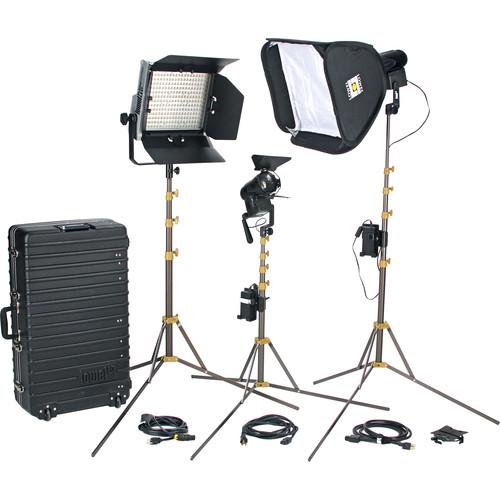

User Manual for Lowel Prime Location Plus 2 Pro LED 3-Light Kit

• Product category: LED Lights Lowel
• Brand: Lowel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Lowel LED Lights

Product description

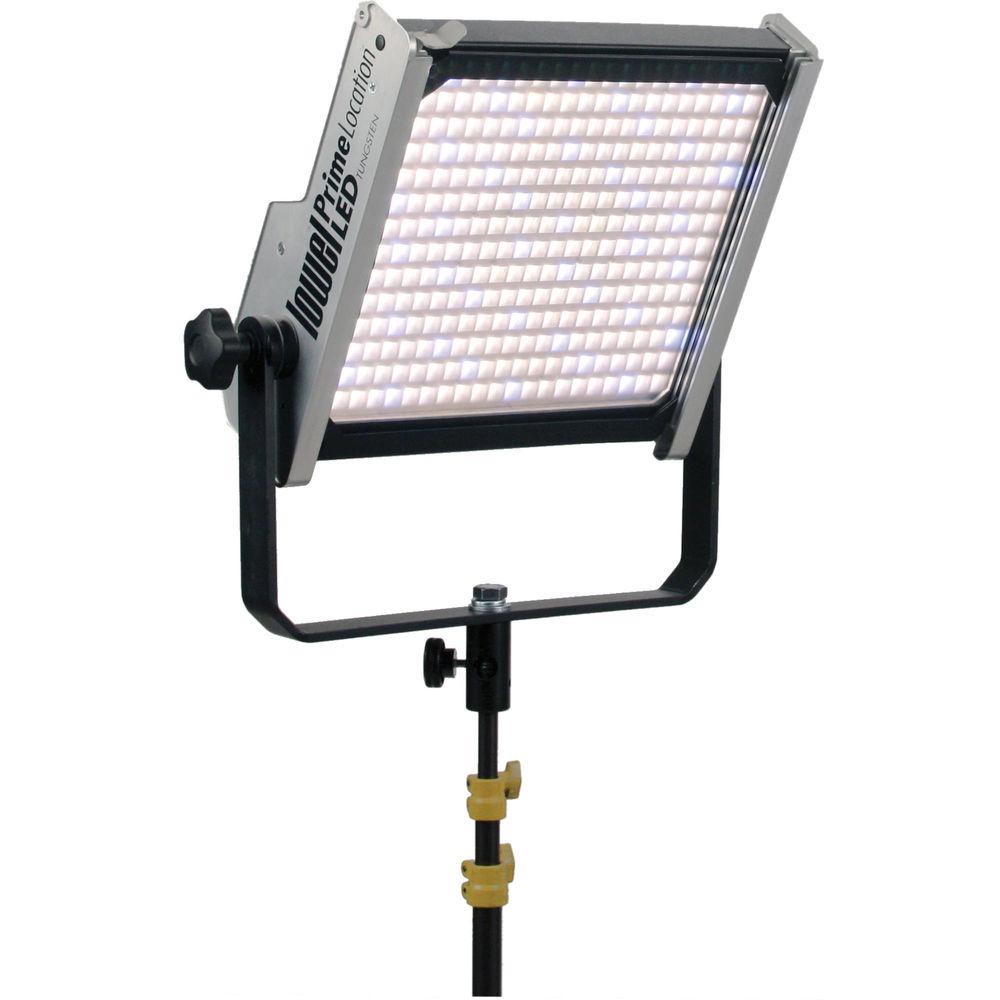

• Prime Location Tungsten LED Light with Anton Bauer Gold Battery Mount This Prime Location Tungsten LED Light with Anton Bauer Gold Battery Mount from Lowel is a durable IP65-rated LED light that is able to run off of both AC and DC battery power. This version comes with a custom Anton Bauer Gold battery plate which can be swapped out for other battery options. On location light quality is excellent with a CRI of >93 and a color temperature of 3,300K, ensuring it will blend with other lights or ambient sources. The Prime Location LED also features a 47° beam angle and has a max output of 334 fc at a distance of 3'.

  This light features 5800-6000 lumens in LED power while only drawing 82W of power. Also, it features fan-less operation and PowerCON bridging for powering multiple units. The Prime Location comes with a gel frame, the Anton Bauer Gold battery plate, a safety cable, a 5/8" female stand fitting, and a 16' switched AC cable for working with a 90-240 VAC power source.
  • Manual dimming capability with no color shift
  • IP65 ingress protection rating ensures performance outdoors and on location with protection against dust or water entering the fixture
  • Can run on either Anton Bauer Gold or V-Lock mount batteries

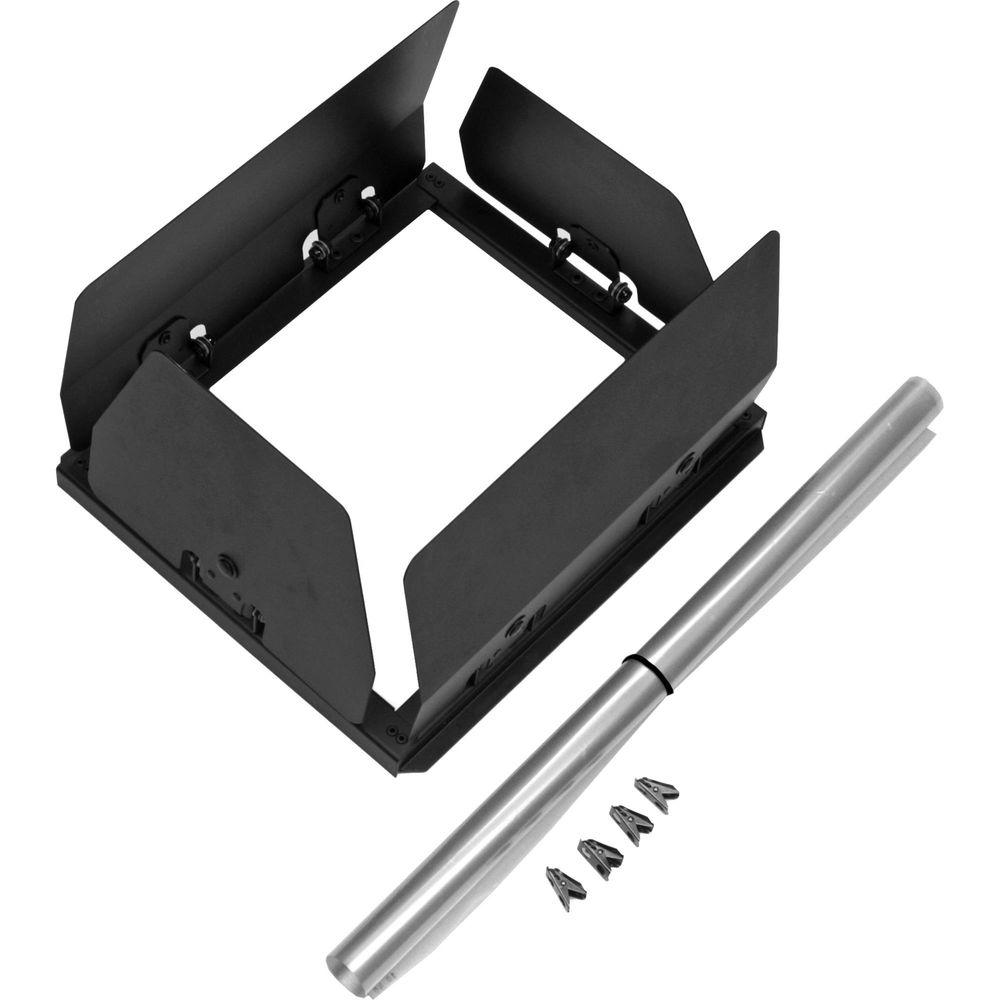

• Barndoor Softening Set for Prime Location LED Light This Barndoor Softening Set for Prime Location LED Light from Lowel includes a 4-way barndoor set, subtle diffusion gel, and Gel-jawz clips, to minimize multi-shadows while still allowing a visible barndoor cut.

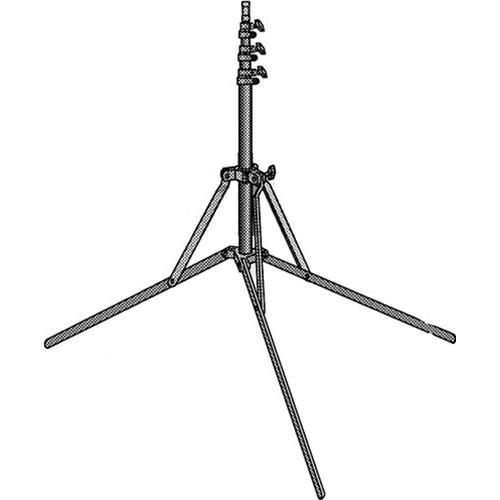

• Uni Sr. Light Stand (7') The Lowel Uni Sr. Light Stand is constructed with thick-wall, anodized aluminum alloy tubing to deliver an exceptionally high strength-to-weight ratio. Design is based on Uni and KS Jr. stands. It collapses smaller than KS Jr. and fits into lid of either Caselight.
  • This stand has a standard 5/8" top stud with safety undercut, adjustable base spread and collar-clamping for each segment.
  UPC: 841274008770

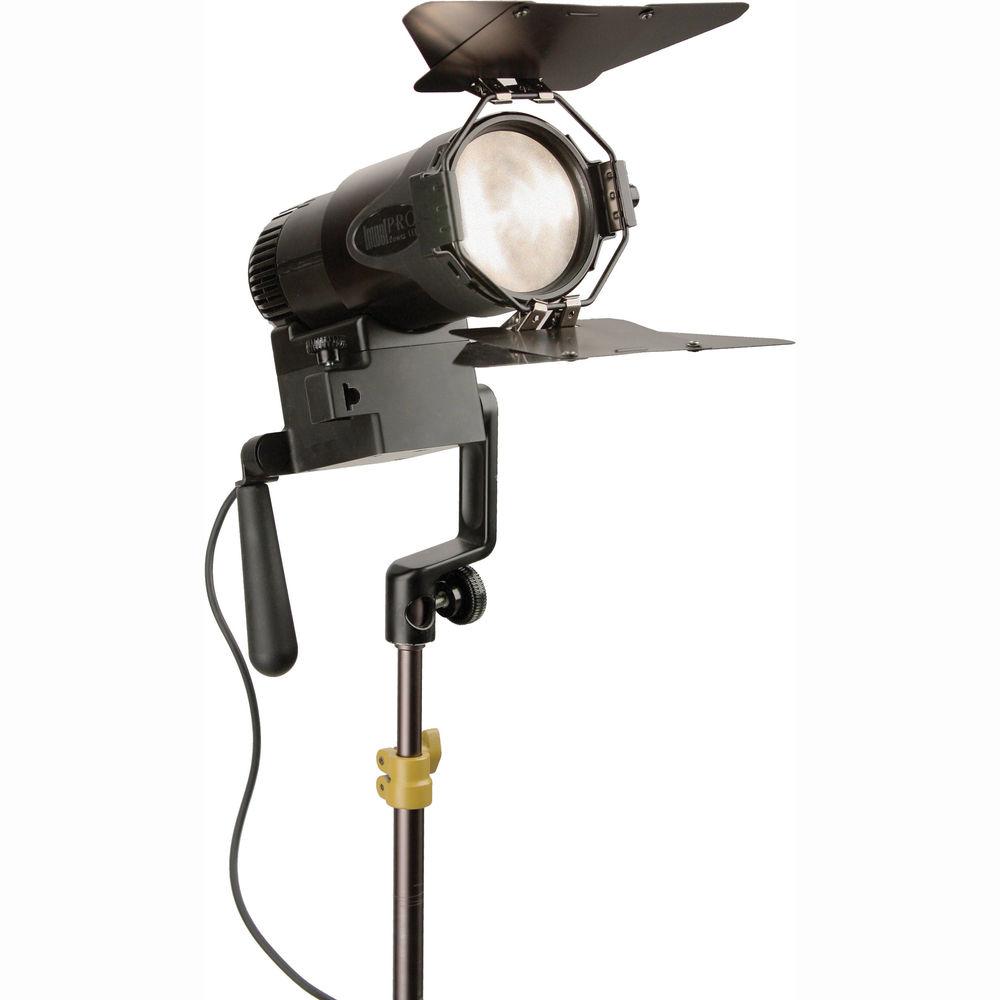

• PRO Power Tungsten LED Fresnel The PRO Power Tungsten LED Fresnel from Lowel is a compact lighting solution designed for optimal color rendition with a CRI of 93. This version features a 3,000K color temperature for matching color to your existing lights or other ambient sources. Also, it can focus the beam from 52 to 17° and output up to 337 fc at 5' when set to spot. This model can take 82mm threaded filters on the front for adjusting color temperature or other effects.

  The PRO Power LED light provides an equivalent output to that of a 150W tungsten halogen lamp without some of the limitations. This light will run cool and has a built-in dimming control and switch. It is also flicker-free, enabling work with high-speed shoots at 2350+ fps. Additionally, the PRO Power can run on either AC power with the included adapter or DC battery power with optional accessories. It includes two-way barndoors for simple light control.
  Photometrics
  • 17° Spot: 337 fc / 4209 lux at 5' / 1.5 m
    52° Flood: 50 fc / 646 lux at 5' / 1.5 m
  UPC: 884613024345

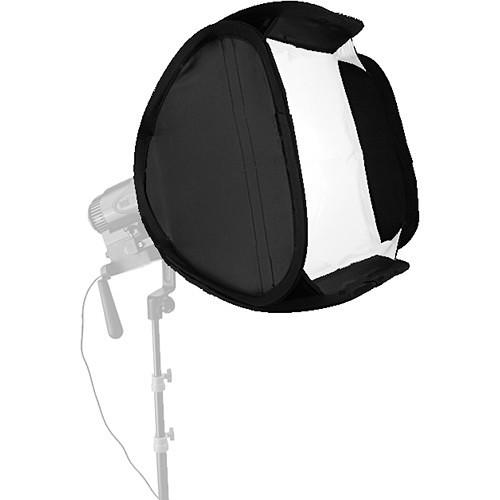

• PRO Power LED Softbox The PRO Power LED Softbox is a collapsible accessory that attaches easily to the PRO Power LED accessory slot and sets up quickly to give a softer, more flattering output. UPC: 884613024284

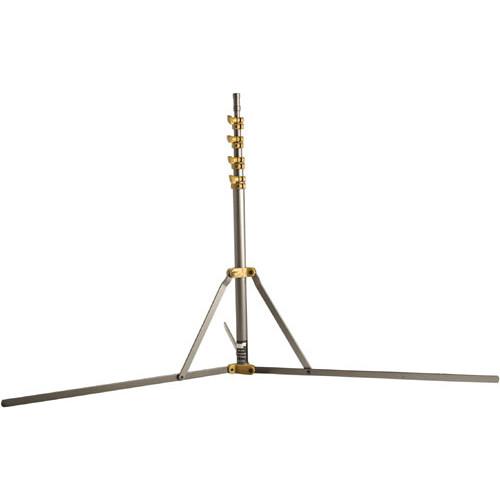

• Uni TO Dual Light Stand (7') Often used in Lowel kits, the Uni TO Dual Light Stand employs a unique reverse folding design that allows the stand to break down to just 20.25" in length—small enough to fit into even the most compact kit bag. The four-section stand rises to a maximum height of 86.5" and has a 40" base diameter for maximum stability. Another impressive feature is the ability to remove the center column from the stand's legs, giving you a three-section pole for a handheld light or other accessory. The Uni TO Dual Light Stand has a standard 5/8" stud topped with 1/4"-20 threads. UPC: 841274009500

• Gel Frame

• Anton Bauer Gold Battery Plate

• Safety Cable

• 5/8" Female Stand Fitting

• 16' Switched Power Cable

• Limited 2-Year Warranty

4 x
• Gel-Jawz Clips (8 Pack)

• Limited 1-Year Warranty

• Limited 5-Year Warranty

• 2-Way Barndoors for PRO Power LED Light

• AC Power Supply for PRO Power LED

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• Limited 5-Year Warranty

Also Includes

• Prime Location Pro Case
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Prime Location Tungsten LED Light with Anton Bauer Gold Battery Mount

  Color Rendering Index	>93
  Color Temperature	3,300 K
  Beam Angle	47°
  Ingress Protection Rating	IP65
  Lumens	5800-6000 lumens
  Photometrics	At 3' (0.9 m): 334 fc (3595 lux) At 6' (1.8 m): 88 fc (947 lux) At 9' (2.7 m): 41 fc (441 lux) At 12' (3.6 m): 24 fc (258 lux)
  Dimming	Yes, manual
  Cable	16' (4.9 m) switched AC cable
  Mount	5/8" (16 mm) stand fitting
  Battery Mount	Anton Bauer Gold
  Operating Voltage	90-240 VAC
  Dimensions	16.00 x 12.25 x 4.75" (40.6 x 31.0 x 12.0 cm) With Stand Fitting: 16.00 x 16.25 x 4.75" (40.6 x 41.3 x 12.0 cm)
  Weight	10.5 lb (4.8 kg)

• Barndoor Softening Set for Prime Location LED Light

  Box Dimensions (LxWxH)	24.1 x 15.5 x 7.7"

• Uni Sr. Light Stand (7')

  Load Capacity	3 lb / 1.3 kg
  Mounting Options	5/8" Stud
  Number of Sections	4
  Maximum Working Height	7' / 2.1 m
  Collapsed Height	22.5" / 57.1 cm
  Footprint Diameter	47.24" / 1.2 m
  Leg Shape	Rectangular
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Silver
  Weight	3.3 lb / 1.5 kg

  Box Dimensions (LxWxH)	22.9 x 3.5 x 2.8"

• PRO Power Tungsten LED Fresnel

  Beam Angle	10 to 43°
  Color Temperature	3000K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes
  Display	None
  Housing Material	Aluminum, Steel
  Lumens	2292
  Fixture Dimensions	10.3 x 4.3 x 6.3" / 26.2 x 10.9 x 16.0 cm
  Fixture Weight	1.8 lb / 0.8 kg

  Fixture Mount	5/8" Receiver
  Accessory Mount	2 x 1/4"-20 Female

  Remote Control Type	None

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter, External Battery

  IP Rating	IP20

  Box Dimensions (LxWxH)	12.45 x 10.1 x 6.55"

• PRO Power LED Softbox

  Shape	Square
  Interior	Silver
  Removable Front Face	Yes

  Box Dimensions (LxWxH)	16.55 x 15.65 x 2.6"

• Uni TO Dual Light Stand (7')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Column Diameter	1" / 2.54 cm
  Maximum Working Height	86.5" / 219.7 cm
  Collapsed Height	20.2" / 51.3 cm
  Footprint Diameter	40.10" / 101.85 cm
  Leg Shape	Rectangular
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Weight	2.4 lb / 1.1 kg
  Warranty Length	Limited 5-Year Warranty

  Box Dimensions (LxWxH)	20.7 x 4.4 x 4.3"
