User Manual for Lowel Pro-light Focusing Flood Light Click to enlarge the picture
Contents of the user manual for the Lowel Pro-light Focusing Flood Light
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
|
User manual for the Lowel Pro-light Focusing Flood Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

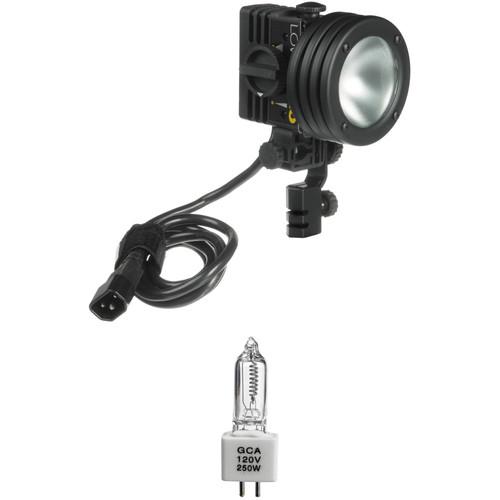

Product description Featuring a high intensity reflector and prismatic glass, the Lowel Pro-light Focusing Flood Light can be used as a low-level key or accent light, fill light or backlight. In addition to a wide variety of customizing accessories, it can be powered by battery sources when AC power is not available. - Lowel ViP Pro-Light (120 VAC / 12 VDC) With its high intensity #2 reflector and prismatic glass, the tiny, focusable Lowel ViP Pro-Light is more efficient than a mini-Fresnel of equal wattage, yet it gives an exquisite, even light, with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight.In addition to a wide variety of customizing accessories, its versatility can be increased by switching its 12' AC cable for an optional DC adapter cable and swapping its bulb for use as a camera-top fixture. Other bulbs, and plug adapters are available. When fitted with an FVL 200 watt bulb (available separately), the Pro-Light will emit a beam of 23 footcandles at full flood and 143 footcandles at full spot from a distance of 10' (3 m). With a GCC 100W lamp at 12 VDC: 12 footcandles in flood and 58 footcandles in spot.
- Focus Flood
-
- Change the setting from "spot" to "flood" position or anywhere in between by turning knob on side of unit.
- Has a focus range of 6:1 with optional lamp.
- Easy Access
- The front end comes off for easy access for no-tool lamp change.
- Multi-Use Source
- Substituting the prismatic glass for the optional clear glass turns light into a non-focusing, high intensity spotlight, for long throw situations.
- AC/DC
- Choose your bulb for 120 VAC or 12 or 30 VDC.
UPC: 084127400967 - Sylvania / Osram GCA (250W/120V) Lamp The Sylvania GCA (250W/120V) Lamp is a T3 shape display optic halogen bulb. The GCA has a G5.3 base and a 200 hour lamp life. This lamp is commonly used for studio, theater, TV & video. UPC: 046135544286
In the Box - ViP Pro-Light (120 VAC / 12 VDC) aquuxfebtrwyfvdqtdffyfrquzsd
- Integral Prismatic Glass
- 120 VAC Detachable Power Cable
- Limited 2-Year Warranty
- Sylvania / Osram - GCA (250W/120V) Lamp
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Pro-light Focusing Flood Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lowel ViP Pro-Light (120 VAC / 12 VDC)
| Rating | 250 W maximum | | Socket (Lampholder) | G5.3 bi-pin | | Lens (Condenser) | Prismatic glass | | Reflector (Mirror) | High intensity #2 reflector | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 4' captive, and 12' extension cable, 120 VAC grounded Edison plug | | Focusing | Side knob, 6:1 with FVL lamp | | Weight | 2 lb / 907 g | | Dimensions | 4.6 x 5 x 3.7" / 11.7 x 12.7 x 9.4 cm | | | | Box Dimensions (LxWxH) | 8.7 x 5.45 x 5.35" | - Sylvania / Osram GCA (250W/120V) Lamp
| Bulb Type | T3 | | Base Type | G5.3 | | Wattage | 250 W | | Voltage | 120 V | | Lumens | 5700 | | Color Temperature | 3200K | | Average Life | 200 Hours | | | | Box Dimensions (LxWxH) | 3.65 x 1.3 x 1.3" |
