User Manual for Lowel Pro Pack One-Light Kit Click to enlarge the picture
Contents of the user manual for the Lowel Pro Pack One-Light Kit
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
|
User manual for the Lowel Pro Pack One-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

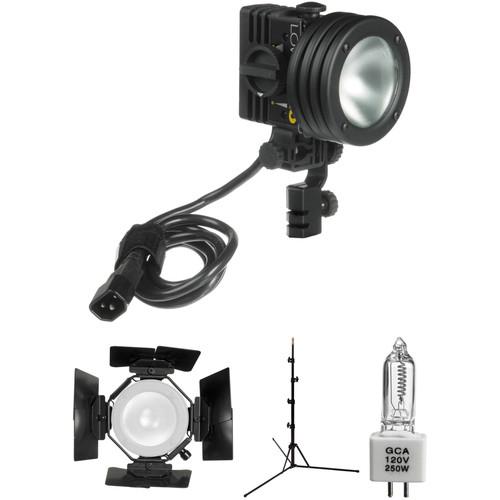

Product description This is a B&H exclusive 250W Lowel Pro Pack One-Light Kit. The tiny, focusable Pro-Light is more efficient than a Fresnel of equal wattage, yet it gives an even light with Fresnel-like shadow quality. It can be used as a low-level key light or accent light, fill light (with diffusion), or backlight. Its versatility can be increased by adding a DC adapter cable and swapping its bulb for use as a camera-top fixture. The kit includes a barndoor set to shape the light and an 8' light stand. Add an optional travel case of your choice and take it on location. - Lowel ViP Pro-Light (120 VAC / 12 VDC) With its high intensity #2 reflector and prismatic glass, the tiny, focusable Lowel ViP Pro-Light is more efficient than a mini-Fresnel of equal wattage, yet it gives an exquisite, even light, with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight.In addition to a wide variety of customizing accessories, its versatility can be increased by switching its 12' AC cable for an optional DC adapter cable and swapping its bulb for use as a camera-top fixture. Other bulbs, and plug adapters are available. When fitted with an FVL 200 watt bulb (available separately), the Pro-Light will emit a beam of 23 footcandles at full flood and 143 footcandles at full spot from a distance of 10' (3 m). With a GCC 100W lamp at 12 VDC: 12 footcandles in flood and 58 footcandles in spot.
- Focus Flood
-
- Change the setting from "spot" to "flood" position or anywhere in between by turning knob on side of unit.
- Has a focus range of 6:1 with optional lamp.
- Easy Access
- The front end comes off for easy access for no-tool lamp change.
- Multi-Use Source
- Substituting the prismatic glass for the optional clear glass turns light into a non-focusing, high intensity spotlight, for long throw situations.
- AC/DC
- Choose your bulb for 120 VAC or 12 or 30 VDC.
UPC: 084127400967 - Lowel Complete Four Leaf Barndoor Set for Pro, i-Light The Lowel Four Leaf Barndoor Set for the Pro and i-Lights consists of a Barndoor Frame with four expandable clip-on Leaves. The frame accepts swing-in accessories, and rotates 360°.Barndoors narrow the beam spread of a light fixture. They help create a three-dimensional look to a lighting scheme by placing light in a specific area, or by keeping it away. The more leaves a barndoor set has, or the longer the leaves the more precisely the beam can be controlled. UPC: 841274004697
- Impact LS-RL7 7.2' Reverse Legs Light Stand This Impact LS-RL7 7.2' Reverse Legs Light Stand is a lightweight support that's ideal for location work or in the studio for use with a small lights or to hold reflectors. This is one of the few stands to be able to sit completely flush to the floor where they can be taped down or sandbagged to stabilize its load. The LS-RL7's unique design allows the legs to fold up around the central risers somewhat like an inverted umbrella. The result is a 7.2' light stand that breaks down to only 19.5" - short enough to fit in even the smallest light kit bags. The stand is topped with a 5/8" mounting stud with 3/8" threads, a 3/8" 1/4"-20 adapter, and weighs just 2.6 lb. UPC: 847628566576
- Sylvania / Osram GCA (250W/120V) Lamp The Sylvania GCA (250W/120V) Lamp is a T3 shape display optic halogen bulb. The GCA has a G5.3 base and a 200 hour lamp life. This lamp is commonly used for studio, theater, TV & video. UPC: 046135544286
In the Box - ViP Pro-Light (120 VAC / 12 VDC) sxwfuvxzbbedrwbqruwy
- Integral Prismatic Glass
- 120 VAC Detachable Power Cable
- Limited 2-Year Warranty
- Complete Four Leaf Barndoor Set for Pro, i-Light
- Impact - LS-RL7 7.2' Reverse Legs Light Stand sxwfuvxzbbedrwbqruwy
- Sylvania / Osram - GCA (250W/120V) Lamp
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Pro Pack One-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lowel ViP Pro-Light (120 VAC / 12 VDC)
| Rating | 250 W maximum | | Socket (Lampholder) | G5.3 bi-pin | | Lens (Condenser) | Prismatic glass | | Reflector (Mirror) | High intensity #2 reflector | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 4' captive, and 12' extension cable, 120 VAC grounded Edison plug | | Focusing | Side knob, 6:1 with FVL lamp | | Weight | 2 lb / 907 g | | Dimensions | 4.6 x 5 x 3.7" / 11.7 x 12.7 x 9.4 cm | | | | Box Dimensions (LxWxH) | 8.7 x 5.45 x 5.35" | - Lowel Complete Four Leaf Barndoor Set for Pro, i-Light
| | | Box Dimensions (LxWxH) | 6.6 x 4.95 x 2.15" | - Impact LS-RL7 7.2' Reverse Legs Light Stand
| Load Capacity | 3.3 lb / 1.5 kg | | Mounting Options | 1/4"-20 Male Thread
3/8"-16 Male Thread
5/8" Stud | | Number of Sections | 5 | | Column Diameter | 0.98" / 2.5 cm
0.87" / 2.2 cm
0.75" / 1.9 cm
0.63" / 1.6 cm
0.51" / 1.3 cm | | Maximum Working Height | 86" / 218 cm | | Minimum Working Height | 19.3" / 49 cm | | Collapsed Height | 19.5" / 49.5 cm | | Footprint Diameter | 39.4" / 100 cm | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | Yes | | Finish | Black | | Material | Aluminum | | Weight | 2.6 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 20.8 x 3.85 x 3.15" | - Sylvania / Osram GCA (250W/120V) Lamp
| Bulb Type | T3 | | Base Type | G5.3 | | Wattage | 250 W | | Voltage | 120 V | | Lumens | 5700 | | Color Temperature | 3200K | | Average Life | 200 Hours | | | | Box Dimensions (LxWxH) | 3.65 x 1.3 x 1.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
