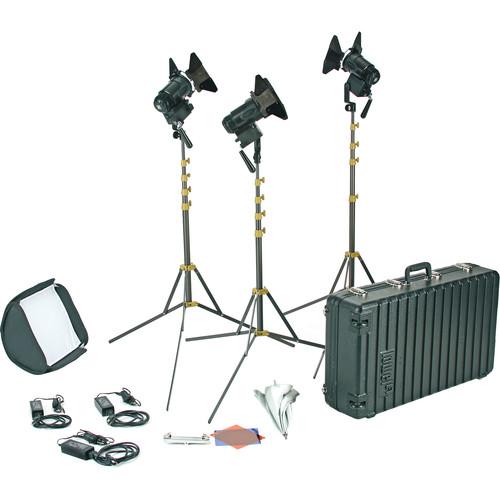

User Manual for Lowel PRO Power Daylight LED 3-Light AC Kit

• Product category: LED Lights Lowel
• Brand: Lowel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Lowel LED Lights

Product description

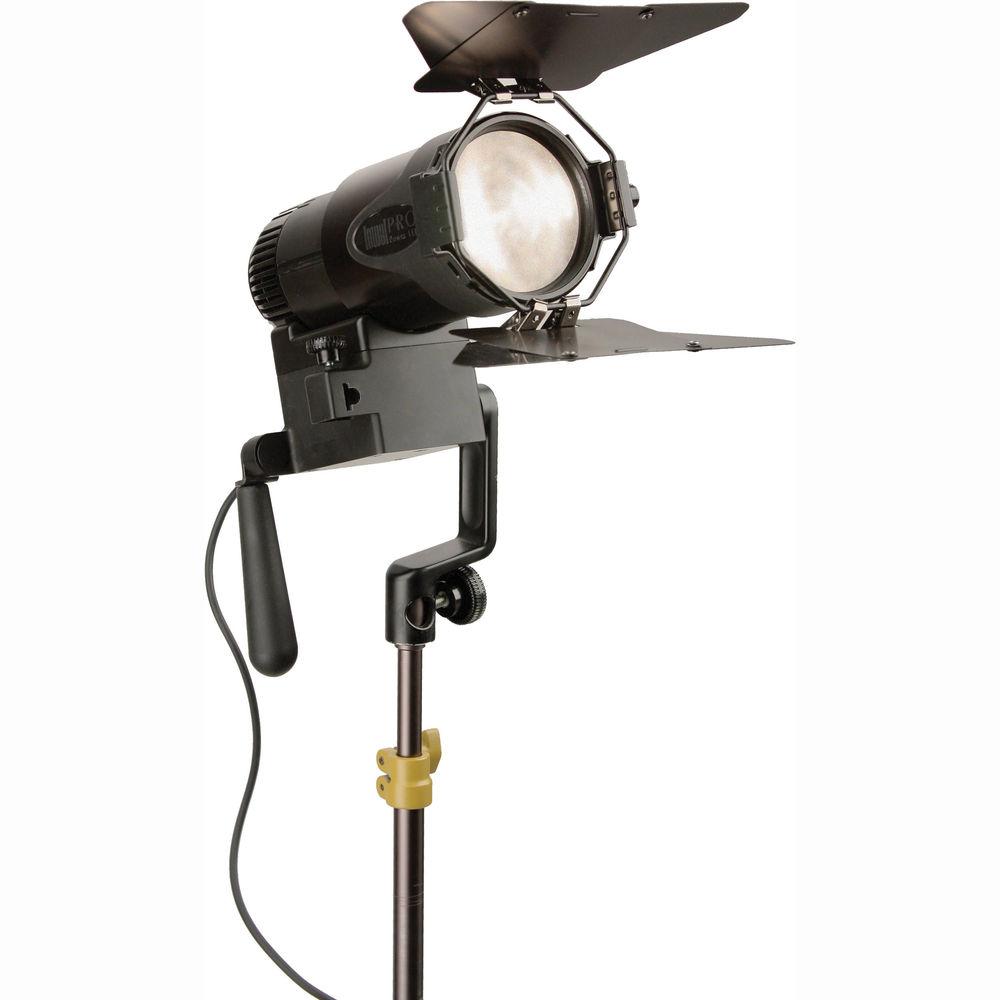

• PRO Power Daylight LED Fresnel The PRO Power Daylight LED Fresnel from Lowel is a compact lighting solution designed for optimal color rendition with a CRI of 90. This version features a 5,000K color temperature for matching color to your existing lights or other ambient sources. Also, it can focus the beam from 52 to 17° and output up to 391 fc at 5' when set to spot. This model can take 82mm threaded filters on the front for adjusting color temperature or other effects.

  The PRO Power LED light provides an equivalent output to that of a 200W tungsten halogen lamp without some of the limitations. This light will run cool and has a built-in dimming control and switch. It is also flicker-free, enabling work with high-speed shoots at 2350+ fps. Additionally, the PRO Power can run on either AC power with the included adapter or DC battery power with optional accessories. It includes two-way barndoors for simple light control.
  Photometrics
  • 17° Spot: 391 fc / 4209 lux at 5' / 1.5 m
    52° Flood: 60 fc / 646 lux at 5' / 1.5 m
  UPC: 884613024338

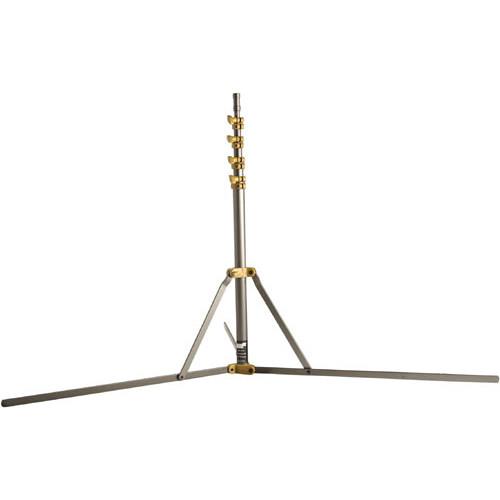

• Uni TO Dual Light Stand (7') Often used in Lowel kits, the Uni TO Dual Light Stand employs a unique reverse folding design that allows the stand to break down to just 20.25" in length—small enough to fit into even the most compact kit bag. The four-section stand rises to a maximum height of 86.5" and has a 40" base diameter for maximum stability. Another impressive feature is the ability to remove the center column from the stand's legs, giving you a three-section pole for a handheld light or other accessory. The Uni TO Dual Light Stand has a standard 5/8" stud topped with 1/4"-20 threads. UPC: 841274009500

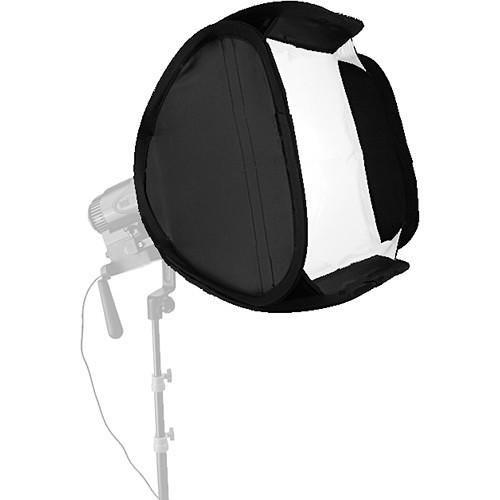

• PRO Power LED Softbox The PRO Power LED Softbox is a collapsible accessory that attaches easily to the PRO Power LED accessory slot and sets up quickly to give a softer, more flattering output. UPC: 884613024284
• PRO LED Tungsten Color Gels This pack of PRO LED Tungsten Color Gels from Lowel comprises three 5 x 6" full CTO gels and two frost gels for correcting from the Pro LEDs daylight output to tungsten color. UPC: 884613024307

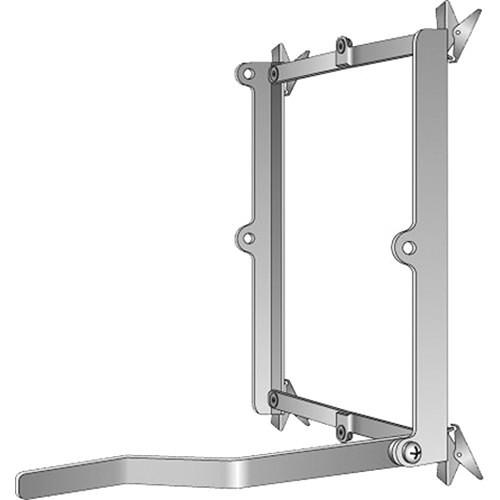

• PRO Power LED Gel Frame The PRO Power LED Gel Frame from Lowel is designed to attach to Pro LEDs accessory slot. It holds 5 x 6" gels attached by small clamps on the frame. The frame collapses for storage. UPC: 884613024260

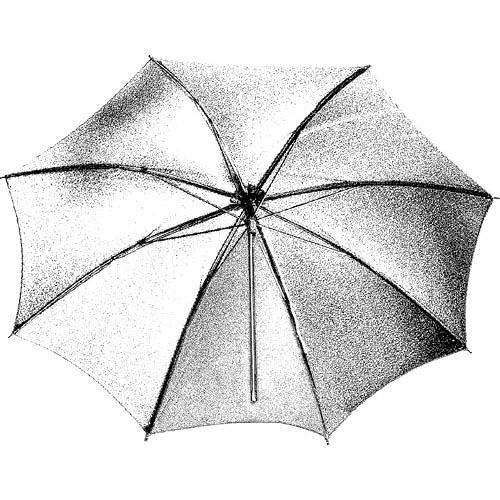

• Tota-Brella - Silver - 27" Fits directly onto Tota or Omni and ViP lights without tools. Slightly softens the light output, with some specular highlights.
  Heat resistant, woven, soft-silver surface.This size is perfect for a 1 person head shot, or 3x4 ft product setup. UPC: 841274007834

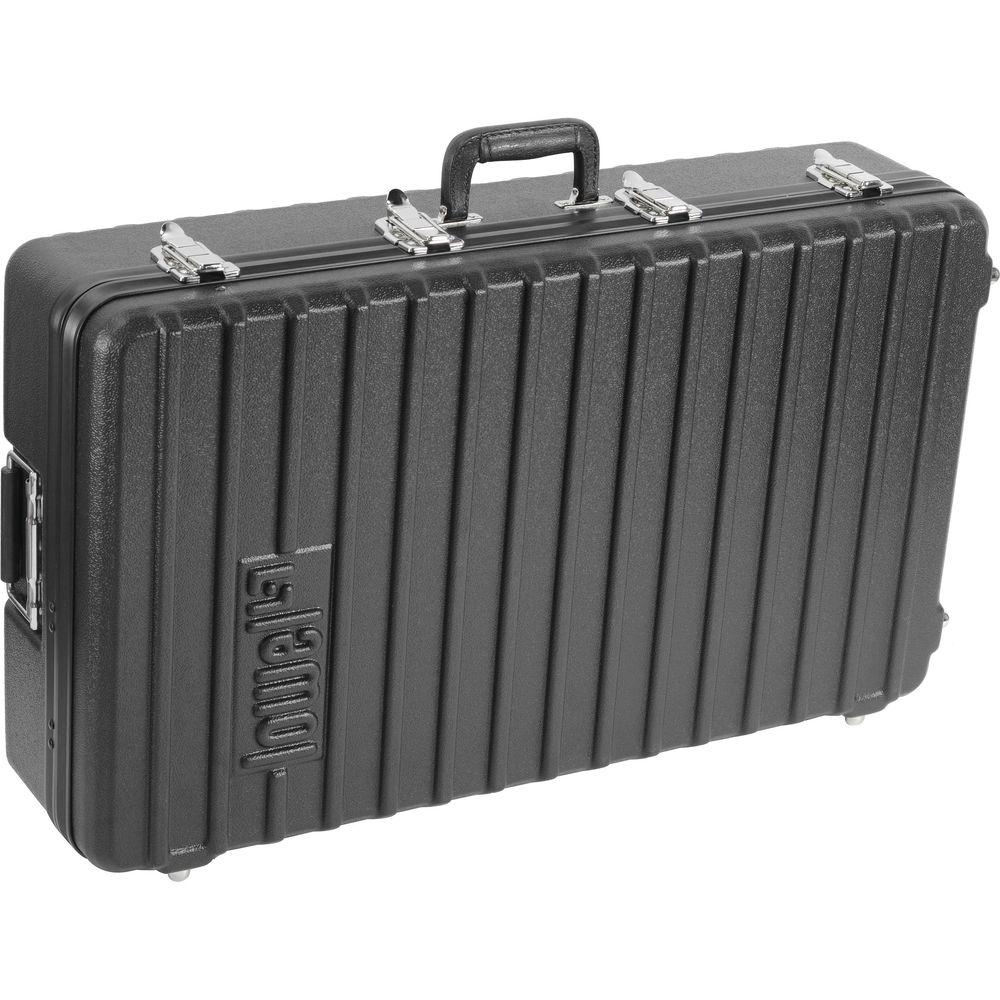

• Molded Tota/Omni 84 Case - 29.5x17x7" (75x43.2x17.8cm) The Lowel TO-84Z Tota-Omni 84 Case can hold four Omni-lights with two Totas or two Omni-lights and six Totas, or a combination of Pro and V-lights, plus Rifa-eX44 or eX55 and 4 or 5 Omni-stands. It also holds some accessories.
  Redesigned
  • High impact molded polyethylene case, hinged lid
  • Recessed wheels and pull handle
  UPC: 841274010537

• 2-Way Barndoors for PRO Power LED Light

• AC Power Supply for PRO Power LED

• Limited 2-Year Warranty

• Limited 5-Year Warranty

• Limited 1-Year Warranty

• 3 x Full CTO Gels

• 2 x Frost Gels

• Limited 1-Year Warranty

2 x
• Go Kit Case Partition

4 x
• GO Kit Case Partition - 4.5x4"

2 x
• GO Kit Case Partition - 3x4"

• GO Kit Case Partition - 29.3 x 4"

• One Year Manufacturer's Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• PRO Power Daylight LED Fresnel

  Beam Angle	10 to 43°
  Color Temperature	5000K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes
  Display	None
  Housing Material	Aluminum, Steel
  Lumens	2500
  Fixture Dimensions	10.3 x 4.3 x 6.3" / 26.2 x 10.9 x 16.0 cm
  Fixture Weight	1.8 lb / 0.8 kg

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	None

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter, External Battery

  IP Rating	IP20

  Box Dimensions (LxWxH)	24.0 x 15.0 x 8.0"

• Uni TO Dual Light Stand (7')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Column Diameter	1" / 2.54 cm
  Maximum Working Height	86.5" / 219.7 cm
  Collapsed Height	20.2" / 51.3 cm
  Footprint Diameter	40.10" / 101.85 cm
  Leg Shape	Rectangular
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Weight	2.4 lb / 1.1 kg
  Warranty Length	Limited 5-Year Warranty

  Box Dimensions (LxWxH)	20.7 x 4.4 x 4.3"

• PRO Power LED Softbox

  Shape	Square
  Interior	Silver
  Removable Front Face	Yes

  Box Dimensions (LxWxH)	16.55 x 15.65 x 2.6"

• PRO LED Tungsten Color Gels

  Box Dimensions (LxWxH)	6.0 x 5.0 x 0.1"

• PRO Power LED Gel Frame

  Box Dimensions (LxWxH)	6.1 x 5.3 x 1.0"

• Tota-Brella - Silver - 27"

  Size	27.0" / 68.6 cm
  Interior	Silver

  Box Dimensions (LxWxH)	20.8 x 2.15 x 1.65"

• Molded Tota/Omni 84 Case - 29.5x17x7" (75x43.2x17.8cm)

  Interior Dimensions	29.3 x 4" / 74.3 x 10.2 cm

  Closure Type	Latch
  Carry and Transport Options	1 x Recessed Handle 1 x Handle
  Material of Construction	Polyethylene
  Exterior Dimensions (W x H x D)	29.5 x 17 x 7" / 74.9 x 43.2 x 17.8 cm
  Weight	15 lb / 6.8 kg

  Box Dimensions (LxWxH)	32.0 x 19.0 x 10.0"
