User Manual for Lowel Rifa eX 66 Pro Kit, TO-83 Hard Case Click to enlarge the picture
Contents of the user manual for the Lowel Rifa eX 66 Pro Kit,
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel Rifa eX 66 Pro Kit, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

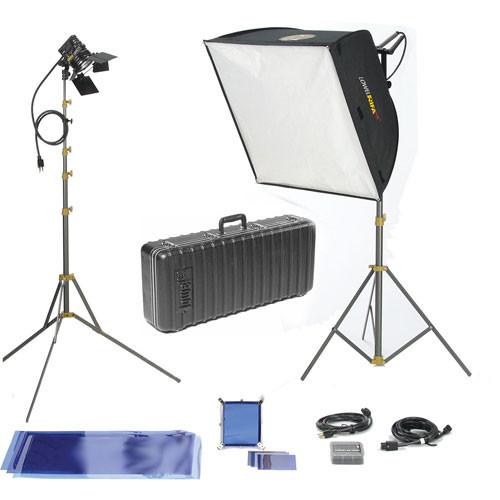

Product description This is a Lowel Rifa eX 66 Pro Kit, TO-83 Hard Case, with two lights. It's built around the Pro-light focus floodlight, and the Rifa eX 66 softbox light. It includes bulbs, gel frames, gels, stands and a TO-83 hard kit case. Compact, lightweight, and self-contained, the Rifa-lite eX 66 uses a simple umbrella-like design to achieve its quick and easy setup and strike capabilities. Optional adapters allow use with fluorescent or tungsten bulbs. With its high-intensity #2 reflector and prismatic glass, the tiny focusable Pro-light is more efficient than a Fresnel of equal wattage, yet it gives an exquisite even light, with Fresnel-like shadow quality. It can be used as a low-level key light or accent light, fill light (with diffusion), or backlight. In addition to a wide variety of customizing accessories, its versatility can be increased by adding a DC adapter cable and swapping its bulb for use as a camera-top fixture.This kit is equipped for use with 120 AC voltage. It can also function with 220-240V AC and 12-30V DC with the appropriate bulbs and adapter plugs or cables (available separately). Rifa eX 66 -

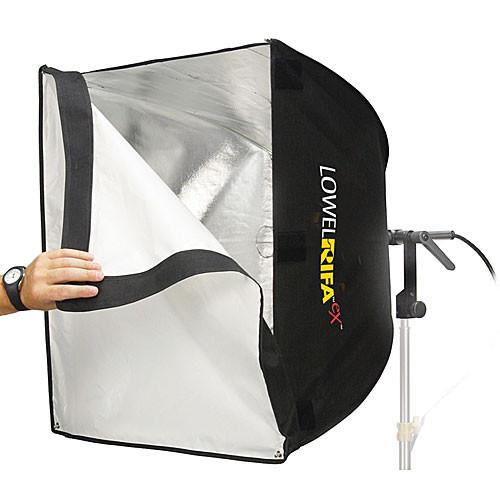

- Self-contained 25 x 25" (63.5 x 63.5 cm) removable front diffusion screen
- Changeable socket adapts to tungsten or fluorescent screw-in bulbs (with optional adapter)
- Power cord easily converts for use with 220-240 AC voltage

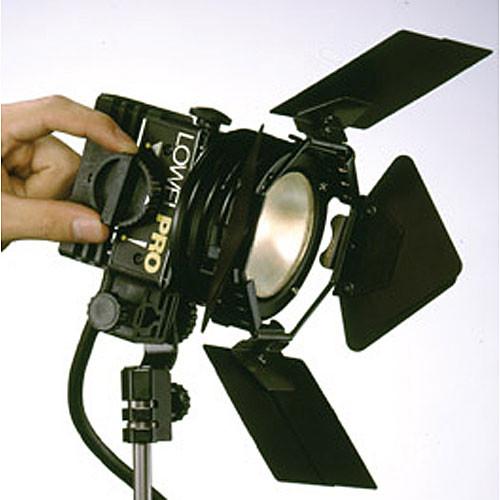

Pro-light -
- Change the setting from "spot" to "flood" position, or anywhere in between by turning knob on side of unit
- Focus range of 6:1
- The front end comes off for easy access for no-tool lamp change
- Accessories
- Use the gels and barndoor set to alter the light output of the Pro-light

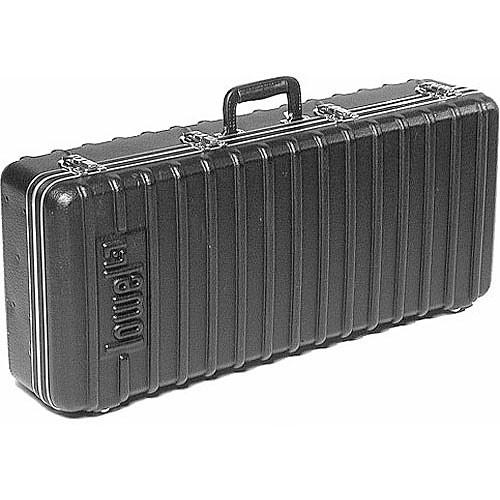

- TO-83 Kit Case
-
- High-impact molded polyethylene case, hinged lid, with padded shoulder strap
- Permanent lengthwise partition separates lights from stands
- All others are movable partitions
UPC: 884613003333 In the Box Lowel Rifa eX 66 Pro Kit, TO-83 Hard Case LC66EX Rifa-Lite eX66 Softbox Light (120-240VAC) EHF Lamp - 750 Watts/120 Volts ViP Pro-Light (120 VAC / 12 VDC) FVL Lamp - 200 Watts/120 Volts Complete Four Leaf Barndoor Set for Pro, i-Light Uni-Stand (7.9') KS Jr. Light Stand (7.6') Pro/i-light Gel Frame IP-L Assorted Gels (5-Pack) Set of 3: Rifa Daylight Gel Set for Rifa-lite eX 55 (25 x 23" / 53.3 x 58.4 cm) Lampak for VP Light Lampak for DP Light LB-45 Small Rifa Litebag Two-Year Manufacturer's Warranty on Fixtures Five-Year Manufacturer's Warranty on Stands Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Rifa eX 66 Pro Kit, TO-83 Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel LCP-9663 Specs | Rating | Rifa-lite eX 66: 750 watts, 120-240VAC
Pro-light: 200 watts, 120-240VAC/12-30VDC | | Socket (Lampholder) | Rifa-lite eX 66: 2-pin
Pro-light: Pro socket | | Lens (Condenser) | Rifa-lite eX 66: Not applicable
Pro-light: Prismatic glass | | Reflector (Mirror) | Rifa-lite eX 66: Not applicable
Pro-light: High-intensity #2 reflector | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not applicable | | Cable | 4' captive cable, 16' extension cable with line switch, 120V grounded Edison plug | | Focusing | Rifa-lite eX 66: Not applicable
Pro-light: 6:1 continuously variable | | Weight | Rifa-lite eX 66: 3.5 lbs (1.6 kg)
Pro-light: 3.5 lbs (1.6 kg) | | Dimensions | Rifa-lite eX 66: Collapsed length: 30" (76 cm) Front: 25 x 25" (63.5 x 63.5 cm)
Pro-light: 4.6 x 5 x 3.7" (11.7 x 12.7 x 9.4 cm)
Kit in Case: 29.5 x 13 x 7" (75 x 33 x 18 cm) | | Kit Weight | 27.5 lbs (12.5 kg) | | | | Package Weight | 30.5 lb | | Box Dimensions (LxWxH) | 31.5 x 18.9 x 8.0" |
