User Manual for Lowel Rifa eX 88 Pro Kit, Wheeled Multi-Case Click to enlarge the picture
Contents of the user manual for the Lowel Rifa eX 88 Pro Kit,
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel Rifa eX 88 Pro Kit, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

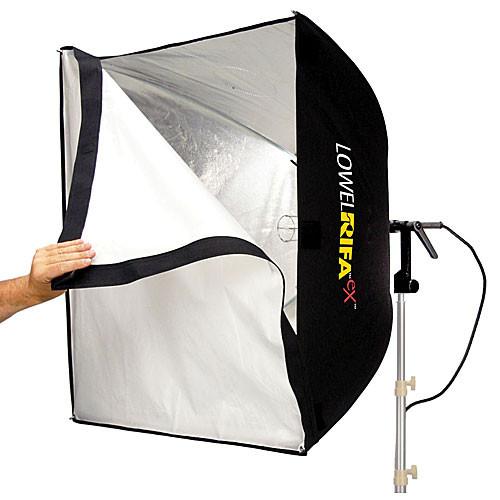

Product description This is a high-powered Lowel Rifa eX 88 Pro Kit, Wheeled Multi-Case with a Rifa eX 88 softbox light and a Pro-light focus floodlight. It includes bulbs, barndoors, stands, and a large MCSER Multi Case wheeled kit case.Lightweight and self-contained, the 1000W maximum Rifa-Lite eX 88 uses a simple umbrella-like design to achieve its quick and easy setup and strike capabilities. It has a 32 x 32" (81 x 81 cm) removable diffusion front.With its high intensity #2 reflector and prismatic glass, the tiny focusable Pro-light is more efficient than a Fresnel of equal wattage, yet it gives an exquisite even light, with Fresnel-like shadow quality. Although this kit is supplied for use with 120 AC voltage, it can function with 220-240 AC and 12-30 DC voltage, with the appropriate bulbs, adapter plugs or cables, and power supplies (available separately). Rifa eX 88 - The heat-resistant 32 x 32" (81 x 81 cm) front diffuser is made of woven glass fabric--it provides sufficient illumination, with soft shadows ,
- Optional adapters allow use of fluorescent or tungsten bulbs
- Easy-access pockets on fabric shell allow clip-on gel attachment for correcting to daylight

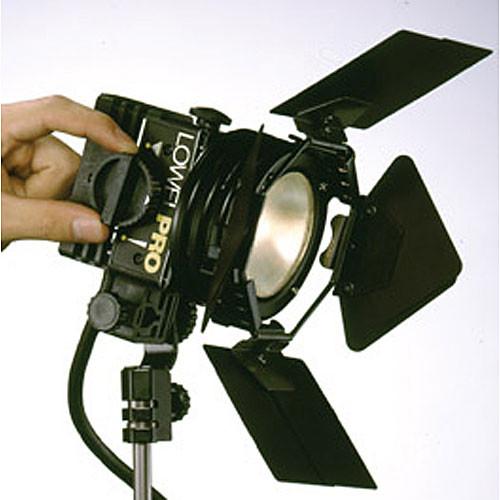

Pro-light -
- The Pro-light can be used as a low-level key light or accent light, fill light (with diffusion), or backlight
- 6:1 Spot-to-flood ratio
- Customize the Light
- Use the gels and barndoor set to alter the light output of the Rifa and the Pro-light

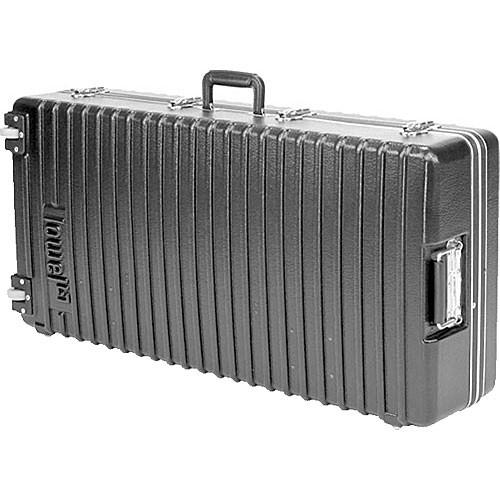

- Kit Case
-
- The MCSER Large Multi-Case holds it all, including the light stands
- Recessed wheels
- Spring-loaded side handle
- Heavy-duty hasps, closures

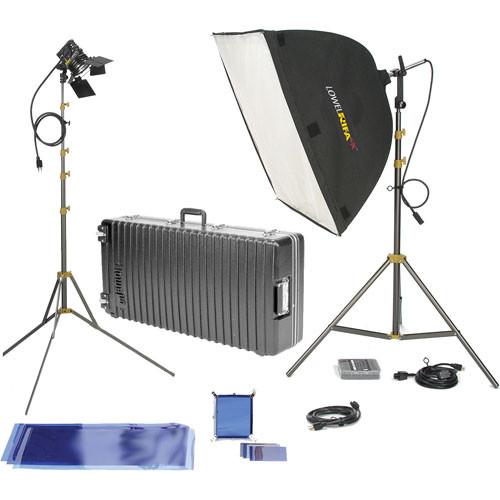

UPC: 841274011619 In the Box Lowel Rifa eX 88 Pro Kit, Wheeled Multi-Case LC88EX Rifa-Lite eX88 1000 Watt Softbox Light (120-240VAC) FEL Lamp - 1000 Watts/120 Volts ViP Pro-Light (120 VAC / 12 VDC) Complete Four Leaf Barndoor Set for Pro, i-Light FVL Lamp - 200 Watts/120 Volts Pro/i-light Gel Frame KS Light Stand (9') Uni-Stand (7.9') bdurvdxwrwvtrffysredaszddaw IP-L Assorted Gels (5-Pack) Daylight Gel Set for Rifa LC-88/LC-eX88 (32 x 39" / 81.3 x 99 cm) Lampak for VP Light Lampak for DP Light Rifa Multi Case - 37.5x17.75 x 9" (95.3x 5.1x22.9cm) Two-Year Manufacturer's Warranty on Fixtures Five-Year Manufacturer's Warranty on Stands Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Rifa eX 88 Pro Kit, Wheeled Multi-Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel LCP-988M Specs | Rating | Rifa-lite eX 88: 1000 watts, 120-240VAC
Pro-light: 200 watts, 120-240VAC, 12-30VDC | | Socket (Lampholder) | Rifa-lite eX 88: G9.5 2-pin
Pro-light: Bi-pin; pro socket | | Lens (Condenser) | Rifa-lite eX 88: Not applicable
Pro-light: Prismatic glass | | Reflector (Mirror) | Rifa-lite eX 88: Not applicable
Pro-light: High intensity #2 reflector | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not applicable | | Cable | 4' captive cable, 16' extension cable, 120V grounded Edison plug | | Focusing | Rifa-lite eX 88: Not applicable
Pro-light: 6:1 continuously variable | | Weight | Rifa-lite eX 88: 2.5 lbs (1.1 kg)
Pro-light: 3.5 lbs (1.6 kg) | | Dimensions | Rifa-lite eX 88: Collapsed length 34" (86 cm)
Pro-light: 4.6 x 5 x 3.7" (11.7 x 12.7 x 9.4 cm)
Kit in Case: 37.5 x 17.75 x 9" (95.3 x 5.1 x 22.9 cm) | | Kit Weight | 35 lbs (16 kg) | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 40.5 x 20.3 x 9.5" |
