User Manual for Lowel Rifa eX Small Triple Soft Kit Click to enlarge the picture
Contents of the user manual for the Lowel Rifa eX Small Triple Soft
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel Rifa eX Small Triple Soft contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

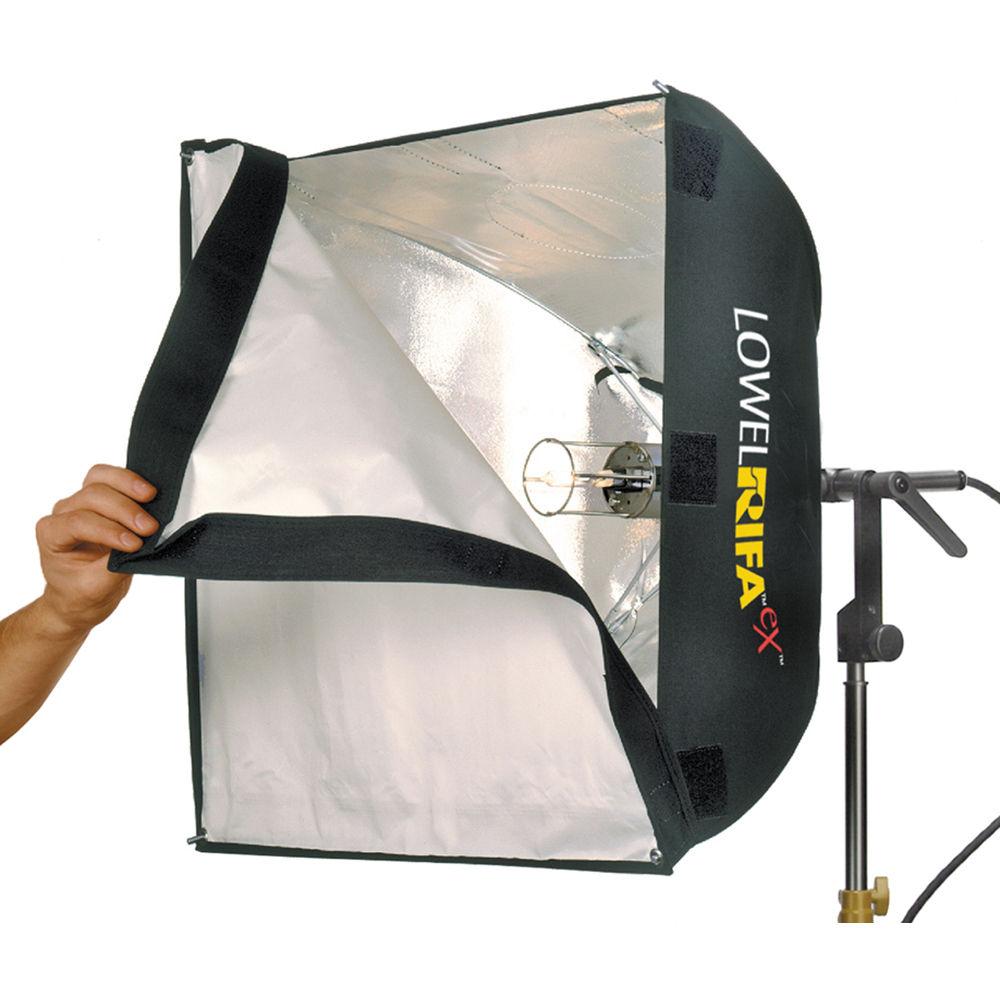

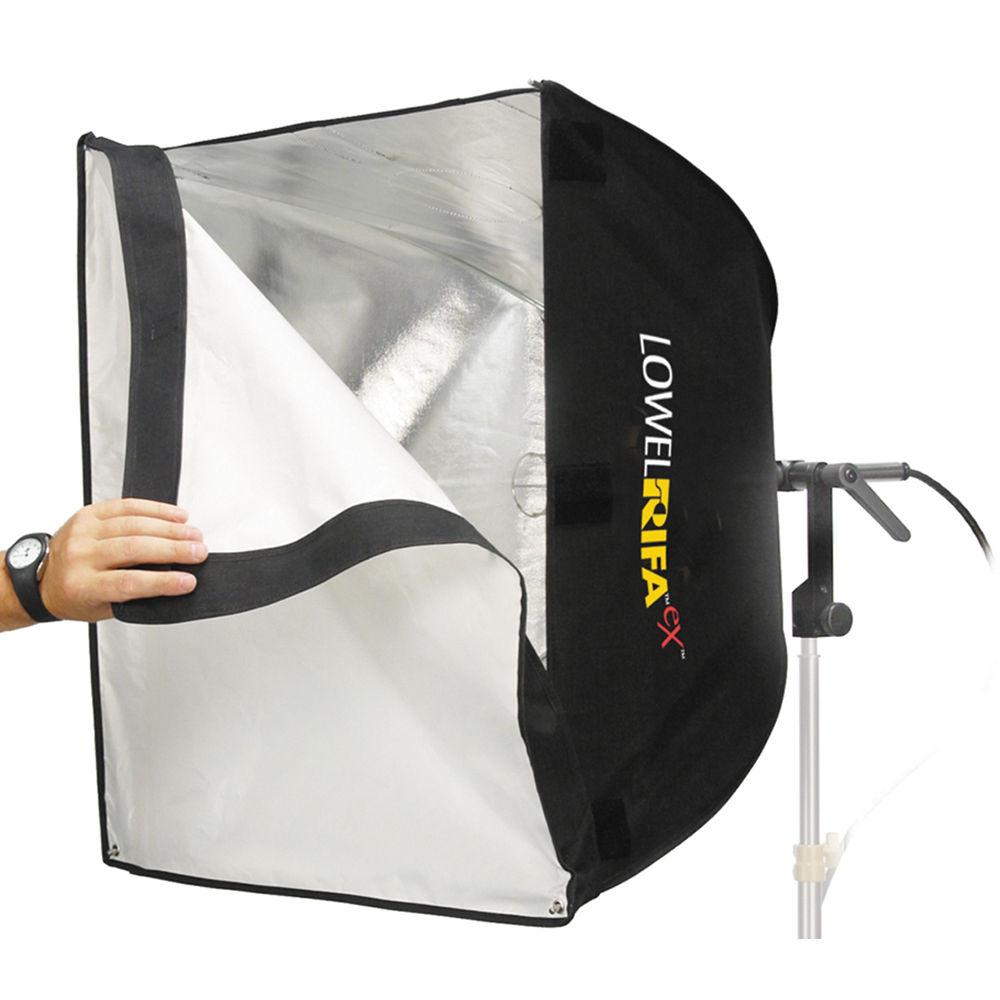

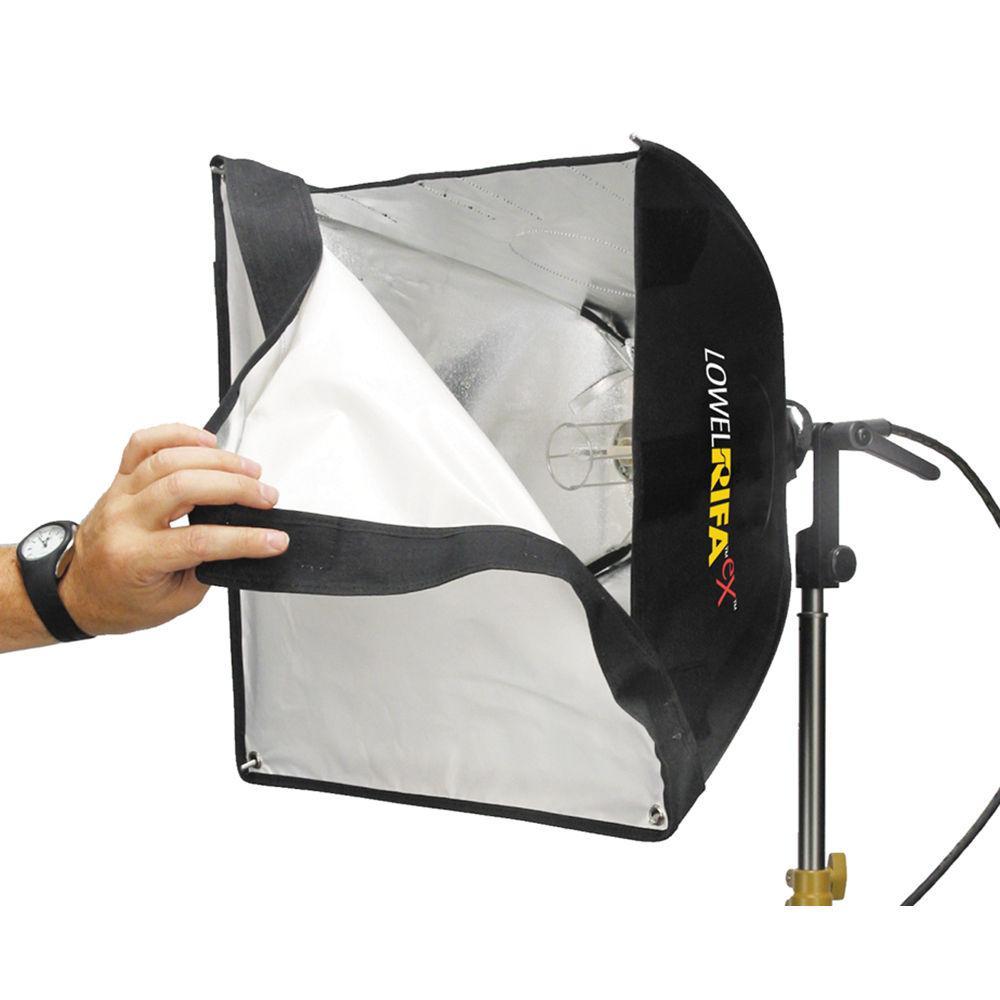

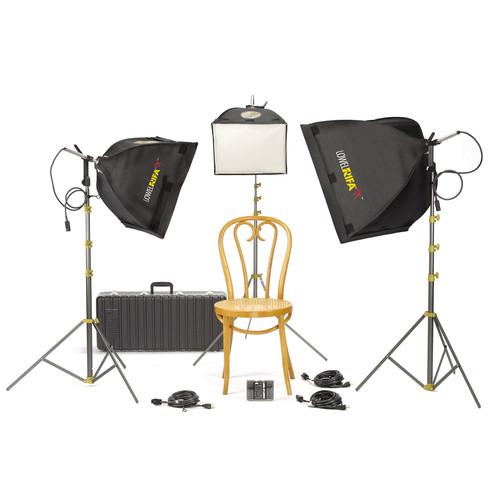

Product description The Lowel Rifa eX Small Triple Soft Kit (230V) proves that creating beautiful soft key light or fill light doesn't have to be strenuous or time consuming. It includes bulbs, stands, and a TO-84Z hard kit case.Compact, lightweight, and self-contained, the Rifa-Lite eX 66 (25 x 25" (63.5 x 63.5 cm)), eX 55 (21 x 21" (53.3 x 53.3 cm)) and eX 44 (16 x 16" (40.6 x 40.6 cm)) use a simple umbrella-like design to achieve their quick and easy set-up and strike capabilities. This three-light kit is equipped for use with 230 AC voltage. All the lights may be used with 120 VAC and the LC44 may be used with 12, 14.5, and 30 VDC current, with the appropriate bulbs and adapter plugs, available separately. The kit case provides ample room for the components, plus extra components of your own. Rifa EX - Each fixture has a heat-resistant, woven-glass fabric front diffuser which provides sufficient illumination with soft shadows
- Each Rifa eX socket may be changed to accept E26 screw-in fluorescent bulbs (sockets available separately)
- Easy-access pockets on fabric shell allow clip-on gel attachment for correcting to daylight, with optional gel filters

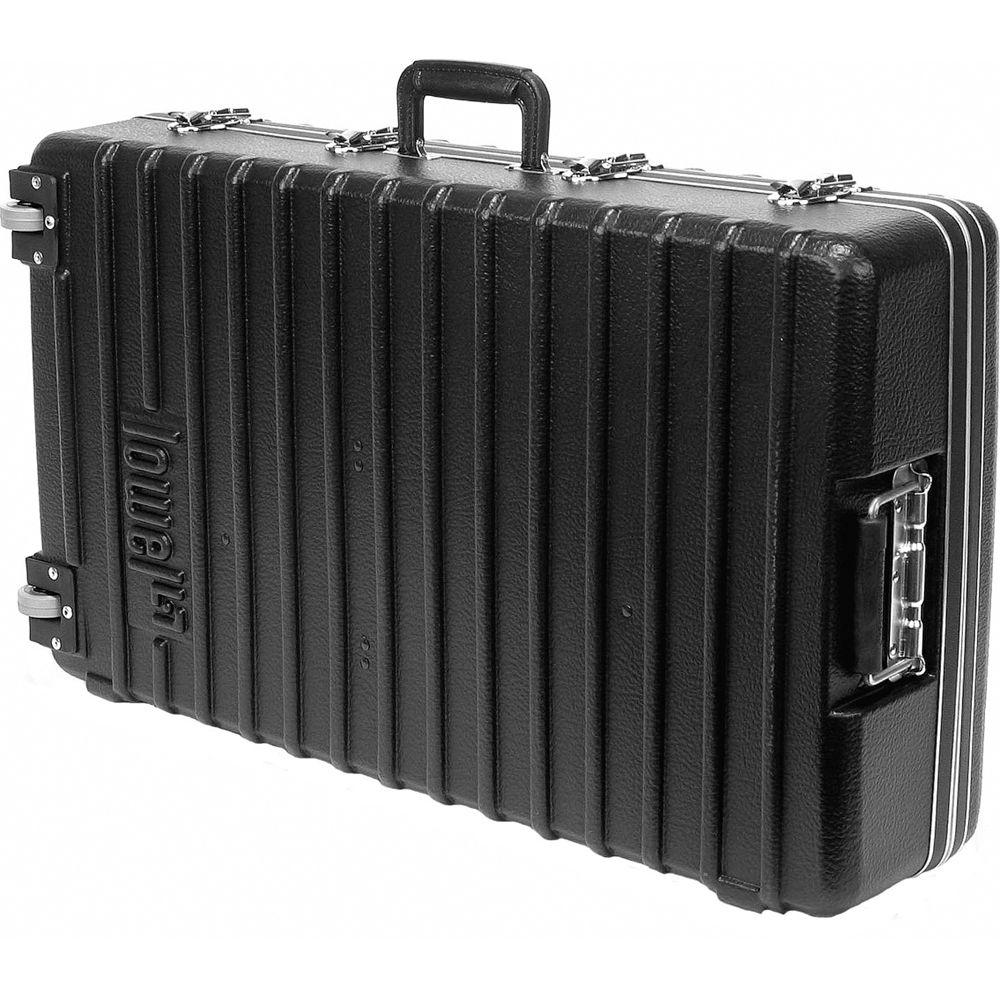

UPC: 884613002688 In the Box Lowel Rifa eX Small Triple Soft Kit (230V) LC66EX Rifa-Lite eX66 Softbox Light (120-240VAC) rsfzsbxdwcxfzewacey LC55EX Rifa-Lite eX 500 Watt Softbox Light (120-240 VAC) LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC) HPL Lamp - 750W/230V 500W 230V Lamp 200W 230V Lamp 2 x KS Jr. Light Stand (7.6') Uni TO Dual Light Stand (7') Lampak for DP Light Molded Tota/Omni 84 Case - 29.5x17x7" (75x43.2x17.8cm) Limited 2-Year Warranty on Fixtures Limited 5-Year Warranty on Stands Limited 1-Year Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Rifa eX Small Triple Soft Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel LC-94564E Specs | Rating | Rifa-Lite eX 66: 750 W
Rifa-Lite eX 55: 500 W
Rifa-Lite eX 44: 250 W | | Socket (Lampholder) | G5.3 for 2-pin ceramic base | | Lens (Condenser) | Not applicable | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not applicable | | Cable | 4' / 1.2 m captive cable
12' / 3.7 m / extension cable, inline switch, 120V grounded Edison plug | | Focusing | Not applicable | | Weight | Rifa-Lite eX 66: 3.5 lb / 1.6 kg
Rifa-Lite eX 55: 2.5 lb / 1.1 kg
Rifa-Lite eX 44: 2.1 lb / 1 kg | | Dimensions | Rifa-Lite eX 66: 30" / 76 cm (collapsed length)
Rifa-Lite eX 55: 24" / 61 cm (collapsed length)
Rifa-Lite eX 44: 17" / 8 cm (collapsed length)
Kit in Case: 29.5 x 17 x 7" / 74.9 x 43.2 x 17.8 cm | | Kit Weight | 37.5 lb / 17 kg | | | | Package Weight | 44.2 lb | | Box Dimensions (LxWxH) | 32.0 x 19.3 x 10.5" |
