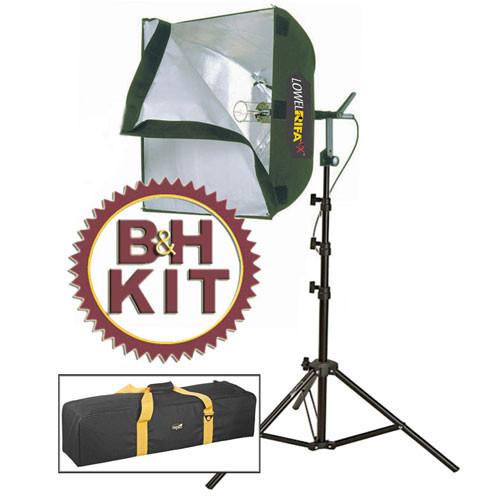

Product description This is a B&H Exclusive Lowel Rifa-Lite eX 44 One-Light Kit. The Rifa-Lite eX 44 is a compact, self-contained, 16 x 16" (40.6 x 40.6 cm), 250 watt AC/DC, collapsible soft light that sets up in a minute or less. The Rifa eX 44's quick-change power cord easily converts for use with professional battery belts, allowing it to work at 12V, 14V and 30V DC, in addition to 120V and 230V AC. It's the perfect complement to today's compact, light-sensitive digital cameras and film stocks. The eX series of Rifa Lites enables you to change out the fixture's socket, to make use of cooler running fluorescent bulbs. Bulbs are available separately. This kit includes a 250W/120V bulb, Impact Brand air-cushioned light stand, and soft kit case. - Lowel LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC) The Lowel Rifa-Lite EX44 is a compact self-contained 16 x 16", 250 watt, collapsible, tungsten/halogen softlight. It uses the unique umbrella-like Rifa design which allows set-up in 60 seconds or less. Bathe almost anything from talking heads to table-top stills in luxurious, soft light. Its quick change power cord easily converts for use with professional battery belts, allowing it to work at 12/14 and 30 VDC, in addition to 120 and 230 VAC. It's the perfect complement to today's compact, light sensitive digital cameras and filmstocks. Accessory eXchange lampheads allow use of daylight fluorescent lamps. Bulbs are available separately.
- Adaptable Lamp Fixture
- The Rifa EX accepts many different wattages and types of bulbs when you purchase the appropriate socket adapter, available separately.
- Front Diffusion
- A woven glass fabric, heat-resistant 16 x 16" (41 x 41 cm) front diffuser provides sufficient illumination with soft shadows.
- Easy Access
- Easy access pockets on fabric shell allow clip-on gel attachment for correcting to daylight.
UPC: 049383160338 - Sylvania / Osram GCA (250W/120V) Lamp The Sylvania GCA (250W/120V) Lamp is a T3 shape display optic halogen bulb. The GCA has a G5.3 base and a 200 hour lamp life. This lamp is commonly used for studio, theater, TV & video. UPC: 046135544286
- Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 - Impact Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories The Impact Light Kit Bag #3 (Black) is a soft padded case designed to transport and protect a 2 monolight lighting kit. It has space to hold 2 monolights with reflectors, cables, umbrellas and light stands. It is carried by 2 overlapping carrying handles or the included shoulder strap.
- Bag Basics
-
- Fits 2 monolight lighting system
- Soft padded lighting bag
- Holds up to 35 lbs
- Carrying Options
-
- Two overlapping handles
- Removable, adjustable shoulder strap
UPC: 847628011885 In the Box - LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC) tauubwdwyv
- 120V 16' Switched #18/3 AC Power Cord
- Light Diffuser
- Carrying Sleeve
- Limited 2-Year Warranty
- Sylvania / Osram - GCA (250W/120V) Lamp
- Impact - Air-Cushioned Light Stand (Black, 8')
- Impact - Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Rifa-Lite eX 44 One-Light Kit, Impact Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lowel LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC)
| Rating | 250 W maximum, 120-230 VAC / 12 VDC | | Socket (Lampholder) | 2-pin | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Silver softbox interior | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 4' captive cable, 16' 120 VAC cable, grounded Edison plug | | Focusing | Not Applicable | | Weight | 2.1 lb / 1 kg | | Dimensions | Collapsed length: 21" / 53 cm
Diffused Front: 16 x 16" / 41 x 41 cm | | | | Box Dimensions (LxWxH) | 16.0 x 6.0 x 6.0" | - Sylvania / Osram GCA (250W/120V) Lamp
| Bulb Type | T3 | | Base Type | G5.3 | | Wattage | 250 W | | Voltage | 120 V | | Lumens | 5700 | | Color Temperature | 3200K | | Average Life | 200 Hours | | | | Box Dimensions (LxWxH) | 3.65 x 1.3 x 1.3" | - Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" | - Impact Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories
| Material | Nylon | | Type of Closure | Zipper | | Exterior Dimensions | 36 x 9 x 9" (91.4 x 22.6 x 22.6 cm) (LxWxH) | | Interior Dimensions | 35 x 8 x 8" (88.9 x 20.3 x 20.3 cm) (LxWxH) | | Accommodates | 2 monolights with reflectors, cables, umbrellas and light stands | | Carrying/Transport Options | Carrying handles
Shoulder strap | | Load Capacity | 35 lbs (15.88 kg) | | Weight | 4.05 lbs (1.837 kg) | | | | Box Dimensions (LxWxH) | 52.0 x 8.0 x 8.0" |
