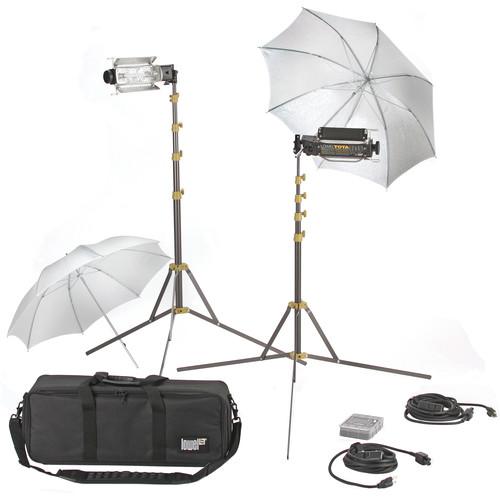

Lowel SlimLight 2 Tota Kit

User Manual for Lowel SlimLight 2 Tota Kit

• Product category: Tungsten Lights Lowel
• Brand: Lowel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Lowel Tungsten Lights

Product description

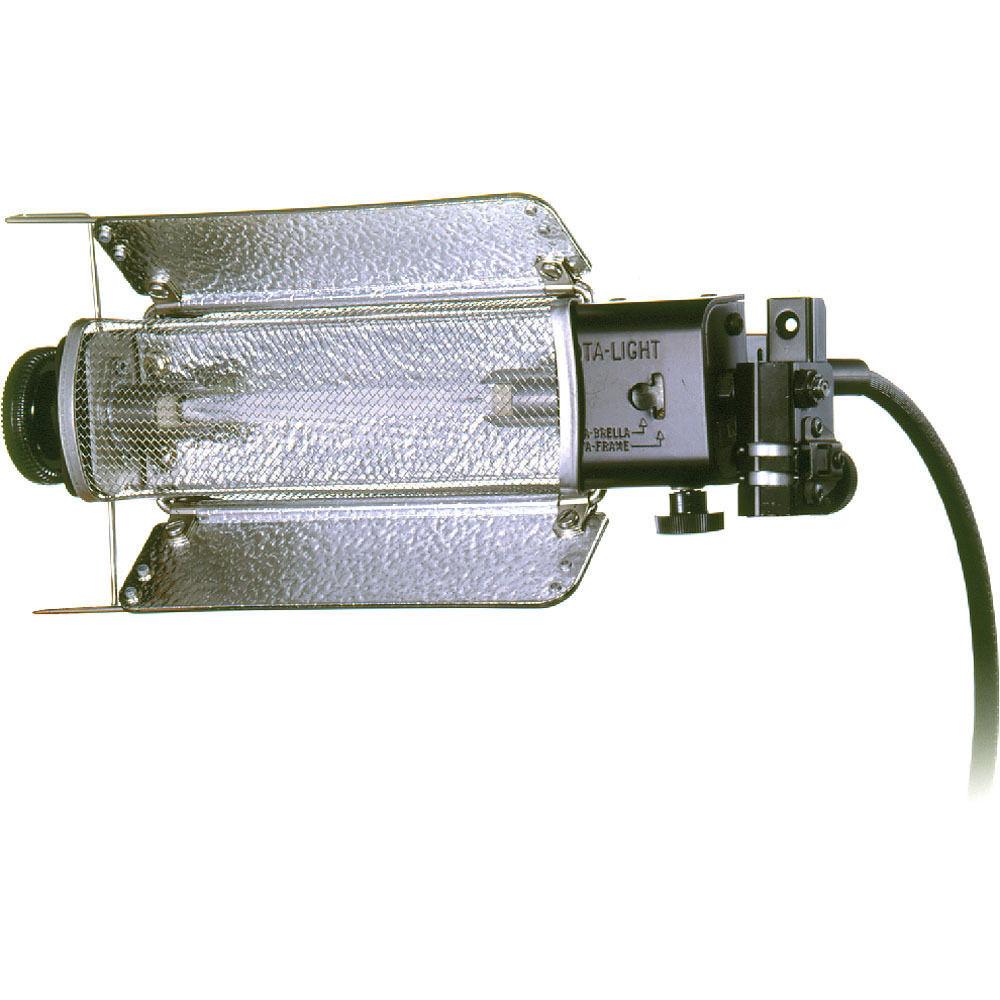

• Tota-Light Tungsten Flood Light (120-240 VAC) Compact, rugged, and versatile, the broad throw Lowel Tota-light can be used with an umbrella or gel frame, or with diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it toward the ceiling to raise the ambient (base) light level of a room. Tota is also widely used for photographic copy work. When fitted with an EMD 750W / 120V bulb (available separately), the Tota-Light will emit a beam of 41 footcandles with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10' (3m). The Tota-Light is multi-voltage capable, and a choice of bulbs and plug adapters are available.
  Compact Wide Floodlight
  • Its aperture measures only 4.5 x 11" (11.4 x 29.9 cm).
  Full Rotation
  • Can be rotated a full 360° with the large, stay-cool, plastic adjustment knob.
  Multi-Wattage, Multi-Voltage
  • It uses bulbs from 750 to 300W / 120V. It uses 800W bulbs for 220V use.
  Adjustable Doors
  • Adjustable reflecting doors can illuminate four walls evenly from a corner or compensate for light fall-off from above or below.
  UPC: 841274007742

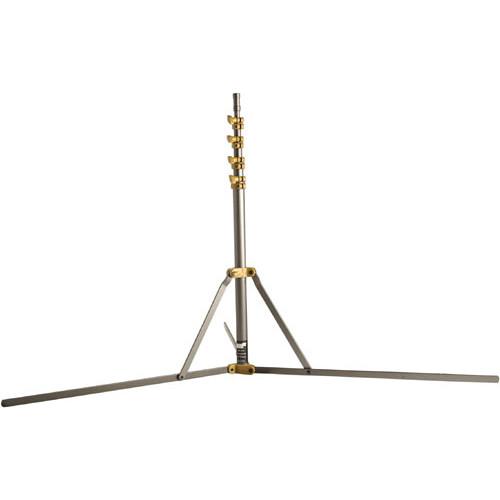

• Uni TO Dual Light Stand (7') Often used in Lowel kits, the Uni TO Dual Light Stand employs a unique reverse folding design that allows the stand to break down to just 20.25" in length—small enough to fit into even the most compact kit bag. The four-section stand rises to a maximum height of 86.5" and has a 40" base diameter for maximum stability. Another impressive feature is the ability to remove the center column from the stand's legs, giving you a three-section pole for a handheld light or other accessory. The Uni TO Dual Light Stand has a standard 5/8" stud topped with 1/4"-20 threads. UPC: 841274009500

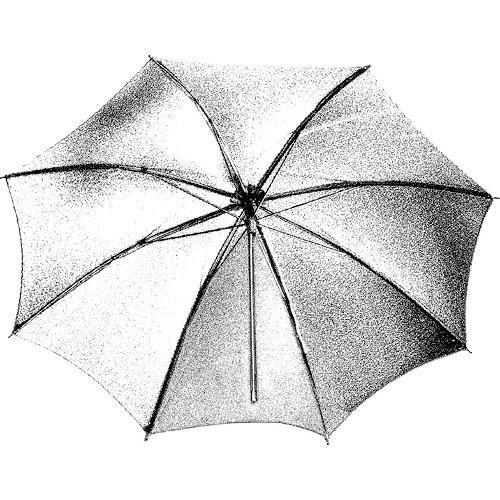

• Tota-Brella - Silver - 27" Fits directly onto Tota or Omni and ViP lights without tools. Slightly softens the light output, with some specular highlights.
  Heat resistant, woven, soft-silver surface.This size is perfect for a 1 person head shot, or 3x4 ft product setup. UPC: 841274007834

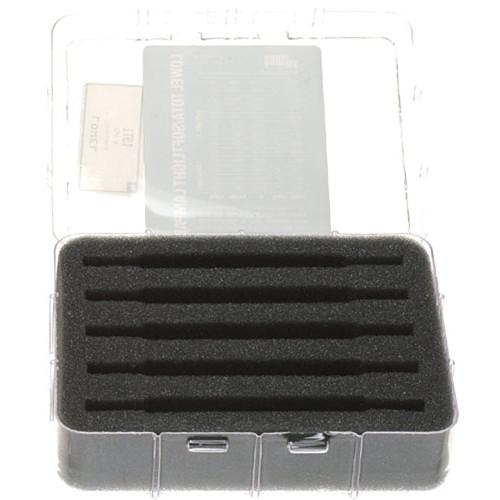

• Lampak for Tota Designed for storing lamps or safely transporting them, the Lampak holds five Tota or Softlight 2 lamps.

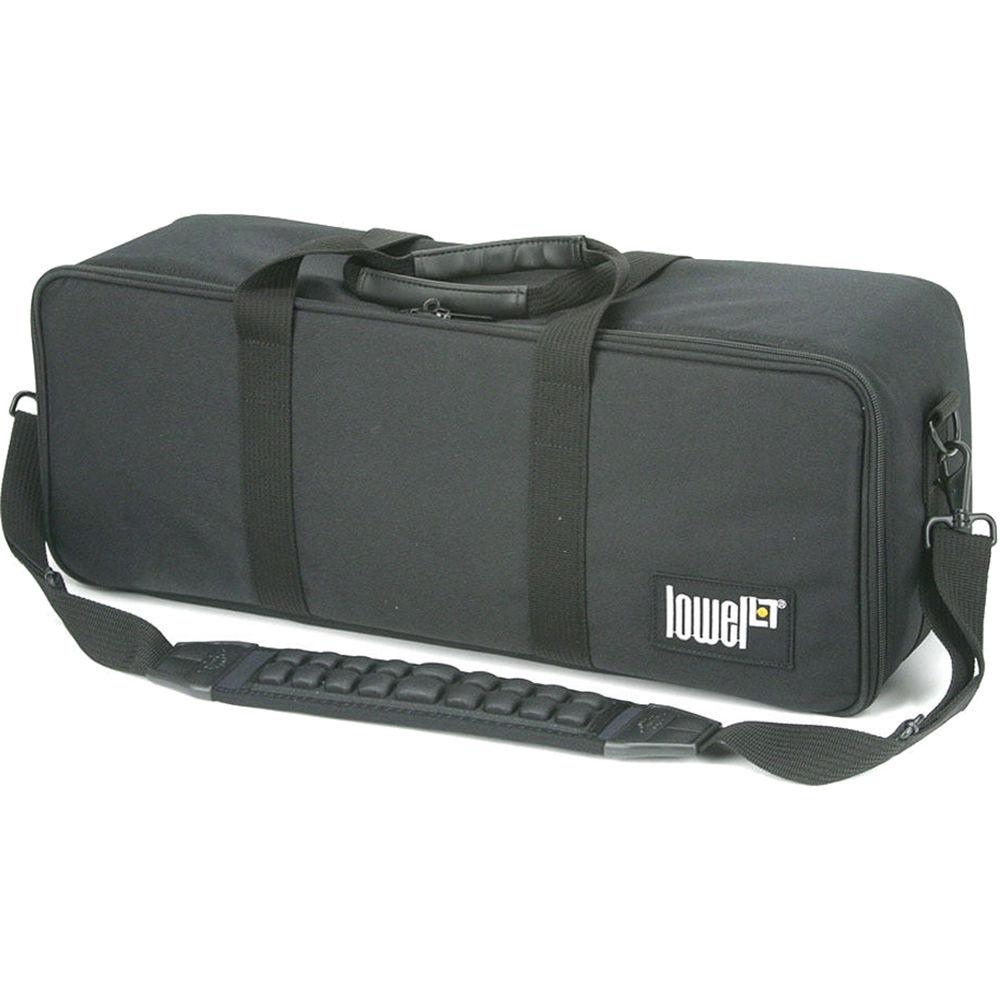

• LB-24 Slim Litebag (Black) Store, protect, and transport lighting gear, accessories, or other equipment in the black LB-24 Slim Litebag from Lowel. This durable soft bag features polyester construction backed with vinyl coating. The full-length zipper provides easy access to contents. Use the padded touch-fastening dividers to organize your stuff. Carry the Slim Litebag with the dual top handles or the removable, air-cushioned, adjustable, padded shoulder strap.
  • Lightweight, protective alternative to a hard case
  UPC: 884613002084

• T1-80 16' Power Cable

• Protective Front Screen

• 2 x Integral Gull Wing Adjustable Reflecting Doors

• Limited 2-Year Warranty

• Limited 5-Year Warranty

• Air Cushioned Shoulder Strap

• Limited 1-Year Warranty

Also Includes

• 2 x EMD Lamps (750W/120V)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Tota-Light Tungsten Flood Light (120-240 VAC)

  Bulb Type	1 x R7s/RX7s
  Max Bulb Wattage	750 W
  Umbrella Mount	Yes

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  Mounting	5/8" Receiver (via Fixture)
  Cable Length	16' / 4.9 m
  Inline Switch	Yes
  Dimensions	2 x 3 x 11" / 5 x 7.6 x 27.9 cm
  Weight	2.2 lb / 1 kg

  Box Dimensions (LxWxH)	12.3 x 8.45 x 4.35"

• Uni TO Dual Light Stand (7')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Column Diameter	1" / 2.54 cm
  Maximum Working Height	86.5" / 219.7 cm
  Collapsed Height	20.2" / 51.3 cm
  Footprint Diameter	40.10" / 101.85 cm
  Leg Shape	Rectangular
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Weight	2.4 lb / 1.1 kg
  Warranty Length	Limited 5-Year Warranty

  Box Dimensions (LxWxH)	20.7 x 4.4 x 4.3"

• Tota-Brella - Silver - 27"

  Size	27.0" / 68.6 cm
  Interior	Silver

  Box Dimensions (LxWxH)	20.8 x 2.15 x 1.65"

• Lampak for Tota

  Box Dimensions (LxWxH)	5.512 x 4.173 x 1.26"

• LB-24 Slim Litebag (Black)

  Closure Type	Zipper
  Carry and Transport Options	2 x Hand Strap Shoulder Strap
  Material of Construction	Polyester
  Exterior Dimensions (W x H x D)	23 x 9 x 6" / 58 x 23 x 15 cm
  Weight	3.5 lb / 1.6 kg

  Box Dimensions (LxWxH)	25.0 x 15.0 x 8.0"
