User manual

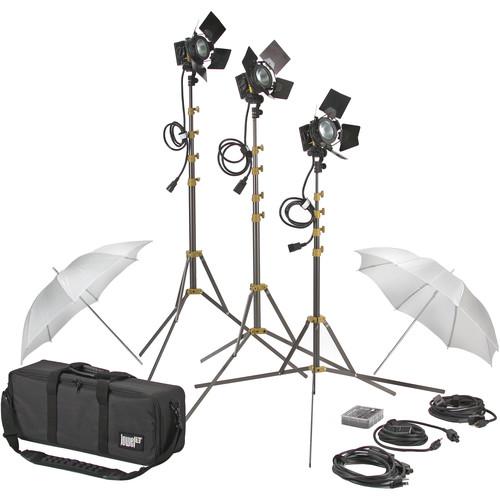

Lowel SlimLight 3 Pro Kit

User Manual for Lowel SlimLight 3 Pro Kit

• Product category: Tungsten Lights Lowel
• Brand: Lowel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Lowel Tungsten Lights

Product description

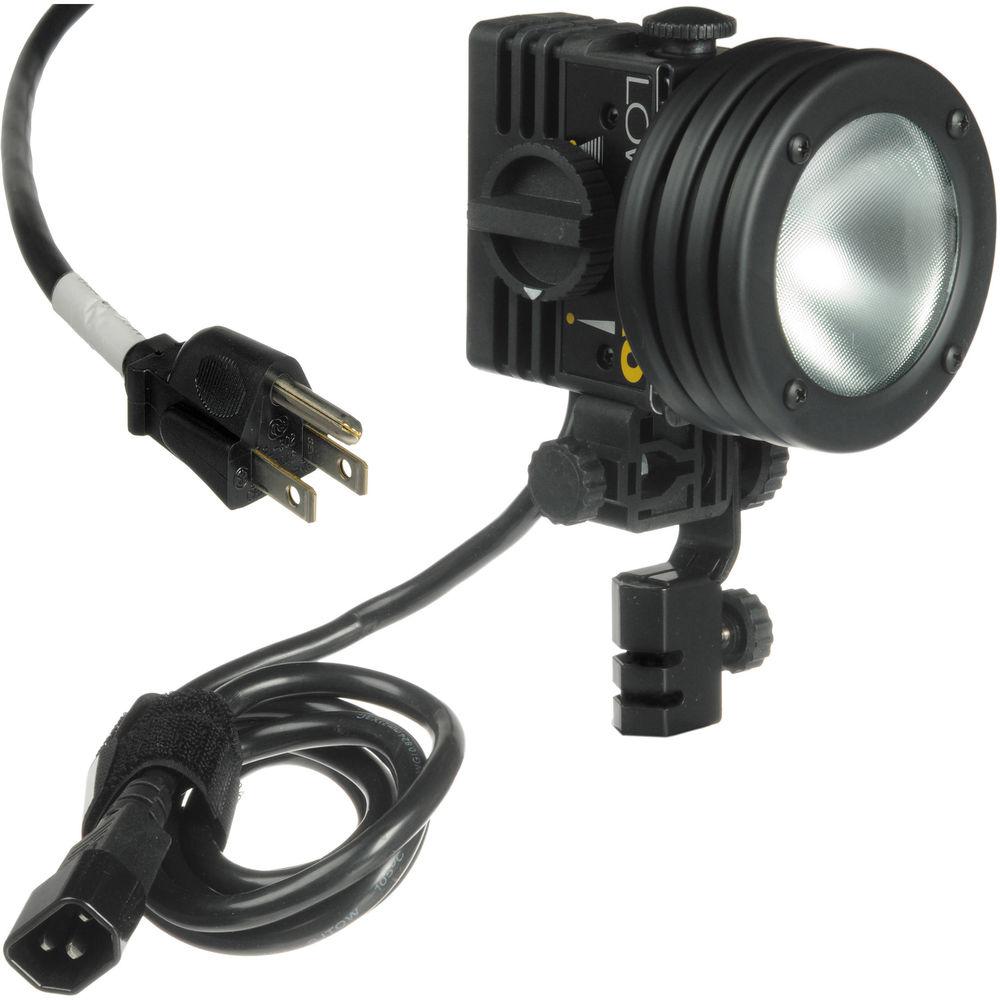

• ViP Pro-Light (120 VAC / 12 VDC) With its high intensity #2 reflector and prismatic glass, the tiny, focusable Lowel ViP Pro-Light is more efficient than a mini-Fresnel of equal wattage, yet it gives an exquisite, even light, with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight.In addition to a wide variety of customizing accessories, its versatility can be increased by switching its 12' AC cable for an optional DC adapter cable and swapping its bulb for use as a camera-top fixture. Other bulbs, and plug adapters are available. When fitted with an FVL 200 watt bulb (available separately), the Pro-Light will emit a beam of 23 footcandles at full flood and 143 footcandles at full spot from a distance of 10' (3 m). With a GCC 100W lamp at 12 VDC: 12 footcandles in flood and 58 footcandles in spot.
  Focus Flood
  • Change the setting from "spot" to "flood" position or anywhere in between by turning knob on side of unit.
  • Has a focus range of 6:1 with optional lamp.
  Easy Access
  • The front end comes off for easy access for no-tool lamp change.
  Multi-Use Source
  • Substituting the prismatic glass for the optional clear glass turns light into a non-focusing, high intensity spotlight, for long throw situations.
  AC/DC
  • Choose your bulb for 120 VAC or 12 or 30 VDC.
  UPC: 084127400967

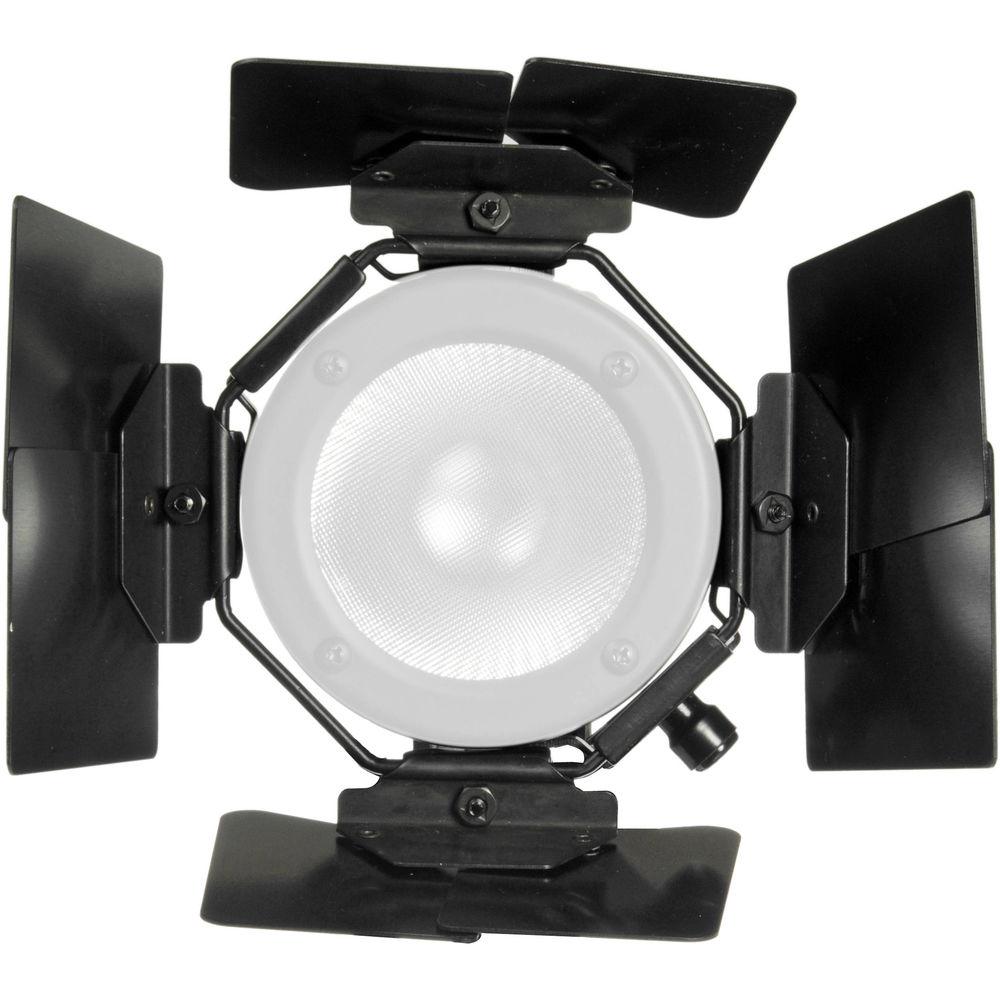

• Complete Four Leaf Barndoor Set for Pro, i-Light The Lowel Four Leaf Barndoor Set for the Pro and i-Lights consists of a Barndoor Frame with four expandable clip-on Leaves. The frame accepts swing-in accessories, and rotates 360°.Barndoors narrow the beam spread of a light fixture. They help create a three-dimensional look to a lighting scheme by placing light in a specific area, or by keeping it away. The more leaves a barndoor set has, or the longer the leaves the more precisely the beam can be controlled. UPC: 841274004697

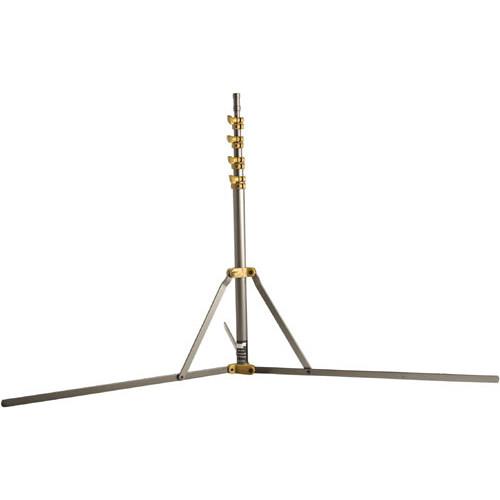

• Uni TO Dual Light Stand (7') Often used in Lowel kits, the Uni TO Dual Light Stand employs a unique reverse folding design that allows the stand to break down to just 20.25" in length—small enough to fit into even the most compact kit bag. The four-section stand rises to a maximum height of 86.5" and has a 40" base diameter for maximum stability. Another impressive feature is the ability to remove the center column from the stand's legs, giving you a three-section pole for a handheld light or other accessory. The Uni TO Dual Light Stand has a standard 5/8" stud topped with 1/4"-20 threads. UPC: 841274009500

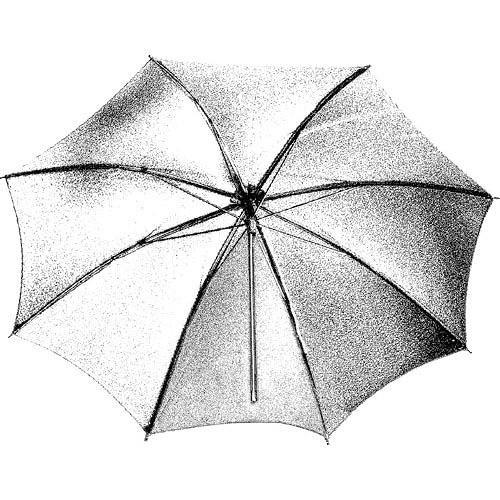

• Tota-Brella - Silver - 27" Fits directly onto Tota or Omni and ViP lights without tools. Slightly softens the light output, with some specular highlights.
  Heat resistant, woven, soft-silver surface.This size is perfect for a 1 person head shot, or 3x4 ft product setup. UPC: 841274007834

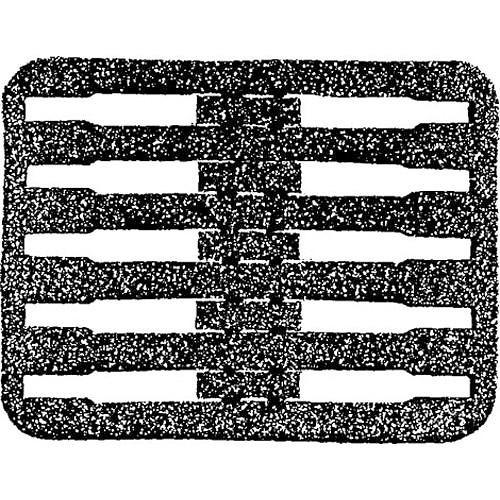

• Lampak for VP Light Designed for storing lamps or safely transporting them, the Lampak holds ten Pro or i-light lamps and five V-light lamps. UPC: 841274009104

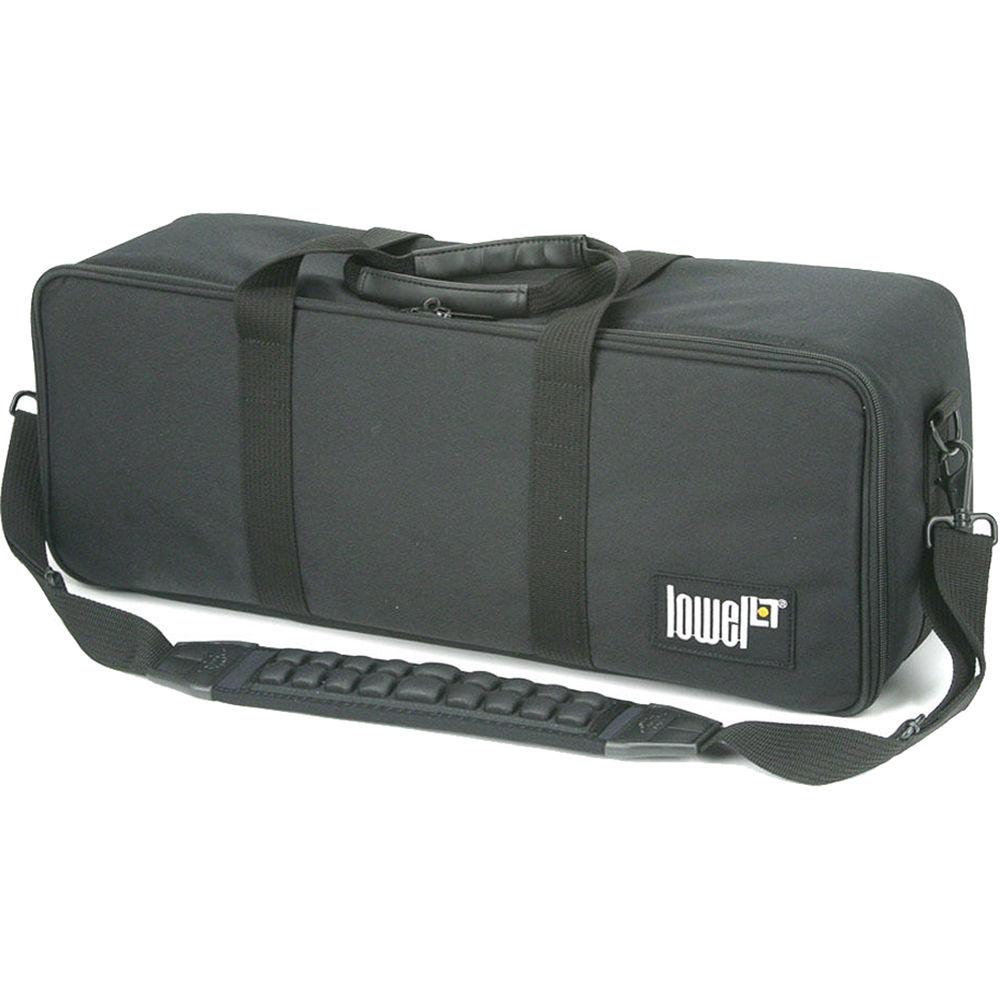

• LB-24 Slim Litebag (Black) Store, protect, and transport lighting gear, accessories, or other equipment in the black LB-24 Slim Litebag from Lowel. This durable soft bag features polyester construction backed with vinyl coating. The full-length zipper provides easy access to contents. Use the padded touch-fastening dividers to organize your stuff. Carry the Slim Litebag with the dual top handles or the removable, air-cushioned, adjustable, padded shoulder strap.
  • Lightweight, protective alternative to a hard case
  UPC: 884613002084

• Integral Prismatic Glass

• 120 VAC Detachable Power Cable

• Limited 2-Year Warranty

• Barndoor Frame for Pro, i-Light

2 x
• Expandable Rectangular Leaf

2 x
• Expandable Triangular Leaf for Pro and i-Light Barndoor Frame

• One Year Manufacturer's Warranty

• Limited 5-Year Warranty

• Air Cushioned Shoulder Strap

• Limited 1-Year Warranty

Also Includes

• 3 x FVL 200W Lamps

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ViP Pro-Light (120 VAC / 12 VDC)

  Bulb Type	1 x G5.3
  Max Bulb Wattage	250 W
  Focusable	Yes
  Umbrella Mount	Yes

  AC Input Power	120 VAC, 60 Hz
  DC Input Power	12 VDC
  Mounting	5/8" Receiver (via Fixture)
  Cable Length	16' / 4.9 m
  Inline Switch	None
  Dimensions	4.6 x 5 x 3.7" / 11.7 x 12.7 x 9.4 cm
  Weight	2 lb / 907 g

  Box Dimensions (LxWxH)	8.7 x 5.45 x 5.35"

• Complete Four Leaf Barndoor Set for Pro, i-Light

  Box Dimensions (LxWxH)	6.6 x 4.95 x 2.15"

• Uni TO Dual Light Stand (7')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Column Diameter	1" / 2.54 cm
  Maximum Working Height	86.5" / 219.7 cm
  Collapsed Height	20.2" / 51.3 cm
  Footprint Diameter	40.10" / 101.85 cm
  Leg Shape	Rectangular
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Weight	2.4 lb / 1.1 kg
  Warranty Length	Limited 5-Year Warranty

  Box Dimensions (LxWxH)	20.7 x 4.4 x 4.3"

• Tota-Brella - Silver - 27"

  Size	27.0" / 68.6 cm
  Interior	Silver

  Box Dimensions (LxWxH)	20.8 x 2.15 x 1.65"

• Lampak for VP Light

  Weight

  2 oz. (57g).

  Box Dimensions (LxWxH)	5.591 x 4.882 x 1.26"

• LB-24 Slim Litebag (Black)

  Closure Type	Zipper
  Carry and Transport Options	2 x Hand Strap Shoulder Strap
  Material of Construction	Polyester
  Exterior Dimensions (W x H x D)	23 x 9 x 6" / 58 x 23 x 15 cm
  Weight	3.5 lb / 1.6 kg

  Box Dimensions (LxWxH)	25.0 x 15.0 x 8.0"
