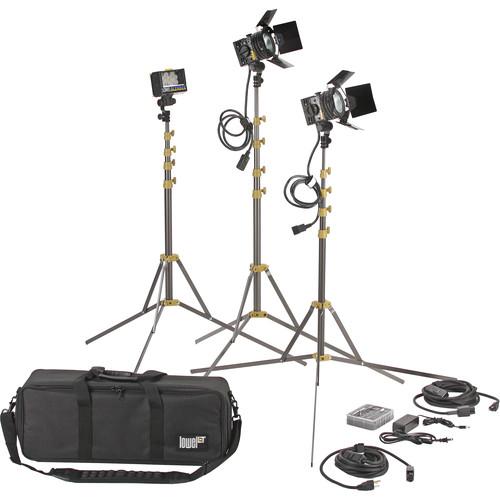

Lowel SlimLight Blender 2 Pro Kit

User Manual for Lowel SlimLight Blender 2 Pro Kit

• Product category: LED Lights Lowel
• Brand: Lowel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Lowel LED Lights

Product description

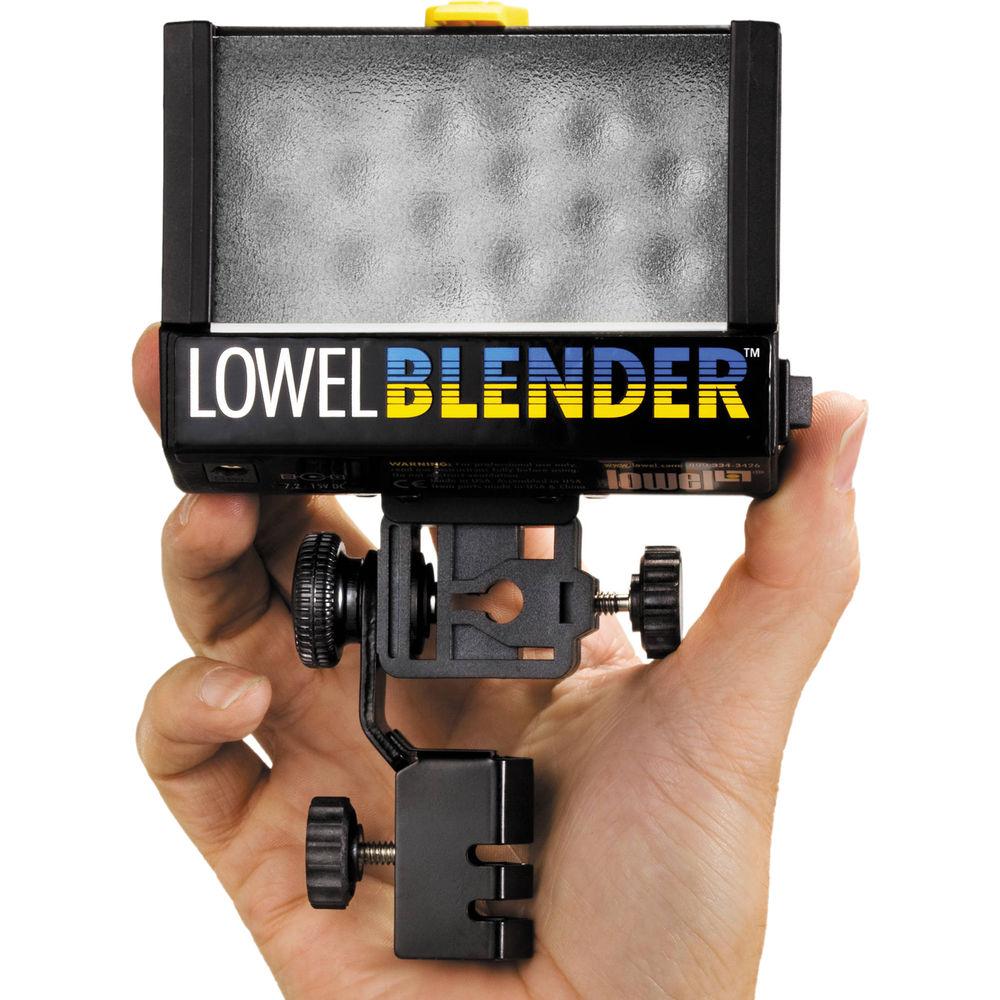

• Blender LED Fixture (120-240 VAC/12 VDC) The Lowel Blender LED Fixture (120-240 VAC/12 VDC) throws an entirely new light on the problems of shooting in mixed-light environments. When neither tungsten nor daylight are the right color, you just fudge it, right? Not anymore. The Blender makes it possible to fine-tune your lights to match (or contrast with) whatever light you're grappling with. With twin arrays of daylight and tungsten LEDs in one fixture, two simple dials make it possible to dial in the light to exactly the color you choose (from approximately 2800 to 6000K). This tiny, lightweight unit's (1.2 lb and small enough to hold with a pistol grip) output is comparable to a 56W tungsten light of similar beam angle and it's dimmable from 100 to 10%. It runs on the included 120/240 VAC adapter or an optional camcorder battery sled (Panasonic, Sony, or Canon). Also included is clear front safety plastic and three different front diffusers. The included power adapter is supplied with two power cords, one for 120V circuits and one for 240V circuits.
  Features
  • Tungsten light, daylight, or anywhere in-between is available with the Blender
  • Mix 2 arrays of high CRI LEDs to blend color to your choice in mixed light environments
  • The fixture is small enough for a pistol grip but emits a robust 56W of light
  • 3 diffusers are included for a variety of softening effects
  Photometrics
  • 169 fc (1825 lux) at 4.0' (1.2 m) with full tungsten and full daylight LEDs
    87 fc (940 lux) at 4.0' (1.2 m) with full tungsten only
    83 fc (896 lux) at 4.0' (1.2 m) with full daylight only
  UPC: 049383064575

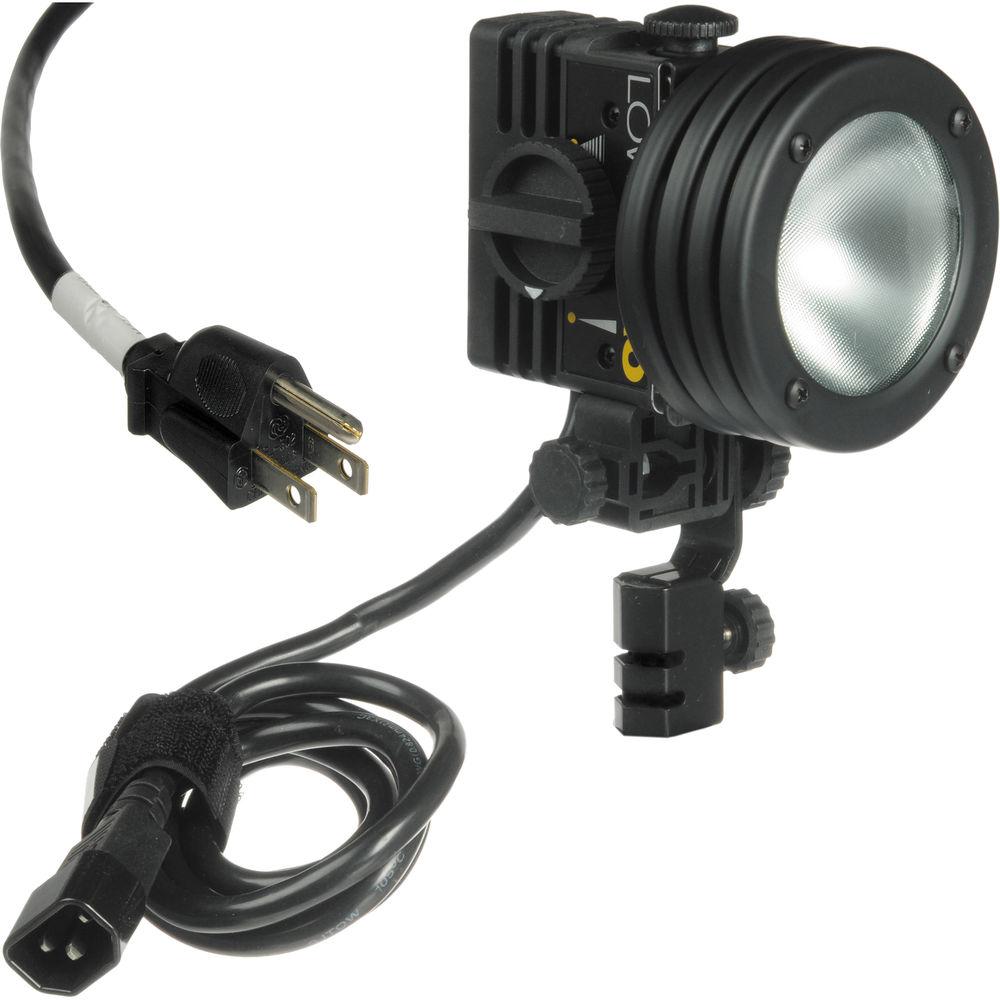

• ViP Pro-Light (120 VAC / 12 VDC) With its high intensity #2 reflector and prismatic glass, the tiny, focusable Lowel ViP Pro-Light is more efficient than a mini-Fresnel of equal wattage, yet it gives an exquisite, even light, with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight.In addition to a wide variety of customizing accessories, its versatility can be increased by switching its 12' AC cable for an optional DC adapter cable and swapping its bulb for use as a camera-top fixture. Other bulbs, and plug adapters are available. When fitted with an FVL 200 watt bulb (available separately), the Pro-Light will emit a beam of 23 footcandles at full flood and 143 footcandles at full spot from a distance of 10' (3 m). With a GCC 100W lamp at 12 VDC: 12 footcandles in flood and 58 footcandles in spot.
  Focus Flood
  • Change the setting from "spot" to "flood" position or anywhere in between by turning knob on side of unit.
  • Has a focus range of 6:1 with optional lamp.
  Easy Access
  • The front end comes off for easy access for no-tool lamp change.
  Multi-Use Source
  • Substituting the prismatic glass for the optional clear glass turns light into a non-focusing, high intensity spotlight, for long throw situations.
  AC/DC
  • Choose your bulb for 120 VAC or 12 or 30 VDC.
  UPC: 084127400967

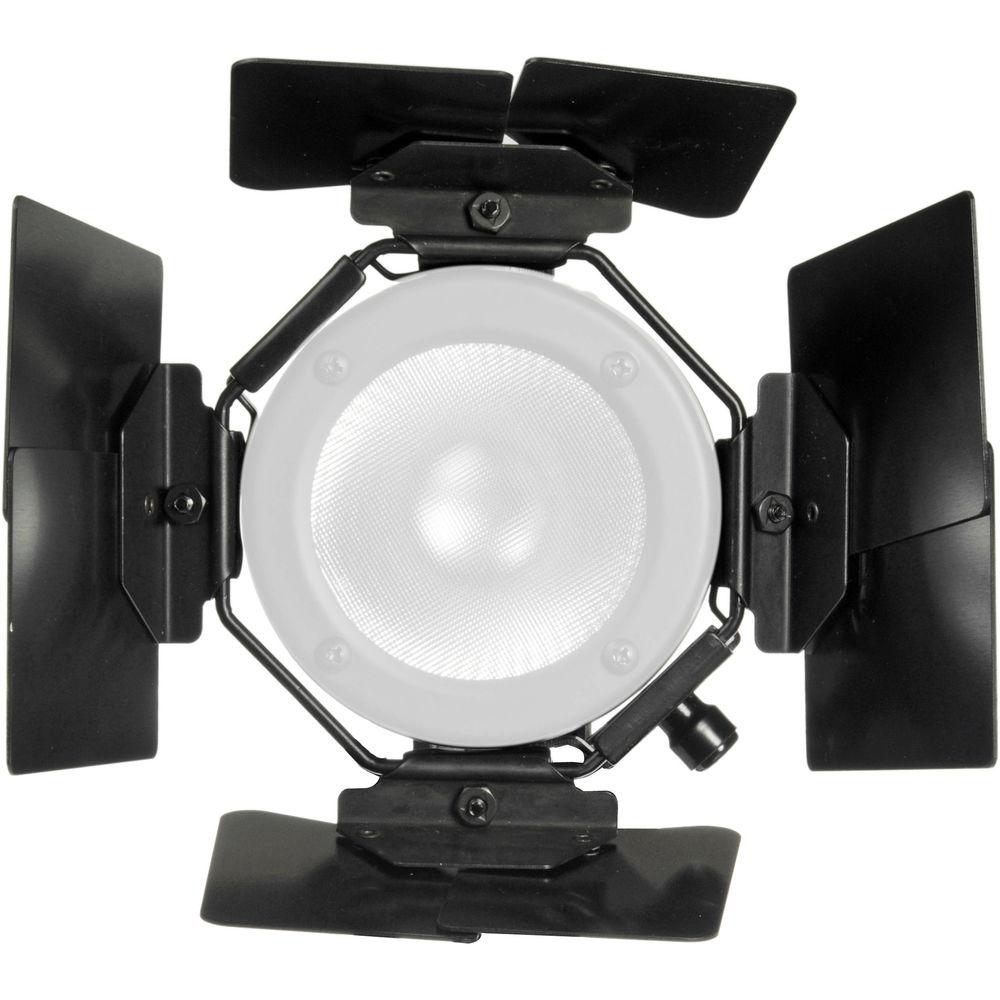

• Complete Four Leaf Barndoor Set for Pro, i-Light The Lowel Four Leaf Barndoor Set for the Pro and i-Lights consists of a Barndoor Frame with four expandable clip-on Leaves. The frame accepts swing-in accessories, and rotates 360°.Barndoors narrow the beam spread of a light fixture. They help create a three-dimensional look to a lighting scheme by placing light in a specific area, or by keeping it away. The more leaves a barndoor set has, or the longer the leaves the more precisely the beam can be controlled. UPC: 841274004697

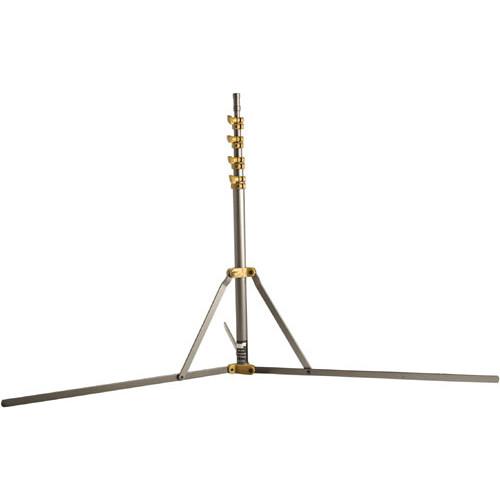

• Uni TO Dual Light Stand (7') Often used in Lowel kits, the Uni TO Dual Light Stand employs a unique reverse folding design that allows the stand to break down to just 20.25" in length—small enough to fit into even the most compact kit bag. The four-section stand rises to a maximum height of 86.5" and has a 40" base diameter for maximum stability. Another impressive feature is the ability to remove the center column from the stand's legs, giving you a three-section pole for a handheld light or other accessory. The Uni TO Dual Light Stand has a standard 5/8" stud topped with 1/4"-20 threads. UPC: 841274009500

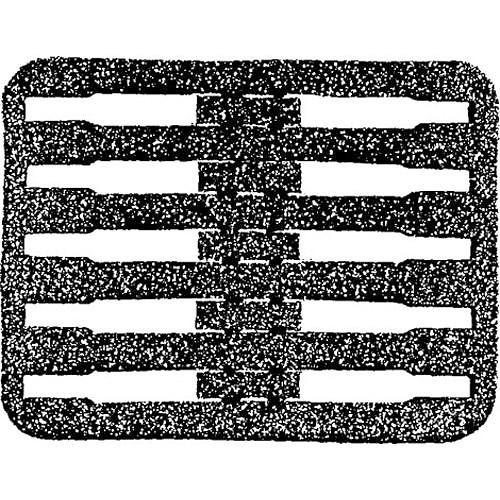

• Lampak for VP Light Designed for storing lamps or safely transporting them, the Lampak holds ten Pro or i-light lamps and five V-light lamps. UPC: 841274009104

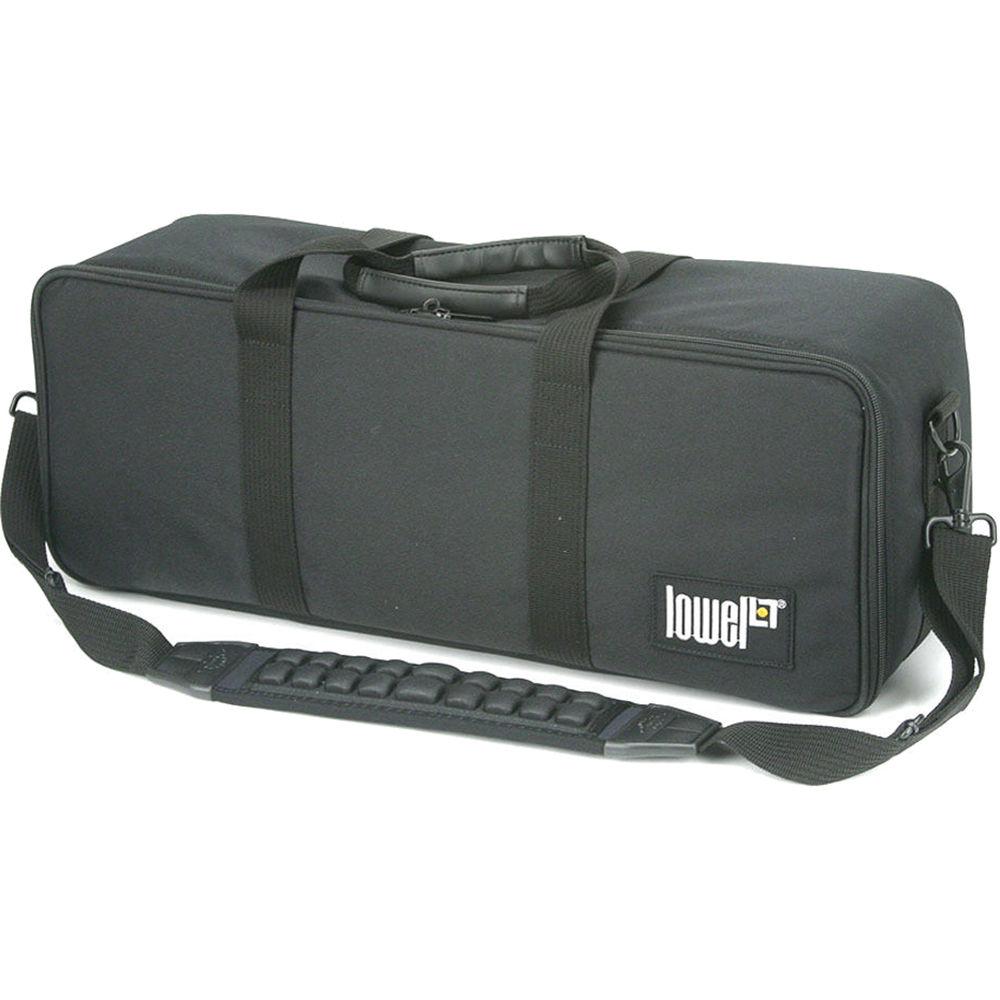

• LB-24 Slim Litebag (Black) Store, protect, and transport lighting gear, accessories, or other equipment in the black LB-24 Slim Litebag from Lowel. This durable soft bag features polyester construction backed with vinyl coating. The full-length zipper provides easy access to contents. Use the padded touch-fastening dividers to organize your stuff. Carry the Slim Litebag with the dual top handles or the removable, air-cushioned, adjustable, padded shoulder strap.
  • Lightweight, protective alternative to a hard case
  UPC: 884613002084

• Lowel Blender LED Fixture

• 120 and 240 VAC Adapter

• Set of Clear Safety Plastic and 3 Diffusers

• Limited 2-Year Warranty

• Integral Prismatic Glass

• 120 VAC Detachable Power Cable

• Limited 2-Year Warranty

• Barndoor Frame for Pro, i-Light

2 x
• Expandable Rectangular Leaf

2 x
• Expandable Triangular Leaf for Pro and i-Light Barndoor Frame

• One Year Manufacturer's Warranty

• Limited 5-Year Warranty

• Air Cushioned Shoulder Strap

• Limited 1-Year Warranty

Also Includes

• 2 x FVL 200W Lamps

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Blender LED Fixture (120-240 VAC/12 VDC)

  Color Temperature	3000 to 5000K
  Cooling System	None
  Display	None
  Fixture Dimensions	4.0 x 3.0 x 3.0" / 10.2 x 7.6 x 7.6 cm
  Fixture Weight	1.2 lb / 0.54 kg

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  DC Input Power	7.2 to 15 VDC at 8.3 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	56 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	13.3 x 9.8 x 5.4"

• ViP Pro-Light (120 VAC / 12 VDC)

  Bulb Type	1 x G5.3
  Max Bulb Wattage	250 W
  Focusable	Yes
  Umbrella Mount	Yes

  AC Input Power	120 VAC, 60 Hz
  DC Input Power	12 VDC
  Mounting	5/8" Receiver (via Fixture)
  Cable Length	16' / 4.9 m
  Inline Switch	None
  Dimensions	4.6 x 5 x 3.7" / 11.7 x 12.7 x 9.4 cm
  Weight	2 lb / 907 g

  Box Dimensions (LxWxH)	8.7 x 5.45 x 5.35"

• Complete Four Leaf Barndoor Set for Pro, i-Light

  Box Dimensions (LxWxH)	6.6 x 4.95 x 2.15"

• Uni TO Dual Light Stand (7')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Column Diameter	1" / 2.54 cm
  Maximum Working Height	86.5" / 219.7 cm
  Collapsed Height	20.2" / 51.3 cm
  Footprint Diameter	40.10" / 101.85 cm
  Leg Shape	Rectangular
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Weight	2.4 lb / 1.1 kg
  Warranty Length	Limited 5-Year Warranty

  Box Dimensions (LxWxH)	20.7 x 4.4 x 4.3"

• Lampak for VP Light

  Weight

  2 oz. (57g).

  Box Dimensions (LxWxH)	5.591 x 4.882 x 1.26"

• LB-24 Slim Litebag (Black)

  Closure Type	Zipper
  Carry and Transport Options	2 x Hand Strap Shoulder Strap
  Material of Construction	Polyester
  Exterior Dimensions (W x H x D)	23 x 9 x 6" / 58 x 23 x 15 cm
  Weight	3.5 lb / 1.6 kg

  Box Dimensions (LxWxH)	25.0 x 15.0 x 8.0"
