User Manual for Lowel SlimLight Rifa Pro 2 Kit

• Product category: Tungsten Lights Lowel
• Brand: Lowel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Lowel Tungsten Lights

Product description

• LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC) The Lowel Rifa-Lite EX44 is a compact self-contained 16 x 16", 250 watt, collapsible, tungsten/halogen softlight. It uses the unique umbrella-like Rifa design which allows set-up in 60 seconds or less. Bathe almost anything from talking heads to table-top stills in luxurious, soft light. Its quick change power cord easily converts for use with professional battery belts, allowing it to work at 12/14 and 30 VDC, in addition to 120 and 230 VAC. It's the perfect complement to today's compact, light sensitive digital cameras and filmstocks. Accessory eXchange lampheads allow use of daylight fluorescent lamps. Bulbs are available separately.
  Adaptable Lamp Fixture
  • The Rifa EX accepts many different wattages and types of bulbs when you purchase the appropriate socket adapter, available separately.
  Front Diffusion
  • A woven glass fabric, heat-resistant 16 x 16" (41 x 41 cm) front diffuser provides sufficient illumination with soft shadows.
  Easy Access
  • Easy access pockets on fabric shell allow clip-on gel attachment for correcting to daylight.
  UPC: 049383160338
• ViP Pro-Light (120 VAC / 12 VDC) With its high intensity #2 reflector and prismatic glass, the tiny, focusable Lowel ViP Pro-Light is more efficient than a mini-Fresnel of equal wattage, yet it gives an exquisite, even light, with Fresnel-like shadow quality. It can be used as a low-level key or accent light, fill light (with diffusion), or backlight.In addition to a wide variety of customizing accessories, its versatility can be increased by switching its 12' AC cable for an optional DC adapter cable and swapping its bulb for use as a camera-top fixture. Other bulbs, and plug adapters are available. When fitted with an FVL 200 watt bulb (available separately), the Pro-Light will emit a beam of 23 footcandles at full flood and 143 footcandles at full spot from a distance of 10' (3 m). With a GCC 100W lamp at 12 VDC: 12 footcandles in flood and 58 footcandles in spot.
  Focus Flood
  • Change the setting from "spot" to "flood" position or anywhere in between by turning knob on side of unit.
  • Has a focus range of 6:1 with optional lamp.
  Easy Access
  • The front end comes off for easy access for no-tool lamp change.
  Multi-Use Source
  • Substituting the prismatic glass for the optional clear glass turns light into a non-focusing, high intensity spotlight, for long throw situations.
  AC/DC
  • Choose your bulb for 120 VAC or 12 or 30 VDC.
  UPC: 084127400967
• Complete Four Leaf Barndoor Set for Pro, i-Light The Lowel Four Leaf Barndoor Set for the Pro and i-Lights consists of a Barndoor Frame with four expandable clip-on Leaves. The frame accepts swing-in accessories, and rotates 360°.Barndoors narrow the beam spread of a light fixture. They help create a three-dimensional look to a lighting scheme by placing light in a specific area, or by keeping it away. The more leaves a barndoor set has, or the longer the leaves the more precisely the beam can be controlled. UPC: 841274004697

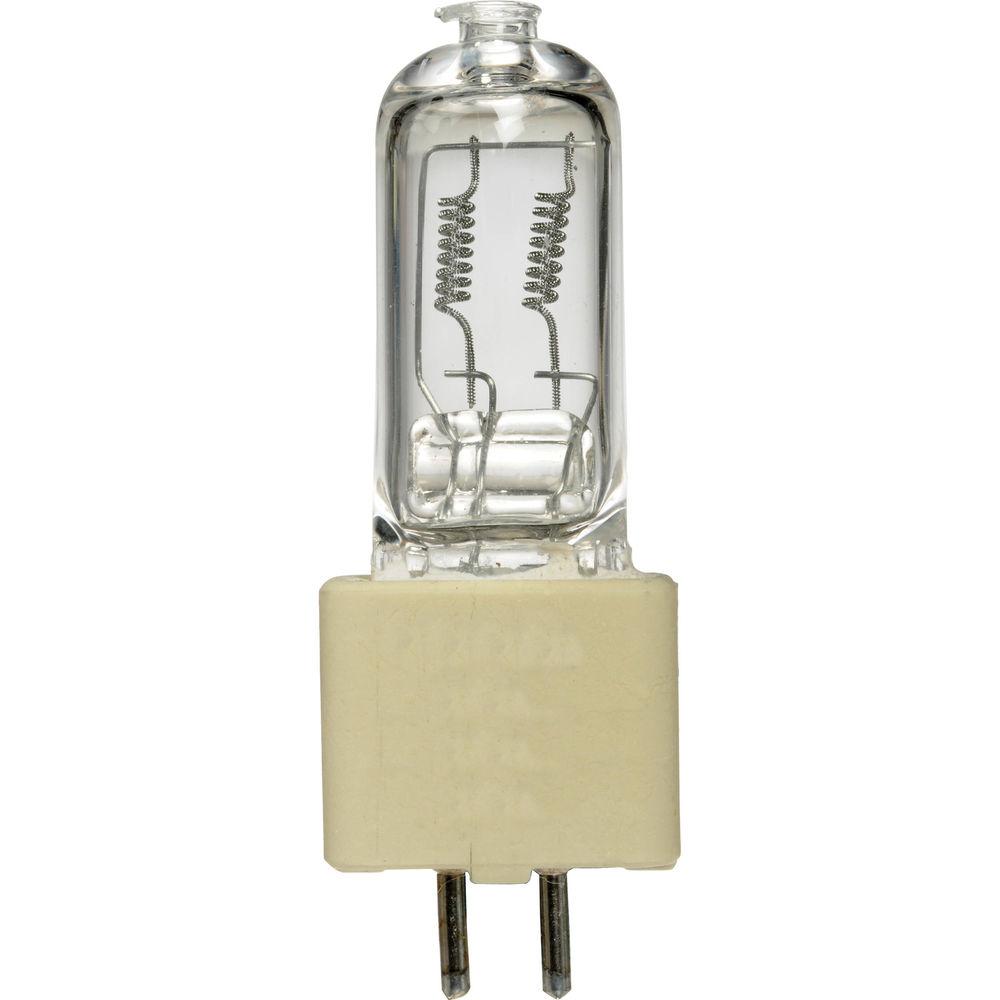

• FVL (200W/120V) Lamp The Sylvania FVL (200W/120V) Lamp is a T4 shape display optic halogen bulb. The FVL has a GX5.3 base and a 200 hour lamp life. This lamp is commonly used for studio, theater, TV & video. UPC: 046135544590

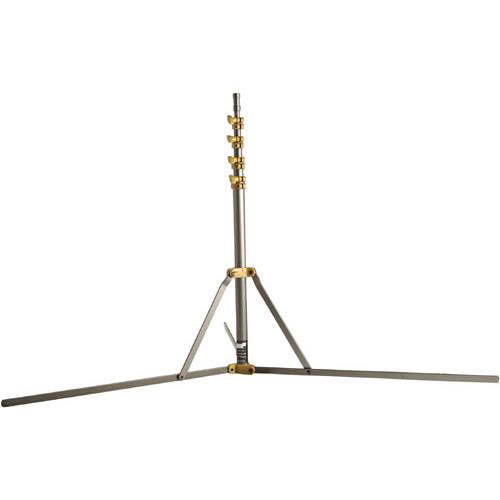

• Uni TO Dual Light Stand (7') Often used in Lowel kits, the Uni TO Dual Light Stand employs a unique reverse folding design that allows the stand to break down to just 20.25" in length—small enough to fit into even the most compact kit bag. The four-section stand rises to a maximum height of 86.5" and has a 40" base diameter for maximum stability. Another impressive feature is the ability to remove the center column from the stand's legs, giving you a three-section pole for a handheld light or other accessory. The Uni TO Dual Light Stand has a standard 5/8" stud topped with 1/4"-20 threads. UPC: 841274009500

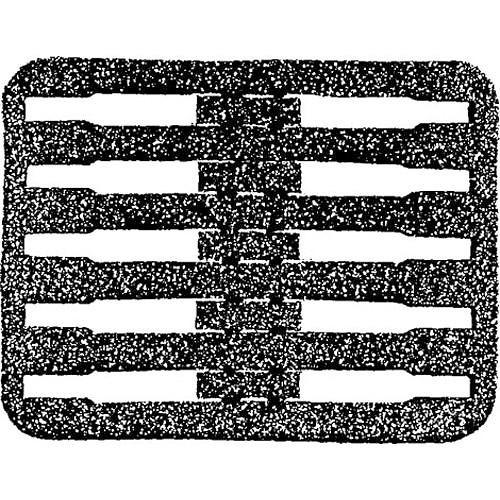

• Lampak for VP Light Designed for storing lamps or safely transporting them, the Lampak holds ten Pro or i-light lamps and five V-light lamps. UPC: 841274009104

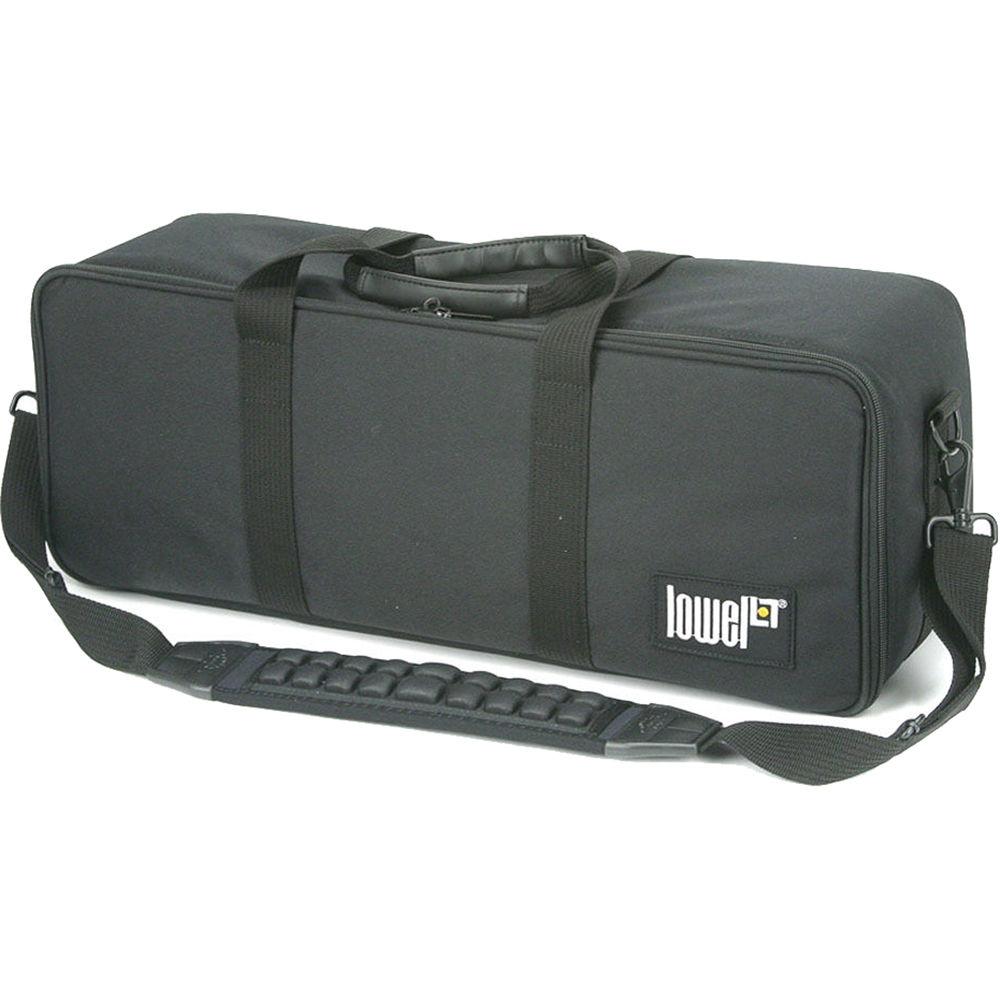

• LB-24 Slim Litebag (Black) Store, protect, and transport lighting gear, accessories, or other equipment in the black LB-24 Slim Litebag from Lowel. This durable soft bag features polyester construction backed with vinyl coating. The full-length zipper provides easy access to contents. Use the padded touch-fastening dividers to organize your stuff. Carry the Slim Litebag with the dual top handles or the removable, air-cushioned, adjustable, padded shoulder strap.
  • Lightweight, protective alternative to a hard case
  UPC: 884613002084

• 120V 16' Switched #18/3 AC Power Cord

• Light Diffuser

• Carrying Sleeve

• Limited 2-Year Warranty

• Integral Prismatic Glass

• 120 VAC Detachable Power Cable

• Limited 2-Year Warranty

• Barndoor Frame for Pro, i-Light

2 x
• Expandable Rectangular Leaf

2 x
• Expandable Triangular Leaf for Pro and i-Light Barndoor Frame

• One Year Manufacturer's Warranty

• Limited 90-Day Warranty

• Limited 5-Year Warranty

• Air Cushioned Shoulder Strap

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC)

  Rating	250 W maximum, 120-230 VAC / 12 VDC
  Socket (Lampholder)	2-pin
  Lens (Condenser)	Not Applicable
  Reflector (Mirror)	Silver softbox interior
  Mounting	Fits any standard 5/8" stand or stud
  Yoke	Not Applicable
  Cable	4' captive cable, 16' 120 VAC cable, grounded Edison plug
  Focusing	Not Applicable
  Weight	2.1 lb / 1 kg
  Dimensions	Collapsed length: 21" / 53 cm Diffused Front: 16 x 16" / 41 x 41 cm

  Box Dimensions (LxWxH)	16.0 x 6.0 x 6.0"

• ViP Pro-Light (120 VAC / 12 VDC)

  Bulb Type	1 x G5.3
  Max Bulb Wattage	250 W
  Focusable	Yes
  Umbrella Mount	Yes

  AC Input Power	120 VAC, 60 Hz
  DC Input Power	12 VDC
  Mounting	5/8" Receiver (via Fixture)
  Cable Length	16' / 4.9 m
  Inline Switch	None
  Dimensions	4.6 x 5 x 3.7" / 11.7 x 12.7 x 9.4 cm
  Weight	2 lb / 907 g

  Box Dimensions (LxWxH)	8.7 x 5.45 x 5.35"

• Complete Four Leaf Barndoor Set for Pro, i-Light

  Box Dimensions (LxWxH)	6.6 x 4.95 x 2.15"

• FVL (200W/120V) Lamp

  Bulb Type	T4
  Base Type	GX5.3
  Wattage	200 W
  Voltage	120 V
  Lumens	5200
  Color Temperature	3200K
  Average Life	200 Hours

  Box Dimensions (LxWxH)	8.7 x 5.5 x 4.2"

• Uni TO Dual Light Stand (7')

  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Number of Sections	4
  Column Diameter	1" / 2.54 cm
  Maximum Working Height	86.5" / 219.7 cm
  Collapsed Height	20.2" / 51.3 cm
  Footprint Diameter	40.10" / 101.85 cm
  Leg Shape	Rectangular
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black
  Weight	2.4 lb / 1.1 kg
  Warranty Length	Limited 5-Year Warranty

  Box Dimensions (LxWxH)	20.7 x 4.4 x 4.3"

• Lampak for VP Light

  Weight

  2 oz. (57g).

  Box Dimensions (LxWxH)	5.591 x 4.882 x 1.26"

• LB-24 Slim Litebag (Black)

  Closure Type	Zipper
  Carry and Transport Options	2 x Hand Strap Shoulder Strap
  Material of Construction	Polyester
  Exterior Dimensions (W x H x D)	23 x 9 x 6" / 58 x 23 x 15 cm
  Weight	3.5 lb / 1.6 kg

  Box Dimensions (LxWxH)	25.0 x 15.0 x 8.0"
