User Manual for Lowel TO GO 97 Kit Click to enlarge the picture
Contents of the user manual for the Lowel TO GO 97 Kit
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel TO GO 97 Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

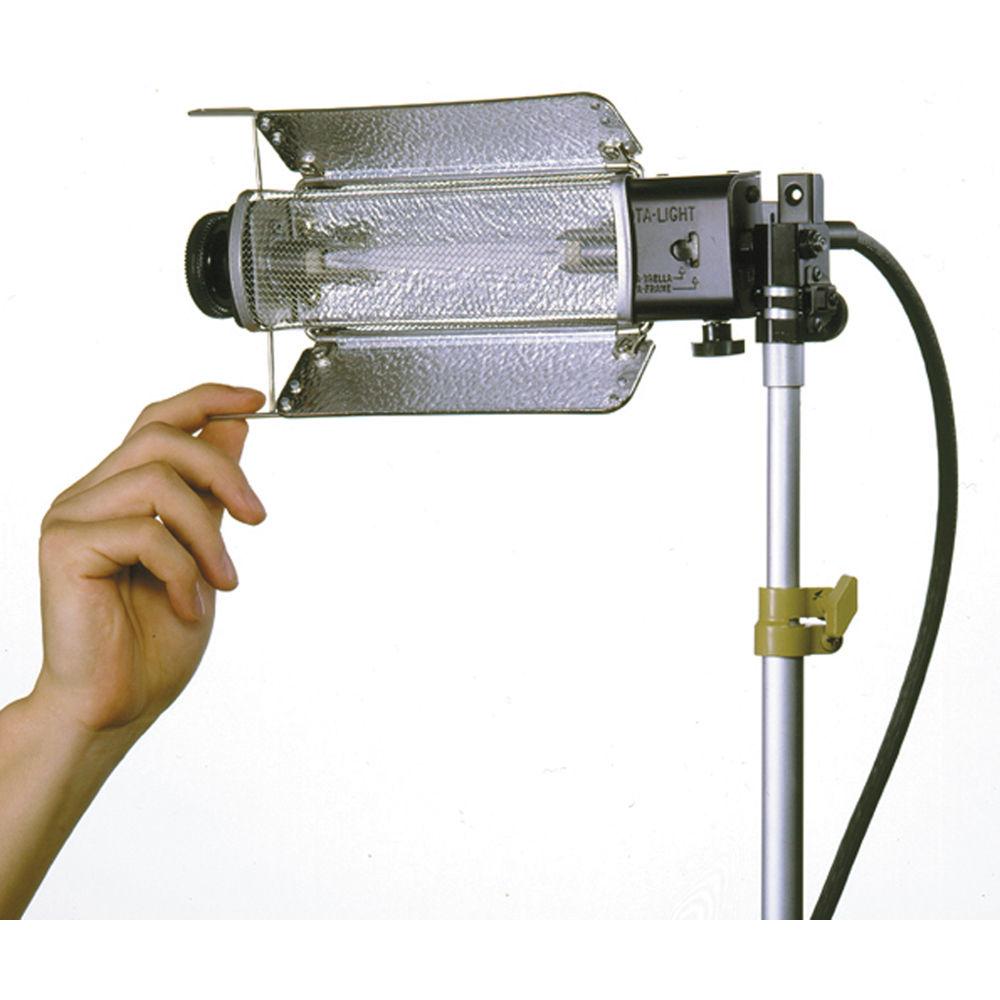

Product description This is a Lowel TO GO 97 Kit, with three lights. Compact, rugged and versatile, the broad-throw Tota-light can be used with its umbrella or gel frame and diffusion as a soft key light, fill light, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it at the ceiling to raise the ambient (base) light level of a room. Tota-lights are also widely used for photographic copy work. The wide focusing range of the Omni-light makes it a flexible key light or backlight. Add diffusion or an umbrella, and it's a soft fill source. Available with a host of accessories and built for heavy-duty long life, the popular Omni-light is the perfect companion to the Tota-light. When fitted with an EMD 750W bulb, each Tota-light will emit a beam of 41 footcandles, with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10 ft (3 m). When fitted with an FTK 500W bulb the Omni-light will emit a beam of 75 footcandles at full flood, and 475 footcandles at full spot, from a distance of 10' (3 m). This kit is equipped for use with 120 AC voltage. It can also function with 220-240 and 12-30 DC voltage, with the appropriate bulbs, adapter plugs or cables, and power supplies (available separately). - Use the included barndoors to change the shape of the light

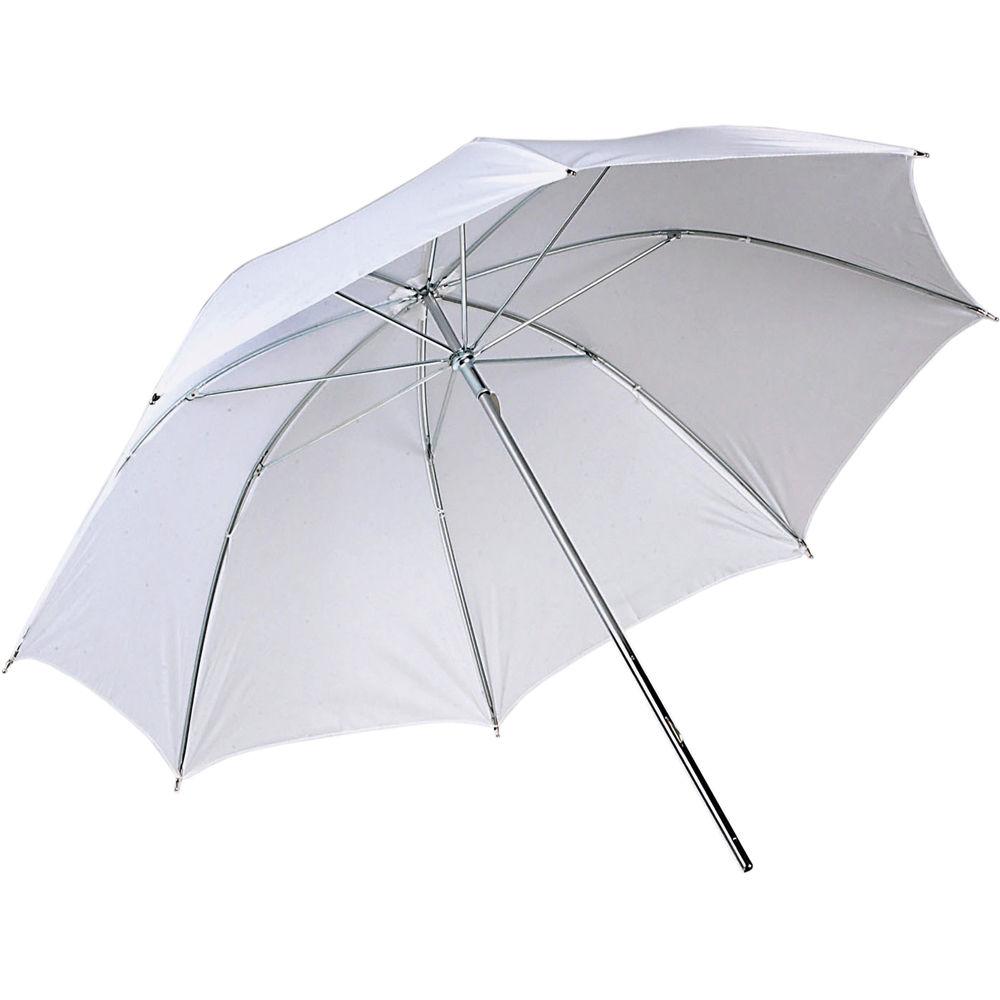

- Use the included gels and umbrella to alter the color and quality of the lights
- The hard travel case holds everything safely, including the light stands, for storage and transport

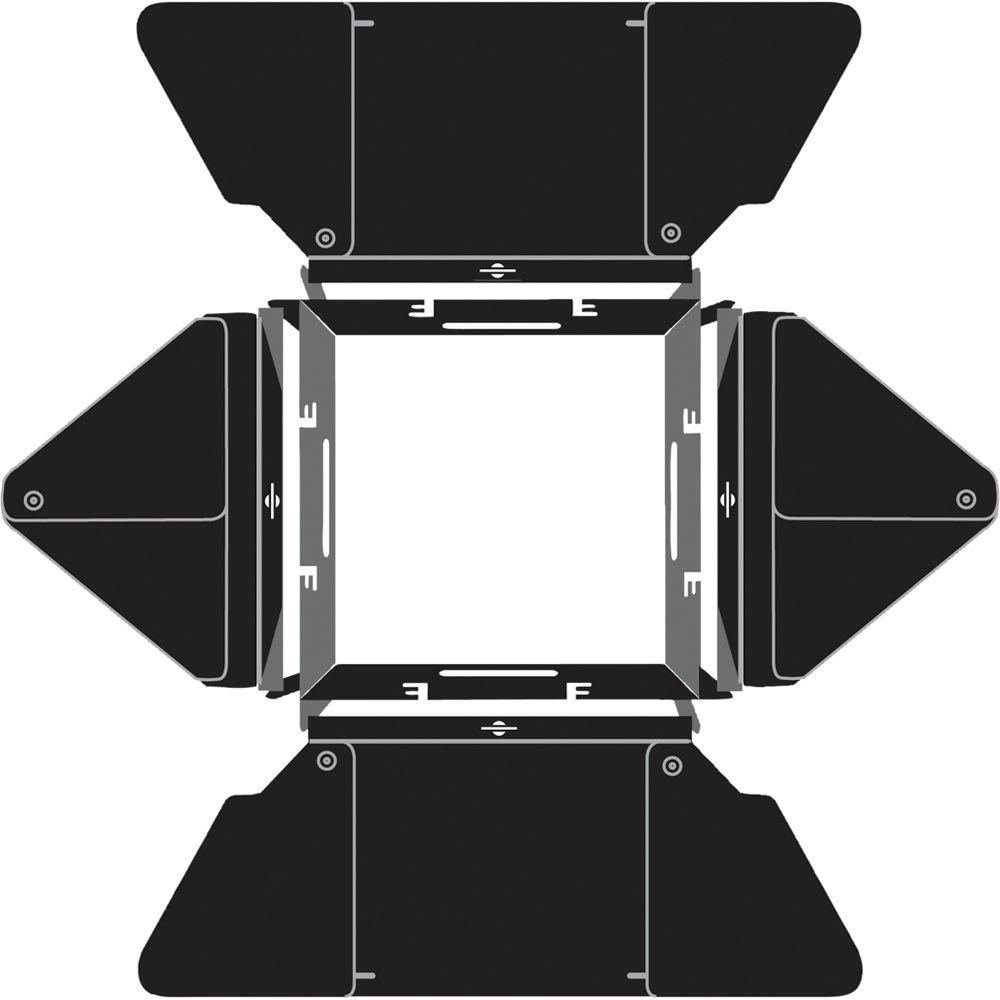

UPC: 841274004086 In the Box Lowel TO GO 97 Kit 2 x Tota-Light Tungsten Flood Light (120-240 VAC) swvsqssv 2 x EMD Lamp - 750W/120V Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) Complete 4-Leaf Barndoor for Omni Light FTK Lamp - 500 Watts/120 Volts Tota/Omni Gel Frame for 10x12" Gels Tota/Omni Assorted Gels - Set of 5 (10 x 12") Tota-Brella - Silver - 27" Full Single Scrim for Omni-Light (5 1/8") 3 x Uni TO Dual Light Stand (7') Lampak for Tota-Light or Omni-Light GO-85 Case Multi-system Hard Case Two-Year Manufacturer's Warranty on Fixtures One-Year Manufacturer's Warranty on Stands Five-Year Manufacturer's Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel TO GO 97 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel GO-97Z Specs | Rating | Tota-light: 750 watts
Omni-light: 500 watts | | Socket (Lampholder) | Tota-light: Double-ended
Omni-light: 2-Pin | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Tota-light: Dual Gull Wing reflector
Omni-light: Double parabolic peened reflector | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16' with inline switch, 120V grounded Edison plug | | Focusing | Tota-light: Not Applicable
Omni-light: Continuously variable | | Weight | Tota-light: 2.25 lbs (1 kg)
Omni-light: 2.6 lbs (1.9 kg) | | Dimensions | Tota-light: Size closed: 2 x 3 x 11" (5 x 7.6 x 27.9 cm)
Omni-light: 8 x 5.5 x 3" (20 x 14 x 7.6 cm)
Kit in Case: 23.75 x 13.5 x 7" (60.3 x 34.3 x 17.8 cm) | | Kit Weight | 28 lbs (12.7 kg) | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 25.0 x 16.0 x 8.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
