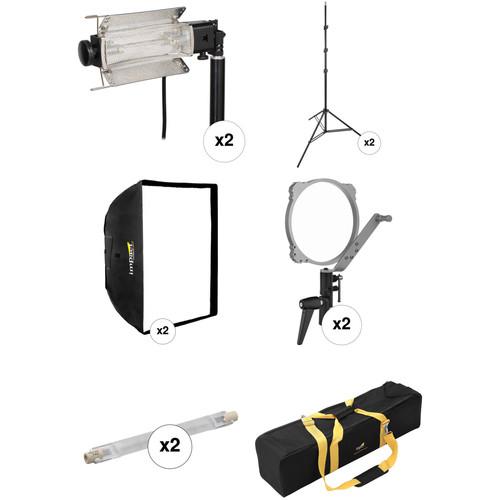

Lowel Tota-Light 2 Light Softbox Kit

User Manual for Lowel Tota-Light 2 Light Softbox Kit

• Product category: Tungsten Lights Lowel
• Brand: Lowel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Lowel Tungsten Lights

Product description

• 2 x Lowel Tota-Light Tungsten Flood Light (120-240 VAC) Compact, rugged, and versatile, the broad throw Lowel Tota-light can be used with an umbrella or gel frame, or with diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it toward the ceiling to raise the ambient (base) light level of a room. Tota is also widely used for photographic copy work. When fitted with an EMD 750W / 120V bulb (available separately), the Tota-Light will emit a beam of 41 footcandles with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10' (3m). The Tota-Light is multi-voltage capable, and a choice of bulbs and plug adapters are available.
  Compact Wide Floodlight
  • Its aperture measures only 4.5 x 11" (11.4 x 29.9 cm).
  Full Rotation
  • Can be rotated a full 360° with the large, stay-cool, plastic adjustment knob.
  Multi-Wattage, Multi-Voltage
  • It uses bulbs from 750 to 300W / 120V. It uses 800W bulbs for 220V use.
  Adjustable Doors
  • Adjustable reflecting doors can illuminate four walls evenly from a corner or compensate for light fall-off from above or below.
  UPC: 841274007742
• 2 x Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628030626
• 2 x Impact Luxbanx Duo Large Square Softbox (40 x 40") The Luxbanx Duo Large Square Softbox from Impact is a versatile 40 x 40" light shaping tool for strobe, LED, and fluorescent lights. It's also useable with quartz lights up to 1500W due to its heat-resistant, textured silver interior. When using the Luxbanx Duo with strobes, both the front diffuser and inner baffle can be used for maximum softening of the output. When using it with hot lights the inner baffle should be removed. Open face lights can be used as is but it's recommended that you use the flood setting rather than spot on Fresnel sources. The softbox has 4 forward-opening vents to dissipate heat. Removing the front and inner diffuser essentially turns the Luxbanx Duo into a large reflector with maximum brightness and contrast. The versatile Luxbanx Duo has an additional control via an optional fabric grid which mounts to the recessed lip of the softbox with touch-fasteners. The grid narrows and concentrates the light's beam forward, controlling spill light and adding directional control to the Luxbanx Duo's attributes. The ample surface area and square shape of the softbox make it ideal for large sets, groups, full length fashion, and large product work. Every Luxbanx comes with a carrying case and a spare Flex Rod. Separate purchase of a speed ring that matches your light's mount is required for use. Impact makes models to fit most popular brands. When using hot lights, the inner baffle should be removed. UPC: 847628561830
• 2 x Impact Speed Ring for Lowel Tota-light The Luxbanx Speed Ring for Lowel Tota-light from Impact has 4 FlexRod holes that allow you to easily mount a medium, large or extra large square, rectangular or strip Luxbanx Duo softbox to a Lowel Tota-light. The ring will also fit most other brands of softbox. It includes a tilting heavy duty stand adapter with a 5/8" receiver that mounts directly on a stand. UPC: 847628577756
• 2 x Impact EMD Lamp (750W, 120V) The Impact EMD Lamp (750W, 120V) is a frosted, double-ended bulb for many light fixtures used in stage, photographic and film applications.
  UPC: 847628011120
• Impact Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories The Impact Light Kit Bag #3 (Black) is a soft padded case designed to transport and protect a 2 monolight lighting kit. It has space to hold 2 monolights with reflectors, cables, umbrellas and light stands. It is carried by 2 overlapping carrying handles or the included shoulder strap.
  Bag Basics
  • • Fits 2 monolight lighting system
    • Soft padded lighting bag
    • Holds up to 35 lbs
  Carrying Options
  • • Two overlapping handles
    • Removable, adjustable shoulder strap
  UPC: 847628011885

• 2 x Tota-Light Tungsten Flood Light (120-240 VAC) cvqycdsyzfu
• T1-80 16' Power Cable
• Protective Front Screen
• 2 x Integral Gull Wing Adjustable Reflecting Doors
• Limited 2-Year Warranty

• 2 x Impact - Air-Cushioned Light Stand (Black, 10')

• 2 x Impact - Luxbanx Duo Large Square Softbox (40 x 40")

• 2 x Impact - Speed Ring for Lowel Tota-light

• 2 x Impact - EMD Lamp (750W, 120V) cvqycdsyzfu

• Impact - Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Lowel Tota-Light Tungsten Flood Light (120-240 VAC)

  Bulb Type	1 x R7s/RX7s
  Max Bulb Wattage	750 W
  Umbrella Mount	Yes

  AC Input Power	120 to 240 VAC, 50 / 60 Hz
  Mounting	5/8" Receiver (via Fixture)
  Cable Length	16' / 4.9 m
  Inline Switch	Yes
  Dimensions	2 x 3 x 11" / 5 x 7.6 x 27.9 cm
  Weight	2.2 lb / 1 kg

  Box Dimensions (LxWxH)	12.3 x 8.45 x 4.35"

• 2 x Impact Air-Cushioned Light Stand (Black, 10')

  Maximum Load	8.5 lb (3.8 kg)
  Maximum Height	121.5" (308.6 cm)
  Minimum Height	40.5" (102.9 cm)
  Closed Length	33.5" (85 cm)
  Footprint Diameter	38" (96.5 cm)
  Leg Tip	0.8" (20 mm)
  Attachment Size	5/8" (16 mm) stud with 1/4"-20 male threads
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	34.0 x 3.0 x 3.0"

• 2 x Impact Luxbanx Duo Large Square Softbox (40 x 40")

  Shape	Square
  Interior	Silver
  Requires Speed Ring	Yes, Not Included
  Accepts Grids	Yes
  Maximum Wattage	1500 W (Hot Lights) No Maximum (Cool Lights)
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Rectangular Dimensions	W: 40.0 x H: 40.0 x D: 20.0" / W: 102.0 x H: 102.0 x D: 51.0 cm
  Weight	3.2 lb / 1.4 kg

  Box Dimensions (LxWxH)	34.0 x 10.4 x 2.4"

• 2 x Impact Speed Ring for Lowel Tota-light

  Compatible Lighting	Lowel Tota
  Number of Mounting Holes	4
  Material	Aluminum

  Box Dimensions (LxWxH)	10.6 x 10.5 x 2.65"

• 2 x Impact EMD Lamp (750W, 120V)

  Base Type	R7s
  Filament Type	C-8
  ANSI Code	EMD
  Wattage	750 W
  Voltage	120 V
  Lumens	19,500
  Burning Position	Any
  Color Temperature	3200K
  Average Life	300 Hours
  Maximum Overall Length (MOL)	4.7" / 119.6 mm

  Box Dimensions (LxWxH)	5.7 x 1.3 x 1.2"

• Impact Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories

  Material	Nylon
  Type of Closure	Zipper
  Exterior Dimensions	36 x 9 x 9" (91.4 x 22.6 x 22.6 cm) (LxWxH)
  Interior Dimensions	35 x 8 x 8" (88.9 x 20.3 x 20.3 cm) (LxWxH)
  Accommodates	2 monolights with reflectors, cables, umbrellas and light stands
  Carrying/Transport Options	Carrying handles Shoulder strap
  Load Capacity	35 lbs (15.88 kg)
  Weight	4.05 lbs (1.837 kg)

  Box Dimensions (LxWxH)	52.0 x 8.0 x 8.0"
