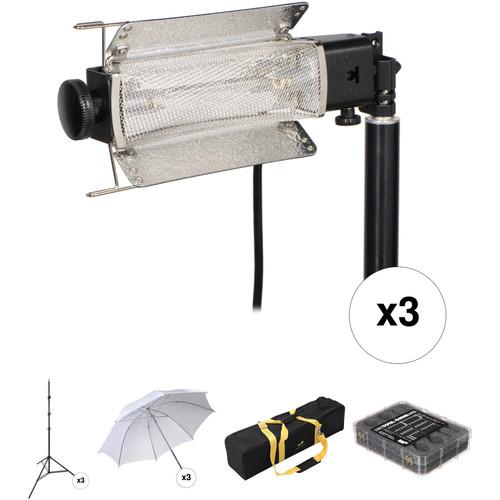

Product description The Tota-Light 3-Light Kit with Bag was put together by B&H for photographers and videographers looking for basic, dependable, and powerful lighting in a small lightweight package. The kit includes 3 Lowel Tota-Lights, 3 Impact 10' Air-Cushioned Stands, 3 white 27" Tota-Brellas, and a Lowel Lampak for optional bulbs. It all fits in the included padded kit bag. - 3 x Lowel Tota-Light Tungsten Flood Light (120-240 VAC) Compact, rugged, and versatile, the broad throw Lowel Tota-light can be used with an umbrella or gel frame, or with diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it toward the ceiling to raise the ambient (base) light level of a room. Tota is also widely used for photographic copy work. When fitted with an EMD 750W / 120V bulb (available separately), the Tota-Light will emit a beam of 41 footcandles with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10' (3m). The Tota-Light is multi-voltage capable, and a choice of bulbs and plug adapters are available.
- Compact Wide Floodlight
- Its aperture measures only 4.5 x 11" (11.4 x 29.9 cm).
- Full Rotation
- Can be rotated a full 360° with the large, stay-cool, plastic adjustment knob.
- Multi-Wattage, Multi-Voltage
- It uses bulbs from 750 to 300W / 120V. It uses 800W bulbs for 220V use.
- Adjustable Doors
- Adjustable reflecting doors can illuminate four walls evenly from a corner or compensate for light fall-off from above or below.
UPC: 841274007742 - 3 x Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
- Air-Cushioned
- Protects equipment and fingers from damage
- Compact Design
- Will fit easily into most location cases
- Accepts Casters
- For easy positioning of lights
UPC: 847628030626 - 3 x Lowel White 27" Tota-Brella Fits directly onto Tota or Omni and ViP lights without tools, to convert them to soft shadow sources.
Heat-resistant, woven, white fabric.This size is perfect for a 1 person head shot, or a 3x4 ft product setup. UPC: 841274007858 - Impact Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories The Impact Light Kit Bag #3 (Black) is a soft padded case designed to transport and protect a 2 monolight lighting kit. It has space to hold 2 monolights with reflectors, cables, umbrellas and light stands. It is carried by 2 overlapping carrying handles or the included shoulder strap.
- Bag Basics
-
- Fits 2 monolight lighting system
- Soft padded lighting bag
- Holds up to 35 lbs
- Carrying Options
-
- Two overlapping handles
- Removable, adjustable shoulder strap
UPC: 847628011885 - Lowel Lampak for Tota-Light or Omni-Light The Lowel Lampak for Tota-Light or Omni-Light is designed for storing lamps or safely transporting them, the Lampak holds 2 Tota-light and 4 Omni-light lamps. UPC: 841274008329
In the Box - 3 x Tota-Light Tungsten Flood Light (120-240 VAC) sxeceuzuacttztcqyvuayy
- T1-80 16' Power Cable
- Protective Front Screen
- 2 x Integral Gull Wing Adjustable Reflecting Doors
- Limited 2-Year Warranty
- 3 x Impact - Air-Cushioned Light Stand (Black, 10')
- 3 x Umbrella - Tota-Brella (Special/White) - 27"
- Impact - Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories
- Lampak for Tota-Light or Omni-Light
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Tota-Light 3-Light Kit with Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 3 x Lowel Tota-Light Tungsten Flood Light (120-240 VAC)
| | | Bulb Type | 1 x R7s/RX7s | | Max Bulb Wattage | 750 W | | Umbrella Mount | Yes | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Mounting | 5/8" Receiver (via Fixture) | | Cable Length | 16' / 4.9 m | | Inline Switch | Yes | | Dimensions | 2 x 3 x 11" / 5 x 7.6 x 27.9 cm | | Weight | 2.2 lb / 1 kg | | | | Box Dimensions (LxWxH) | 12.3 x 8.45 x 4.35" | - 3 x Impact Air-Cushioned Light Stand (Black, 10')
| Maximum Load | 8.5 lb (3.8 kg) | | Maximum Height | 121.5" (308.6 cm) | | Minimum Height | 40.5" (102.9 cm) | | Closed Length | 33.5" (85 cm) | | Footprint Diameter | 38" (96.5 cm) | | Leg Tip | 0.8" (20 mm) | | Attachment Size | 5/8" (16 mm) stud with 1/4"-20 male threads | | Accepts Wheels | Yes, casters | | Air Cushioned | Yes | | Weight | 2.4 lb (1.1 kg) | | | | Box Dimensions (LxWxH) | 34.0 x 3.0 x 3.0" | - 3 x Lowel White 27" Tota-Brella
| Size | 27.0" / 68.6 cm | | Interior | White (Translucent) | | | | Box Dimensions (LxWxH) | 20.75 x 1.85 x 1.65" | - Impact Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories
| Material | Nylon | | Type of Closure | Zipper | | Exterior Dimensions | 36 x 9 x 9" (91.4 x 22.6 x 22.6 cm) (LxWxH) | | Interior Dimensions | 35 x 8 x 8" (88.9 x 20.3 x 20.3 cm) (LxWxH) | | Accommodates | 2 monolights with reflectors, cables, umbrellas and light stands | | Carrying/Transport Options | Carrying handles
Shoulder strap | | Load Capacity | 35 lbs (15.88 kg) | | Weight | 4.05 lbs (1.837 kg) | | | | Box Dimensions (LxWxH) | 52.0 x 8.0 x 8.0" | - Lowel Lampak for Tota-Light or Omni-Light
| | | Box Dimensions (LxWxH) | 15.75 x 4.35 x 1.25" |
