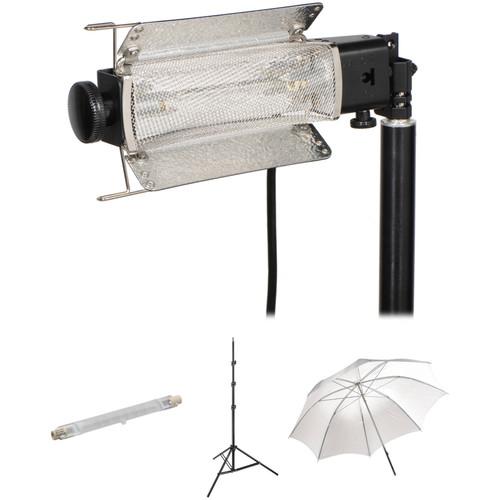

User Manual for Lowel Tota-Light One-Light Kit Click to enlarge the picture
Contents of the user manual for the Lowel Tota-Light One-Light Kit
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
|
User manual for the Lowel Tota-Light One-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|
Product description This is the basic unit of Lowel lighting: the Tota-Light One-Light Kit is compact, rugged, and versatile, and the broad-throw Tota-Light is a long-time Lowel favorite. It can be used with an umbrella or gel frame and diffusion as a soft key light, fill light, or backlight. With its adjustable reflectors, it can be used as a smooth and even background light, or pointed at the ceiling to raise the ambient (base) light level of a room. Tota-Lights are also widely used for photographic copy work.This is a one-light kit with bulb, silver umbrella, and light stand. The Tota-Light is capable of working with 220-240 VAC with the appropriate bulb and plug adapter, available separately. - Lowel Tota-Light Tungsten Flood Light (120-240 VAC) Compact, rugged, and versatile, the broad throw Lowel Tota-light can be used with an umbrella or gel frame, or with diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it toward the ceiling to raise the ambient (base) light level of a room. Tota is also widely used for photographic copy work. When fitted with an EMD 750W / 120V bulb (available separately), the Tota-Light will emit a beam of 41 footcandles with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10' (3m). The Tota-Light is multi-voltage capable, and a choice of bulbs and plug adapters are available.
- Compact Wide Floodlight
- Its aperture measures only 4.5 x 11" (11.4 x 29.9 cm).
- Full Rotation
- Can be rotated a full 360° with the large, stay-cool, plastic adjustment knob.
- Multi-Wattage, Multi-Voltage
- It uses bulbs from 750 to 300W / 120V. It uses 800W bulbs for 220V use.
- Adjustable Doors
- Adjustable reflecting doors can illuminate four walls evenly from a corner or compensate for light fall-off from above or below.
UPC: 841274007742 - Ushio EMD Lamp (750W/120V) The Ushio EMD Lamp (750W/120V) is a double-ended 750W quartz halogen lamp for use on a 120VAC circuit. UPC: 048777121351
- Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 - Lowel Tota-Brella - Silver - 27" Fits directly onto Tota or Omni and ViP lights without tools. Slightly softens the light output, with some specular highlights.
Heat resistant, woven, soft-silver surface.This size is perfect for a 1 person head shot, or 3x4 ft product setup. UPC: 841274007834 In the Box - Tota-Light Tungsten Flood Light (120-240 VAC) tvvebwqrtxercfwrusavuyfsbzxtetqbrzzbs
- T1-80 16' Power Cable
- Protective Front Screen
- 2 x Integral Gull Wing Adjustable Reflecting Doors
- Limited 2-Year Warranty
- Ushio - EMD Lamp (750W/120V) tvvebwqrtxercfwrusavuyfsbzxtetqbrzzbs
- Impact - Air-Cushioned Light Stand (Black, 8')
- Umbrella - Tota-Brella - Silver - 27"
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Tota-Light One-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lowel Tota-Light Tungsten Flood Light (120-240 VAC)
| Rating | 750 W maximum, 120-240 VAC | | Socket (Lampholder) | R7s, double ended | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Dual Gull Wing reflector doors | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16', with in-line switch, 120 VAC grounded Edison plug | | Focusing | Not Applicable | | Weight | 2.25 lb / 1.02 kg | | Dimensions | Size closed: 2 x 3 x 11" / 5 x 7.6 x 27.9 cm | | | | Box Dimensions (LxWxH) | 12.3 x 8.45 x 4.35" | - Ushio EMD Lamp (750W/120V)
| Base Type | R7s/RX7s | | Filament Type | C-8 | | ANSI Code | EMD | | Wattage | 750 W | | Voltage | 120 V | | Lumens | 19500 | | Color Temperature | 3200K | | Average Life | 400 Hours | | Maximum Overall Length (MOL) | 4.7" / 119.6 mm | | Maximum Overall Diameter (MOD) | 0.47" / 11.9 mm | | | | Box Dimensions (LxWxH) | 5.4 x 0.95 x 0.9" | - Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" | - Lowel Tota-Brella - Silver - 27"
| Size | 27.0" / 68.6 cm | | Interior | Silver | | | | Box Dimensions (LxWxH) | 20.8 x 2.15 x 1.65" |
