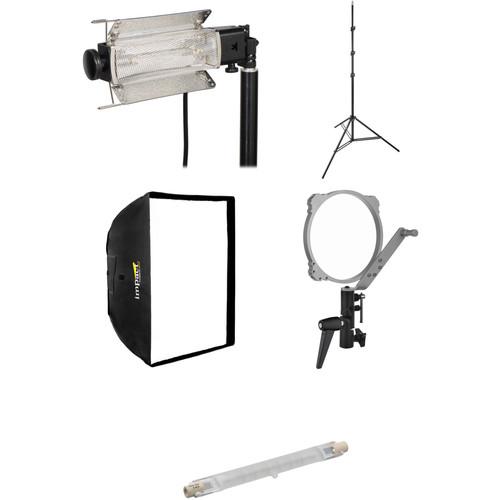

User Manual for Lowel Tota-Light Softbox Kit Click to enlarge the picture
Contents of the user manual for the Lowel Tota-Light Softbox Kit
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
|
User manual for the Lowel Tota-Light Softbox Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|
Product description The Tota-Light Softbox Kit was put together by B&H to offer a single light source with the quality of light that is well suited for shooting everything from portraits to products. The kit contains a compact Lowel Tota-Light with a potent 750W bulb, and a 10' air-cushioned light stand to support it. For soft, flattering light with manageable contrast, a 40 x 40" Impact Luxbanx softbox with speed ring is provided. - Lowel Tota-Light Tungsten Flood Light (120-240 VAC) Compact, rugged, and versatile, the broad throw Lowel Tota-light can be used with an umbrella or gel frame, or with diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it toward the ceiling to raise the ambient (base) light level of a room. Tota is also widely used for photographic copy work. When fitted with an EMD 750W / 120V bulb (available separately), the Tota-Light will emit a beam of 41 footcandles with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10' (3m). The Tota-Light is multi-voltage capable, and a choice of bulbs and plug adapters are available.
- Compact Wide Floodlight
- Its aperture measures only 4.5 x 11" (11.4 x 29.9 cm).
- Full Rotation
- Can be rotated a full 360° with the large, stay-cool, plastic adjustment knob.
- Multi-Wattage, Multi-Voltage
- It uses bulbs from 750 to 300W / 120V. It uses 800W bulbs for 220V use.
- Adjustable Doors
- Adjustable reflecting doors can illuminate four walls evenly from a corner or compensate for light fall-off from above or below.
UPC: 841274007742 - Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
- Air-Cushioned
- Protects equipment and fingers from damage
- Compact Design
- Will fit easily into most location cases
- Accepts Casters
- For easy positioning of lights
UPC: 847628030626 - Impact Luxbanx Duo Large Square Softbox (40 x 40") The Luxbanx Duo Large Square Softbox from Impact is a versatile 40 x 40" light shaping tool for strobe, LED, and fluorescent lights. It's also useable with quartz lights up to 1500W due to its heat-resistant, textured silver interior. When using the Luxbanx Duo with strobes, both the front diffuser and inner baffle can be used for maximum softening of the output. When using it with hot lights the inner baffle should be removed. Open face lights can be used as is but it's recommended that you use the flood setting rather than spot on Fresnel sources. The softbox has 4 forward-opening vents to dissipate heat. Removing the front and inner diffuser essentially turns the Luxbanx Duo into a large reflector with maximum brightness and contrast. The versatile Luxbanx Duo has an additional control via an optional fabric grid which mounts to the recessed lip of the softbox with touch-fasteners. The grid narrows and concentrates the light's beam forward, controlling spill light and adding directional control to the Luxbanx Duo's attributes. The ample surface area and square shape of the softbox make it ideal for large sets, groups, full length fashion, and large product work. Every Luxbanx comes with a carrying case and a spare Flex Rod. Separate purchase of a speed ring that matches your light's mount is required for use. Impact makes models to fit most popular brands. When using hot lights, the inner baffle should be removed. UPC: 847628561830
- Impact Speed Ring for Lowel Tota-light The Luxbanx Speed Ring for Lowel Tota-light from Impact has 4 FlexRod holes that allow you to easily mount a medium, large or extra large square, rectangular or strip Luxbanx Duo softbox to a Lowel Tota-light. The ring will also fit most other brands of softbox. It includes a tilting heavy duty stand adapter with a 5/8" receiver that mounts directly on a stand. UPC: 847628577756
- Impact EMD Lamp (750W, 120V) The Impact EMD Lamp (750W, 120V) is a frosted, double-ended bulb for many light fixtures used in stage, photographic and film applications.
UPC: 847628011120 In the Box - Tota-Light Tungsten Flood Light (120-240 VAC) abfcfdytfyzyvwvearrcvcww
- T1-80 16' Power Cable
- Protective Front Screen
- 2 x Integral Gull Wing Adjustable Reflecting Doors
- Limited 2-Year Warranty
- Impact - Air-Cushioned Light Stand (Black, 10')
- Impact - Luxbanx Duo Large Square Softbox (40 x 40")
- Impact - Speed Ring for Lowel Tota-light
- Impact - EMD Lamp (750W, 120V)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Tota-Light Softbox Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lowel Tota-Light Tungsten Flood Light (120-240 VAC)
| Bulb Type | 1 x R7s/RX7s | Max Bulb Wattage | 750 W | Umbrella Mount | Yes | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | Mounting | 5/8" Receiver (via Fixture) | Cable Length | 16' / 4.9 m | Inline Switch | Yes | Dimensions | 2 x 3 x 11" / 5 x 7.6 x 27.9 cm | Weight | 2.2 lb / 1 kg | | Box Dimensions (LxWxH) | 12.3 x 8.45 x 4.35" | - Impact Air-Cushioned Light Stand (Black, 10')
Maximum Load | 8.5 lb (3.8 kg) | Maximum Height | 121.5" (308.6 cm) | Minimum Height | 40.5" (102.9 cm) | Closed Length | 33.5" (85 cm) | Footprint Diameter | 38" (96.5 cm) | Leg Tip | 0.8" (20 mm) | Attachment Size | 5/8" (16 mm) stud with 1/4"-20 male threads | Accepts Wheels | Yes, casters | Air Cushioned | Yes | Weight | 2.4 lb (1.1 kg) | | Box Dimensions (LxWxH) | 34.0 x 3.0 x 3.0" | - Impact Luxbanx Duo Large Square Softbox (40 x 40")
Shape | Square | Interior | Silver | Requires Speed Ring | Yes, Not Included | Accepts Grids | Yes | Maximum Wattage | 1500 W (Hot Lights) No Maximum (Cool Lights) | Removable Front Face | Yes | Removable Interior Baffle | Yes | Rectangular Dimensions | W: 40.0 x H: 40.0 x D: 20.0" / W: 102.0 x H: 102.0 x D: 51.0 cm | Weight | 3.2 lb / 1.4 kg | | Box Dimensions (LxWxH) | 34.0 x 10.4 x 2.4" | - Impact Speed Ring for Lowel Tota-light
Compatible Lighting | Lowel Tota | Number of Mounting Holes | 4 | Material | Aluminum | | Box Dimensions (LxWxH) | 10.6 x 10.5 x 2.65" | - Impact EMD Lamp (750W, 120V)
Base Type | R7s | Filament Type | C-8 | ANSI Code | EMD | Wattage | 750 W | Voltage | 120 V | Lumens | 19,500 | Burning Position | Any | Color Temperature | 3200K | Average Life | 300 Hours | Maximum Overall Length (MOL) | 4.7" / 119.6 mm | | Box Dimensions (LxWxH) | 5.7 x 1.3 x 1.2" |
