User Manual for Lowel Tota Omni Core 44 Kit Click to enlarge the picture
Contents of the user manual for the Lowel Tota Omni Core 44 Kit
- Product category: Tungsten Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Tungsten Lights
 |
User manual for the Lowel Tota Omni Core 44 Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|

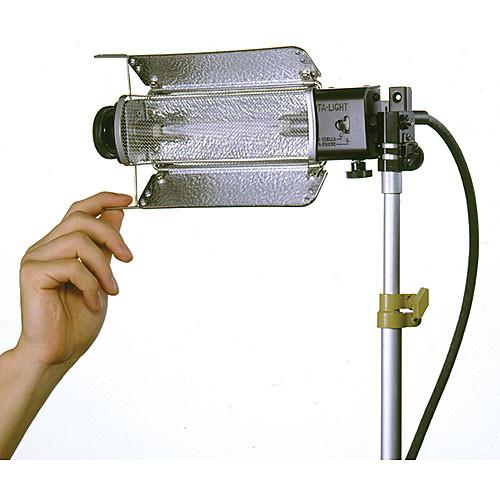

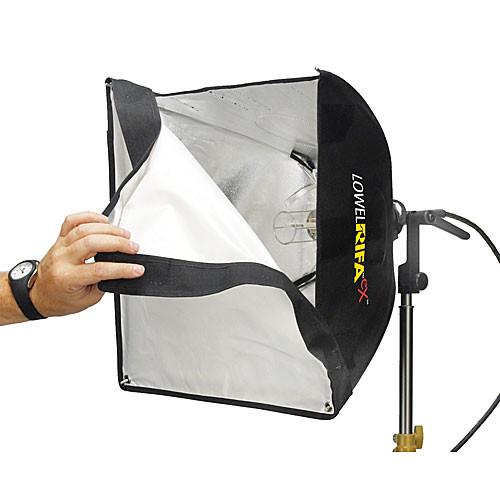

Product description The Lowel Tota/Omni Core 44 Kit features three of Lowel's most popular fixtures. Compact, rugged and versatile, the broad-throw Tota-light can be used with its umbrella or gel frame and diffusion as a soft key light, fill light, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it at the ceiling to raise the ambient (base) light level of a room. Tota-lights are also widely used for photographic copy work.The wide focusing range of the Omni-light makes it a flexible key light or backlight. Add diffusion or an umbrella, and it's a soft fill source. Available with a host of accessories and built for heavy-duty long life, the popular Omni is the perfect companion to the Tota.The Rifa eX 44 softbox light has a 16 x 16" (41 x 41 cm) front diffuser. It has an umbrella-like design allowing set-up in 60 seconds or less. Its quick-change power cord easily converts for use with professional battery belts, allowing it to work at 12V, 14V and 30V DC in addition to 120V and 230V AC. The Rifa eX has a changeable socket, to make use of cooler-running fluorescent bulbs. - Light Modification
- Use the gels, barndoors and umbrella to alter the color, shape and quality of the light

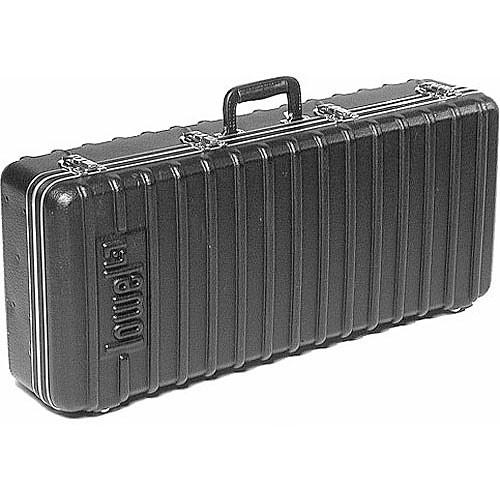

- Kit Case
- The kit case holds it all safely, including the light stands, for storage and transport
- Multi-Voltage, Multi-Wattage
- These lights work with different wattage AND voltage bulbs with appropriate power cord or plug adapter (available separately)

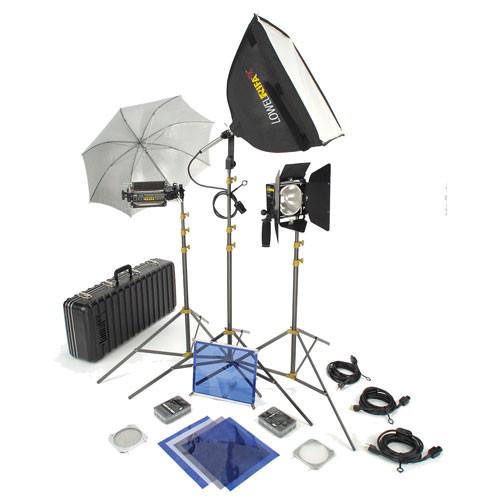

UPC: 841274008701 In the Box Lowel Tota/Omni Core 44 Kit Tota-Light Tungsten Flood Light (120-240 VAC) EMD Lamp - 750W/120V Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) zdarasyetyfqqvfcy Complete 4-Leaf Barndoor for Omni Light FTK Lamp - 500 Watts/120 Volts LC-44EX Rifa-Lite EX44 Softbox Light (120-230 VAC / 12 VDC) GCA Lamp - 250 Watts/120 Volts 3 x Uni TO Dual Light Stand (7') Tota/Omni Gel Frame for 10x12" Gels White 27" Tota-Brella Tota/Omni Assorted Gels - Set of 5 (10 x 12") Tota-Clamp Tota-Mount Diffused Glass for Omni-Light 2 x Tota-Shade (One Leaf) Lampak for Tota-Light or Omni-Light Lampak for VP Light zdarasyetyfqqvfcy TO-83 Case Multi-system Hard Case Two-Year Manufacturer's Warranty on Fixtures Five-Year Manufacturer's Warranty on Stands One-Year Manufacturer's Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Tota Omni Core 44 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel TOR-943 Specs | Rating | Tota-light: 750 watts, 120-240VAC
Omni-light: 500 watts, 120-240VAC, 12-30VDC
Rifa-Lite eX 44: 250 watts, 120-140VAC, 12-30VDC | | Socket (Lampholder) | Tota-light: R7s double-ended
Omni-light, Rifa-lite eX 44: 2-pin | | Lens (Condenser) | Tota-light, Rifa-lite eX 44: Not applicable
Omni-light: Double parabolic peened reflector | | Reflector (Mirror) | Tota-light: Textured aluminum
Rifa-lite eX 44: silver coated vinyl interior | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not applicable | | Cable | Tota-light, Omni-light: 16' with inline switch
Rifa-lite 44: 4' captive | | Focusing | Tota-light, Rifa-lite eX 44: Not applicable
Omni-light: Continuously variable | | Weight | Tota-light: 2.25 lbs (1 kg)
Omni-light: 2.6 lbs (1.9 kg)
Rifa-Lite eX 44: 2.1 lbs (1 kg) | | Dimensions | Tota-light: Size closed: 2 x 3 x 11" (5 x 7.6 x 27.9 cm)
Omni-light: 8 x 5.5 x 3" (20 x 14 x 7.6 cm)
Rifa-lite eX 44: Collapsed length: 17" (86 cm) Front diffuser: 16 x 16" (41 x 41 cm)
Kit in Case: 29.5 x 13 x 7" (74.9 x 33 x 17.8 cm) | | Kit Weight | 31 lbs (14.2 kg) | | | | Package Weight | 35.6 lb | | Box Dimensions (LxWxH) | 31.75 x 19.5 x 8.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
