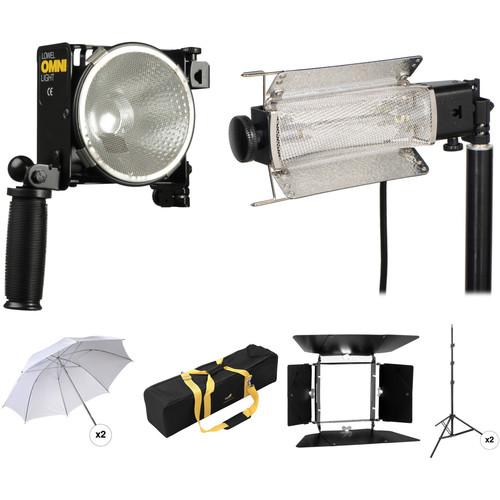

Product description This is a B&H exclusive Lowel Tota-Omni Two-Light Kit, which includes two of Lowel's most popular light fixtures: the compact Tota-Light, and the versatile Omni-Light. B&H has included economical yet sturdy light stands, a barndoor set, umbrellas, and a large soft carrying case, all at a great price.Note: Bulbs are not included and must be ordered separately.When fitted with an EMD 750W bulb, the Tota-Light will emit a beam of 41 footcandles with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10' (3 m). When fitted with an FTK 500W bulb and standard reflector, the Omni-Light will emit a beam of 75 footcandles at full flood and 475 footcandles at full spot, from a distance of 10' (3 m). - Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) The wide focusing range of the Lowel Omni-Light makes it a flexible key or backlight. Add diffusion or an umbrella, and it's a soft fill source. Swap the power cord and lamp and it becomes a battery powered, handheld light. Available with a host of accessories and built for heavy duty long life, the popular Omni is the perfect companion to the Tota. When fitted with an FTK 500 watt bulb (available separately), this fixture will emit a beam of 75 footcandles at full flood and 475 footcandles at full spot from a distance of 10' (3m). Other bulbs and plug adapters are available.
- Reflector
- Double parabolic peened reflector provides non-crossover beam for maximum efficiency and gel life.
- Stay-Cool Handle
- Allows the Omni-light to be adjusted easily, can be hand-held, and folds for storage.
- Focus Lever
- Has a focus range of 6:1 with #1 reflector and FTK Lamp.
- Multi-Wattage, Multi-Voltage
- Uses 500, 420, and 300W at 120V.
Other bulbs are available for 230, 240 VAC, and 12-30 VDC. - Light Shapers Available
- Barndoors, Scrims, Dirchroic Filter, Snoots, Gel Frame, and Flag are all available separately.
UPC: 841274006653 - Lowel Tota-Light Tungsten Flood Light (120-240 VAC) Compact, rugged, and versatile, the broad throw Lowel Tota-light can be used with an umbrella or gel frame, or with diffusion as a soft key, fill, or backlight. With its adjustable reflectors, it can be a smooth and even background light, or point it toward the ceiling to raise the ambient (base) light level of a room. Tota is also widely used for photographic copy work. When fitted with an EMD 750W / 120V bulb (available separately), the Tota-Light will emit a beam of 41 footcandles with the barndoors at normal position, and 34 footcandles with the barndoors at 180° position, from a distance of 10' (3m). The Tota-Light is multi-voltage capable, and a choice of bulbs and plug adapters are available.
- Compact Wide Floodlight
- Its aperture measures only 4.5 x 11" (11.4 x 29.9 cm).
- Full Rotation
- Can be rotated a full 360° with the large, stay-cool, plastic adjustment knob.
- Multi-Wattage, Multi-Voltage
- It uses bulbs from 750 to 300W / 120V. It uses 800W bulbs for 220V use.
- Adjustable Doors
- Adjustable reflecting doors can illuminate four walls evenly from a corner or compensate for light fall-off from above or below.
UPC: 841274007742 - 2 x Lowel White 27" Tota-Brella Fits directly onto Tota or Omni and ViP lights without tools, to convert them to soft shadow sources.
Heat-resistant, woven, white fabric.This size is perfect for a 1 person head shot, or a 3x4 ft product setup. UPC: 841274007858 - Impact Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories The Impact Light Kit Bag #3 (Black) is a soft padded case designed to transport and protect a 2 monolight lighting kit. It has space to hold 2 monolights with reflectors, cables, umbrellas and light stands. It is carried by 2 overlapping carrying handles or the included shoulder strap.
- Bag Basics
-
- Fits 2 monolight lighting system
- Soft padded lighting bag
- Holds up to 35 lbs
- Carrying Options
-
- Two overlapping handles
- Removable, adjustable shoulder strap
UPC: 847628011885 - Lowel Complete 4-Leaf Barndoor for Omni Light The Lowel Complete 4-Leaf Barndoor Set for the Omni Light includes a frame with two rectangular and two triangular leaves which are all expandable. It rotates 360° and holds up to two Lowel Omni accessories. Barndoors narrow the beam spread of a light fixture. They help create a 3-dimensional look to a lighting scheme by placing light in a specific area or by keeping it away.
- Each barndoor leaf has a sub-leaf that extends, which adds to its light-shaping ability.
UPC: 841274006776 - 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 In the Box - Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC) vqbwwebuufcecqcadswtwyazcqrywx
- Protective Screen for Omni-light (Replacement)
- T1-80 16' Power Cable
- Large Cool Handle
- Two Year Manufacturer's Warranty
- Tota-Light Tungsten Flood Light (120-240 VAC) vqbwwebuufcecqcadswtwyazcqrywx
- 2 x Umbrella - Tota-Brella (Special/White) - 27"
- Impact - Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories
- Complete 4-Leaf Barndoor for Omni Light
- 2 x Impact - Air-Cushioned Light Stand (Black, 8')
Note: Bulbs not included
Kit items may vary due to availability Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Tota-Omni Two-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lowel Omni-Light 500 Watt Focus Flood Light (120-240 VAC / 12-30 VDC)
| Rating | 500 W maximum, 120-240 VAC, 12-30 VDC | | Socket (Lampholder) | GY9.5 Pre-focus 2-pin ceramic | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Double parabolic peened reflector, other reflectors available | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16' #18/3 wire, in-line switch, 120 VAC grounded Edison plug | | Focusing | 6:1 lever on side of unit | | Weight | 2.6 lb / 1.9 kg | | Dimensions | 8 x 5.5 x 3" / 20 x 14 x 7.6 cm | | | | Box Dimensions (LxWxH) | 8.0 x 6.5 x 6.5" | - Lowel Tota-Light Tungsten Flood Light (120-240 VAC)
| Rating | 750 W maximum, 120-240 VAC | | Socket (Lampholder) | R7s, double ended | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Dual Gull Wing reflector doors | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not Applicable | | Cable | 16', with in-line switch, 120 VAC grounded Edison plug | | Focusing | Not Applicable | | Weight | 2.25 lb / 1.02 kg | | Dimensions | Size closed: 2 x 3 x 11" / 5 x 7.6 x 27.9 cm | | | | Box Dimensions (LxWxH) | 12.3 x 8.45 x 4.35" | - 2 x Lowel White 27" Tota-Brella
| Size | 27.0" / 68.6 cm | | Interior | White (Translucent) | | | | Box Dimensions (LxWxH) | 20.75 x 1.85 x 1.65" | - Impact Light Kit Bag #3 - Holds 2 Monolights with Light Stands and Accessories
| Material | Nylon | | Type of Closure | Zipper | | Exterior Dimensions | 36 x 9 x 9" (91.4 x 22.6 x 22.6 cm) (LxWxH) | | Interior Dimensions | 35 x 8 x 8" (88.9 x 20.3 x 20.3 cm) (LxWxH) | | Accommodates | 2 monolights with reflectors, cables, umbrellas and light stands | | Carrying/Transport Options | Carrying handles
Shoulder strap | | Load Capacity | 35 lbs (15.88 kg) | | Weight | 4.05 lbs (1.837 kg) | | | | Box Dimensions (LxWxH) | 52.0 x 8.0 x 8.0" | - Lowel Complete 4-Leaf Barndoor for Omni Light
| | | Box Dimensions (LxWxH) | 6.9 x 6.85 x 4.55" | - 2 x Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" |
