Product description The New TotaLED: One Cool Light Read More - Filming an Interrogation Scene with the New LOWEL TotaLED LIGHT!
- Tota LED TImeline

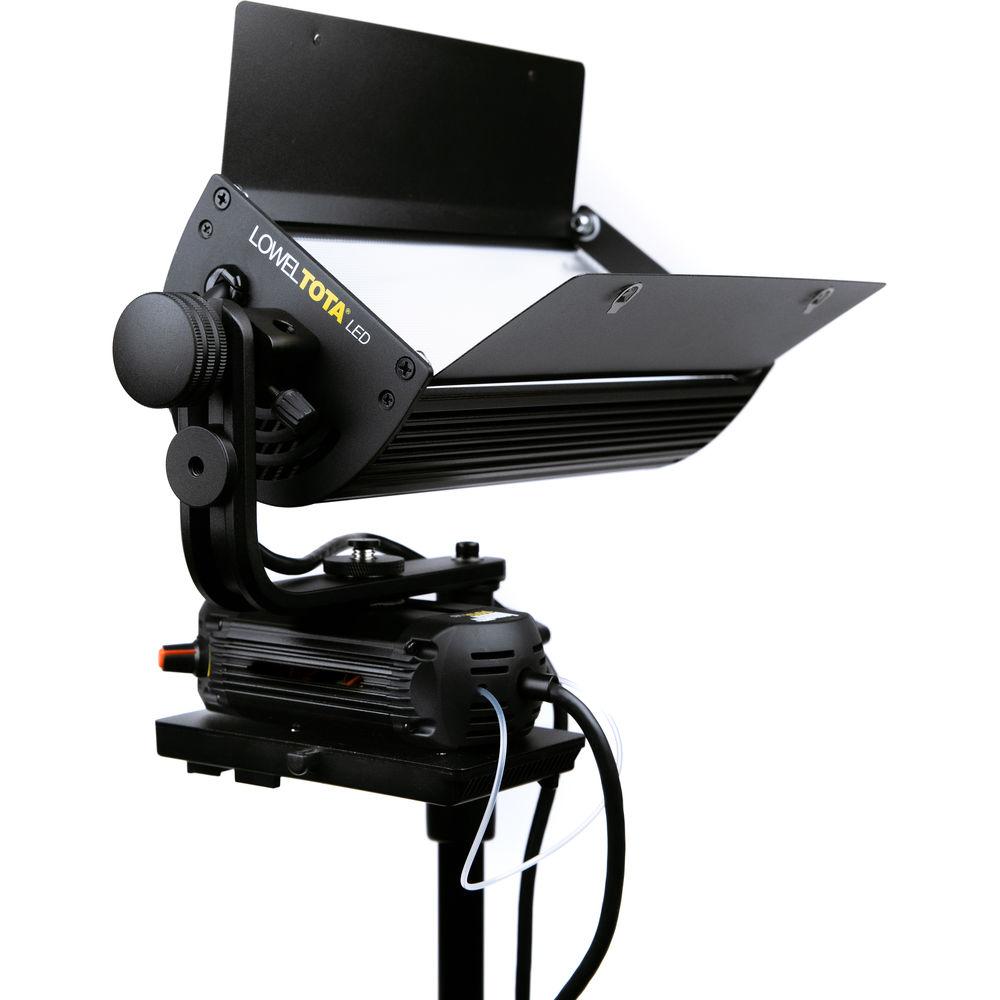

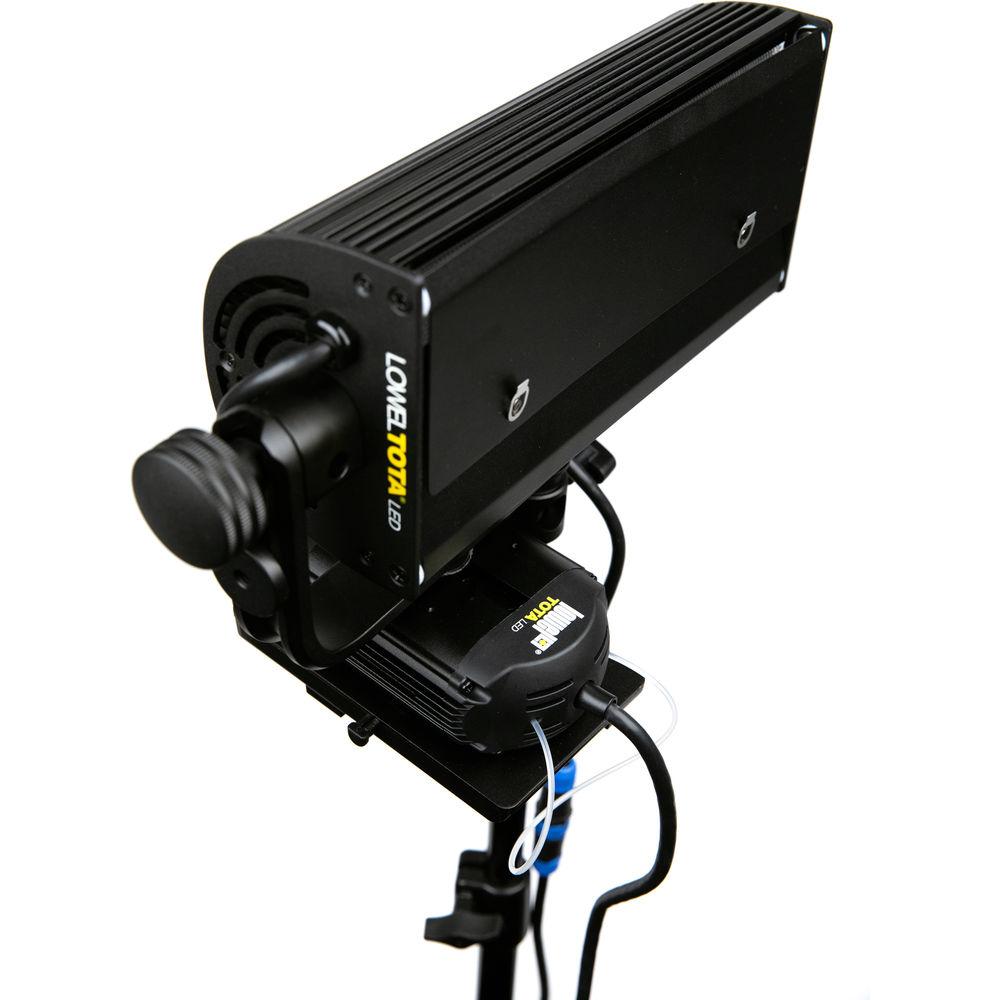

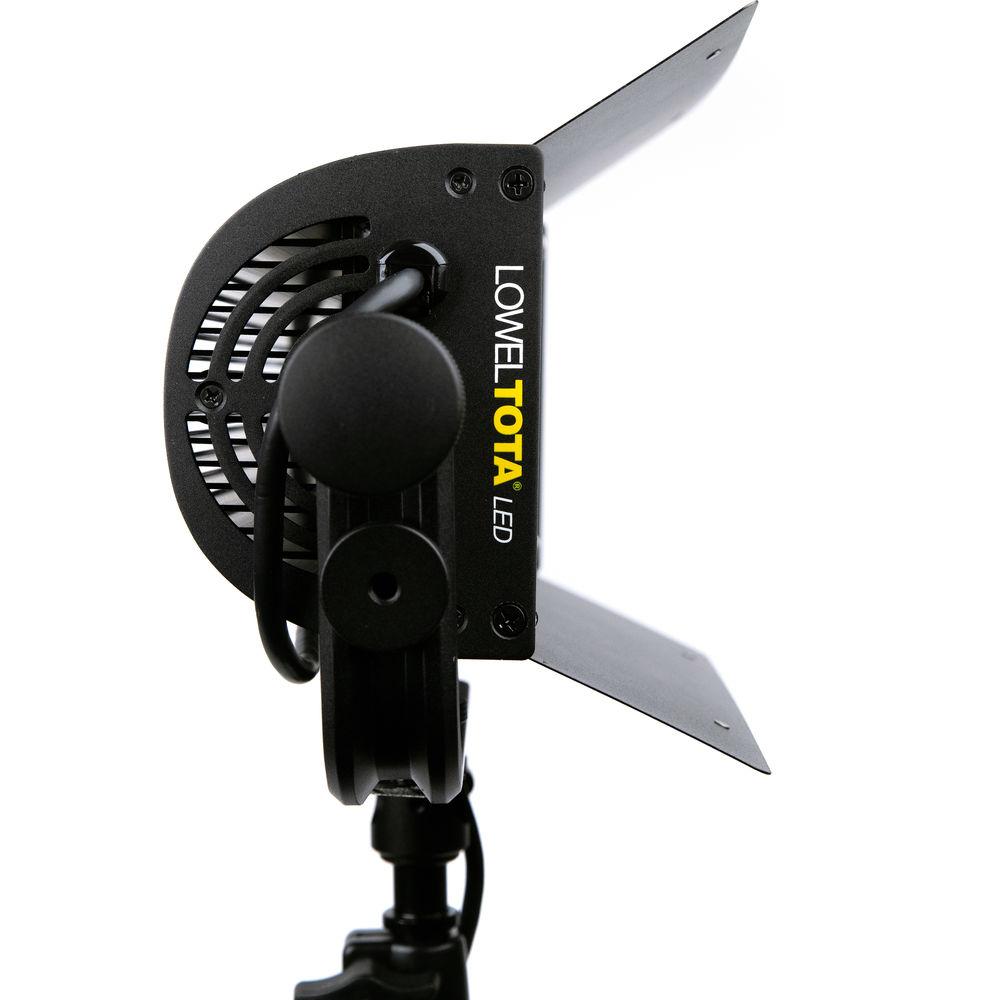

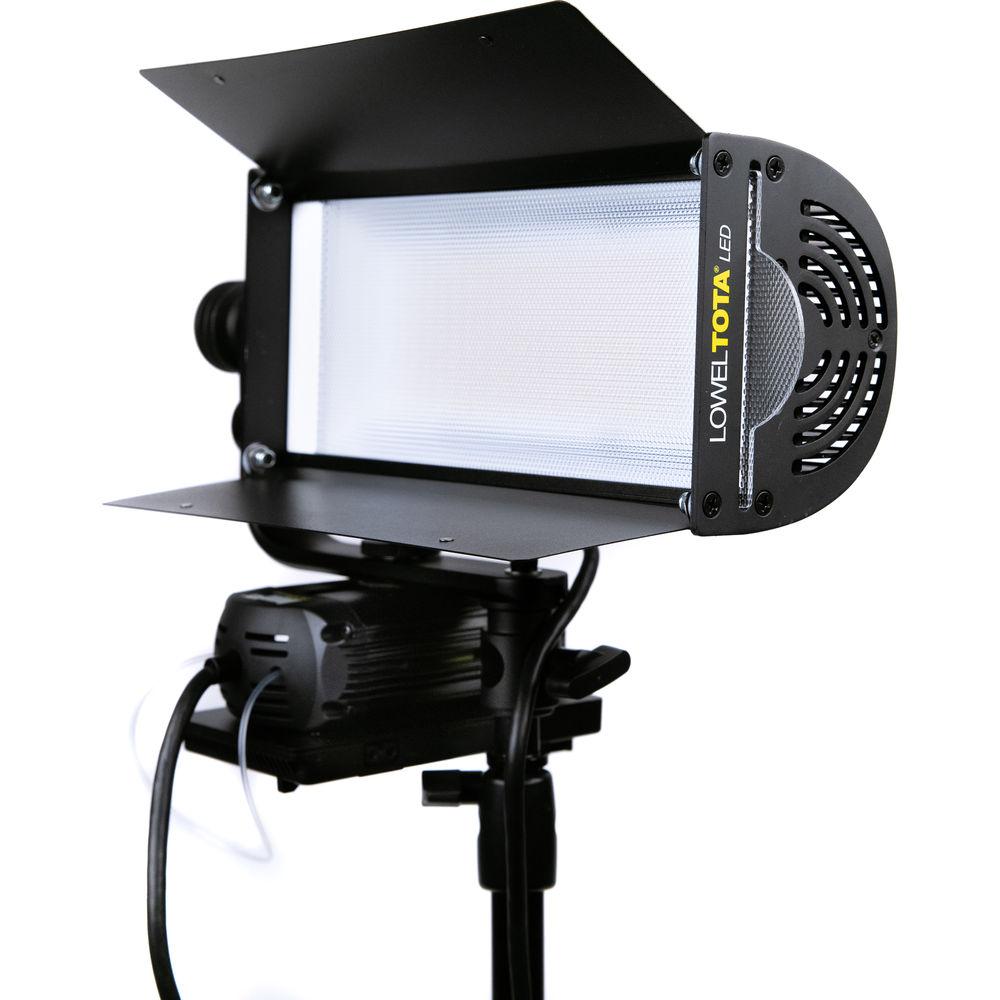

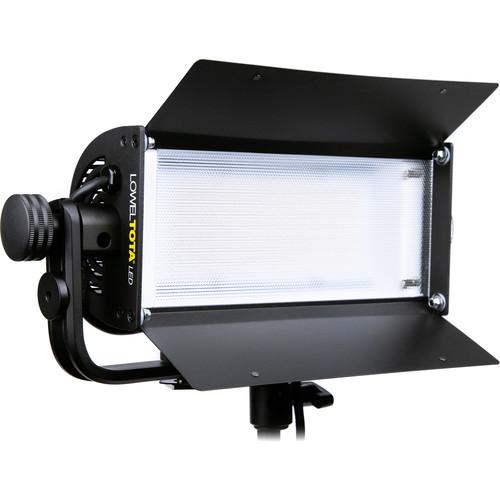

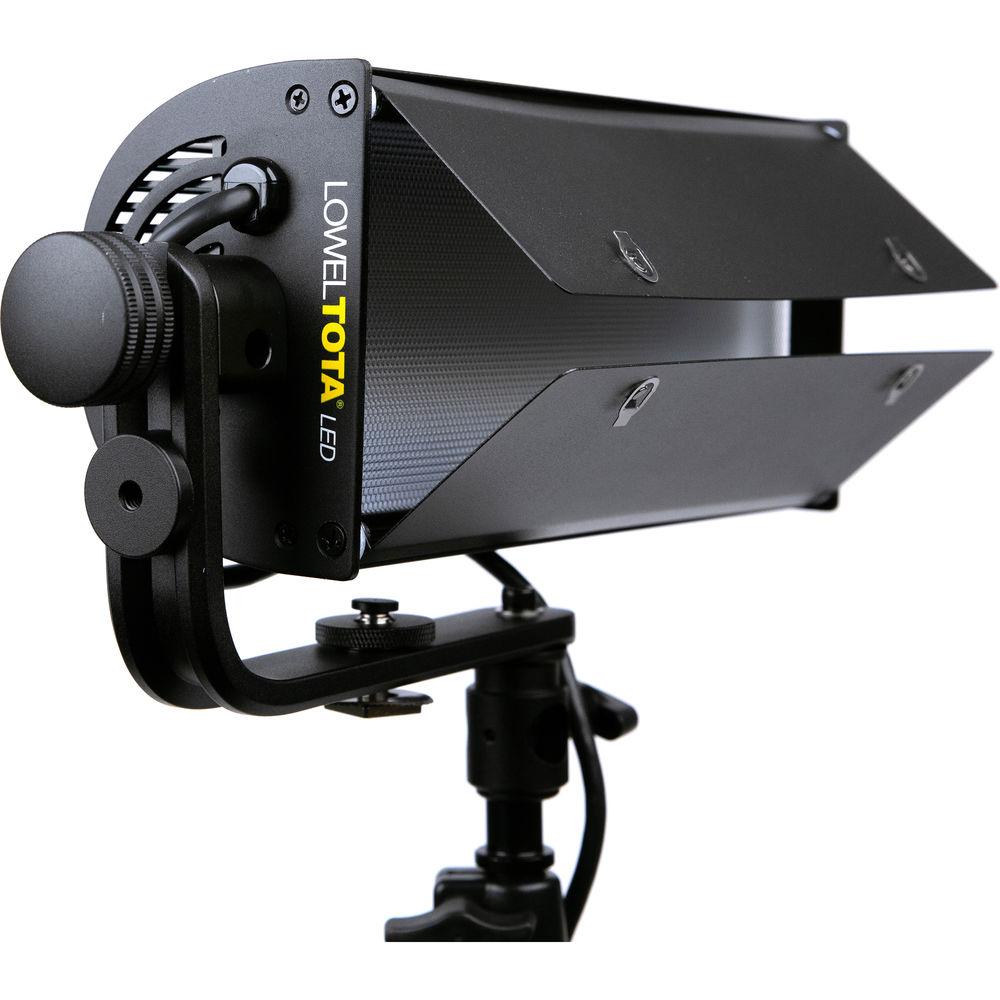

Update your lighting kit with the bright, compact TotaLED Daylight LED Floodlight from Lowel. A modernization of the old Lowel Tota light, the TotaLED retains its powerful 750W tungsten equivalent brightness, but this model is updated to a daylight LED panel with sturdy metal construction and a large heatsink to keep it cool when operated for long periods. Its fanless design also keeps it quiet on set.

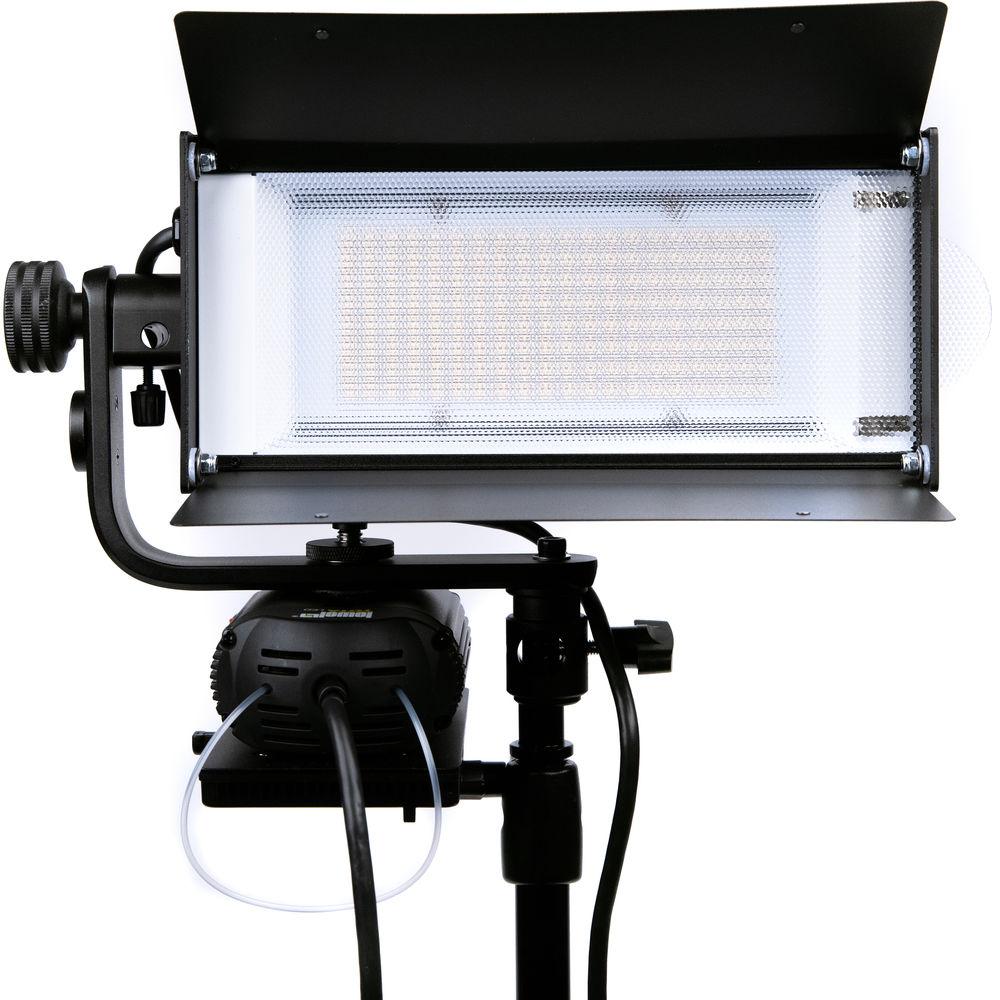

The light's 160 5600K LEDs have a long, 50,000-hour lifespan, so you won't have to change any burned-out bulbs. Its 65° beam angle covers large areas with ambient light, and you can slide in the removable diffuser panel to broaden the beam angle to 100°.

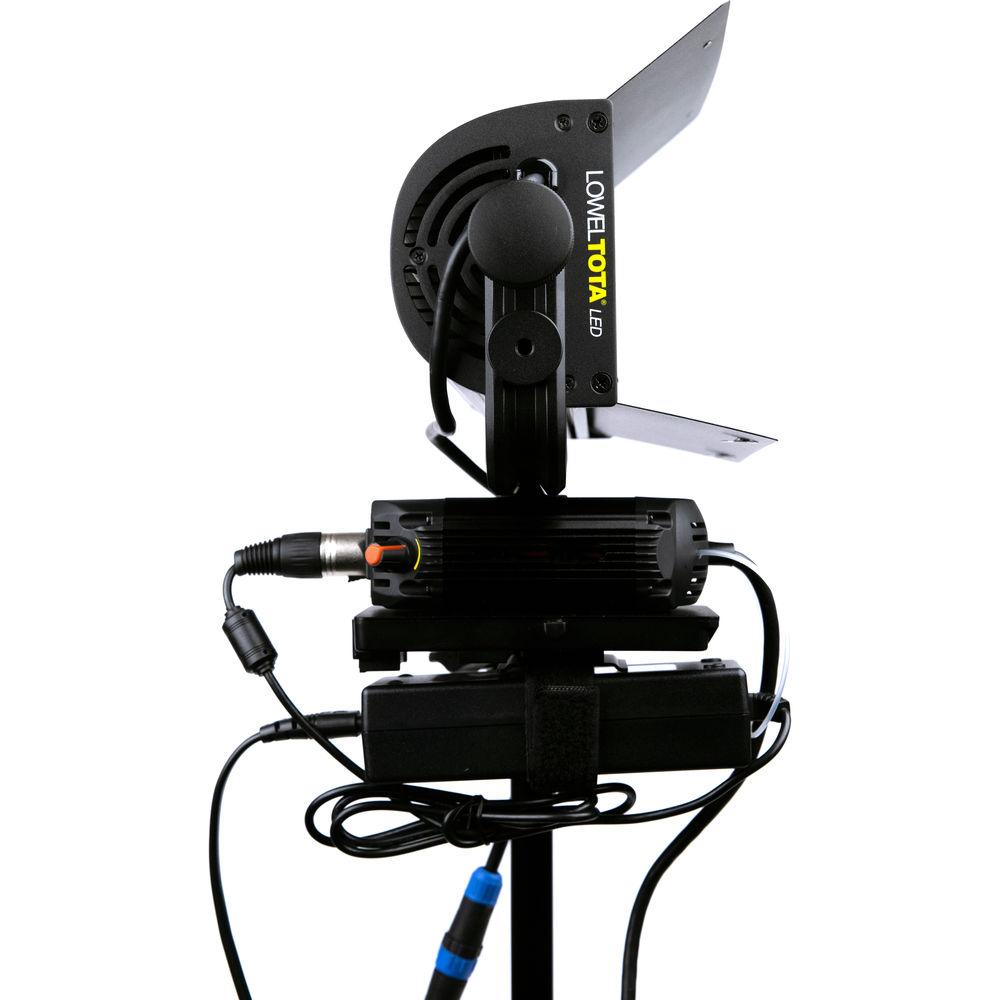

The light is powered by a controller box that connects to the light with a 4-pin XLR; connect either an AC adapter or use the built-in V-mount plate with a separately available battery. The box also features a knob for 100-10% stepless dimming - which can then be brought down to totally 0%, a mounting slot, and a hanger loop for hanging on a stand.

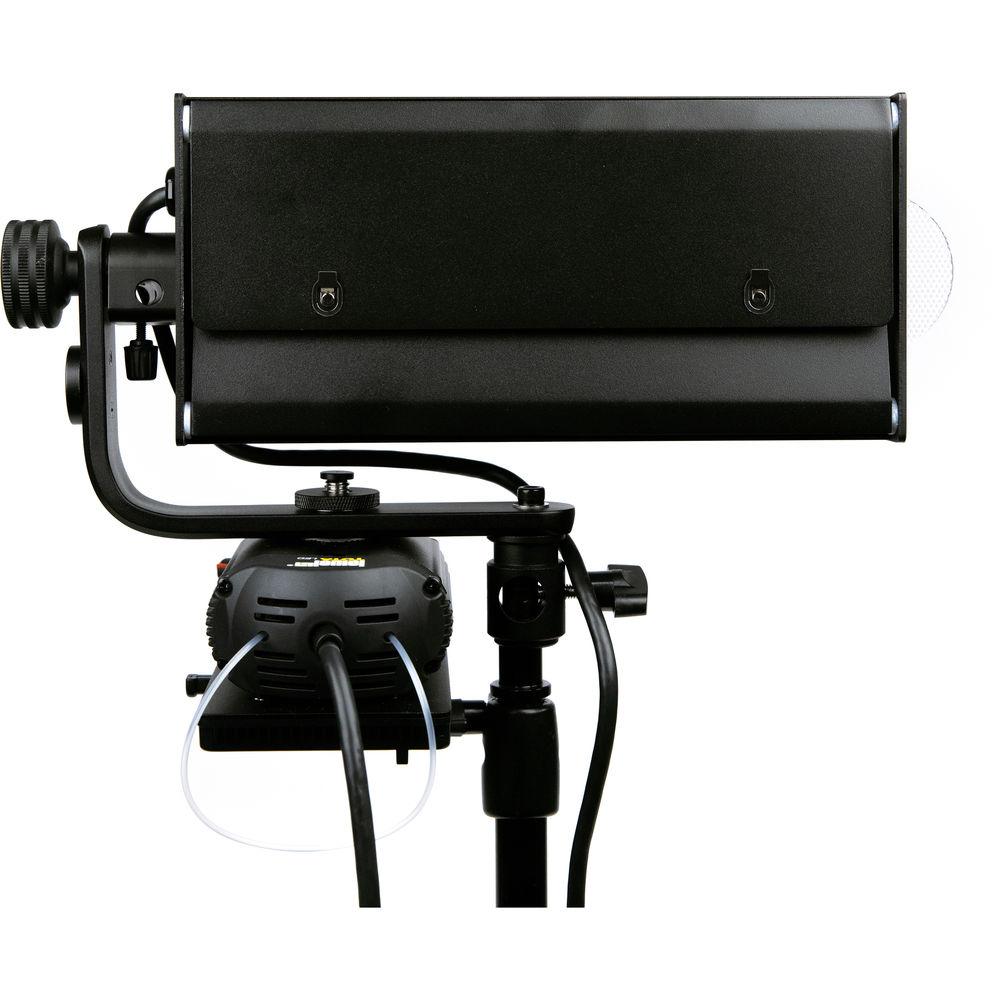

The TotaLED is supported by a built-in tilting yoke with a 5/8" mount, which is tightened by a large locking knob. The yoke also features a shoe-style mount to attach your controller box by its mounting slot. Further up the yoke, there's a 1/4"-20 accessory mount for adding gobos or flags. There's also a separate umbrella mount with a small locking knob that can support umbrellas up to 45". Its built-in two-way barndoors help you shape the light, and there are two integrated gel clips on the outside of each barndoor. The barndoors fold down to protect the light panel when not in use.
The included AC adapter can be used worldwide with optional plug adapters, and it all comes in a carry case to protect and transport the light. - Powerful and Bright
- The TotaLED offers the equivalent brightness and luminance of a 750W tungsten bulb. This fixture illuminates large spaces where you need to increase the level of ambient light. The included diffuser broadens the beam from 65 to 100°.
- Daylight Balanced
- With a color temperature of 5600K, you can match the color temperature of light coming through windows. If you need to match the color temperature of other tungsten fixtures, use the integrated gel clips to add a tungsten gel (available separately) to the light.
- Built-In Barndoors
- You might need to shape your light and prevent light spill onto your background. The integrated barndoors will narrow your beam for the perfect group portrait.
- Uses Battery or Mains Power
- The light operates on either V-mount battery or AC power, so you'll never be left without a way to light your subjects.
- Quiet and Cool Operation
- The fixture operates quietly without a fan, so it's also a great choice to light video shoots when you're recording live sound. The large heatsink makes it possible to operate the TotaLED for long periods without overheating.
- Lightweight and Portable
- This light weighs less than five pounds and comes with a convenient carry case.
- Worldwide Voltage
- The TotaLED is capable of running on North American and international voltages. Take it with you when you're leaving the country to shoot abroad. Just remember to bring the appropriate plug adapters (available separately).
UPC: 847628009424 In the Box Lowel TotaLED Daylight LED Floodlight Dimmer Control Box with V-Mount Plate AC Adapter with Cable DC Cable Carry Case Diffuser Panel Limited 1-Year Warranty Spec sheet PDF 222.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel TotaLED Daylight LED Floodlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLowel TotaLED Specs | | | Beam Angle | 65 to 100° 65° without diffuser, 100° with diffuser | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 96.3 at 5600K
TLCI 95.3 at 5600K | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Continuous) | | Housing Material | Metal | | Photometrics | 65° at 5600K:
397.1 fc / 4275 lux at 3.28' / 1 m | | Number of LEDs | 160 (Daylight) | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | Overall: 12.1 x 7.5 x 3.4" / 30.7 x 19.1 x 8.6 cm (Including Yoke) | | Fixture Weight | 4.4 lb / 2.00 kg (Including Yoke) | | | | Battery Plate | 1 x V-Mount On control box | | Power Input Connector | 4-Pin XLR | | | | Fixture Mount | None | | Mount via Included Adapter | 5/8" Receiver | | Accessory Mount | 1 x 1/4"-20 Female | | | | Yoke Material | Aluminum | | Yoke Type | Yoke/Bracket | | Tilt | 180
