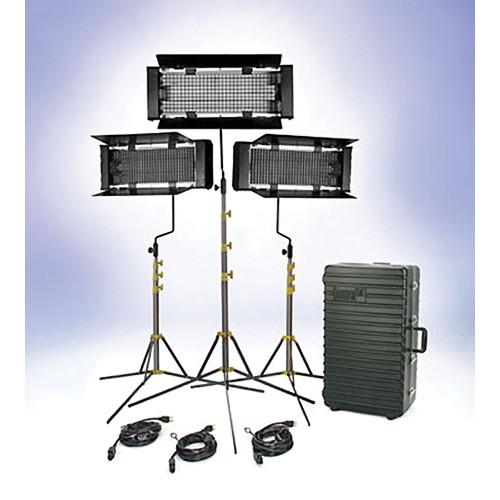

User Manual for Lowel Trio 3-Light Daylight Kit Click to enlarge the picture
Contents of the user manual for the Lowel Trio 3-Light Daylight Kit
- Product category: Fluorescent Lights Lowel
- Brand: Lowel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lowel Fluorescent Lights
|
User manual for the Lowel Trio 3-Light Daylight Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lowel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lowel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lowel product will considerably shorten its lifespan!
|
Product description Ideal for location work, the Trio 3-Light Daylight Kit from Lowel is for photographers or videographers who need to take studio-quality 3-point lighting on the road. The kit includes 3 Trio light fixtures, each with 3 high-CRI daylight-balanced fluorescent lamps, a tilt-bracket with 5/8" receiver and a 7' light stand. A high-impact polyethylene wheeled, partitioned travel case is included to store or transport it all. - TRIO 3-Lamp Fluorescent Light The Lowel Trio 3-Lamp Fluorescent Light (120-240V) delivers soft, studio-quality light for studio or location shooting and it's compact--designed to be easily packed and unpacked. The 3 high-CRI fluorescent bulbs (not included) are individually switched to control the light output, which is equivalent (at full power) to approximately 2000W of conventional tungsten light (119 foot-candles of light at 6' distance). A quick-release plate and tilt bracket make set-up fast and easy, and the thoughtful mounting system keeps the light fixture well-balanced on a (optional) stand or (optional) boom, and supplies a full range of tilt options. Included dual-purpose barndoors/intensifiers change quickly to either control light spill or intensify output (app. 1.5X). The ballast automatically adjusts to work with any voltage from 120 to 240VAC.
- Auto-voltage-setting ballast, from 120-240VAC
- Uses high-CRI daylight or tungsten compact 55W lamps for accurate color matching with other light sources
- Individual lamp switching for variable output control
- Quick-release dual-purpose barndoor/intensifiers
- Quick-release locking plate and tilt-bracket that mounts the fixture to stand or boom provides a generous tilting and rotating range
- Easy-to-install egg crate for trimming light spill
UPC: 884613000462 - 5/8" Stand Fitting Tilt Bracket Updated bracket with 5/8" stud. Keeps Caselite's center of gravity squarely over stand for best balance, while allowing maximum rotation and angling of fixture. UPC: 841274001191
- Uni Sr. Light Stand (7') The Lowel Uni Sr. Light Stand is constructed with thick-wall, anodized aluminum alloy tubing to deliver an exceptionally high strength-to-weight ratio. Design is based on Uni and KS Jr. stands. It collapses smaller than KS Jr. and fits into lid of either Caselight.
- This stand has a standard 5/8" top stud with safety undercut, adjustable base spread and collar-clamping for each segment.
UPC: 841274008770 - TRF-86 Trio 3 Case The Lowel TRF-86 TRIO 3 Case (Black) is designed to carry 3 Lowel FLT-3000 TRIO lights, 3 UN-66 Uni-66 senior light stands and 3 CF-36 5/8" stand fitting tilt-brackets. The case is made form high-impact, molded polyethylene with a hinged lid. It has 3 interior dividers to separate the equipment. The case is transported by carry handles and built-in recessed wheels.
- Construction
-
- High-impact, molded polyethylene case
- Hinged lid
- Clasp latches
- Carrying options
-
- Carry handles
- Recessed built-in wheels
- Compatible with 3 Lowel FLT-3000 TRIO lights, 3 UN-66 senior light stands and 3 CF-36 5/8" stand fitting tilt-brackets
UPC: 884613015909 In the Box Bundle Items 3 x TRIO 3-Lamp Fluorescent Light suvtceydee - Lowel TRIO 3-Lamp Fixture
- Reversible Barndoor/Intensifiers
3 x 5/8" Stand Fitting Tilt Bracket suvtceydee - One Year Manufacturer's Warranty
3 x Uni Sr. Light Stand (7') TRF-86 Trio 3 Case
Also Includes - 9 x GE Cinema-Plus Daylight Fluorescent Lamps
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lowel Trio 3-Light Daylight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TRIO 3-Lamp Fluorescent Light
| Ballast | Auto-voltage setting 120-240VAC | | Watts | Three 55W fluorescent bulbs (not included) | | Dimensions | 26 x 9.5 x 3.25" (66 x 24.13 x 8.25 cm) | | Weight | 5 lbs (2.26 kg) | | | | Box Dimensions (LxWxH) | 29.6 x 14.5 x 8.2" | - 5/8" Stand Fitting Tilt Bracket
| | | Box Dimensions (LxWxH) | 13.228 x 11.102 x 2.598" | - Uni Sr. Light Stand (7')
| Load Capacity | 3 lb / 1.3 kg | | Mounting Options | 5/8" Stud | | Number of Sections | 4 | | Maximum Working Height | 7' / 2.1 m | | Collapsed Height | 22.5" / 57.1 cm | | Footprint Diameter | 47.24" / 1.2 m | | Leg Shape | Rectangular | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | Yes | | Finish | Silver | | Weight | 3.3 lb / 1.5 kg | | | | Box Dimensions (LxWxH) | 22.9 x 3.5 x 2.8" | - TRF-86 Trio 3 Case
| | | Closure Type | Latch | | Carry and Transport Options | Handle | | Material of Construction | Polyethylene | | Exterior Dimensions (W x H x D) | 29.5 x 17 x 9.8" / 74.9 x 43.4 x 24.8 cm | | Weight | 18 lb / 8.2 kg | | | | Box Dimensions (LxWxH) | 34.5 x 24.5 x 12.7" |
