User Manual for LTM Pepper 100 Watt Fresnel Tungsten Light Click to enlarge the picture
Contents of the user manual for the LTM Pepper 100 Watt Fresnel Tungsten
- Product category: Tungsten Lights LTM
- Brand: LTM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LTM Tungsten Lights
|
User manual for the LTM Pepper 100 Watt Fresnel Tungsten contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LTM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LTM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LTM product will considerably shorten its lifespan!
|

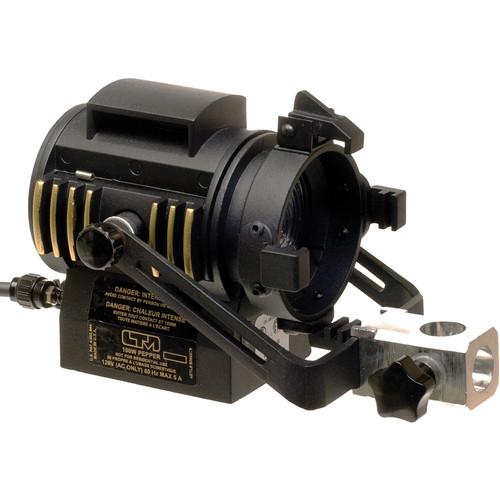

Product description An extremely small fresnel light, the Pepper 100 can easily be placed in tight spaces. Used as a an accent, eye or kicker light, this unit utilizes a 100, or 200 watt lamp. Has a 1-15/16" (4.9cm) flat fresnel made of Pyrex glass. Lamps are not included. - Cool operation
- Cooling vents keep the unit operating at optimal temperatures and prolong lamp life
- Soft diffused light
- Pyrex glass lens provides soft, diffused light with hard shadows
- Stay cool focus knob
- A stay-cool, thermally insulated knob drives the worm gear, moving the lamp forwards or back into the spot or flood position
In the Box LTM Pepper 100 Watt Fresnel Tungsten Light 1 Year Manufacturer's Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the LTM Pepper 100 Watt Fresnel Tungsten Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLTM Pepper 100W Specs | Rating | 200 watts maximum | | Socket (Lampholder) | Double contact bayonet | | Lens (Condenser) | Flat fresnel of Pyrex glass | | Reflector (Mirror) | Type A9 anodized aluminum | | Mounting | Fits on any standard 5/8" stand or stud | | Yoke | Bar aluminum, 2 position off set designed to fit standard 5/8" spud | | Cable | 11' #18 AWG with 3-prong grounded house plug and inline switch | | Focusing | Thermal integrated worm driven screw at rear of light | | Weight | 2lbs (0.9kg) | | Dimensions | 5.6 x 4.9 x 4.5" (14.3x 12.4x 11.4cm) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 9.842 x 6.457 x 6.299" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
