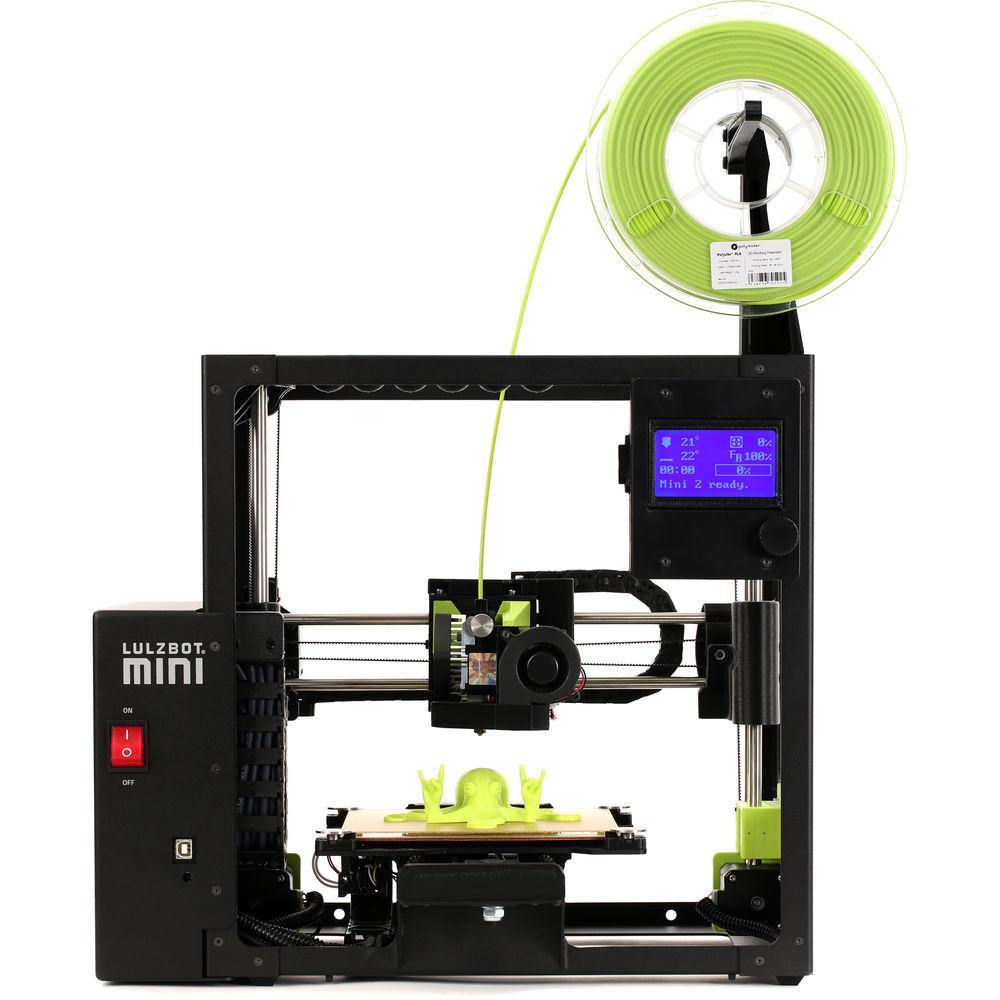

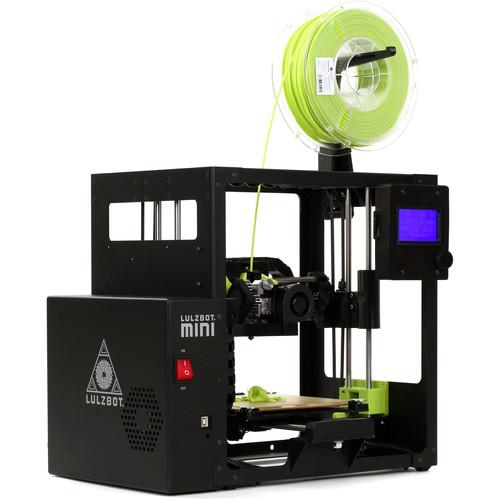

Product description Created for home users, makers, designers, engineers, architects, and anyone else looking for a user-friendly desktop 3D printer, the Mini 2 3D Printer from LulzBot is an upgraded version of their original Mini 3D Printer. The Mini 2 features Fused Filament Fabrication (FFF) printing technology; a print area of 6.3 x 6.3 x 7.09"; a top print speed of 300mm/s; and a layer thickness of 2.0 to 15.7 mil. It uses 2.85mm PLA, Natural PLA, Metal PLA, Ninjaflex, Polyflex, ABS, PETG, nGen, INOVA-1800, HIPS, HT, t-glase, Alloy 910, Bridge Nylon, Nylon 645, Polycarbonate, PC-Max, PC+PBT, PC-ABS Alloy, PCTPE, and other filaments. The printer is equipped with a single extruder nozzle and a heated borosilicate glass printing bed that is covered with a PEI print surface.
The LulzBot Mini 2 3D Printer prints via its USB Type-B port or an SD card. It operates using a 150W / 100-240 VAC auto-switching power supply and features a nozzle temperature of up to 554°F and a heated print bed temperature of up to 248°F. It is compatible with Windows, Mac, and Linux/GNU. Compatible .stl, .obj, .x3d, .3mf, .png, and .jpg files may be printed using Cura LulzBot Edition software (version 3.2 or newer), which features faster loading times, an improved interface, more slicing features, and Marlin version 1.1.8 firmware.
Other new features built into the Mini 2 include an E3D Titan Areo-based tool head, a modular bed system, a GLCD screen with SD card usage, Einsy RAMbo electonics, a belt-driven z-axis, and a redesigned x-axis. Protection is provided by a limited 1-year warranty. General Features - E3D Titan Aero-Based Tool Head
- Allows for the precise and reliable extrusion of both flexible and rigid filaments
- Modular Bed System
- For added versatility and easier maintenance

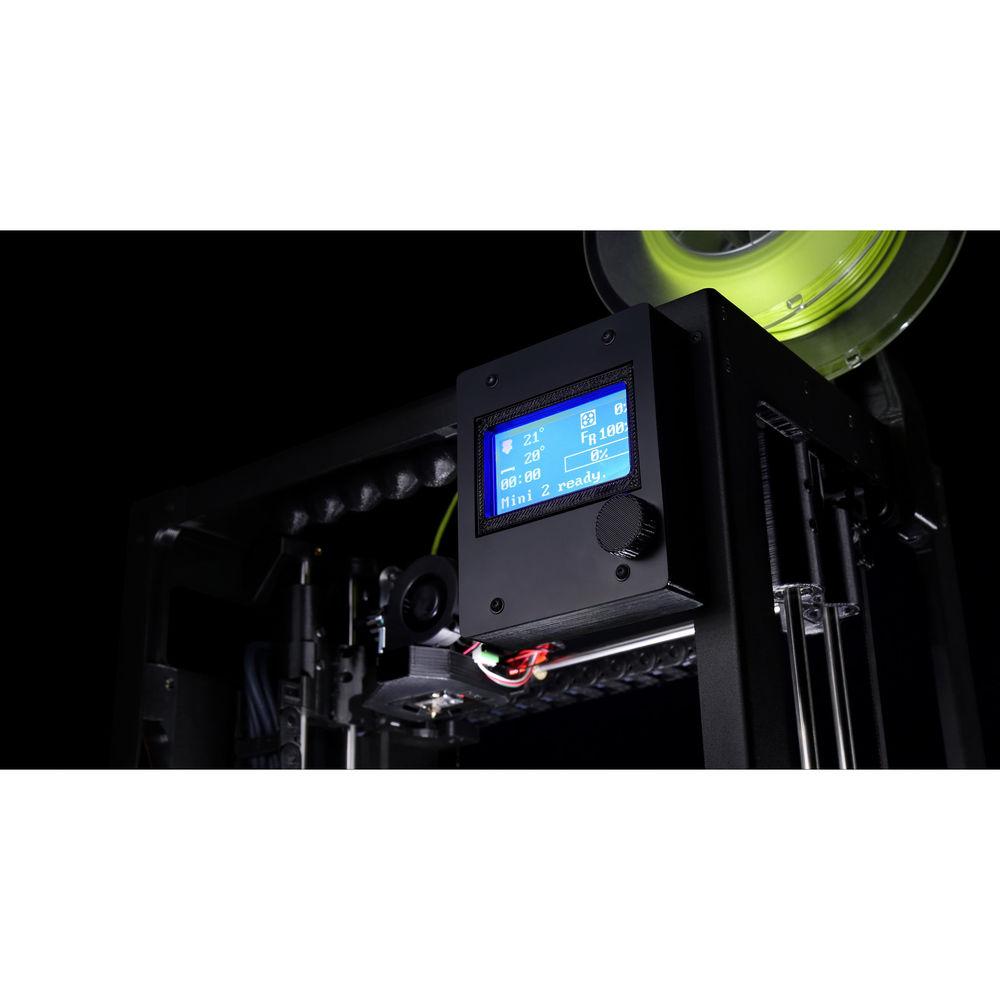

- GLCD Screen with SD Card
- Allows for operation without a connection to a computer
- Einsy RAMbo Electronics
- For quieter printing
- Belt-Driven Z-Axis
- For faster cycle times and improved print quality
- Redesigned X-Axis
- Provides a 20% increase in print volume
- Cura LulzBot Edition 3.2
- This printing software features faster loading times, an improved interface, more slicing features, and Marlin version 1.1.8 firmware
UPC: 810234030601 In the Box LulzBot Mini 2 3D Printer Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LulzBot Mini 2 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLulzBot Mini 2 Specs | | | Build Volume | 6.3 x 6.3 x 7.1" / 16.0 x 16 x 18.0 cm | | Number of Extruders | 1 | | Layer Resolution | Z Axis: 50 to 400 micron / 0.05 to 0.4 mm | | Supported Extruder Nozzle Diameter | 500 micron / 0.5 mm | | Extruder Nozzle Temperature | 73 to 554°F / 23 to 290°C | | Print Speed | 300 mm/s | | Filament Compatibility | 2.85 mm Diameter:
ABS, HIPS, Nylon, PC, PC-ABS, PETG, PLA, Polycarbonate, T-Glase, nGen | | | | Build Area Type | Open | | Extendable | No | | Build Plate Features | Auto Leveling, Heated | | Build Plate Temperature | 73 to 248°F / 23 to 120°C | | Build Plate Composition | Heated Polyetherimide (PEI) | | Filament Spool Storage | External | | 3D Scanner | No | | Monitoring Camera | No | | | | Wired Connections | 1 x USB Type-B (USB 2.0) | | Wi-Fi | None | | Media Card Slots | 1 x SD (Unspecified Type) | | | | Supported Operating Systems | Linux (Version Unspecified)
Windows (Version Unspecified)
macOS X (Version Unspecified) | | Supported 3D File Types | .obj, .stl, .x3d | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 41 to 113°F / 5 to 45°C | | Dimensions (W x H x D) | 18 x 25 x 16" / 45.72 x 63.5 x 40.64 cm (With Filament) | | Weight | 19.9 lb / 9 kg (Without Filament) | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 26.5 lb | | Box Dimensions (LxWxH) | 22.5 x 20.0 x 17.0" |
