User Manual for LulzBot Mini Enclosure by Printed Solid Click to enlarge the picture
Contents of the user manual for the LulzBot Mini Enclosure by Printed Solid
- Product category: 3D Printer Accessories LulzBot
- Brand: LulzBot
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LulzBot 3D Printer Accessories
 |
User manual for the LulzBot Mini Enclosure by Printed Solid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LulzBot product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LulzBot user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LulzBot product will considerably shorten its lifespan!
|

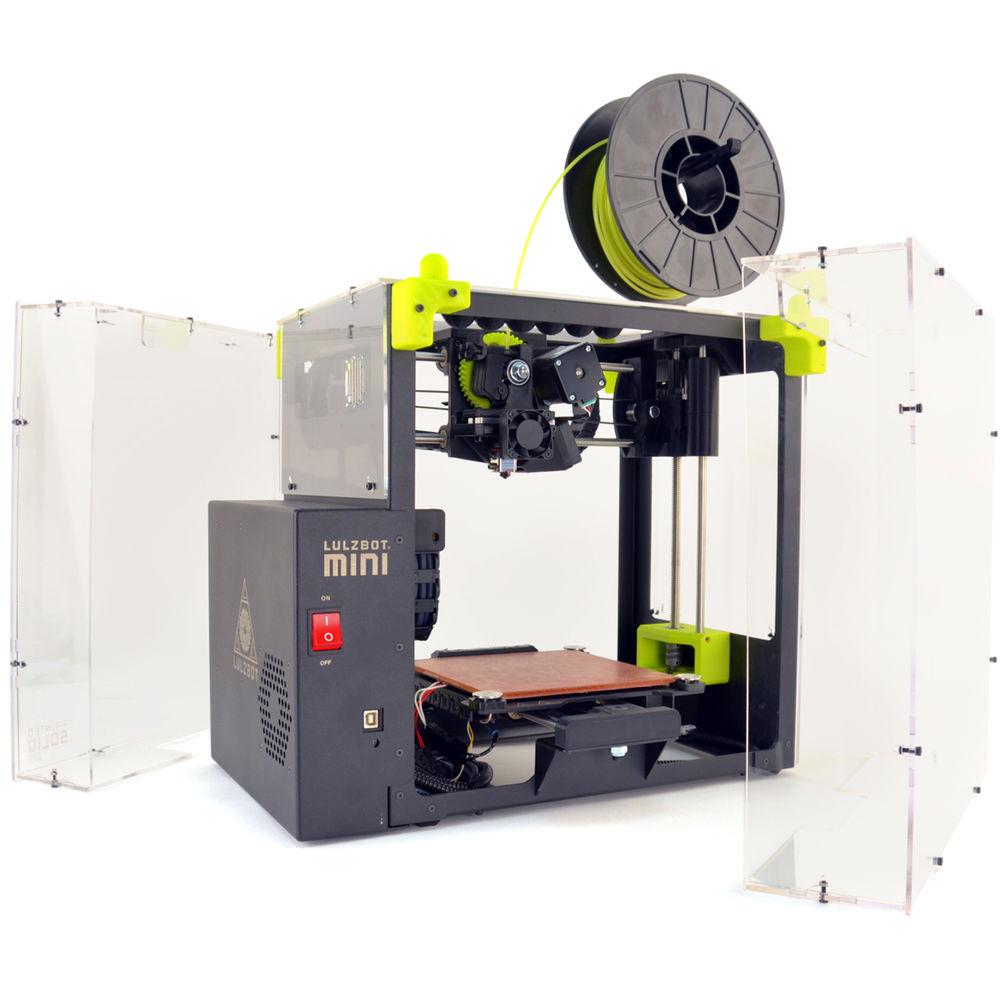

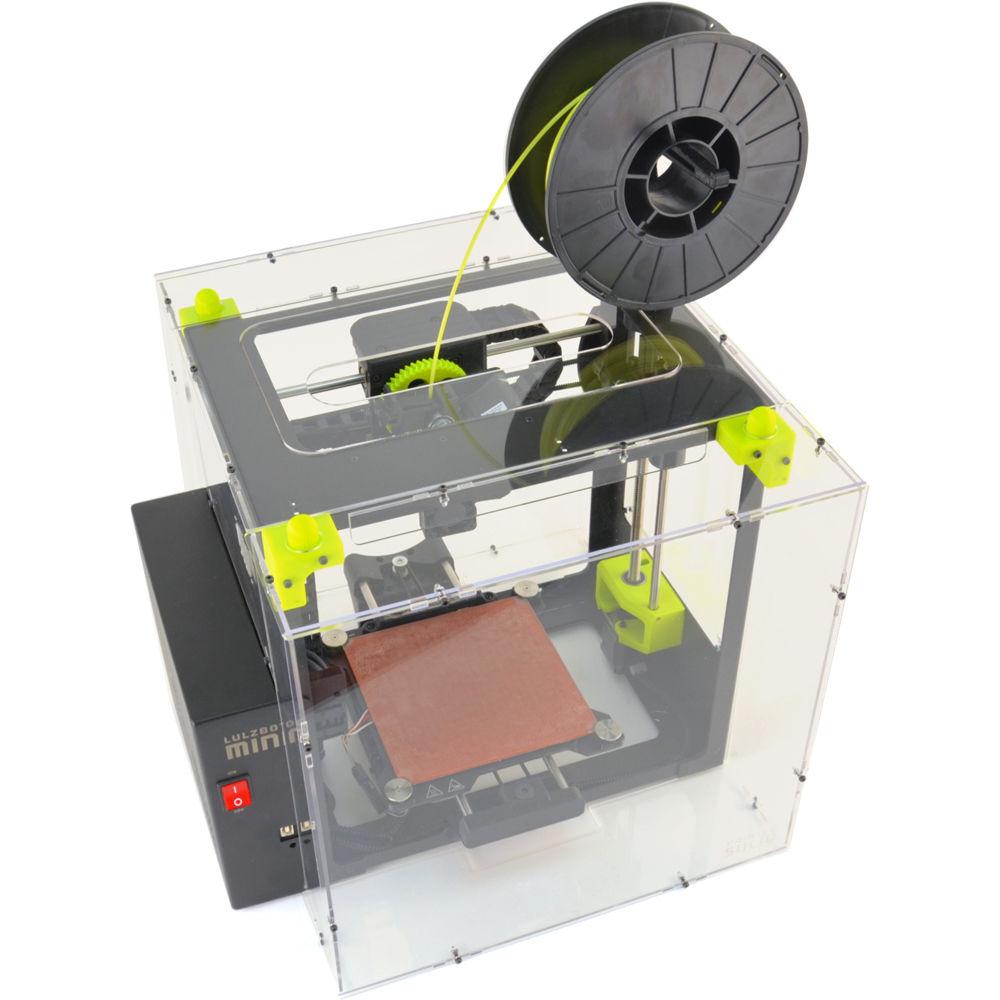

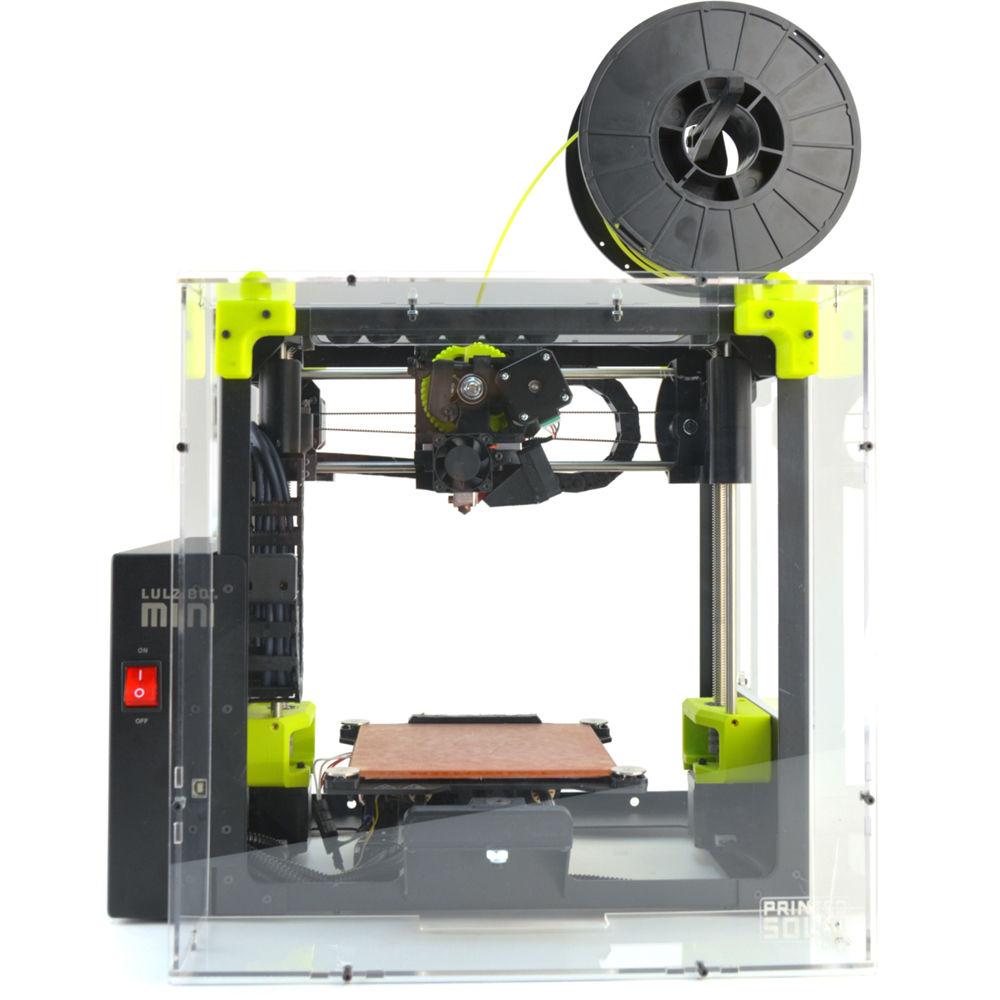

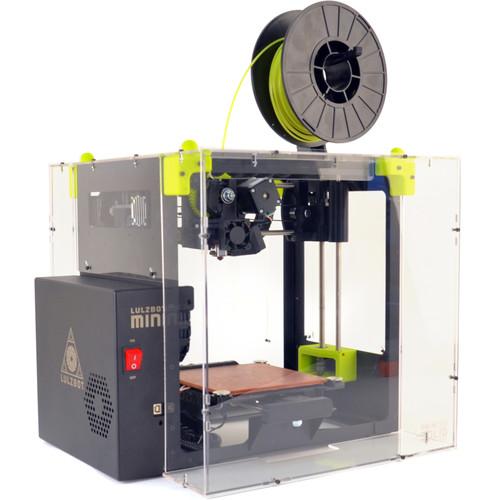

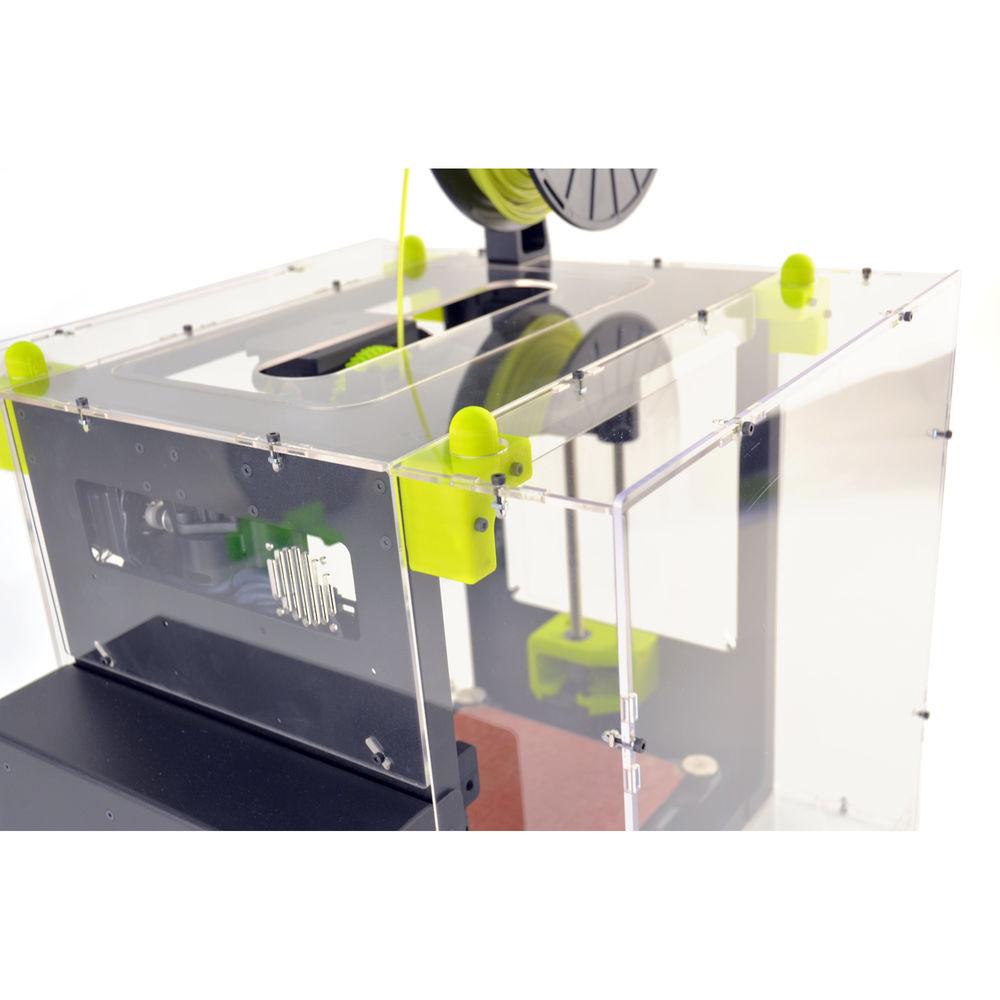

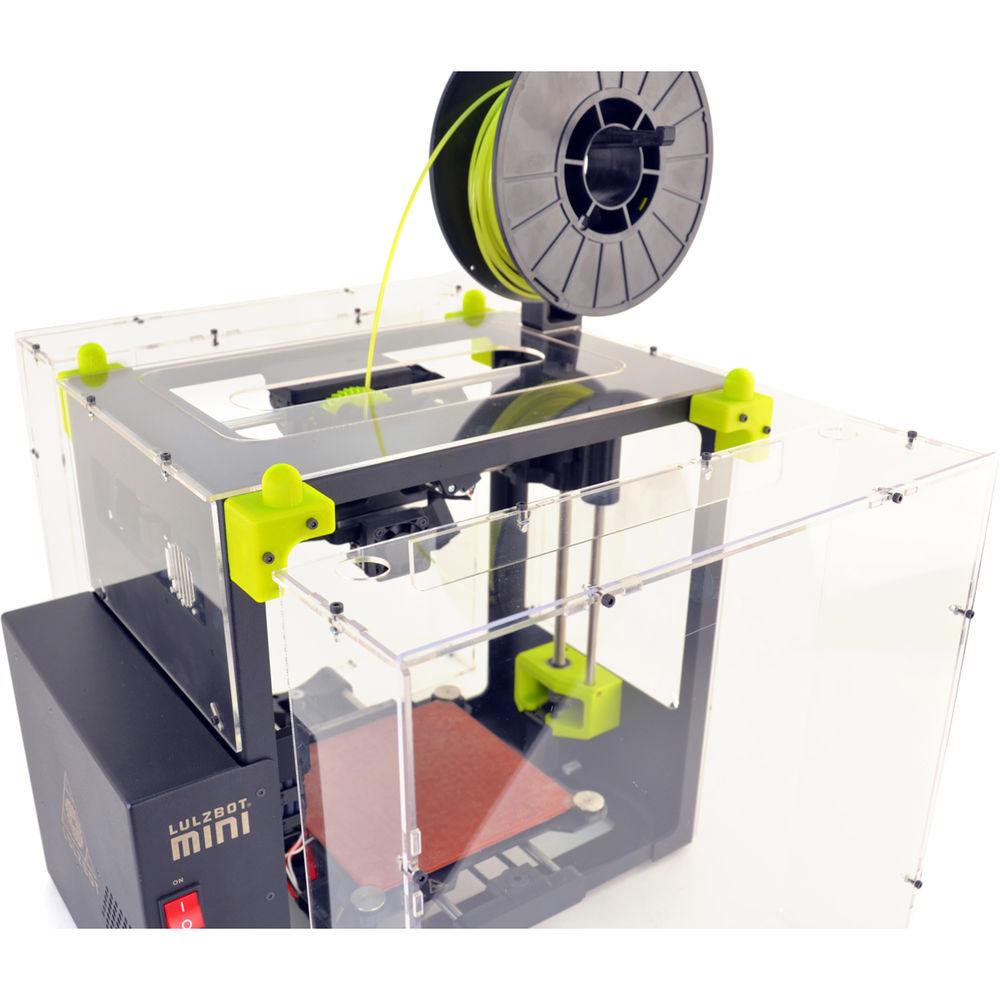

Product description Minimize warping and keep hands away from your 3D printer's heated and moving parts with the LulzBot Mini Enclosure by Printed Solid. Made of acrylic, this enclosure kit can be assembled without gluing, drilling, cutting, or engraving. It is designed for the LulzBot Mini and Mini 2 3D printers.Please note that separate tools and 3D printed parts are required. - Features
-
- No gluing, drilling, cutting, or engraving is required for assembly

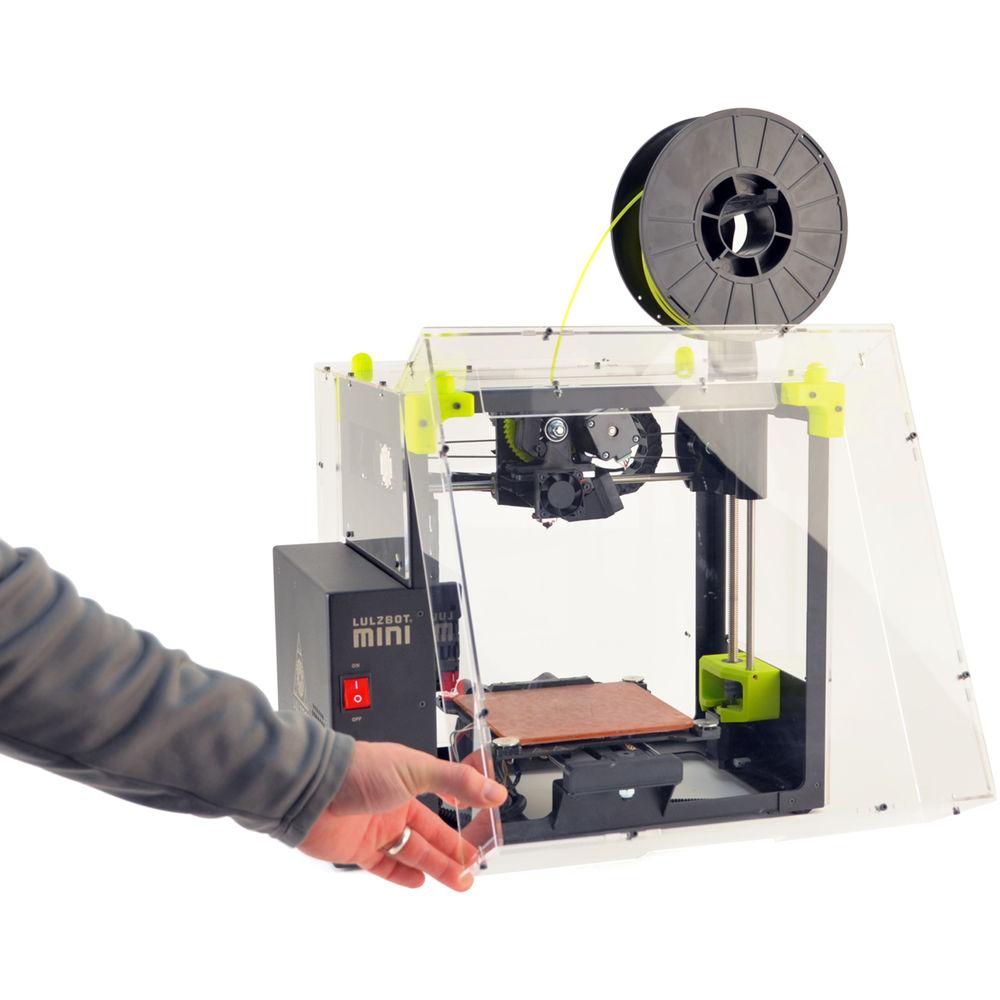

- Modular design with removable parts for access and/or printing with large spools of filament
- Made with optically clear, lightweight 3mm-thick extruded acrylic
- The extruded acrylic can be solvent welded, so pieces can be repaired if broken
- There is a built-in location to mount a 40mm fan to vent air from the enclosure
- Upgradable using your current printer; 3D print two brackets to complete the kit
- When assembled, the enclosure sits on the same table surface as your 3D printer
- Small footprint, adding only 105mm (4.1in) in the Y axis (from front to back)
- Printed Part Files
-
- 3D printed left bracket (print yourself)
- 3D printed right bracket (print yourself)
- Tools Needed
-
- 2mm hex driver
- 2.5mm hex driver
- Optional: Painters tape
- Optional: Flat razor
- Time Required
-
- 1 to 2 hours, based on skill level
- Warnings
-
- Acrylic can easily crack so do not over tighten the screws. Tighten to hold without movement.
- When cleaning, use dish soap or hand wash and a soft, clean cloth.
- Do not use glass-cleaning solutions.
- Do not use a hard sponge, scrub, or abrasive surface.
UPC: 817752018661 In the Box LulzBot Mini Enclosure by Printed Solid 2 x Front and Rear Panel with Logo 2 x Rear Cover Sides Rear Cover Top Rear Cover Bottom 2 x Front Cover Sides Front Cover Top Front Cover Bottom 2 x Front and Rear Cover Stiffener Short Side Cover Long Side Cover Top Cover Optional Top Insert 36 x M3-10mm Bolts 8 x M3-40mm Bolts 36 x M3 Square Nuts 2 x M3 Washers Limited 30-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LulzBot Mini Enclosure by Printed Solid in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLulzBot PP-FP0086 Specs | Dimensions | LulzBot Mini
17.1 x 13.4 x 15.2" / 435 x 340 x 385 mm
LulzBot Mini with Enclosure
17.1 x 17.5 x 15.2" / 435 x 445 x 385 mm
Enclosure adds an additional 4.1" (105 mm) in the Y axis (from front to back) | | Weight | Not specified by manufacturer | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 20.0 x 18.1 x 4.6" |
