User Manual for LulzBot TAZ 6 Enclosure by Printed Solid

Click to enlarge the picture
LulzBot TAZ 6 Enclosure by Printed Solid Contents of the user manual for the LulzBot TAZ 6 Enclosure by Printed
  • Product category: 3D Printer Accessories LulzBot
  • Brand: LulzBot
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for LulzBot 3D Printer Accessories

LulzBot TAZ 6 Enclosure by Printed Solid LulzBot TAZ 6 Enclosure by Printed Solid LulzBot TAZ 6 Enclosure by Printed Solid LulzBot TAZ 6 Enclosure by Printed Solid LulzBot TAZ 6 Enclosure by Printed Solid
User manual for the LulzBot TAZ 6 Enclosure by Printed contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any LulzBot product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official LulzBot user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a LulzBot product will considerably shorten its lifespan!



Product description

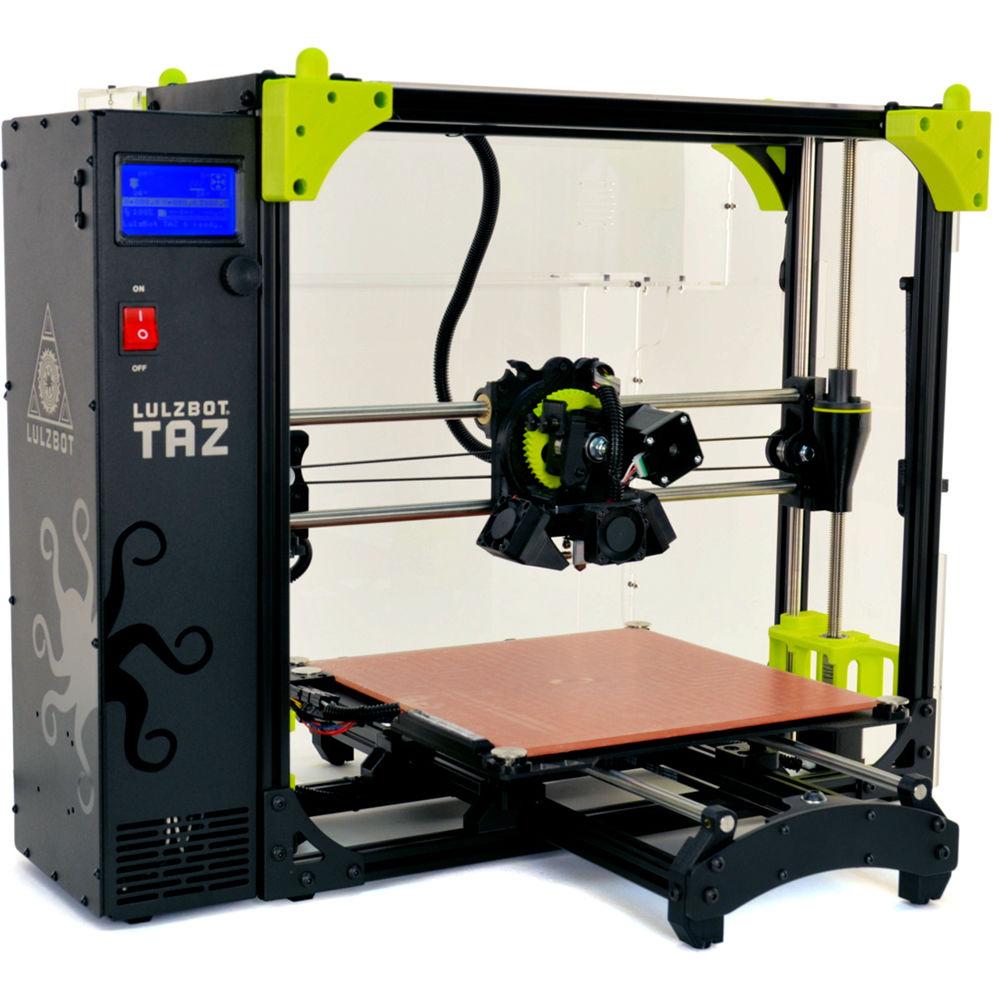

Minimize warping and keep hands away from your 3D printer’s heated and moving parts with the LulzBot TAZ 6 Enclosure by Printed Solid. Made of acrylic, this enclosure kit can be assembled without gluing, drilling, cutting, or engraving. It is designed for the LulzBot TAZ 6 3D printer.Please note that separate tools and 3D printed parts are required.
    Features
    • No gluing, drilling, cutting, or engraving is required for assembly
    • Modular design with removable parts for access and/or printing with large spools of filament
    • Made with optically clear, lightweight 3mm-thick extruded acrylic
    • The extruded acrylic can be solvent welded, so pieces can be repaired if broken
    • Upgradable using your current printer; 3D print four brackets to complete the kit
    • When assembled, the enclosure sits on the same table surface as your 3D printer
    • Small footprint, adding only 2.44" (62 mm) along the Y axis (from front to back)
    Additional Parts Required
    • 2 x 3D printed TAZ6 left brackets (print yourself)
    • 1 x 3D printed TAZ6 right bracket (print yourself)
    • 1 x 3D printed TAZ6 left cable bracket (print yourself)
    Tools Needed
    • 2.5mm hex driver for M3 screws
    • 3mm hex driver for M4 screws
    • 4mm hex driver for M5 screws
    • Optional: Painters tape
    • Optional: Flat razor
    • Optional: Zip ties
    Time Required
    • 2 to 3 hours, based on skill level
    Warnings
    • Acrylic can easily crack so do not over-tighten the screws. Tighten to hold without movement
    • When cleaning, use dish soap or hand wash and a soft, clean cloth
    • Do not use glass-cleaning solutions
    • Do not use a hard sponge, scrub, or abrasive surface
UPC: 817752018944 In the Box LulzBot TAZ 6 Enclosure by Printed Solid

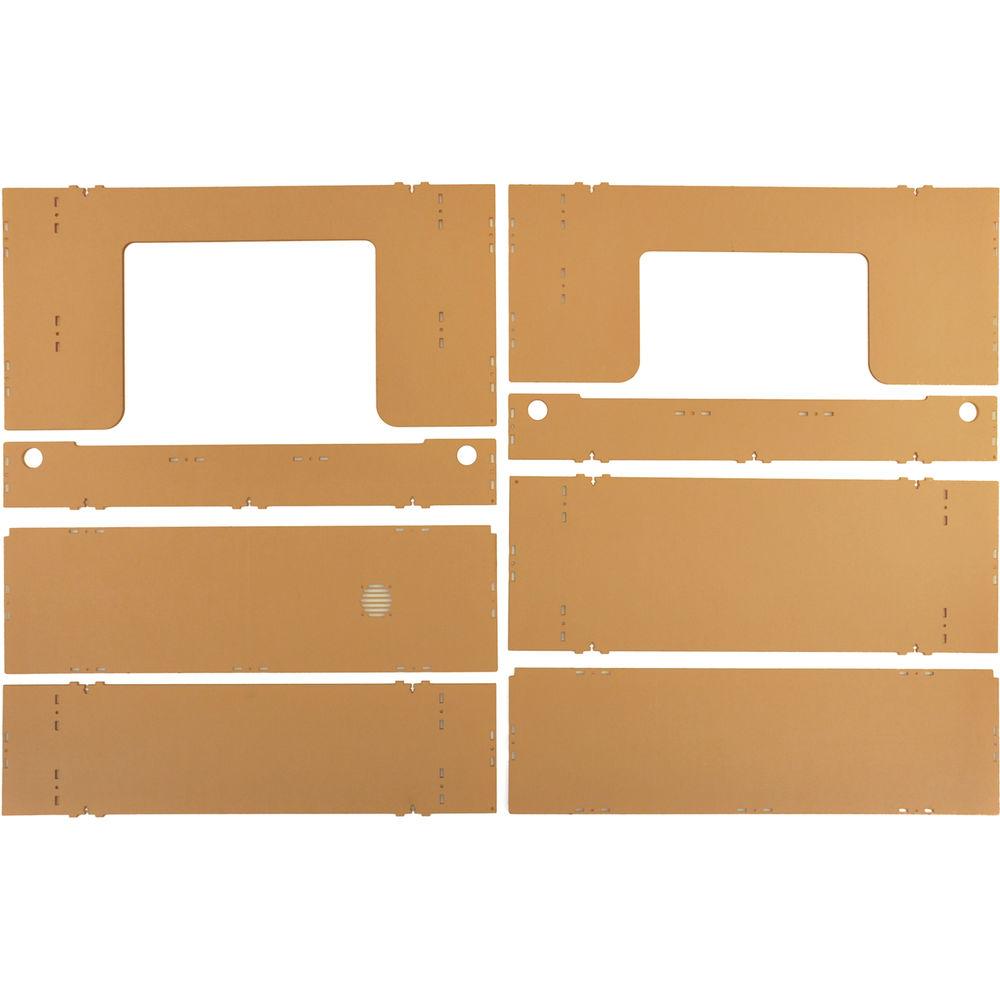

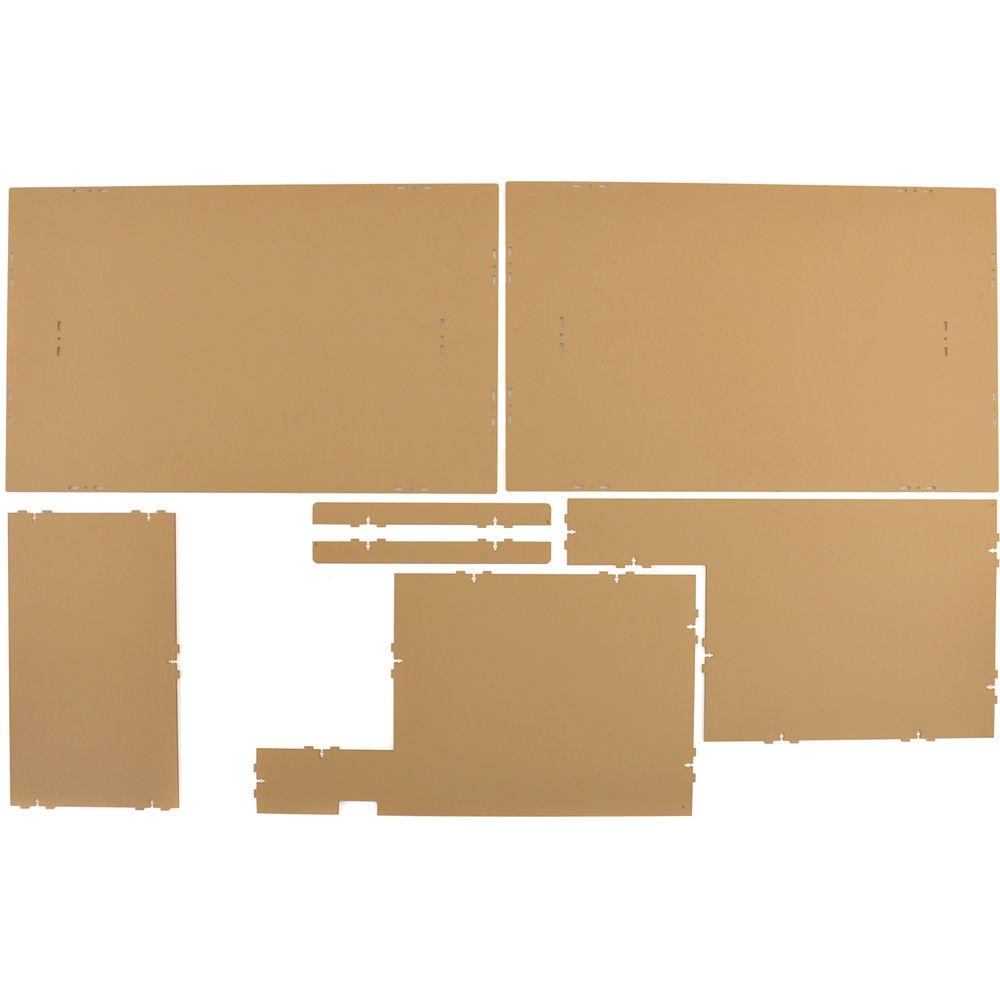

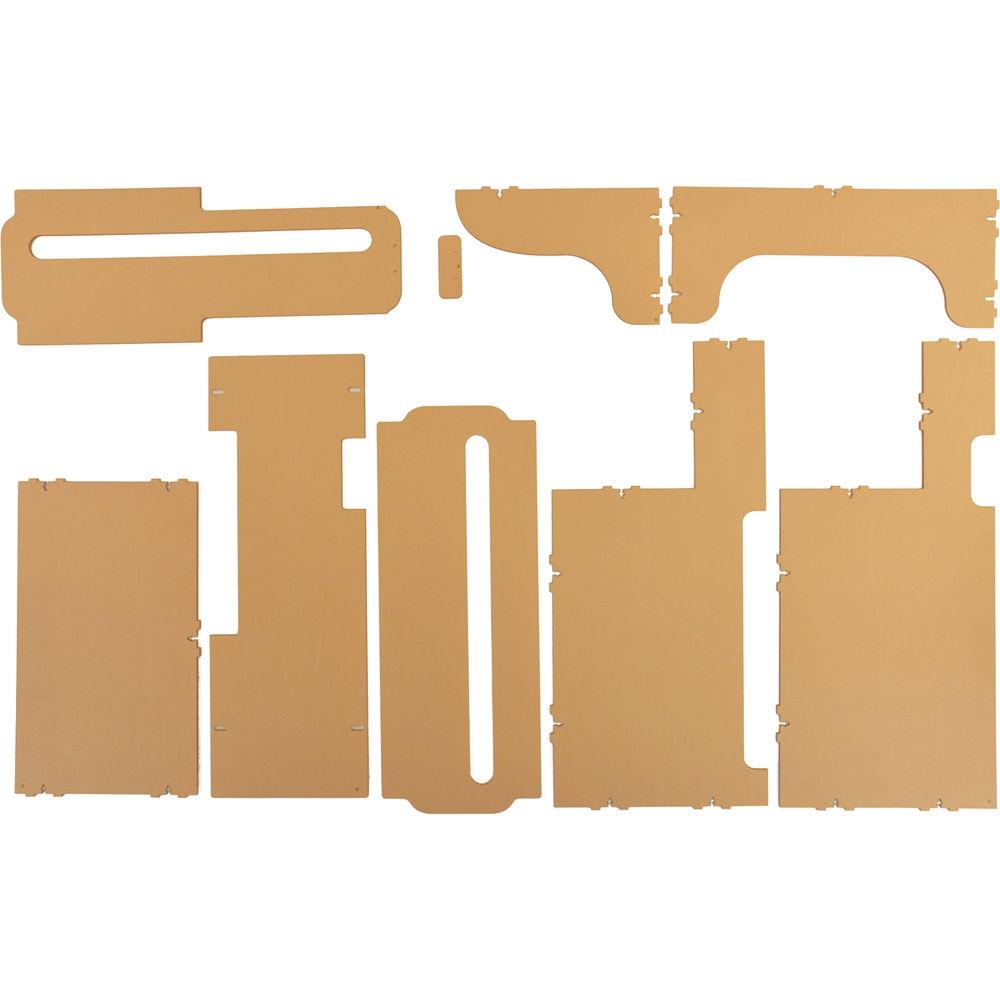

  • 2 x Front and Rear Panel
  • 2 x Top Mounts with Holes
  • Rear Left Stiffener
  • 2 x Front Stiffeners
  • 2 x Top Stiffeners
  • Rear Middle
  • Rear Shelf
  • Rear Bottom
  • Rear Right
  • Rear Left
  • Front Left
  • Front Right
  • Front Middle
  • Front Shelf
  • Side-Mounted Spool Top
  • Top-Mounted Spool Top
  • Machine Side
  • Rear Right Stiffener
  • Spool Top Support

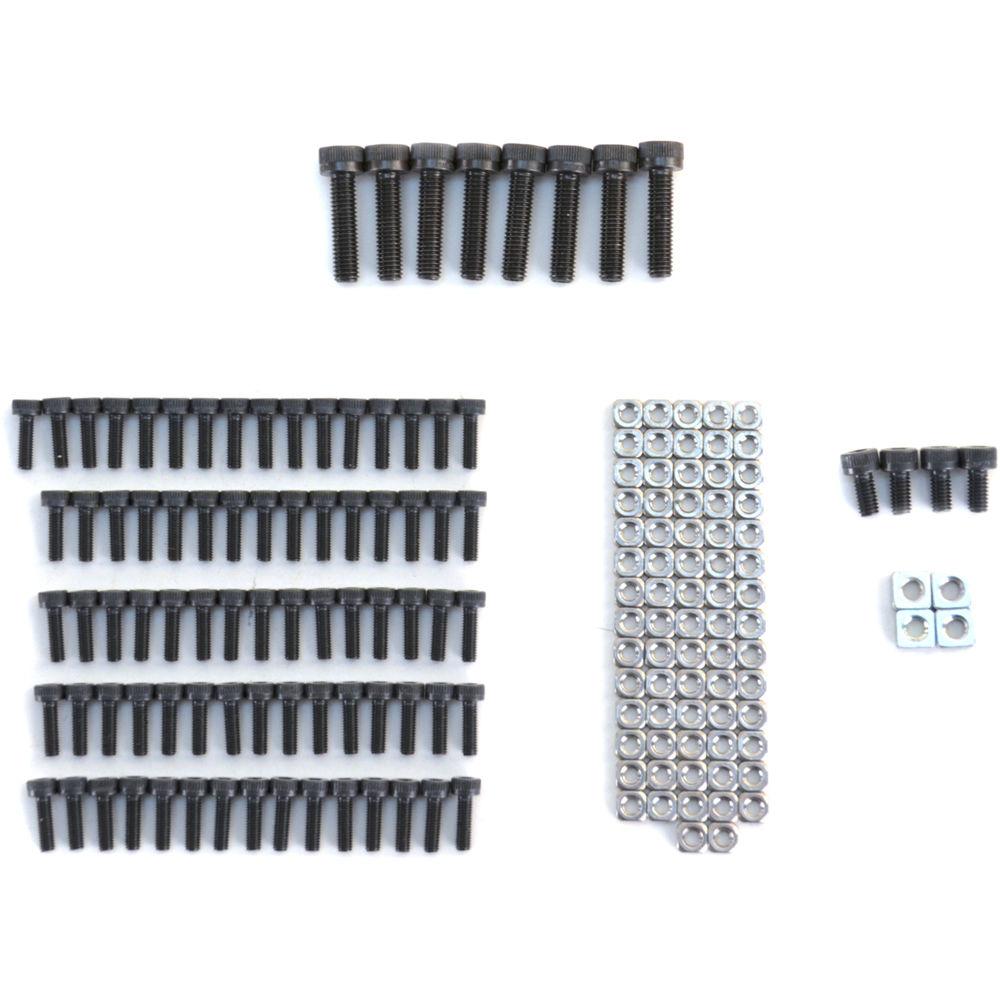

  • 70 x M3 10 mm Bolts
  • 70 x M3 Square Nuts
  • 4 x M4 8 mm Bolts
  • 4 x M4 Square Nuts
  • 8 x M5 20 mm Bolts
  • Limited 30-Day Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the LulzBot TAZ 6 Enclosure by Printed Solid in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    LulzBot PP-FP0088 Specs

    Dimensions LulzBot TAZ 6
    32.28 x 24.8 x 20.47" / 82 x 63 x 52 cm
    LulzBot TAZ 6 with Enclosure
    32.28 x 27.2 x 20.47" / 82 x 69.2 x 52 cm

    Enclosure adds an additional 2.44" (62 mm) along the Y axis (from front to back)
    Weight Not specified by manufacturer
    Package Weight 19.4 lb
    Box Dimensions (LxWxH) 24.7 x 18.3 x 5.1"
