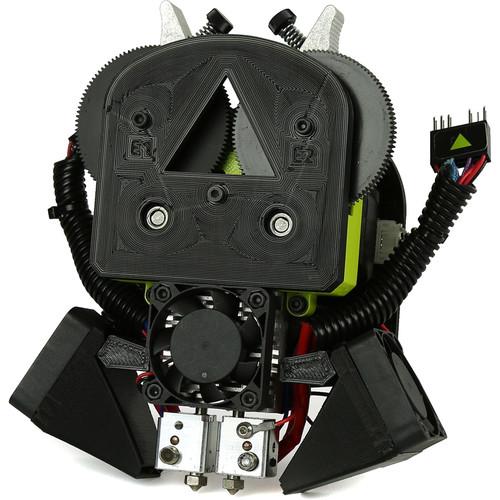

User Manual for LulzBot TAZ Dual Extruder v3 Tool Head Click to enlarge the picture
Contents of the user manual for the LulzBot TAZ Dual Extruder v3 Tool
- Product category: 3D Printer Accessories LulzBot
- Brand: LulzBot
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LulzBot 3D Printer Accessories
|
User manual for the LulzBot TAZ Dual Extruder v3 Tool contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LulzBot product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LulzBot user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LulzBot product will considerably shorten its lifespan!
|
Product description With an improved heat sink and cooling, the LulzBot TAZ Dual Extruder v3 Tool Head is lighter and more compact than its predecessor. This extruder was designed to work with support material, like PVA, which uses water to dissolve and separate from the 3D print. Shipped fully assembled, this extruder doesn't require nozzle leveling or offset calibration when installed. Note: The Z-axis Toggle Extension and Mount should only be used on a TAZ 6 with the Dual Extruder v3 Tool Head. Leaving this extension on the printer and using it with other tool heads will cause failed probes due to the higher registered minimum position. Features - Unibody heatsink with two hot ends
- Works with LulzBot self-cleaning and self-leveling technology
UPC: 810234030335 In the Box LulzBot TAZ Dual Extruder v3 Tool Head 1 x 3D-Printed Z-Axis Endstop Extension Mount (for TAZ 6) 1 x Machined Z-Axis Endstop Extension (for TAZ 6) 1 x Dual v3 Wiper Mount 1 x Additional Spool Arm 1 x Feed Tube Spinner 1 x T-Nut Holder Jig 1 x Idler Jig 4 x Wire Ties 4 x 3D-Printed Low-Profile Bed Corners (for TAZ 5) 2 x Extension Harnesses 1 x M5 Washer (Black) 1 x M5 x 14 Socket Head Cap Screw 1 x Filament Feed Tube 1 x Sample Length of Polylite PLA 1 x Sample Length of PolyDissolve S1 Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LulzBot TAZ Dual Extruder v3 Tool Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLulzBot KT-CP0127 Specs | Required Filament Diameter | 2.85 mm | | Nozzle Diameter | 0.5 mm | | Fans | 2 x 40 mm Axial fans for extrusion cooling (24 V)
1 x 40 mm Axial fan for heat-sink cooling (5 V) | | Temperature Range | 248 - 572°F / 120 - 300°C | | Power | 24 V | | Dimensions | Not specified by manufacturer | | Weight | 2.11 lbs / 0.96 kg | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 8.6 x 8.1 x 7.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
