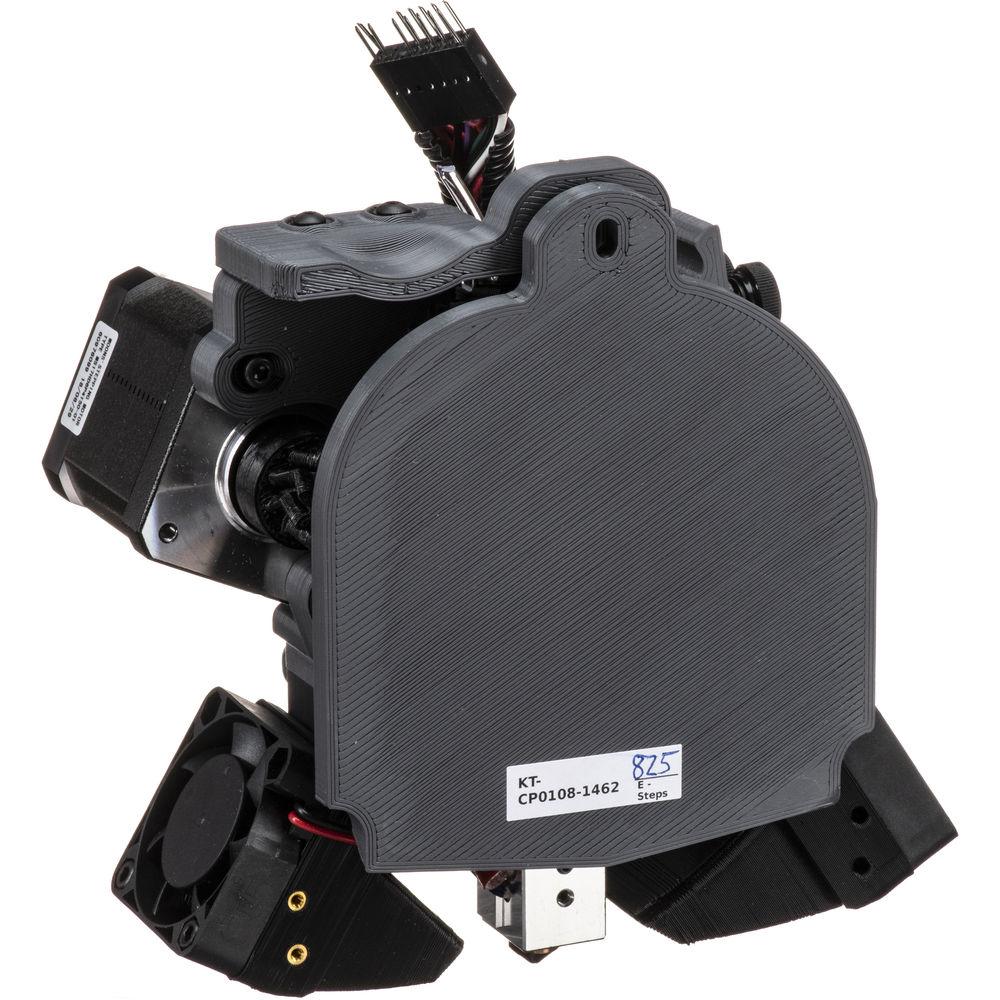

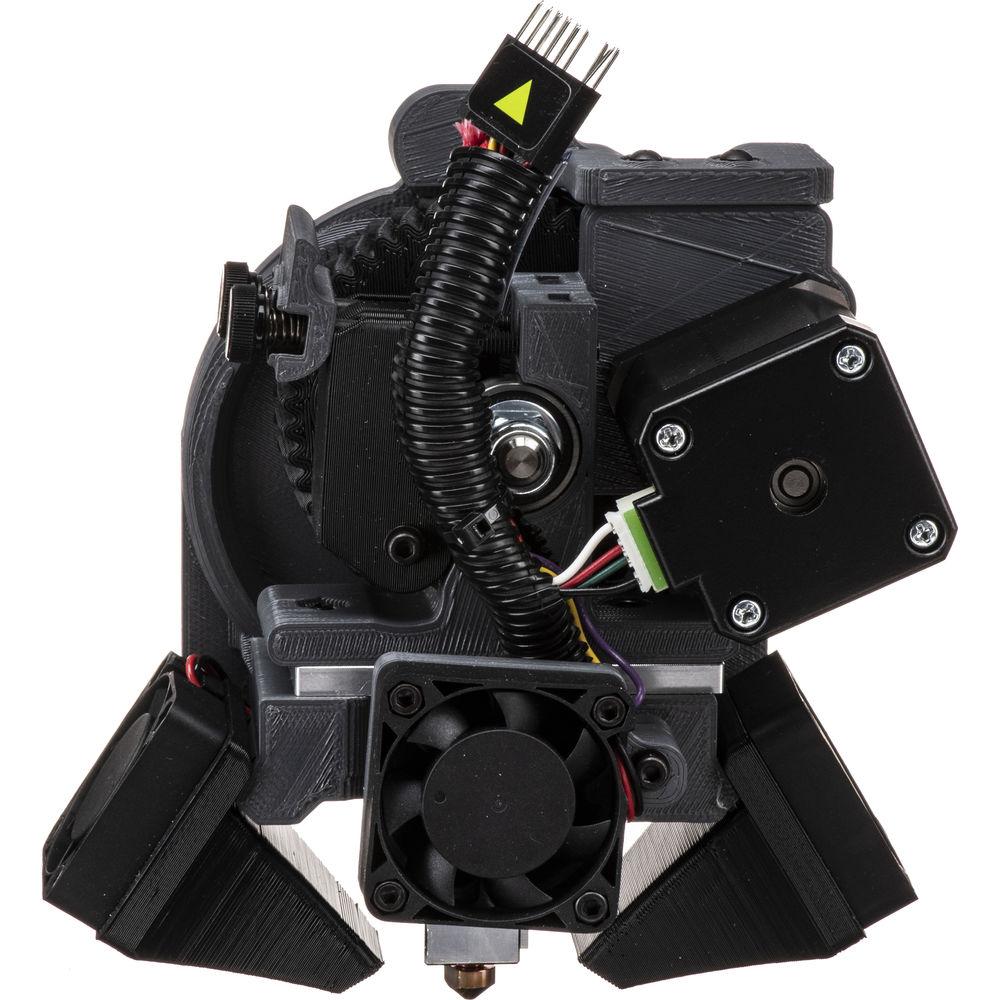

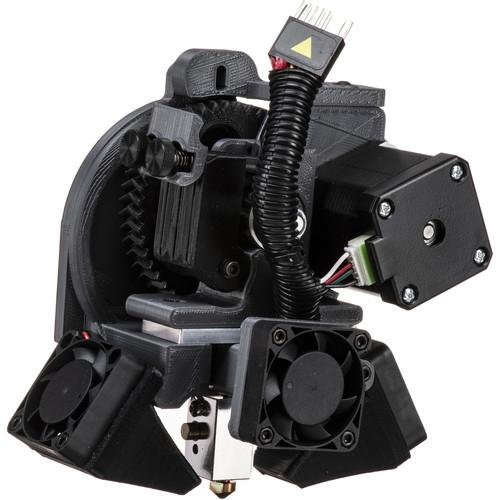

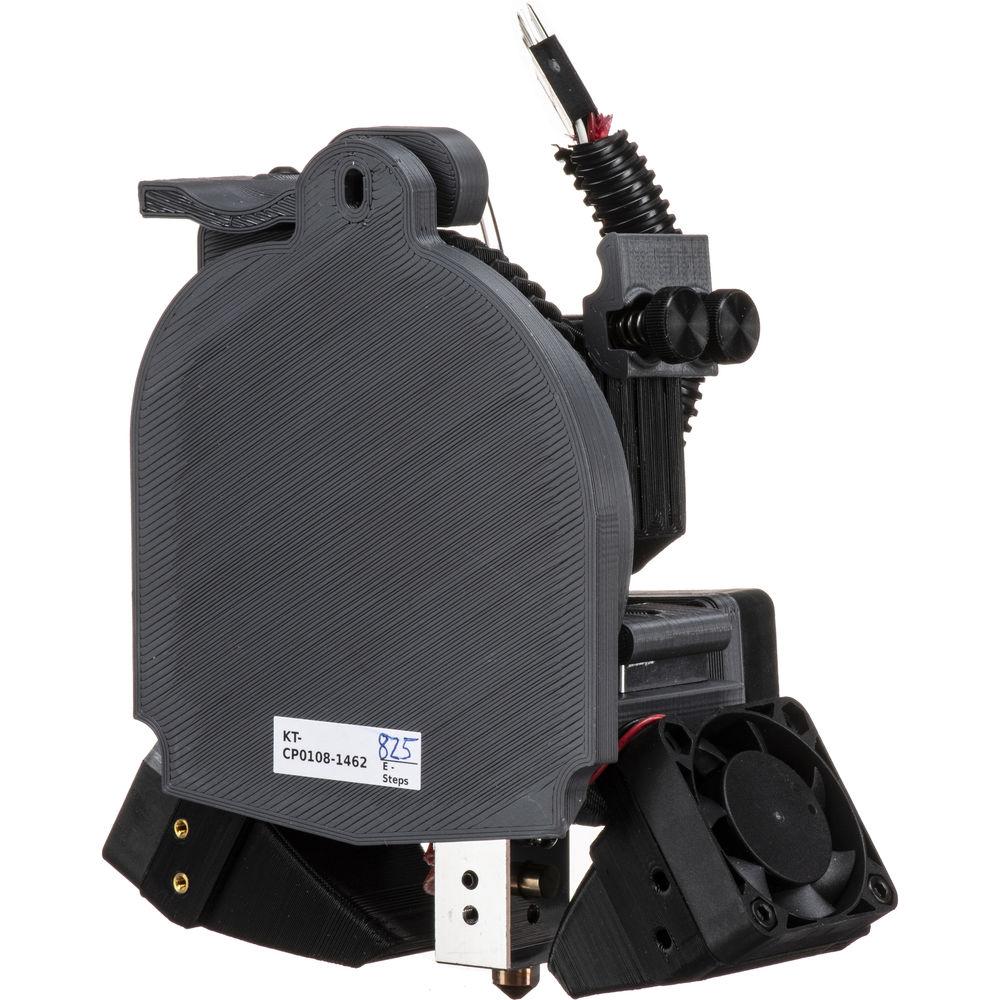

Product description Designed for LulzBot's TAZ 6 and TAZ 5 3D Printers, the TAZ MOARstruder Tool Head from LulzBot is a tool head with a high output of over 3.5 ounces of filament per hour, 2.2 pounds in 10 hours, and over 5 pounds of filament in 24 hours. It is also equipped with a long heater block, dual cooling fans, and a 1.2mm diameter nozzle, all of which help to enable the printing of tough 3D objects, including large ones that utilize the full build area are of the LulzBot TAZ. The larger nozzle diameter also allows for layer heights of 0.3 to 1.2mm and thicker extrusion widths, which help create stronger internal structures and single-walled objects, such as vases, pipes, and containers. If you'd like to create objects with stronger walls and infill, print using smaller layers.
Other improvements to the MOARstruder include a stronger extruder idler latch and a stiffer tool head mount. Other standard features include a filament diameter of 3mm and a hot end temperature range of up to 572°F. Included is Wade's Accessible Extruder, a LulzBot TAZ Extruder Mount, 26.3' of clear T-Glase sample filament, a 0.8" M3 mounting screw, a metal washer, a heatsink, dual cooling fans, and a glue stick.
Please bear in mind that TAZ 5 users with a tool head wiring harness with four connectors will need the LulzBot TAZ 5 v2 Tool Head Harness. General Features - Recommended Filament for Large Scale Objects
- INOVA-1800
nGen
PLA
PolyLite PLA
T-Glase - Discouraged Filament for Large Scale Objects
- ABS
colorFabb_HT
HIPS
Nylon Alloy 910
Polycarbonate
PC-Max (larger prints may crack)
PCTPE (avoid older, moisture-laden filament) UPC: 817752018517 In the Box LulzBot TAZ MOARstruder Tool Head Wade's Accessible Extruder LulzBot TAZ Extruder Mount Clear T-Glase Sample Filament (26.3' / 8m) M3 Mounting Screw (0.79" / 20mm) Metal Washer Elmer's Glue Stick Heatsink 2 x Cooling Fans Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LulzBot TAZ MOARstruder Tool Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLulzBot Tool Head Specs | Required Filament Diameter | 3 mm | | Hot End Temperature Range | 248 to 572°F / 120 to 300°C | | Layer | 300 to 1200 microns / 0.3 to 1.2 mm | | Nozzle Diameter | 1200 microns / 1.2 mm | | Required Power System | 24 V | | Weight | Not specified by manufacturer | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 8.7 x 8.2 x 7.4" |
