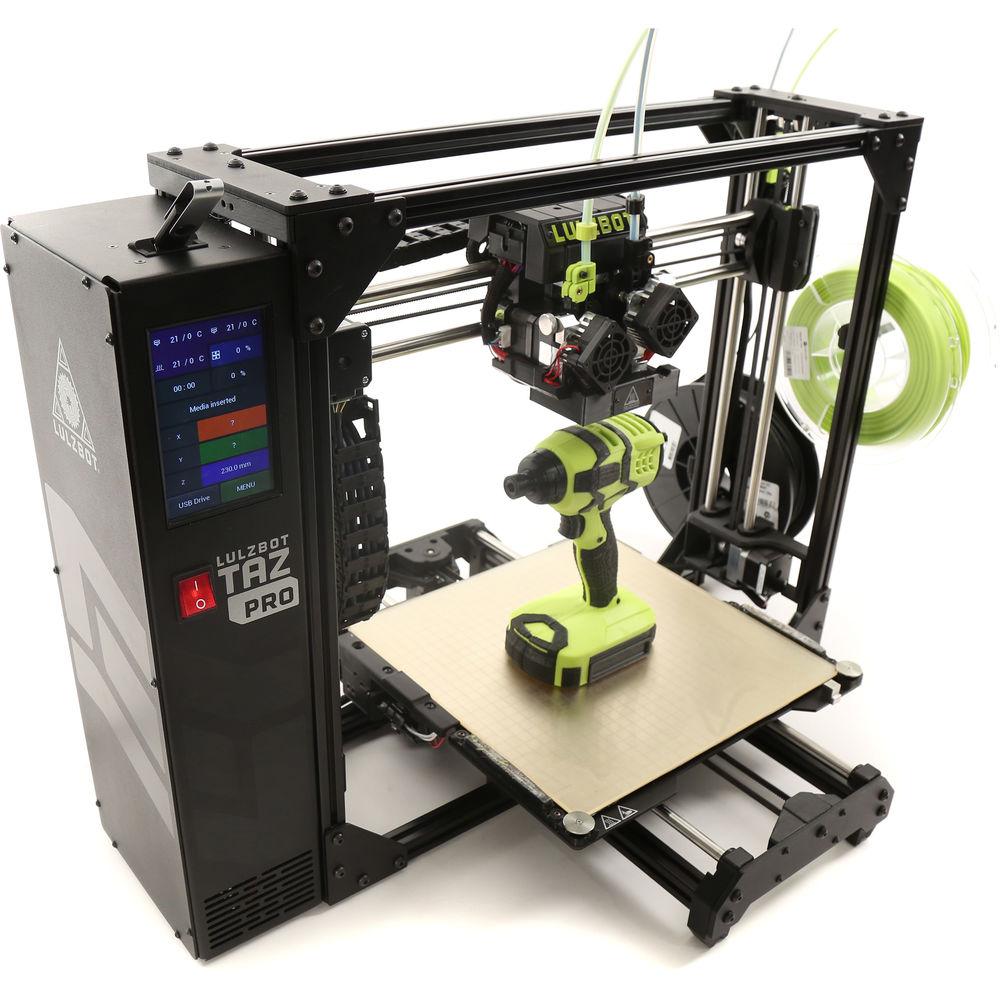

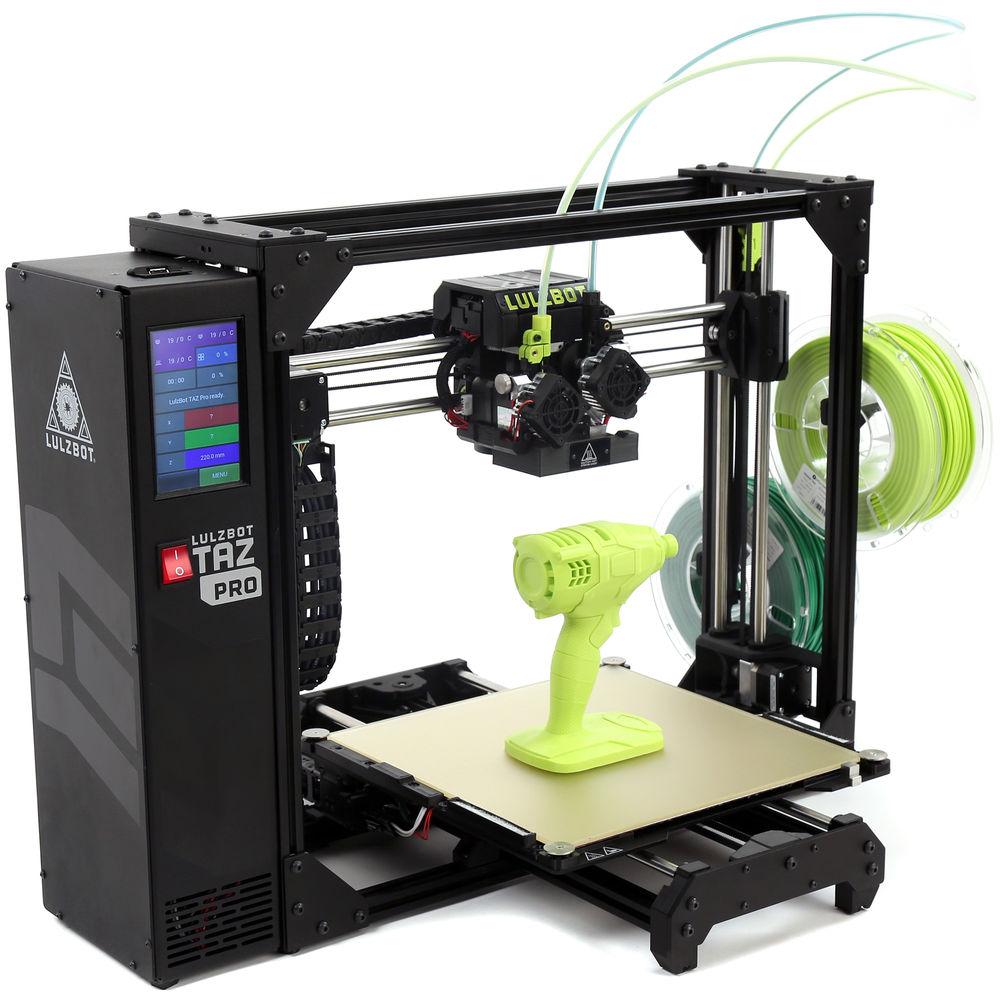

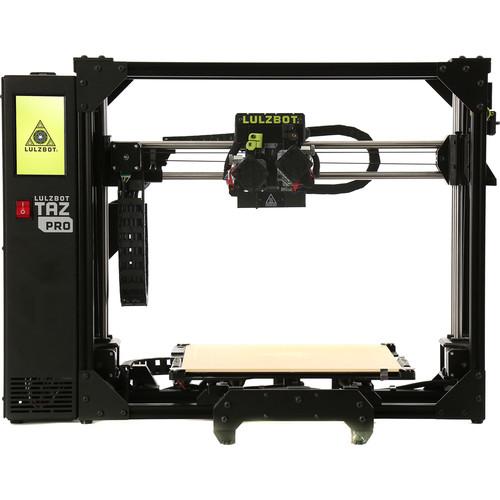

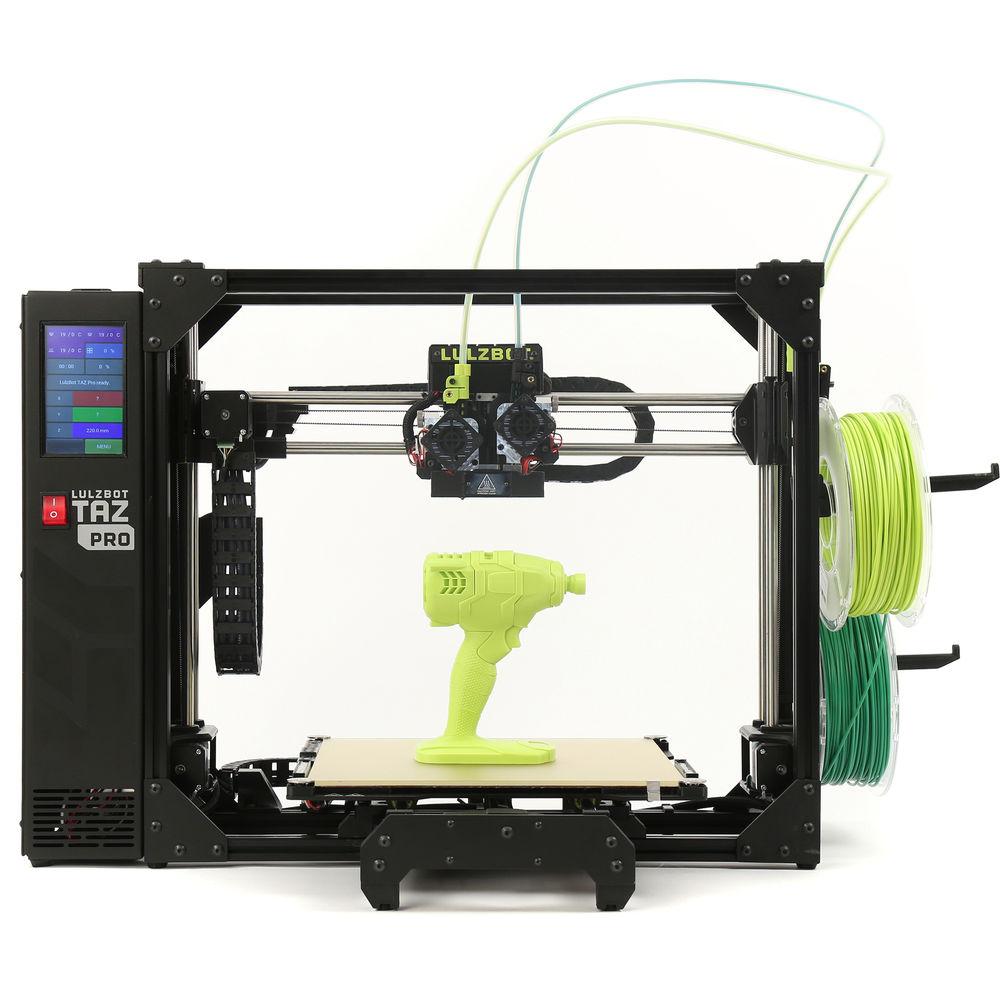

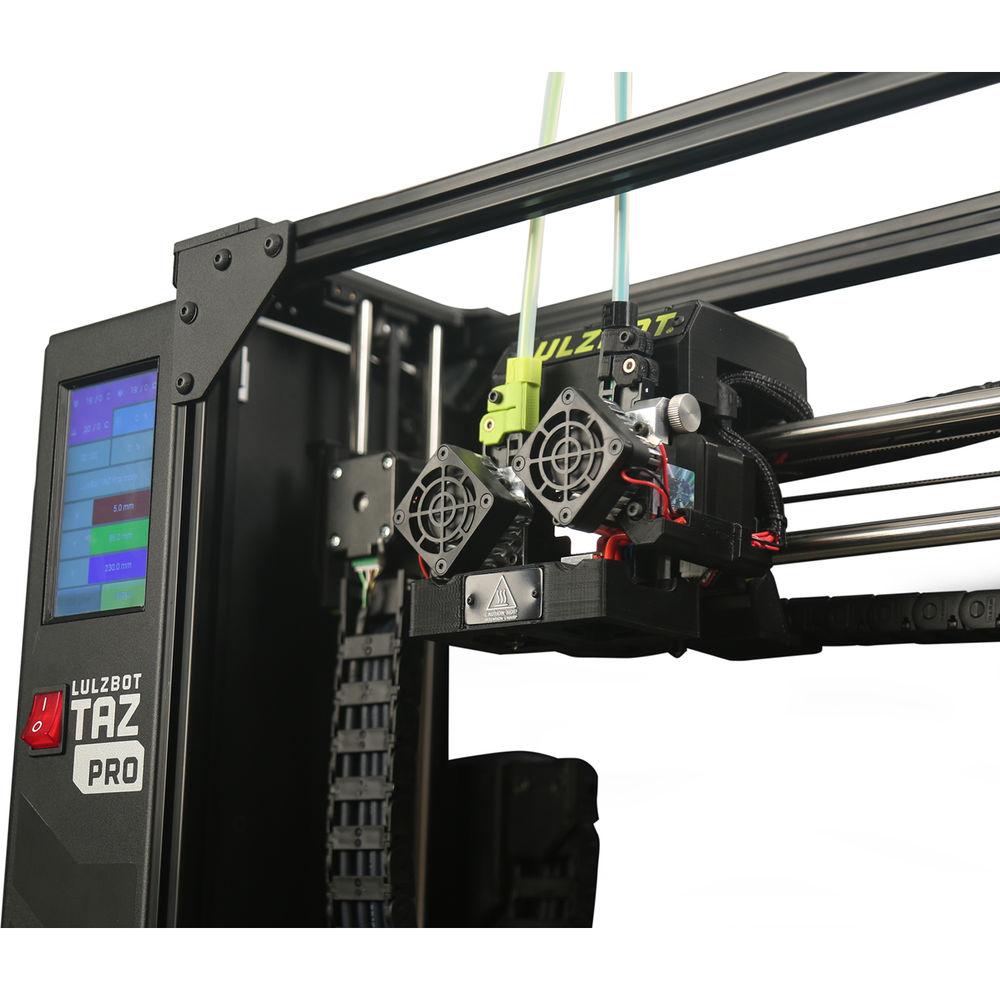

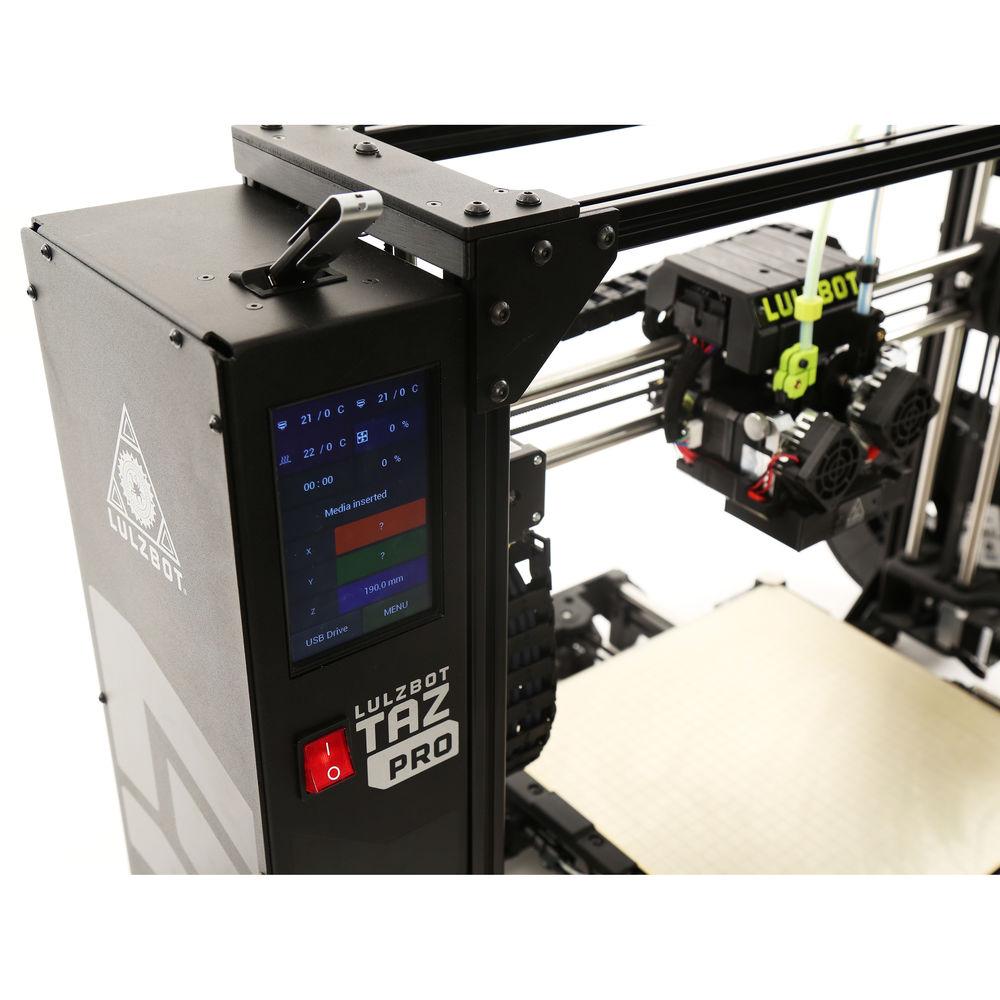

Product description With a build volume of 11.02 x 11.02 x 11.22", the LulzBot TAZ Pro 3D Printer features a layer resolution of 50 to 400 microns, using Fused Filament Fabrication (FFF) technology.The TAZ Pro features dual extruders and two active-lifting hot ends, which enable true multi-material 3D printing of complex parts. The printer has an open filament system that supports 2.85mm filaments made of PLA, ABS, nylon, polycarbonate, carbon fiber reinforced blends, TPU 85A & 95A (flexible), PETG, PETT, copolyester, PVB (polycast), PVA, HIPS, and more. You can print STL, OBJ, X3D, 3MF, PNG, and JPG files in an open chamber. The print bed is heated and supports autoleveling calibration. The hardened steel E3D components enable you to print soft, flexible materials as well as industrial-grade composites. There are also dual filament runout sensors. - Multi-Material
- The TAZ Pro supports multi-material 3D printing with unique filaments, not just different colors. Two active-lifting hot ends enable printing with multiple materials with similar melting points within the same part.
- Soluble Supports
- The TAZ Pro supports water-soluble dedicated support material for complex designs, eliminating the need for time-consuming, manual post-processing.
- Hardened Steel Components
- The hardened steel components of the TAZ Pro enable printing with high-strength and high-heat composites that are too abrasive for typical out-of-the-box desktop 3D printers.
- Flexible-Ready
- Go from printing PLA to 85A shore hardness TPU and back again without changing tool heads. The genuine E3D Titan Aero extruder and hot ends print both rigid and flexible materials with ease.

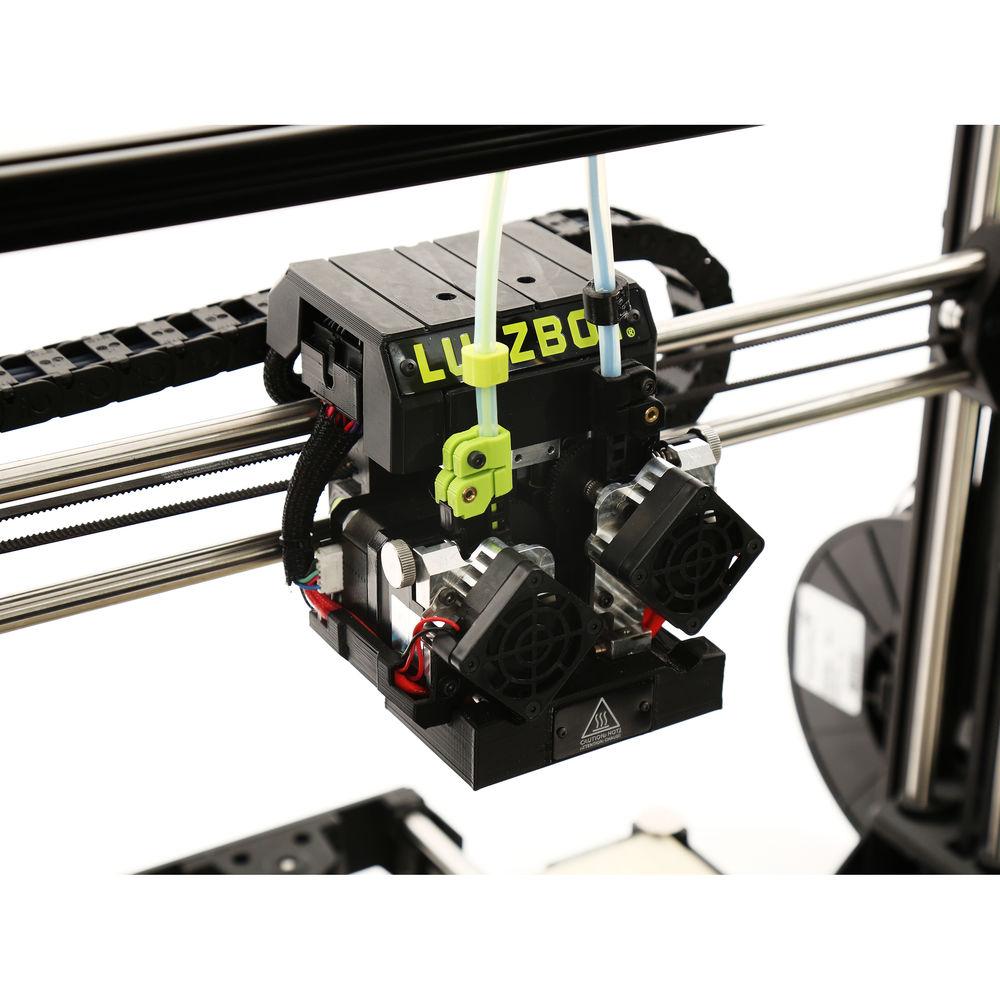

- Premium Hot Ends
- Two genuine E3D Titan Aero hot ends and 360° part cooling deliver premium prints while improved heat sink cooling prevents filament stripping during printing.
- Belt Driven Z Axis
- A belt driven Z-axis technology exclusively found on LulzBot 3D printers eliminates "Z wobble" print artifacts often caused by threaded rods while simultaneously speeding up cycle times.
- Professional Material Profiles
- Tweak designs, not material profiles. The dedicated in-house technicians spent hundreds of hours verifying material quality and crafting ready-to-print profiles. All that's left for you to do is click "print."
- Automatic Backlash Compensation
- A concept used in professional-grade CNCs, the LulzBot TAZ Pro uses an innovative calibration cube to measure and compensate for X/Y/Z backlash, which increases printed part precision.
In the Box LulzBot TAZ Pro 3D Printer 4GB USB Flash Drive Filament Feed Tube Toolkit Bag 15-Piece Metric Hex Key Set Needle Nose Pliers Tweezers Standard Precision Knife Dental Pick Part Removal Knife (Claim Knife) Metric Ruler Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the LulzBot TAZ Pro 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLulzBot KT-PR0050NA Specs | | | Print Technology | Fused Filament Fabrication (FFF) | | Build Volume | 11.02 x 11.02 x 11.22" / 28.0 x 27.99 x 28.5 cm (2 Extruders) | | Number of Extruders | 2 | | Layer Resolution | XY Axis: 50 to 400 micron / 0.05 to 0.4 mm | | Supported Extruder Nozzle Diameter | 500 micron / 0.5 mm | | Extruder Nozzle Temperature | 554°F / 290°C | | Positioning Precision | XY Axis: 10 micron / 0.01 mm
Z Axis: 1 micron / 0.001 mm | | Print Speed | 200 mm/s | | Filament Compatibility | 2.85 mm Diameter:
ABS, Copolyester, HIPS, Nylon, PETG, PETT, PLA, PVA, PVB, Polycarbonate, TPU | | | | Build Area Type | Open | | Build Plate Features | Auto Leveling, Heated | | Build Plate Temperature | 248°F / 120°C | | Build Plate Composition | Borosilicate Glass | | Filament Spool Storage | External | | | | Wired Connections | 1 x USB Type-B (USB 2.0) | | Wi-Fi | None | | Media Card Slots | Yes | | | | Supported Operating Systems | Linux (Version Unspecified)
Windows (Version Unspecified)
macOS X (Version Unspecified) | | Supported 3D File Types | .3mf, .obj, .stl, .x3d | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 41 to 113°F / 5 to 45°C | | Dimensions (W x H x D) | 32.68 x 20.47 x 27.95" / 83 x 52 x 71 cm | | Weight | 37 lb / 16.8 kg (Without Filament) | | Warranty Length | Limited 1-Year Warranty |
