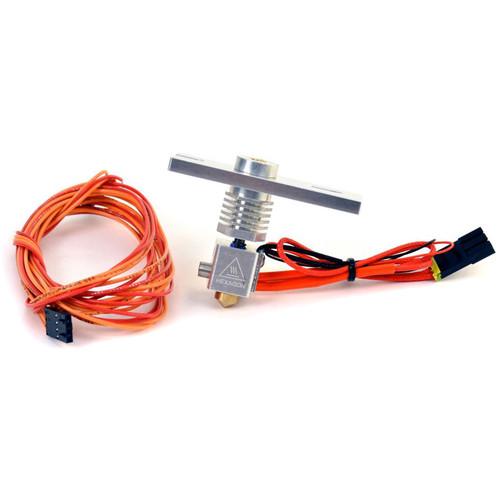

User Manual for LulzBot v2 Hexagon Hot End Kit Click to enlarge the picture
Contents of the user manual for the LulzBot v2 Hexagon Hot End Kit
- Product category: 3D Printer Accessories LulzBot
- Brand: LulzBot
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for LulzBot 3D Printer Accessories
|
User manual for the LulzBot v2 Hexagon Hot End Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any LulzBot product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official LulzBot user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a LulzBot product will considerably shorten its lifespan!
|
Product description Created for custom 3D printers and compatible with 3.0mm filament, the LulzBot v2 Hexagon Hot End Kit has a 0.35mm nozzle that delivers fine surface details. Designed as an upgrade for your RepRap or other DIY 3D printer, its all-metal construction raises the maximum extrusion temperature to 572°F, and a lengthened heater block increases the melting zone to allow faster and more reliable printing. There is also a compact cooling zone that helps provide cooling without sacrificing build area. Included is a 24V ceramic heater cartridge, an NTC 100K thermistor, an aluminum mounting plate, and a non-terminated heater and thermistor wire extension. General Features - Print Exotic & Specialty Filament
- Use exotic and specialty filaments with confidence using the LulzBot v2 Hot End. This 0.35mm nozzle delivers fine surface details. It is also capable of fine layer heights of 0.05mm and as large as the nozzle diameter.
- Compatibility
- The LulzBot v2 Hexagon Hot End is not a drop-in replacement for the LulzBot TAZ or LulzBot Mini due to wiring differences that require additional steps for use. It is designed for RepRap and DIY 3D printers. If you need assistance with your tool head, please contact the LulzBot support team.
- Recommended Item
- This LulzBot v2 Hexagon Hot End requires active cooling. LulzBot recommends using the same 5.5V Micro Blower that they use on their LulzBot TAZ and LulzBot Mini 3D Printers.
UPC: 817752016575 In the Box LulzBot v2 Hexagon Hot End Kit (0.35mm Nozzle) 24V Ceramic Heater Cartridge NTC 100K Thermistor Aluminum Mounting Plate Heater and Thermistor Wire Extension (not terminated) Table of Contents
|
Upload User Manual
Have you got an user manual for the LulzBot v2 Hexagon Hot End Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLulzBot HE-SH0038 Specs | Recommended Filament Diameter | 3 mm | | Nozzle Diameter | 0.35 mm | | Recommended Always-On Cooling Fan | 5.5 V Micro Blower | | Alternate Fan Shroud | Sized for 30 or 40 mm fans | | Extrusion Temperature | 572°F / 300°C (max) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 4.5 x 3.5 x 3.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
