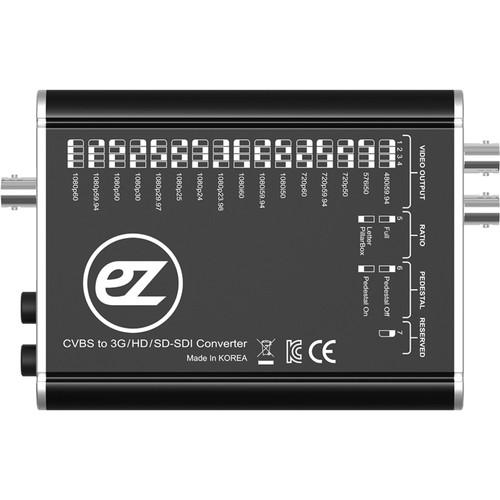

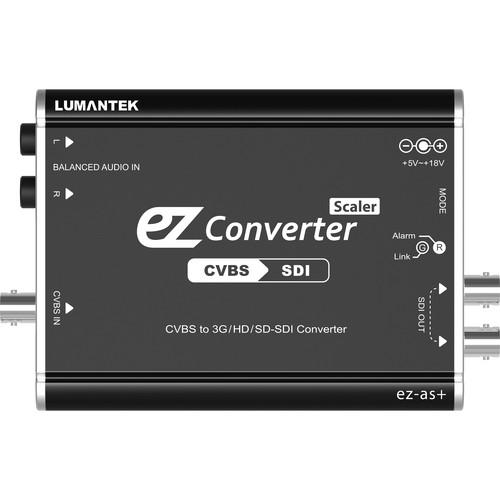

Product description The CVBS to 3G/HD/SD-SDI Converter from Lumantek allows you to convert a CVBS video signal to dual 3G/HD/SD-SDI outputs in resolutions from 480i to 1080p60. Video formats conversion setting done via dip switches. It lets you connect a CVBS source to two SDI monitors, such as one locally and one remotely. - Change resolutions from SD to Full HD with dip switch
In the Box Lumantek CVBS to 3G/HD/SD-SDI Converter with Scaler Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumantek CVBS to 3G HD SD-SDI Converter with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumantek ez-as+ Specs | Video Formats | 1920 x 1080p at 23.94/24/25/29.97/30/50/59.94/60
1920 x 1080i at 50/59.94/60
1280 x 720p at 50/59.94/60
720 x 576i at 50
720 x 480i at 59.94 | | Input | 1 x BNC female 75 Ohms, CVBS composite video | | Audio | 2 x 1/4" phone jack, balanced input | | Output | 2 x BNC female 75 Ohms, 3G/HD/SD-SDI video | | Control | Dip switch, conversion configuration | | Audio Sample Rate | 48 kHz | | DC Power Input | 5-18 VDC | | Power Consumption | < 3 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Relative Humidity | 0 - 90% | | Dimensions | 6.1 x 3.9 x 1.1" / 15.4 x 9.9 x 2.8 cm | | Weight | 10.7 oz / 305 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 8.2 x 5.9 x 3.7" |
