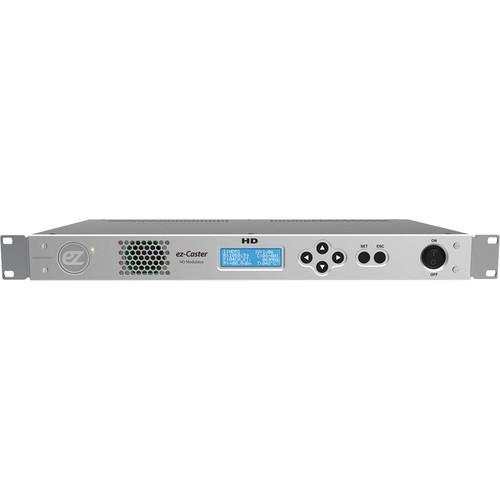

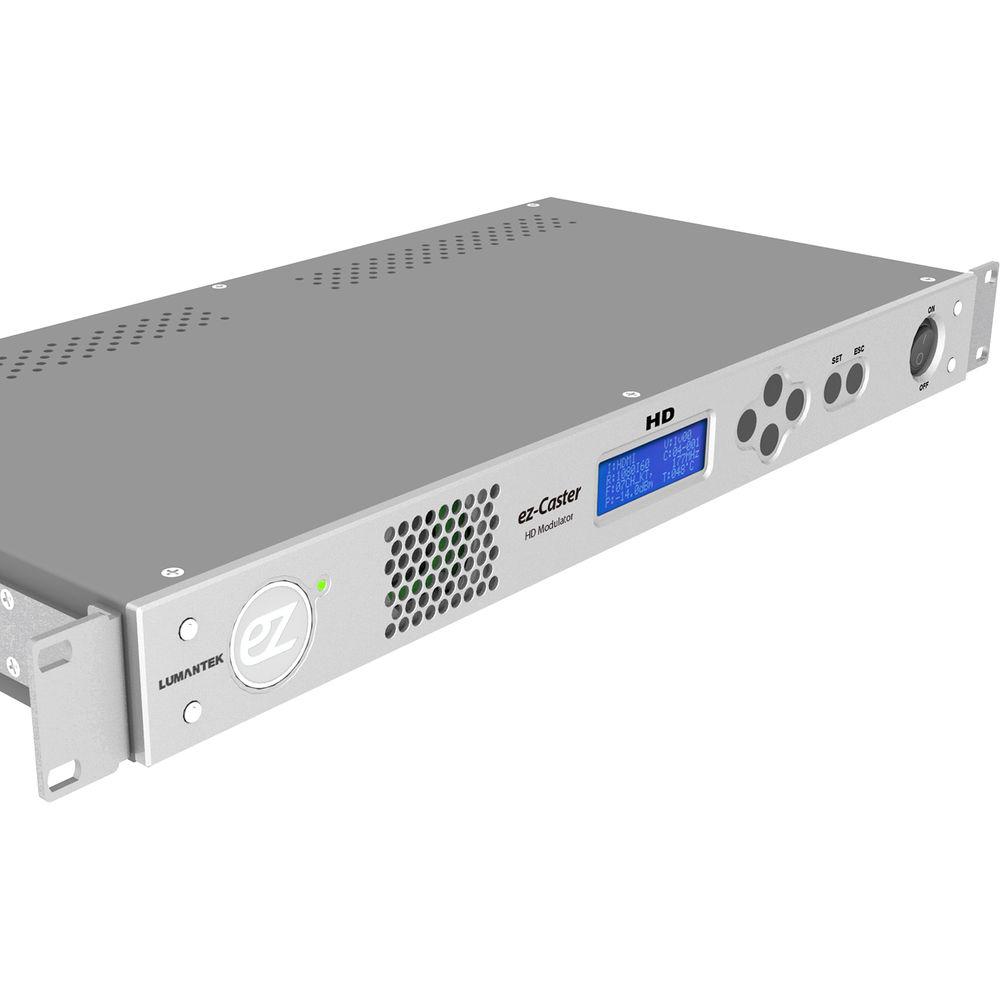

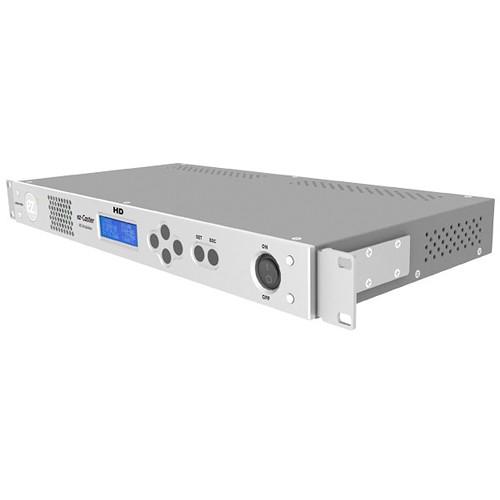

Product description The ez-Caster EN3 MPEG2/H.264 HD Encoder/ATSC Modulator from Lumantek is an audio/video system with AV encoding and multiplexing technology. It is designed for small studio applications. It enables a simultaneous video/audio encoding technology and modulation in a single device. The encoder is optimized for the Korean terrestrial TV environment, supporting Mpeg-2 video and AC3 Audio technology as well as the 8VSB modulation. The system supports HDMI, HD-SDI, component and composite inputs with HDMI, HD-SDI, analog stereo audio (L/R) for audio inputs. In the Box Lumantek ez-Caster EN3 MPEG2/H.264 HD Encoder/ATSC Modulator Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumantek ez-Caster EN3 MPEG2 H.264 HD Encoder ATSC Modulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

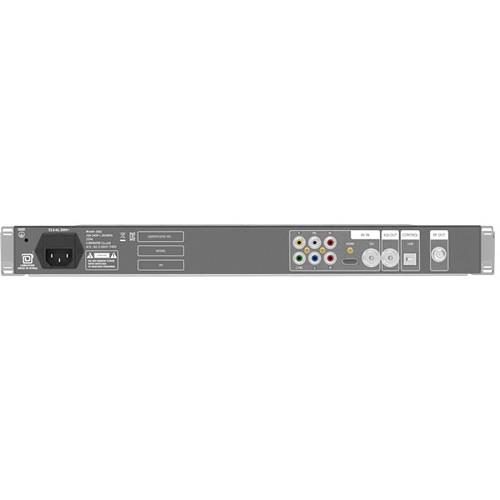

Technical parametersLumantek EZ-CASTER EN3 Specs | Type | HD Encoder + 8VSB Modulator | | Inputs | SD/HD-SDI: 1 x BNC, 75 Ohms
HDMI: 1 x HDMI 1.4a (HDCP not supported)
Component: 1 x 3RCA YCbCr, 170M Hz 12-bit ADC
Composite: 1 x RCA, CVBS, 3D comb filter
Analog Stereo Audio: 2 x RCA (left/right) | | Video Resolutions | 1920 x 1080p: 60/59.94 (automatic convert to interlaced format)
1920 x 1080i: 60/59.94
1280 x 720p: 60/59.94
720 x 480i: 59.94 (NTSC)
Resolution detect and automatic/manual change support | | System | System Delay: 150, 200, 350, 650 ms
TS Bit Rate: 4.5 to 25 Mb/s
Editable TS ID, PMT/PCR/Video/Audio PID | | Video Encoder | MPEG2, H.264
MPEG2 HD/SD (MP @ HL / MP @ ML), H.264 HD/SD (HP @ L4 / HP @ L3)
Bit Rate: (MPEG2) 5 to 22 Mb/s, (H.264) 3.5 to 22 Mb/s
Closed caption support | | Audio Encoder | MP1L2, Dolby AC3, AAC-LC, HE-AACv2 (Stereo)
Bit Rate: 192 to 384 kb/s (HE-AACv2 32 to 96 kb/s)
Sample Rate: 48 kHz
Audio Delay: 0 to 400 ms
Volume Control: 100 to 500% | | Generators | PSIP:
MGT, TVCT generation enable/disable
Short name, major and minor channel number setting | | Output | ASI
1 x BNC, 75 Ohms
Packet Size: 188 Bytes
TS Bit Rate: 19.392 Mb/s
Transport Stream
1 x RJ45, 100 BaseT TS over IP | | RF Output | Modulation: ATSC (8VSB)
Connector: 1 x F-Type, 75 Ohms
Output Level: +2 to -18 dBm (0.5 dB step)
Center Frequency Range: 40 to 999 MHz
MER: >36 dB
Spurious: 60 dBc (relative to output level)
Phase Noise: VHF 110 dBc @ 20 kHz, UHF 95 dBc @ 20 kHz | | Latency | Ultra Latency: 150 ms
Latency Control: 200, 350, 600 ms | | Management | Front Panel: 4-line text LCD, 6 buttons, status LED (RGB)
Rear USB Port: GUI, Firmware update | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Power Requirements | 110 or 220 VAC | | Power Consumption | 25 W maximum | | Dimensions | 19.0 x 9.44 x 1.7" (483 x 240 x 44 mm) | | Weight | 4.4 lb (2 kg) |
