User Manual for Lumantek ez-Caster EN8 8-Channel H.264 Video-IP Encoder Click to enlarge the picture
Contents of the user manual for the Lumantek ez-Caster EN8 8-Channel H.264 Video-IP
- Product category: Signal Converters Lumantek
- Brand: Lumantek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumantek Signal Converters
 |
User manual for the Lumantek ez-Caster EN8 8-Channel H.264 Video-IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumantek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumantek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumantek product will considerably shorten its lifespan!
|

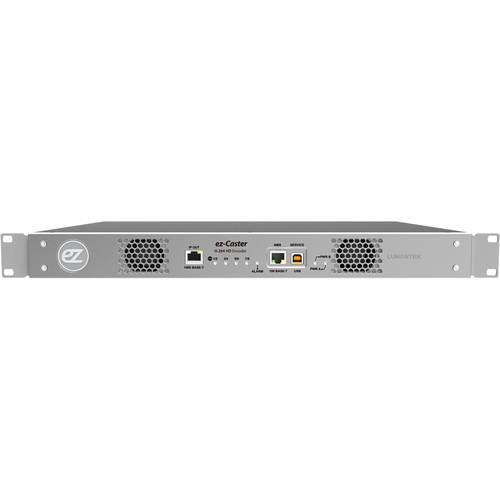

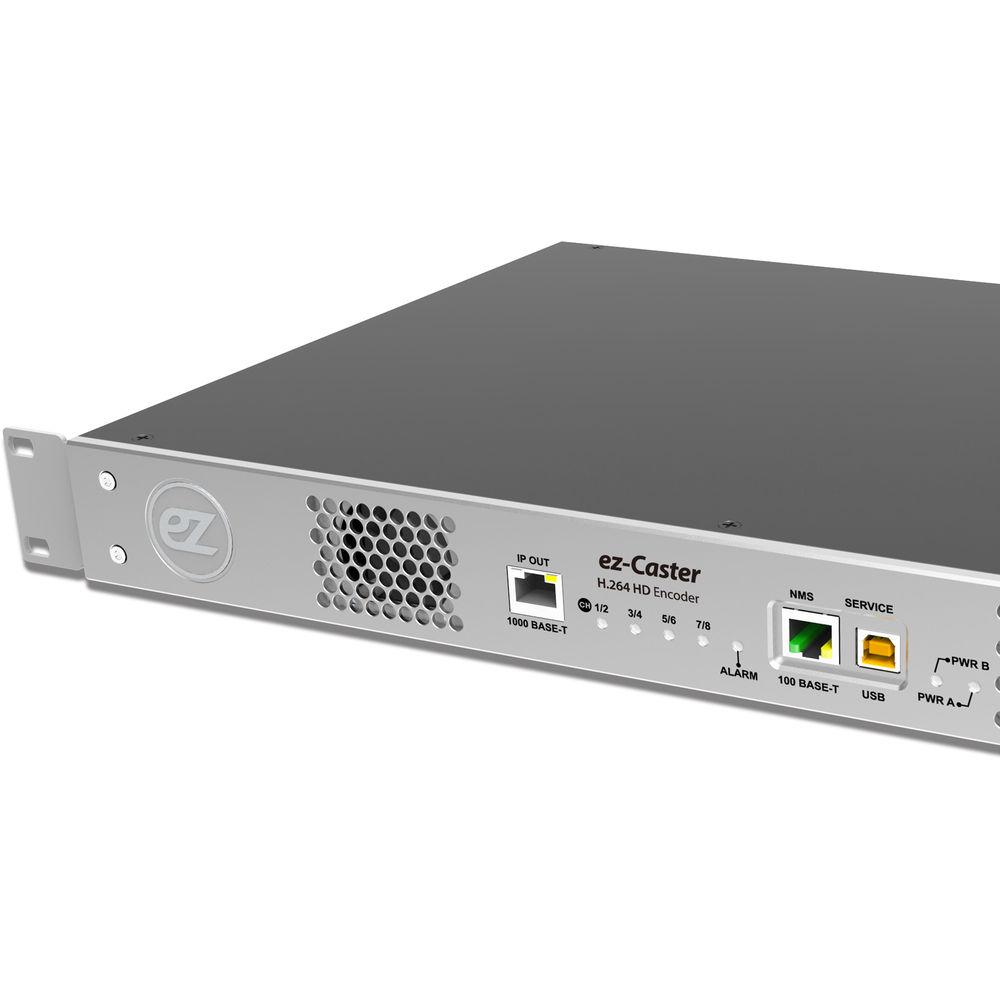

Product description The ez-Caster EN8 8-Channel H.264 Video-IP Encoder from Lumantek consists of 8 HDMI inputs and one IP output. It supports H.264 video compression and MPEG-1 Layer2, MPEG-2-AAC,MPEG-4-AAC for audio compression. It connects to a maximum of 8 satellite or cable STB for HD video signal and then distributes it over an IP based network, such as LAN and Intranet. Furthermore, the encoder turns an HDMI video stream into a network video system and enables users to view live images and HD video using a video management software on any local IP STB or remote computer on a network. - H.264 real-time hardware encoding

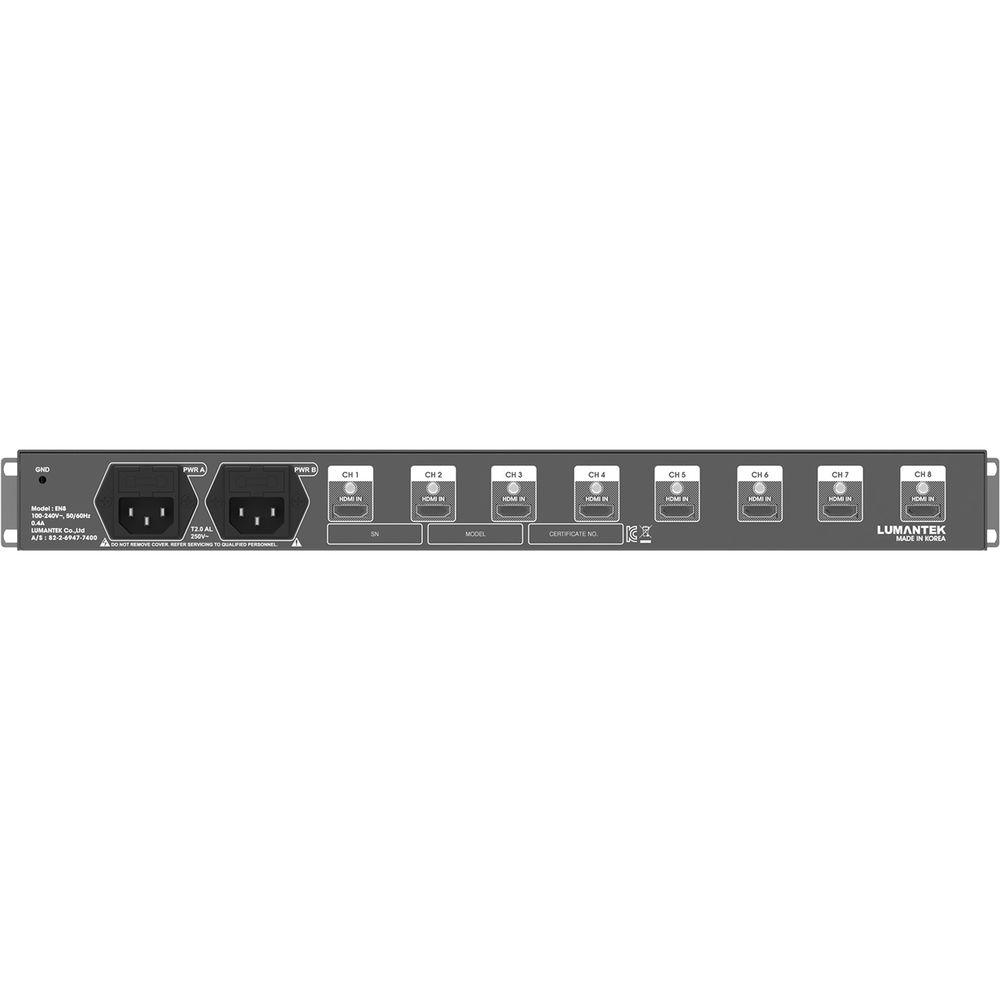

- Up to 1080p resolution, 8 x HDMI inputs
- Stereo audio encoding (MPEG1, Layer 2, MPEG2-AAC, MPEG4-AAC)
- Multicast/Unicast (UDP IP stream)
- 1080p, 1080i, 720p, 480i output resolution setting
- 8-channel TS over IP (SPTS)
- Resolution auto detective (auto locking)
- NMS support (LAN: RJ45, USB 2.0) SW UI support

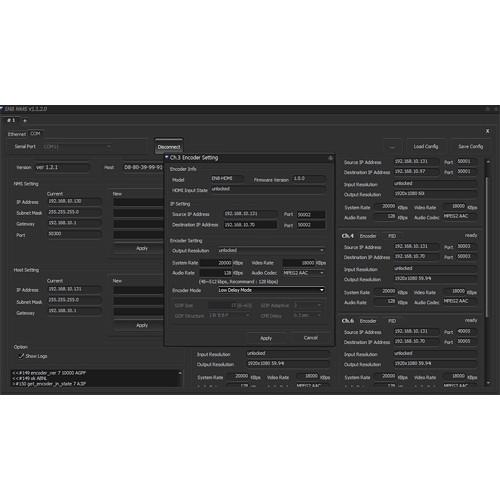

- GUI included for remote controlling
In the Box Lumantek ez-Caster EN8 8-Channel H.264 Video-IP Encoder Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumantek ez-Caster EN8 8-Channel H.264 Video-IP Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumantek EZ-CASTER EN8 Specs | System | Normal Mode: 150 ms + (300 ms / 500 ms / 1000 ms)
Low Latency Mode: 120 ms
TS Bit-Rate: 4 to 20 Mb/s | | Ports | 8 x HDMI input
1 x TS over IP output | | Video Encoder | Support Input Resolutions
1920 x 1080 @ 60i/59.94i/50i/30p/29.97p/25p/24p/23.98p
1280 x 720 @ 60p/59.94p/50p
720 x 480 @ 60i/59.94i (NTSC)
720 x 576 @ 50i (PAL)
Automatic resolution detection
Support for resolution conversion
Video Bit-Rate: 3.5 to 18 Mb/s
TS ID, PMT/PCR/VIDEO/AUDIO PID modifiable
Profile: HD (HP @ L4) / SD (HP @ L3)
Advanced settings (option)
Support GOP structure setting
Normal mode/Low latency mode configuration
CPB Delay (300 ms / 500 ms / 1000 ms) configuration | | Audio Encoder | MPEG1 Layer II Stereo Encoder
Output Bit-Rate: 64/96/112/128/160/192/224/256/320/384 kb/s
Encoding Sample Rates: 48 kHz
MPEG2 AAC, MPEG4 AAC
Output Bit-Rate: 48 to 512 kb/s
Audio Sample Rate: 48 kHz | | IP | Ethernet 1000Base-T
Connector: RJ45
Streaming Protocol: MPEG2-TS/UDP
Transport Protocol: UDP, Unicast or Multicast | | Management | Windows Application (NMS)
Ethernet 10Base-T/100Base-TX
Support USB 2.0 | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Power Requirements | 100 to 240 VAC, 50/60 Hz, 0.4 A | | Power Consumption | 30 W maximum | | Dimension | 1.7 x 16.5 x 11.4" (45 x 420 x 290 mm) | | Weight | 4.6 lb (2.1 kg) | | | | Package Weight | 11.4 lb | | Box Dimensions (LxWxH) | 20.6 x 20.0 x 7.3" |
