Product description

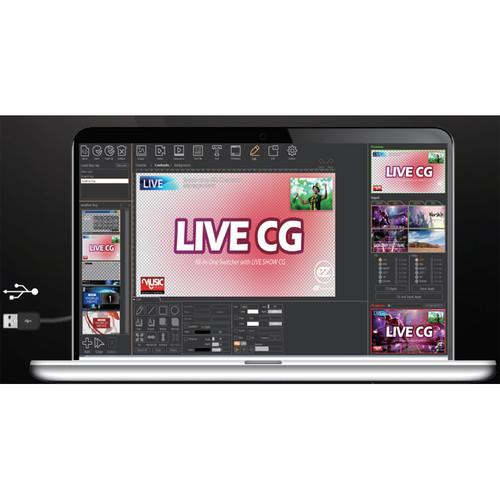

The ez-CGER HD Switcher & Graphic Mixer from Lumantek includes the ez-CGER hybrid system and the ez-LiveSurface control surface. The ez-CGER is comprised of CG software and a video switcher. It communicates with the CG software for system control, and can be connected to a PC through USB 3.0 ports. The system supports up to six media input sources via four HD-SDI and two HDMI ports. The CG is mixed with the input sources by software via USB 3.0 and transmitted through HD-SDI/HDMI/VGA outputs.

The system also features one each SDI, HDMI, and VGA output ports for transmitting signals with various resolutions. The multiview output enables users to monitor up to four live input sources, as well as PiP. The ez-CGER system supports HDMI/SDI embedded audio or XLR external audio. In addition, SDI or HDMI input audio inputs are synchronized with the video and can be switched seamlessly without generating any noise.
  • File play input for CG software
  • HD level input and output resolution support
  • Various HDMI/VGA output resolution support with the scaler
  • User-friendly interface

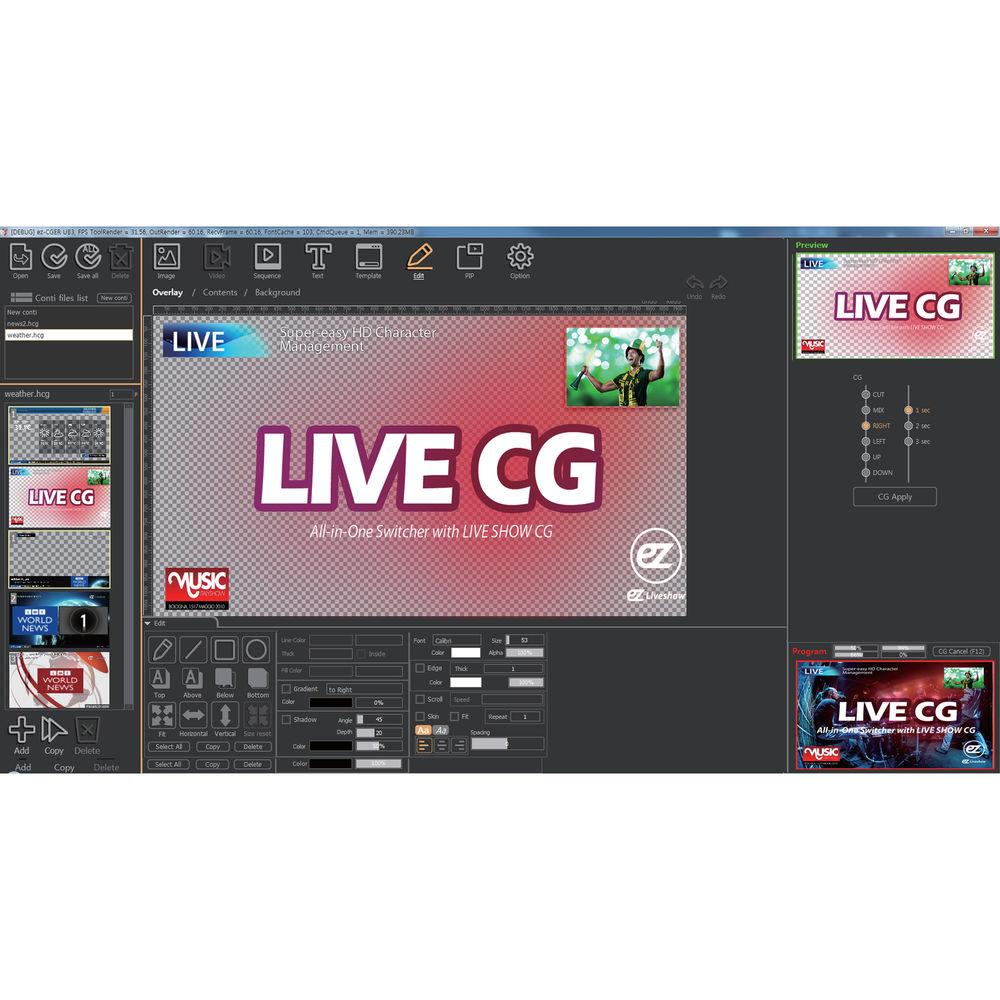

  • Insert texts, images, sequences, videos, and widgets
  • Black console included (connected through Ethernet cable)
In the Box Lumantek ez-CGER HD Switcher & Graphic Mixer with ez-LiveSurface Control Surface

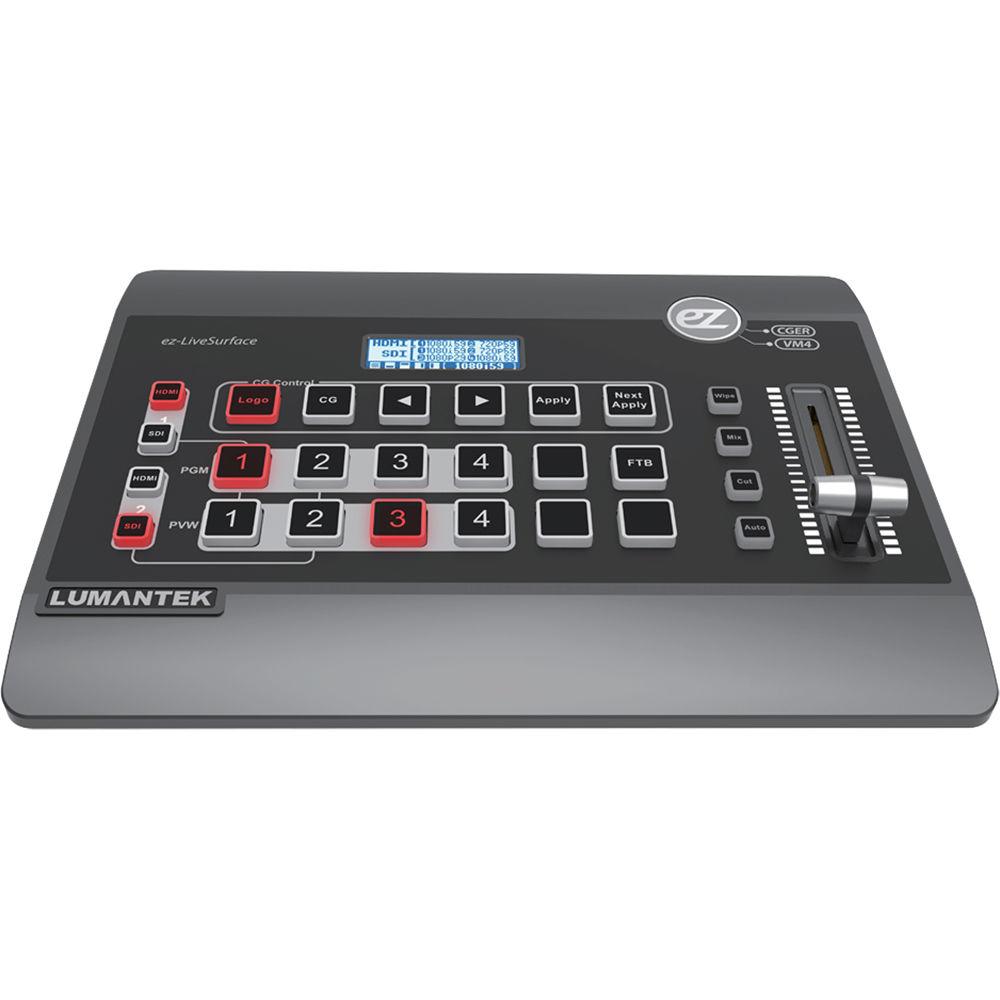

  • ez-LiveSurface Control Surface
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lumantek ez-CGER HD Switcher & Graphic Mixer with ez-LiveSurface Control Surface in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lumantek EZ-CGER VM4 Specs

    Inputs Video:
    2 x HD-SDI or HDMI
    2 x HD-SDI only

    Fill & Key Input:
    1 x USB 3.0

    Audio:
    2 x XLR, stereo

    1 x File input (various formats)
    Outputs Video:
    1 x SDI

    Scaled Video:
    1 x HDMI
    1 x VGA

    Multiview (4x1):
    1 x USB 3.0
    USB USB 3.0 Video Streamer Device: Fill and key input, multiview output
    USB 2.0 USB to Serial (COM Port) Device: Control
    USB 2.0 USB to SPI Device: Firmware update
    System Requirements OS: Windows 7, Windows 8, 32-bit/64-bit
    CPU: Intel i5 2.8 GHz and above
    USB 3.0 host controller
    For Software Installation
    OS: Windows 7 or higher version
    CPU: 4th generation intel i7 or above
    RAM: 8 GB or above
    Graphics: GeForce GTX 750 or above
    Monitor Resolution: 1920 x 1080 or above
    USB 3.0 port
    Internal Video Processing Video Switcher: YCbCr 4:2:2 10-bit
    Fill & Key Input: RGBA 4:4:4:4 8-bit
    Multiview Output: YCbCr 4:2:2 8-bit
    Resolution Supported 1080p 60/59.94/50 (converted to 1080i automatically)
    1080i 60/59.94/50/30/29.97/25
    720p 60/59.94/50
    Management Device status LED (front)
    USB for GUI application, firmware update (rear)
    Power Consumption 30 W maximum
    Operating Temperature 32 to 104°F / 0 to 40°C
    Dimensions (H x W x D) 1.73 x 19 x 9.4" / 4.4 x 48.3 x 24.0 cm
    Weight 6.8 lb / 3.1 kg
