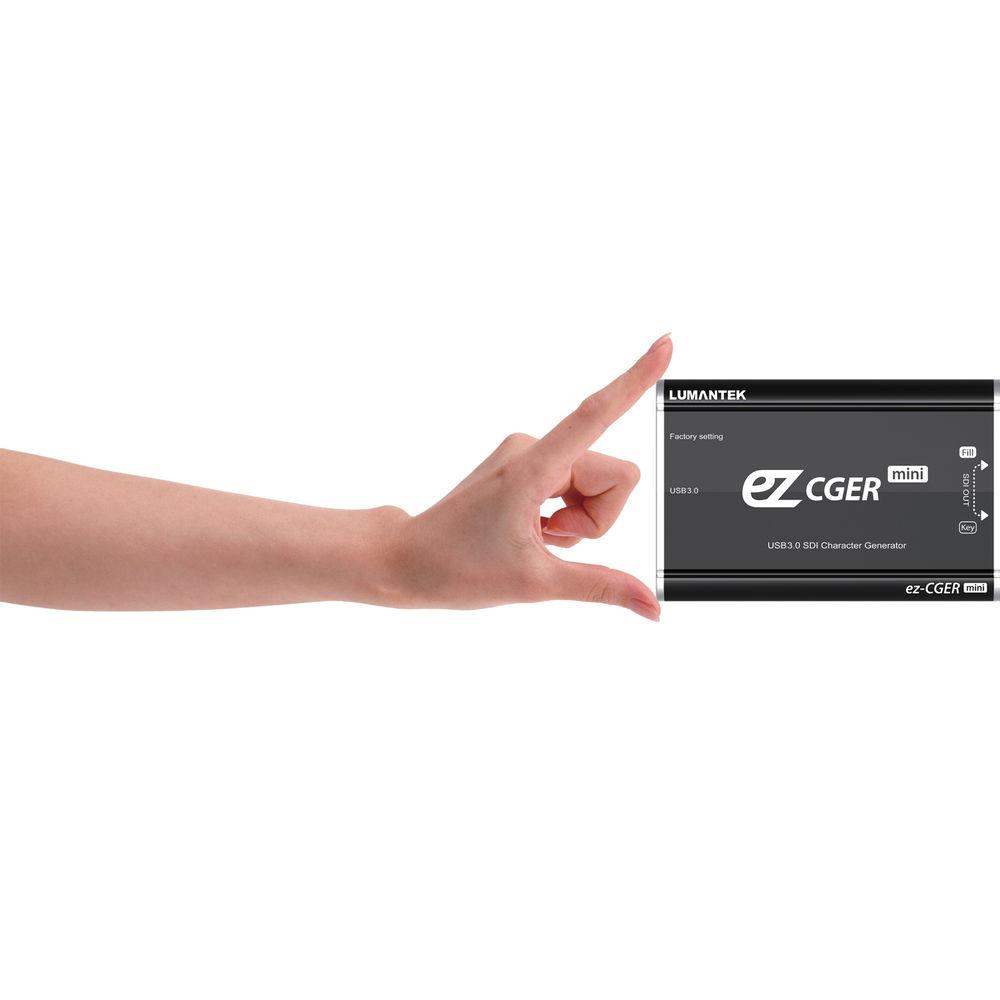

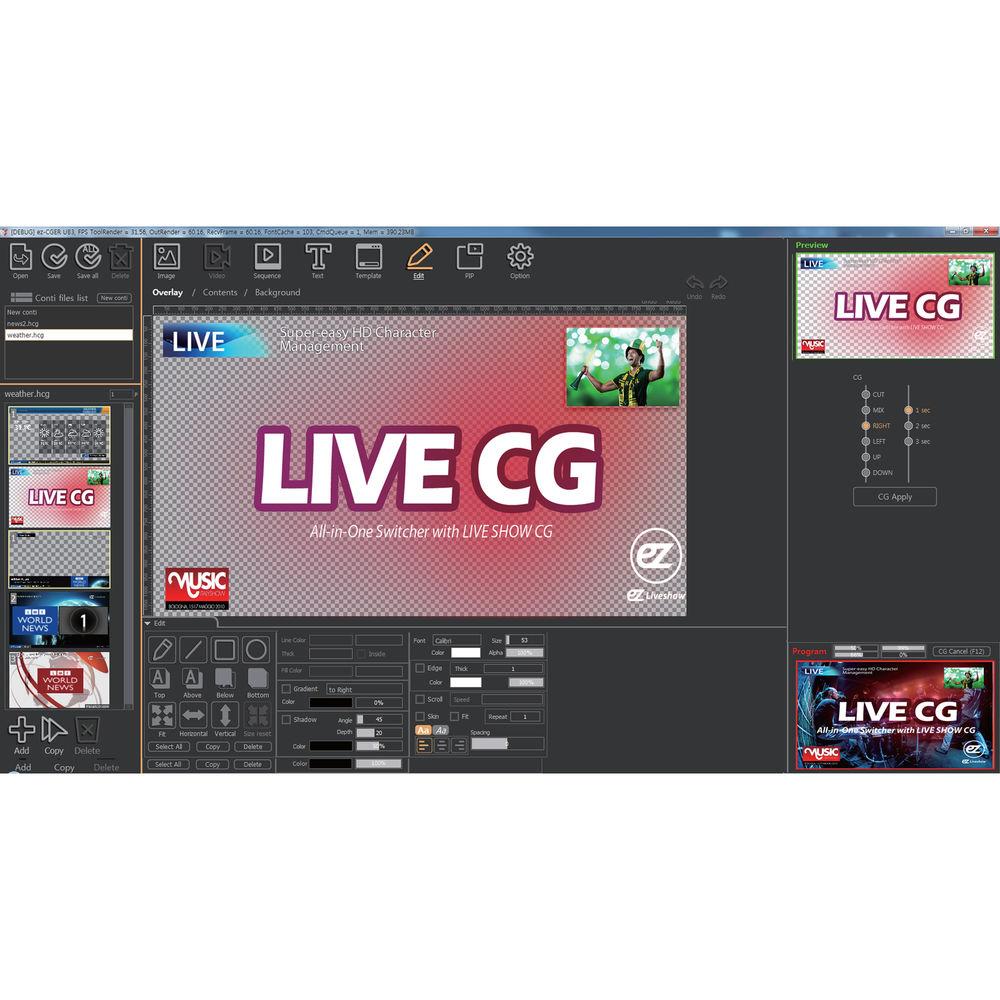

Product description The ez-CGER mini Live HD-SDI USB Fill/Key and CG Generator from Lumantek is a simple and small HD live graphic system for live conferences and active video presentations. Create and present on-screen CG and texts in real-time using the generator and CGER software via the USB 3.0 port, and generate Fill/Key signals to the HD-SDI port. - Complimentary ez-CGER CG software for Windows OS
- Insert texts, images, sequences, videos, and widgets
- No power connection needed
In the Box Lumantek ez-CGER mini Live HD-SDI USB Fill/Key and CG Generator with CGER Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumantek ez-CGER mini Live HD-SDI USB Fill Key and CG Generator with CGER Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

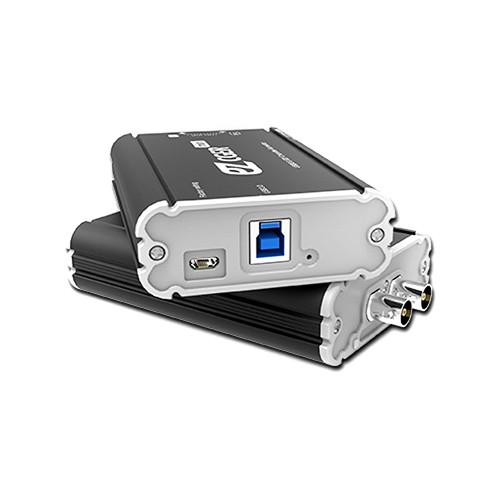

Technical parametersLumantek EZ-CGER MINI Specs | Input | 1 x USB 3.0, Fill/Key port | | Output | 1 x BNC, HD-SDI Fill
1 x BNC, HD-SDI Key | | USB Device Support | USB 3.0 Video Streamer Device: Fill & Key input
USB 2.0 to Serial (COM Port) Device: Control
USB 2.0 to SPI Device: Firmware update | | Internal Video Processing | YCbCr 4:2:2 10-bit | | Supported Resolution | 1280 x 720p: 60/59.94/50
1920 x 1080i: 60/59.94/50 | | Supported Image Formats | JPG, PNG, BMP, GIF, and TGA | | Supported Video Formats | WMV, AVI, and MP4 | | Management | USB: Easy to use GUI application, Firmware update | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (H x L) | 3 x 4.5" / 76 x 115 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.2 x 6.0 x 3.7" |
