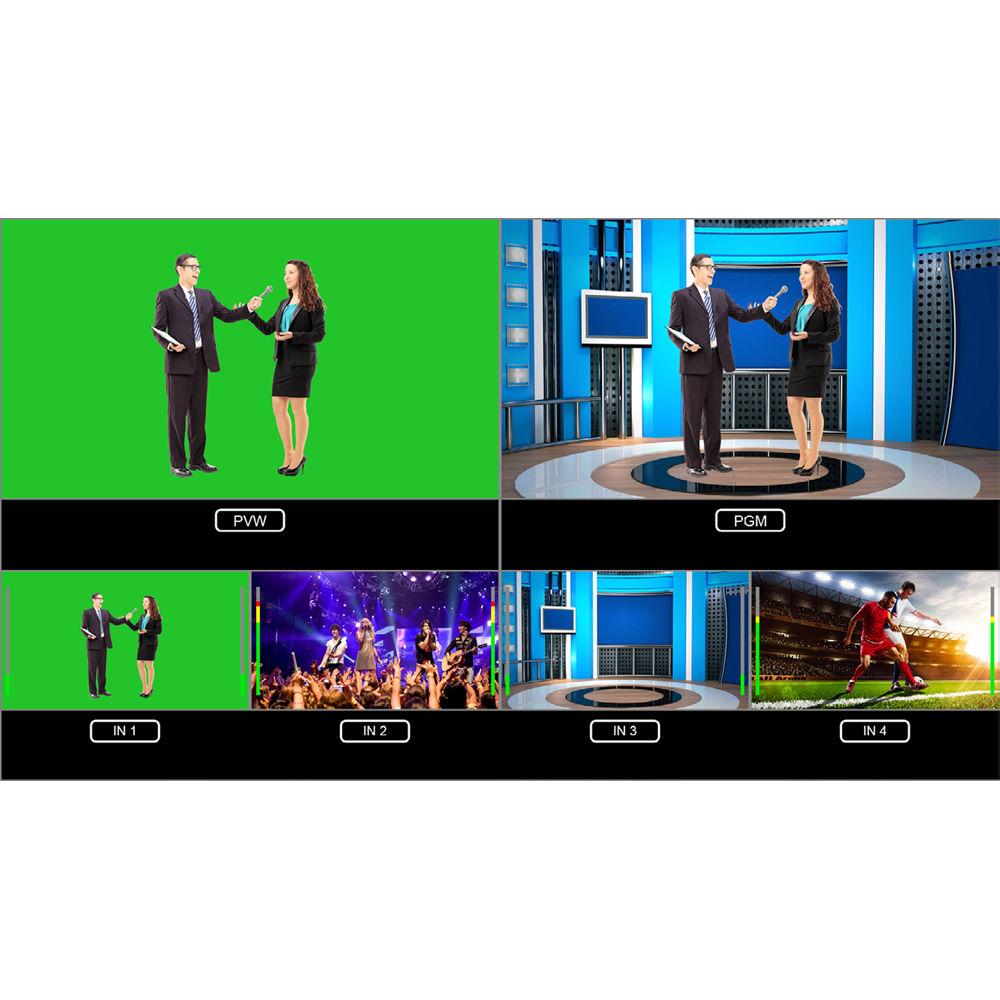

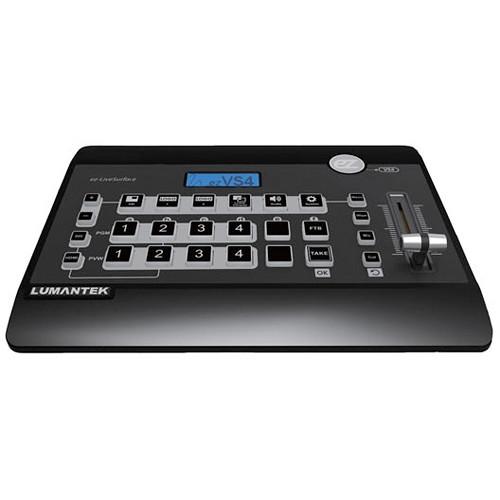

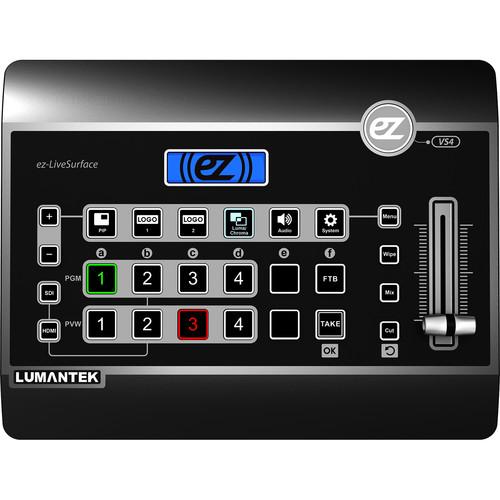

Product description The flexible ez-Pro VS4 4x1 Multiview Switcher from Lumantek is a standalone console switcher designed for corporate, educational, event, and house-of-worship applications. Integrated scaling enables you to mix and match up to four SD, HD, 3G-SDI, and HDMI signals. Program is output via HDMI or SDI, and a multiview display is available via HDMI. Features of the ez-Pro VS4 include an adjustable PiP (picture-in-picture) function, chroma/luma keying, embedded-audio volume control, and dual-logo insertion. Use the console buttons and T-bar to switch, cut, mix, wipe, and otherwise transition between sources.
The compact ez-Pro VS4 switcher supports video resolutions up to Full HD 1080p60 with 8/10-bit 4:2:2 processing, and both Level A and Level B 3G-SDI transmission. Up to four channels of embedded audio are supported, plus external audio via stereo RCA inputs. An integrated USB 2.0 interface is provided for firmware upgrades, logo input, and a GUI application. - Features
-
- Mix and match 3G/HD/SD-SDI and HDMI sources
- Supports up to 1080p60 HD video
- Multiview output via HDMI
- Automatic scaling
- PiP function with adjustable position and size
- Incorporates up to two logos
- Chroma and luma key functions
- Volume control for embedded audio
- External audio input via stereo RCA jacks
- Diverse transition effects
In the Box Lumantek ez-Pro VS4 4x1 Multiview Switcher for 3G-SDI and HDMI Power Supply Power Cord Limited 1-Year Warranty User Manual PDF 2.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumantek ez-Pro VS4 4x1 Multiview Switcher for 3G-SDI and HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

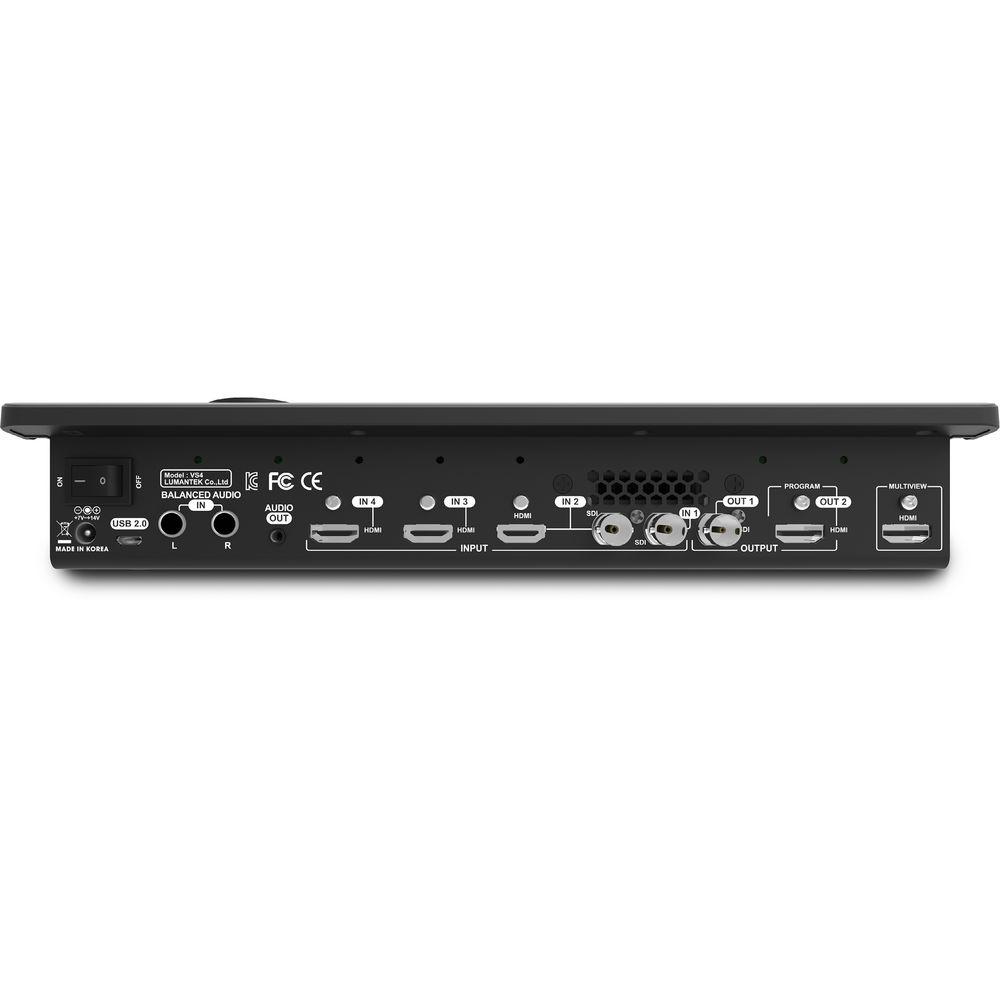

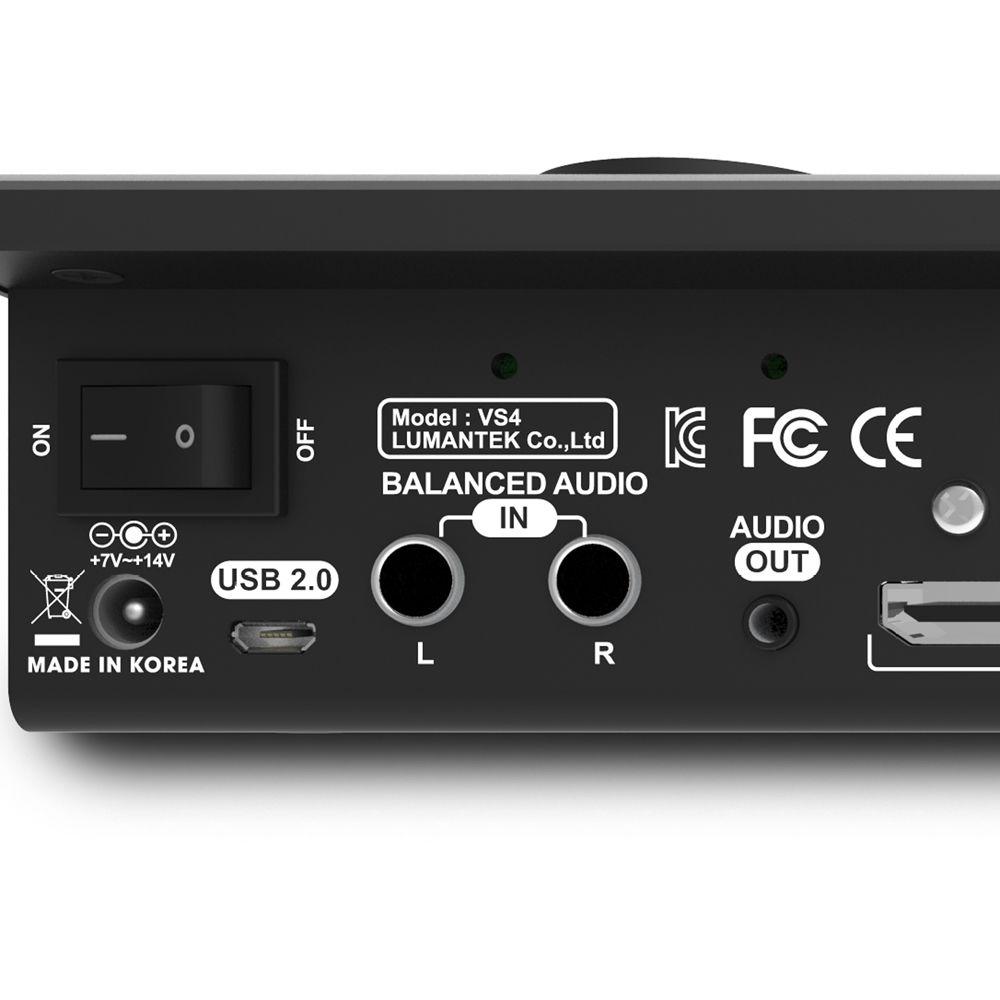

Technical parametersLumantek EZ-PRO VS4 Specs | Video Input | 1 x SDI/HDMI selective
2 x HDMI
1 x SDI (BNC, 75 Ohms) | | Audio Input | 2 x 1/4" stereo RCA jacks (balanced, ±10 V max at -10 dB) | | Video Output | Program:
1 x HDMI
1 x SDI (BNC, 75 Ohms)
Multiview:
1 x HDMI | | Audio Output | 1 x 3.5 mm stereo | | Supported Input Resolutions | SD:
480i: 50/59
HD:
1080p: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Full HD:
1080p: 60/59.94/50 | | Supported Output Resolutions | HD:
1080p: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Full HD:
1080p: 60/59.94/50 | | USB Interface | USB 2.0 | | Power Input | 7-14 VDC | | Power Consumption (Maximum) | 20 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 2.8 x 11.7 x 9.1" / 70 x 297 x 230 mm | | Weight | 3.7 lb / 1.7 kg | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 13.937 x 10.236 x 4.488" |
