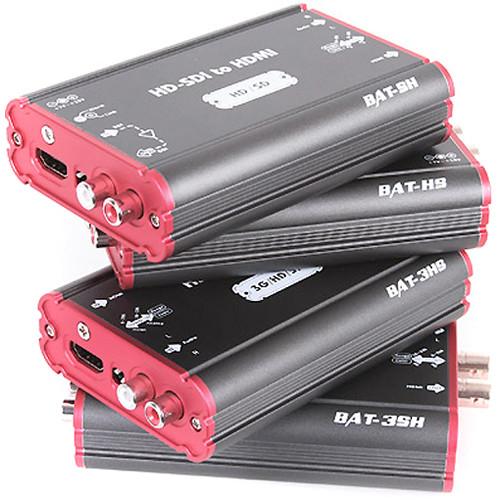

User Manual for Lumantek HD-SDI to Analog Mini Converter Click to enlarge the picture
Contents of the user manual for the Lumantek HD-SDI to Analog Mini Converter
- Product category: Signal Converters Lumantek
- Brand: Lumantek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lumantek Signal Converters
 |
User manual for the Lumantek HD-SDI to Analog Mini Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lumantek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lumantek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lumantek product will considerably shorten its lifespan!
|

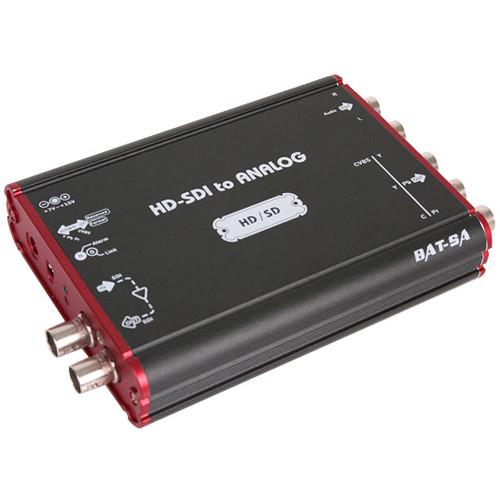

Product description The HD-SDI to Analog Mini Converter from Lumantek converts HD/SD SDI signals to analog video outputs with input resolutions from 480i to 1080p30. This converter lets you select between component (YPbPr) or composite (CVBS) and features a 48 kHz audio sampling and a low power consumption. In the Box Lumantek HD-SDI to Analog Mini Converter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumantek HD-SDI to Analog Mini Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumantek BAT-SA Specs | Inputs | 1 x BNC, HD-SDI video | | Outputs | 3 x BNC, analog component/composite video
1 x BNC, HD-SDI loop-thru video | | Audio | 2 x RCA, unbalanced output | | Control | DIP switch, configuration | | Video Formats | 1920 x 1080p at 23.94/24/25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720p at 50/59.94/60 fps
720 x 576i at 50 fps
720 x 480i at 59.94/60 fps | | Audio Sample Rate | 48 kHz | | DC Power Input | 7-18 VDC | | Power Consumption | < 3 W | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.2 x 6.0 x 3.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
