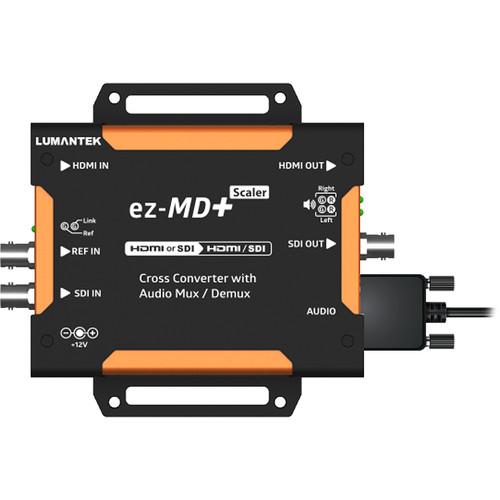

Product description The compact HDMI/SDI Cross Converter from Lumantek converts HDMI to SDI signals or SDI to HDMI signals. The converter can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60 and lets you choose between a 16:9 or 4:3 video displaying ratio. A 9-pin serial port allows embedding and de-embedding of audio with the included external 9-pin to XLR breakout cable. A 10-step rotary switch controls the audio delay of the video source at 50ms steps. - Frame Synchronization
- There is a Free Running, Input Lock, and Genlock mode to synchronize your video signal. The Genlock system ensures proper synchronizing of the signals when aligning the source with an external signal.
UPC: 887367000283 In the Box Lumantek HDMI/SDI Cross Converter with Audio Mux/Demux and Scaler 9-Pin to XLR Breakout Cable 12 VDC, 1 A Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumantek HDMI SDI Cross Converter with Audio Mux Demux and Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumantek EZ-MD+ Specs | | | Video Input Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI)
1 x HDMI | | Input Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94/60 fps
PAL: 50 fps
HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94/60 fps
PAL: 50 fps | | | | Video Output Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI)
1 x HDMI | | Output Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps
HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps | | | | Other I/O | 1 x DE-9/DB-9 Input/Output
1 x BNC Reference Input
1 x USB Micro-B | | | | Power Connector | 1 x Barrel (11 to 13 VDC) Input | | Power Consumption | Power Supply: 100 to 240 VAC at 1 A (8 W) | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | | | Dimensions | 5.12 x 3.95 x 1.06" / 130 x 100.4 x 26.9 mm | | Weight | 14.1 oz / 400 g |
