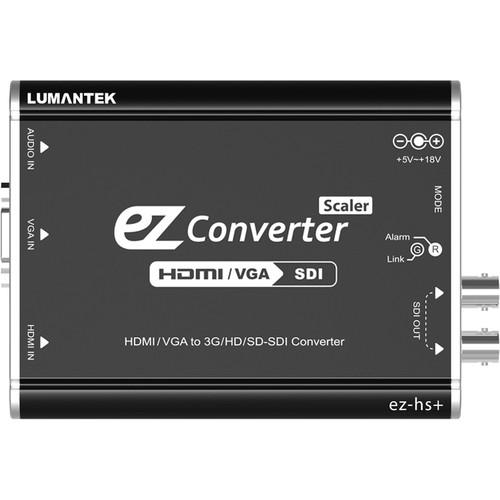

Product description The Lumantek HDMI/VGA to SDI EZ-Converter with Scaler allows you to convert an HDMI or VGA signal to dual 3G/HD/SD-SDI outputs with upscaling to up to 1080p60 resolution. It also lets you embed independent audio into the outputs via a 3.5mm audio input jack. This converter enables you to connect an HDMI or VGA source to two SDI monitors, such as one locally and one remotely. - Key Features
-
- HDMI and VGA inputs
- Dual 3G/HD/SD-SDI outputs
- 3.5mm audio input
- Upscaling to 1080p60 resolution
- 48 kHz audio sample rate
- Dip switch for changing resolutions from SD to Full HD
- External audio muxing
In the Box Lumantek HDMI/VGA to SDI EZ-Converter with Scaler Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lumantek HDMI VGA to SDI EZ-Converter with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLumantek ez-hs+ Specs | Input Formats | HDMI:
1920 x 1080p at 23.94/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720p at 50/59.94/60 fps
720 x 576i at 50 fps
720 x 480i at 59.94/60 fps
VGA:
1920 x 1080
1600 x 1200
1280 x 1024
1024 x 768
800 x 600
640 x 480 | | Output Formats | 1920 x 1080p at 23.94/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720p at 50/59.94/60 fps
720 x 576i at 50 fps
720 x 480i at 59.94/60 fps | | Input | 1 x HDMI Type A
1 x VGA 15-pin
1 x 3.5 mm audio jack | | Output | 2 x 3G/HD/SD-SDI on BNC (75 Ohms) | | Aspect Ratio | Full, Center Cut, Letter Box, 14:9 Center Cut | | Audio Sample Rate | 48 kHz | | DC Power Input | 5-18 VDC | | Power Consumption | < 3 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Relative Humidity | 0 - 90% | | Dimensions | 5 x 4 x 1.1" (13 x 10 x 2.8 cm) | | Weight | 10.5 oz (297 g) | | | | Package Weight | 1.59 lb | | Box Dimensions (LxWxH) | 8.25 x 6.05 x 3.55" |
